UBKTR

Separating strip

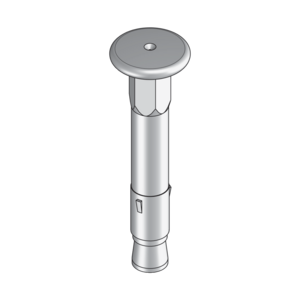

UBKTR components are separating strips used for the installation of screed-flush heavy-duty ducts. The underfloor elements are bolted into the ducts where they safely separate the power cables from other installation elements. They are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346. They are 3000 mm long, are made of material 1 mm thick and come in three different heights. SNA nail anchors can be supplied as an optional accessory.

Get in touchDownload datasheet

Variants

Article

H

height

L

length

t

material thickness

G

Weight per storage unit

  • UBKTR 100S
    barrier strip UBKTR 100S, L=3000mm,
    height
    80 mm
    length
    3000 mm
    material thickness
    1.00 mm
    Weight per storage unit
    2.720 kg
    More information
  • UBKTR 135S
    barrier strip UBKTR 135S, L=3000mm,
    height
    114 mm
    length
    3000 mm
    material thickness
    1.00 mm
    Weight per storage unit
    3.120 kg
    More information
  • UBKTR 170S
    barrier strip UBKTR 170S, L=3000mm,
    height
    149 mm
    length
    3000 mm
    material thickness
    1.00 mm
    Weight per storage unit
    3.940 kg
    More information
