Variants
Article

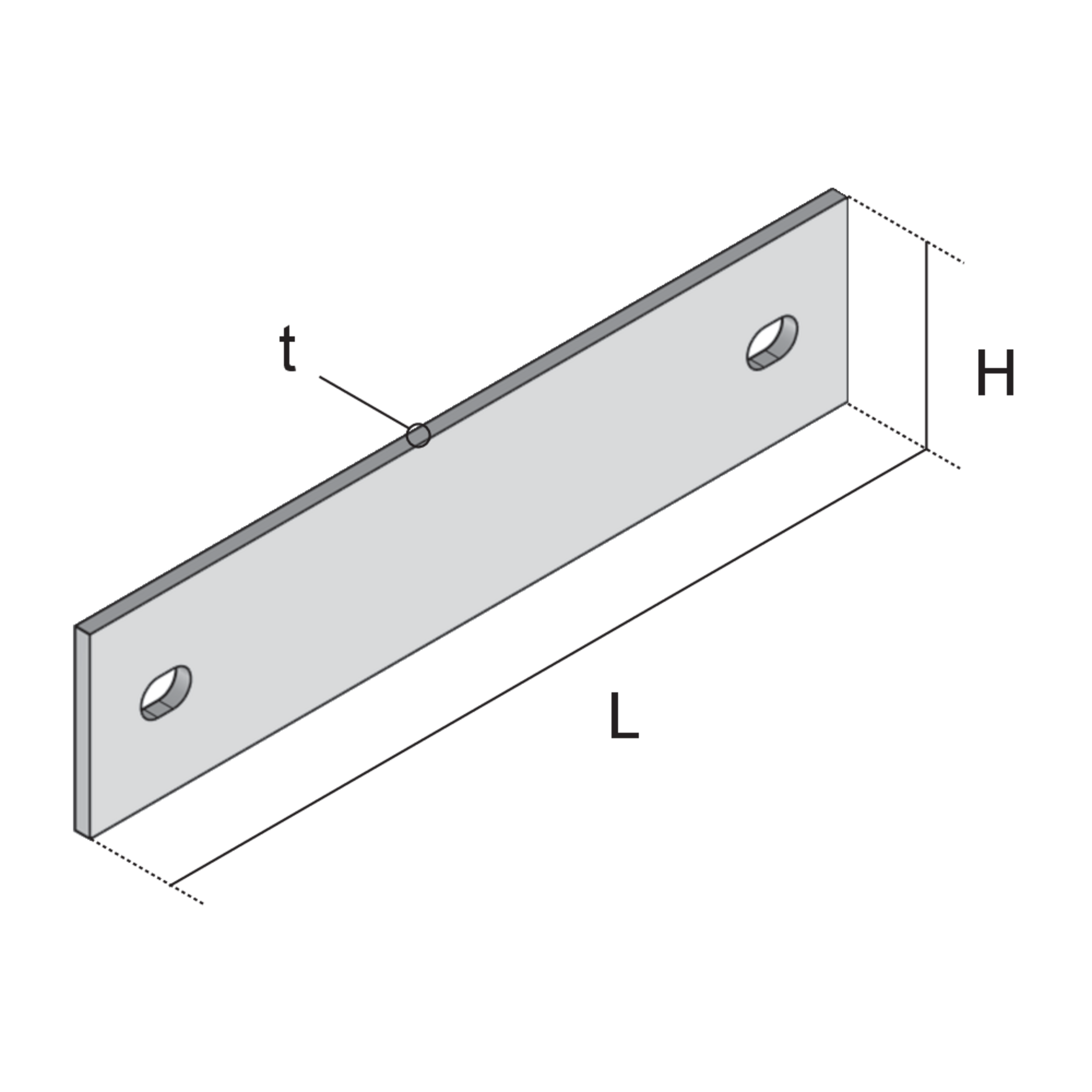

H
height
L
length
t
material thickness
G
Weight per storage unit
- UBKPRV
connectorheight35 mmlength150 mmmaterial thickness3.00 mmWeight per storage unit0.116 kg

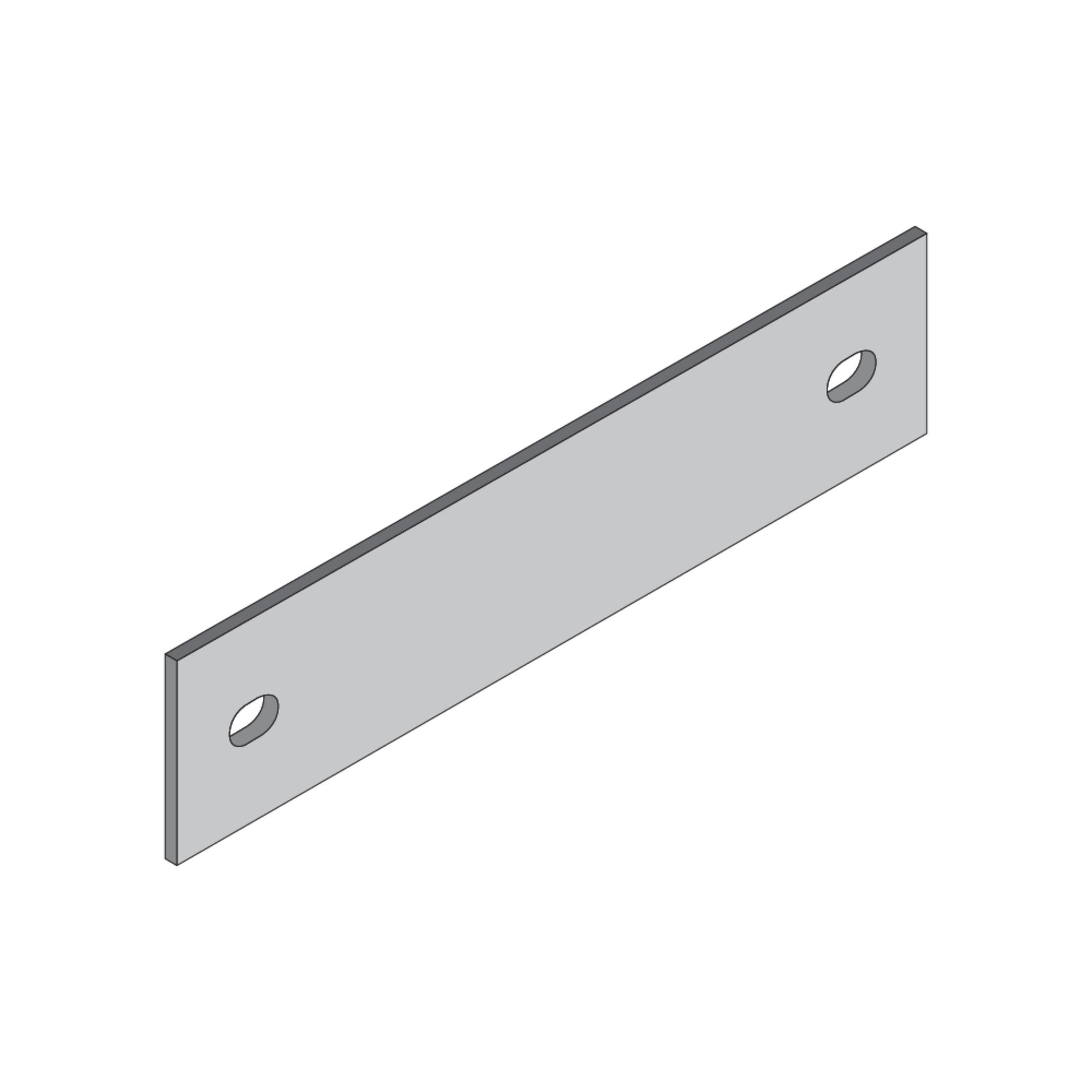

UBKPRV
Connector
UBKPRV components are connectors for screed-flush heavy-duty ducts. They are used to bolt the side profiles together at the joints. The articles are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346. They are 150 mm long, 35 mm high and are made of material 3 mm thick.
