UBKD

Blind cover

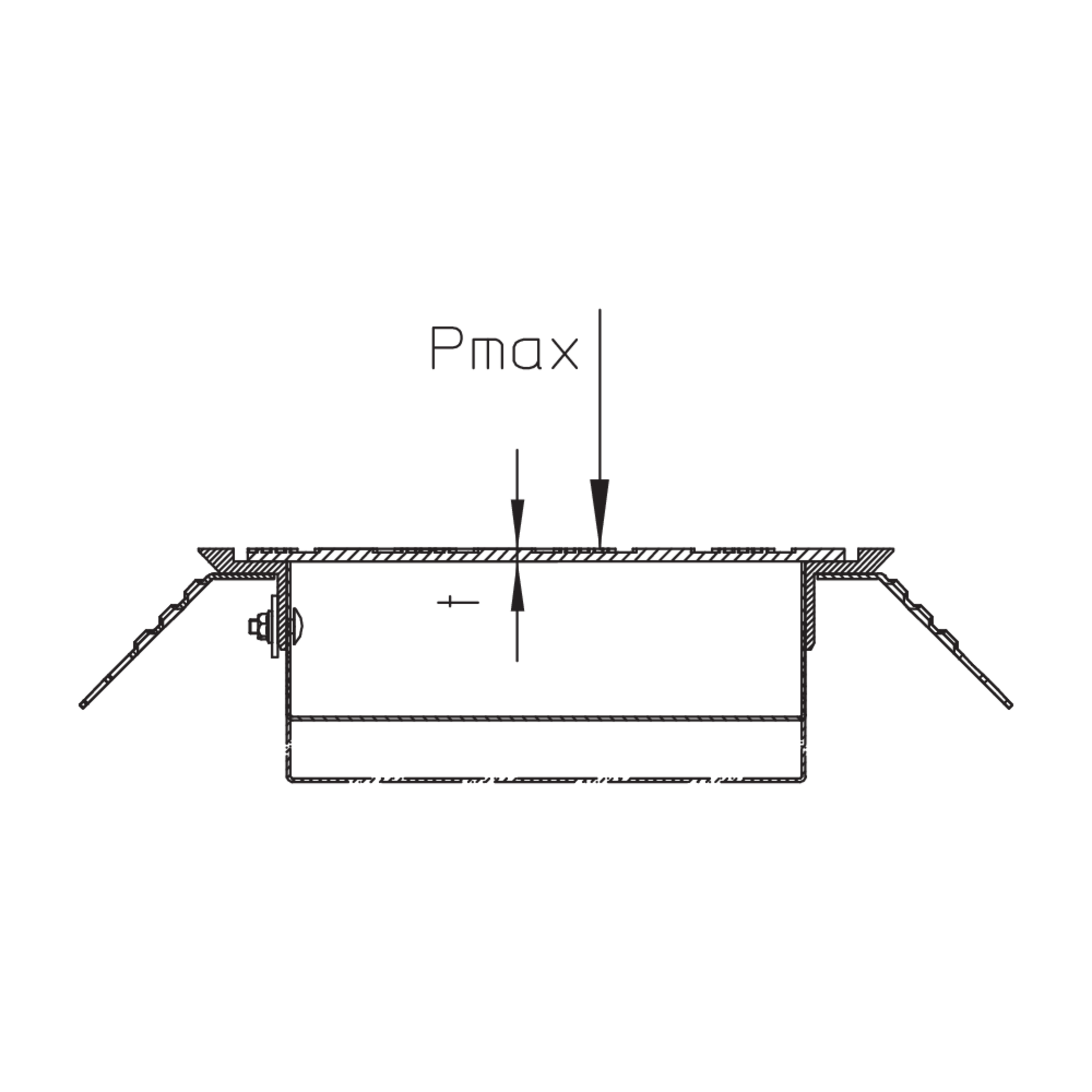

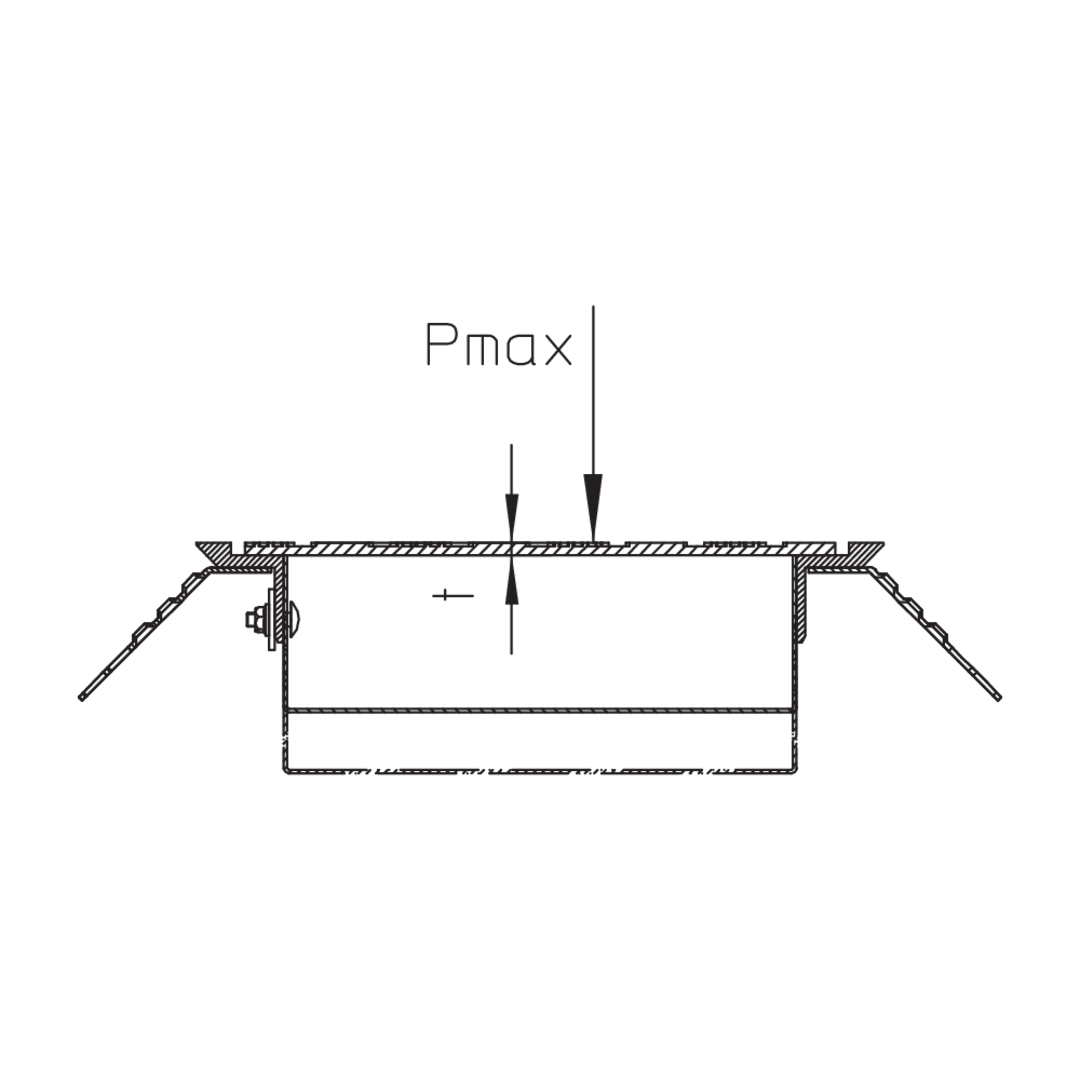

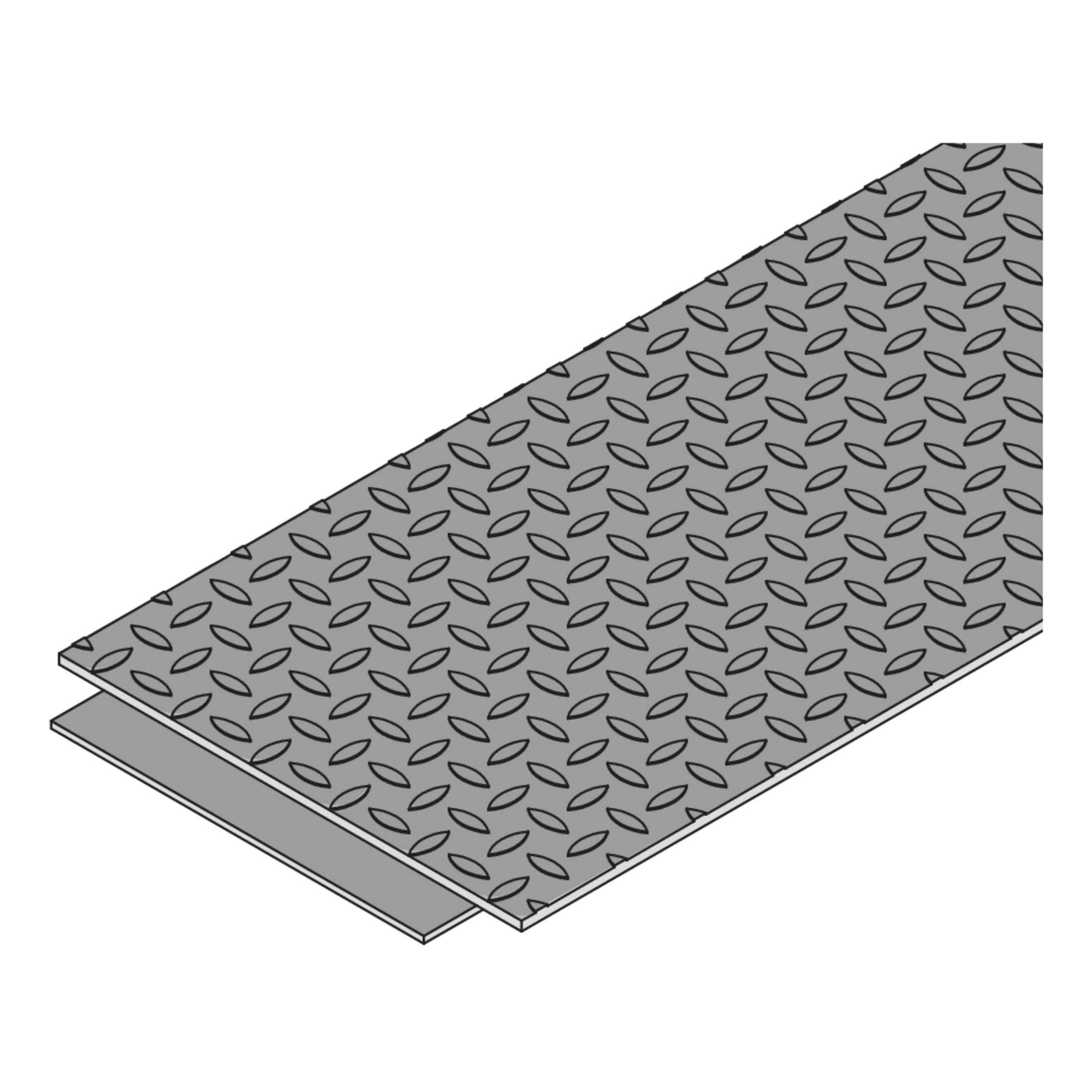

The UBKD blind cover is suitable for the UBK heavy-duty floor duct. The cover is made of galvanized bulb plate and is placed on the side profile of the screed-flush heavy-duty floor duct base. The bulb plates are loadable up to 25 kN.

Get in touchDownload datasheet

Variants

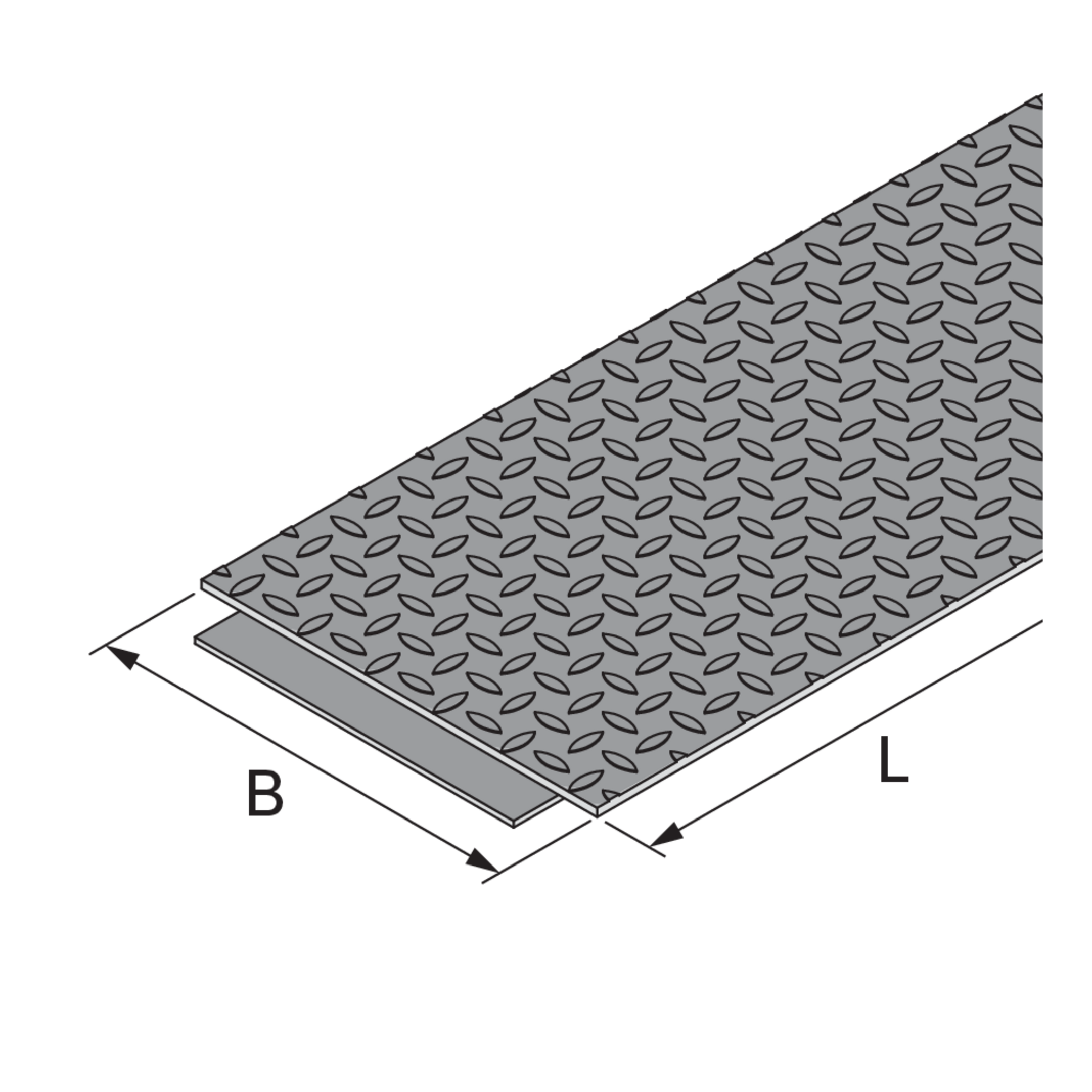

Article

B

width

L

length

t

material thickness

Pmax

maximum load

G

Weight per storage unit

  • UBKD10 25F
    dummy cover UBKD10 25F, L=1000mm,
    width
    250 mm
    length
    1000 mm
    material thickness
    10.00 mm
    maximum load
    25.00 kN
    Weight per storage unit
    18.463 kg
    More information
  • UBKD10 35F
    dummy cover UBKD10 35F, L=1000mm,
    width
    350 mm
    length
    1000 mm
    material thickness
    10.00 mm
    maximum load
    25.00 kN
    Weight per storage unit
    25.764 kg
    More information
  • UBKD10 45F
    dummy cover UBKD10 45F, L=1000mm,
    width
    450 mm
    length
    1000 mm
    material thickness
    10.00 mm
    maximum load
    25.00 kN
    Weight per storage unit
    33.184 kg
    More information
  • UBKD5 25F
    dummy cover UBKD5 25F, L=1000mm,
    width
    238 mm
    length
    1000 mm
    material thickness
    5.00 mm
    maximum load
    5.00 kN
    Weight per storage unit
    8.154 kg
    More information
  • UBKD5 35F
    dummy cover UBKD5 35F, L=1000mm,
    width
    338 mm
    length
    1000 mm
    material thickness
    5.00 mm
    maximum load
    5.00 kN
    Weight per storage unit
    11.624 kg
    More information
  • UBKD5 45F
    dummy cover UBKD5 45F, L=1000mm,
    width
    438 mm
    length
    1000 mm
    material thickness
    5.00 mm
    maximum load
    5.00 kN
    Weight per storage unit
    15.127 kg
    More information
  • UBKD8 25F
    dummy cover UBKD8 25F, L=1000mm,
    width
    250 mm
    length
    1000 mm
    material thickness
    8.00 mm
    maximum load
    15.00 kN
    Weight per storage unit
    14.480 kg
    More information
  • UBKD8 35F
    dummy cover UBKD8 35F, L=1000mm,
    width
    350 mm
    length
    1000 mm
    material thickness
    8.00 mm
    maximum load
    15.00 kN
    Weight per storage unit
    20.271 kg
    More information
  • UBKD8 45F
    dummy cover UBKD8 45F, L=1000mm,
    width
    450 mm
    length
    1000 mm
    material thickness
    8.00 mm
    maximum load
    15.00 kN
    Weight per storage unit
    26.122 kg
    More information
