BL 7

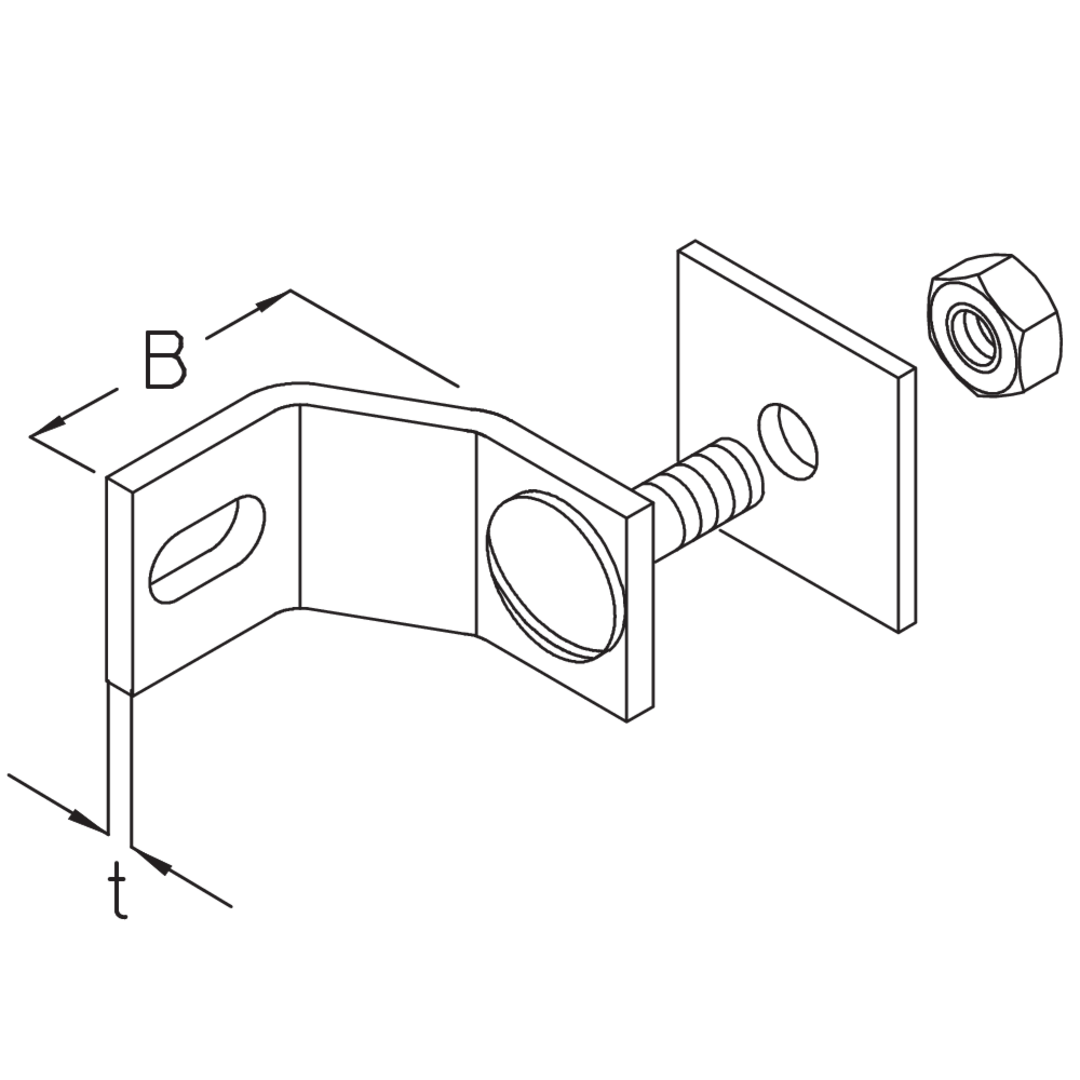

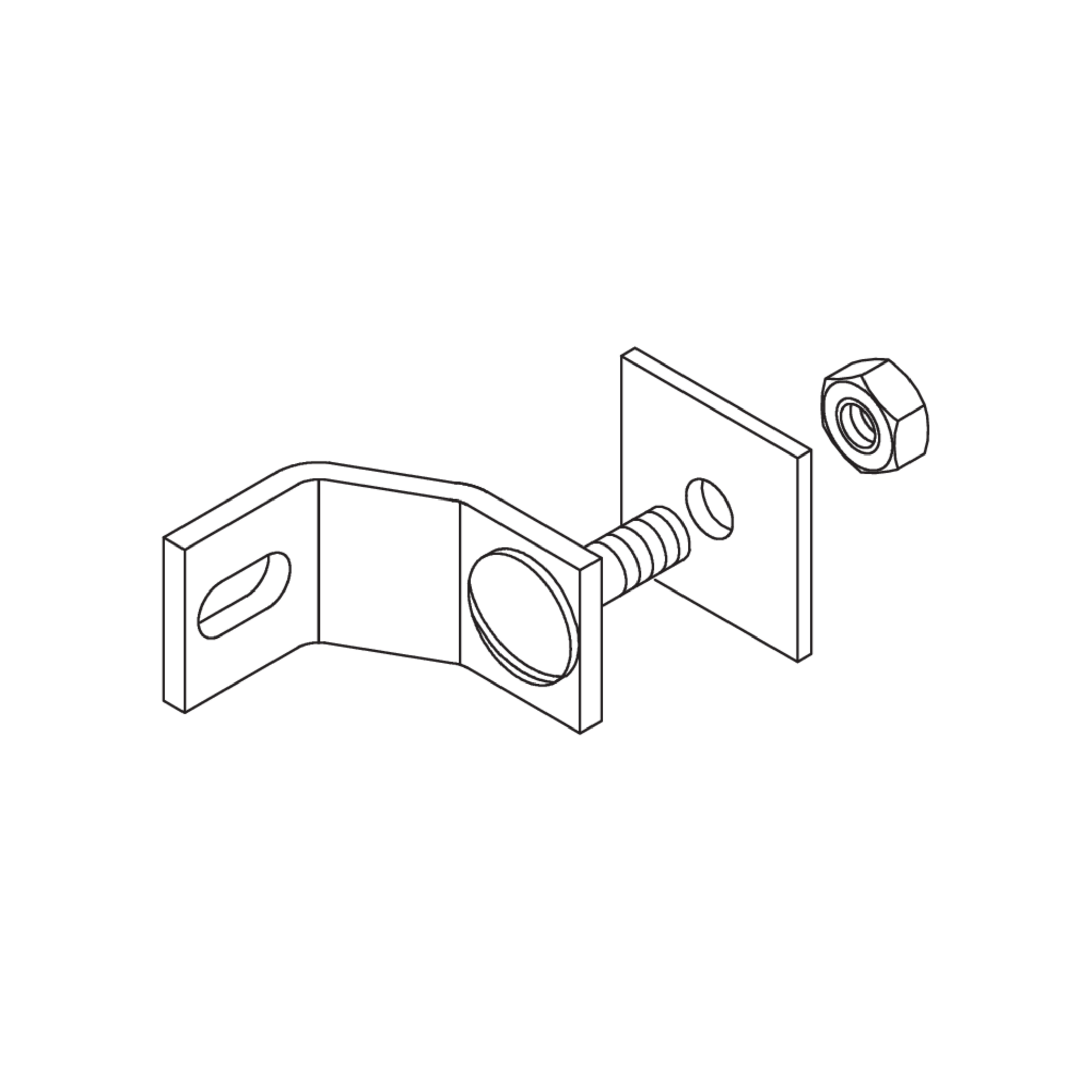

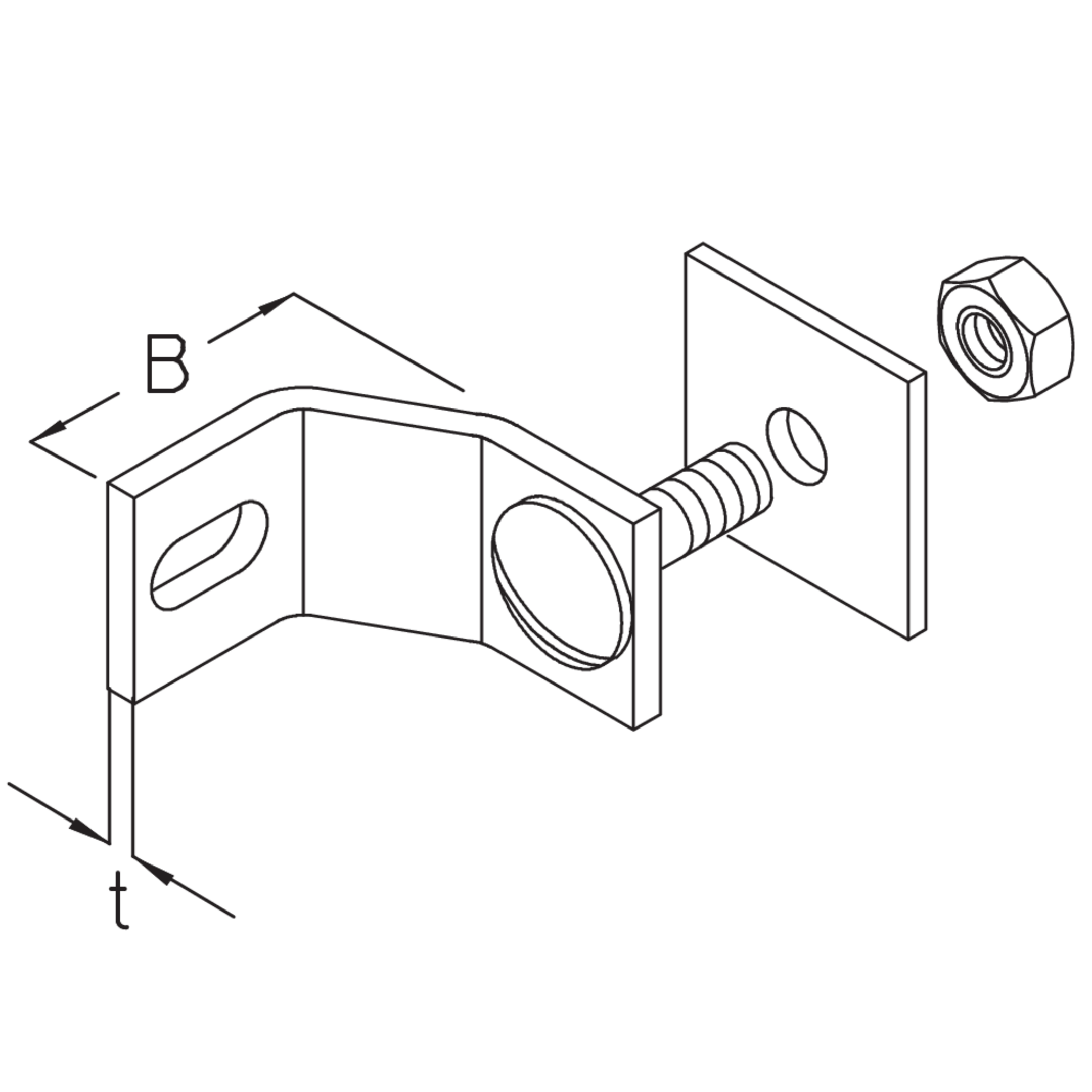

Corner angle, ST-BS 81, maintenance of function

Fire protection
Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

Article

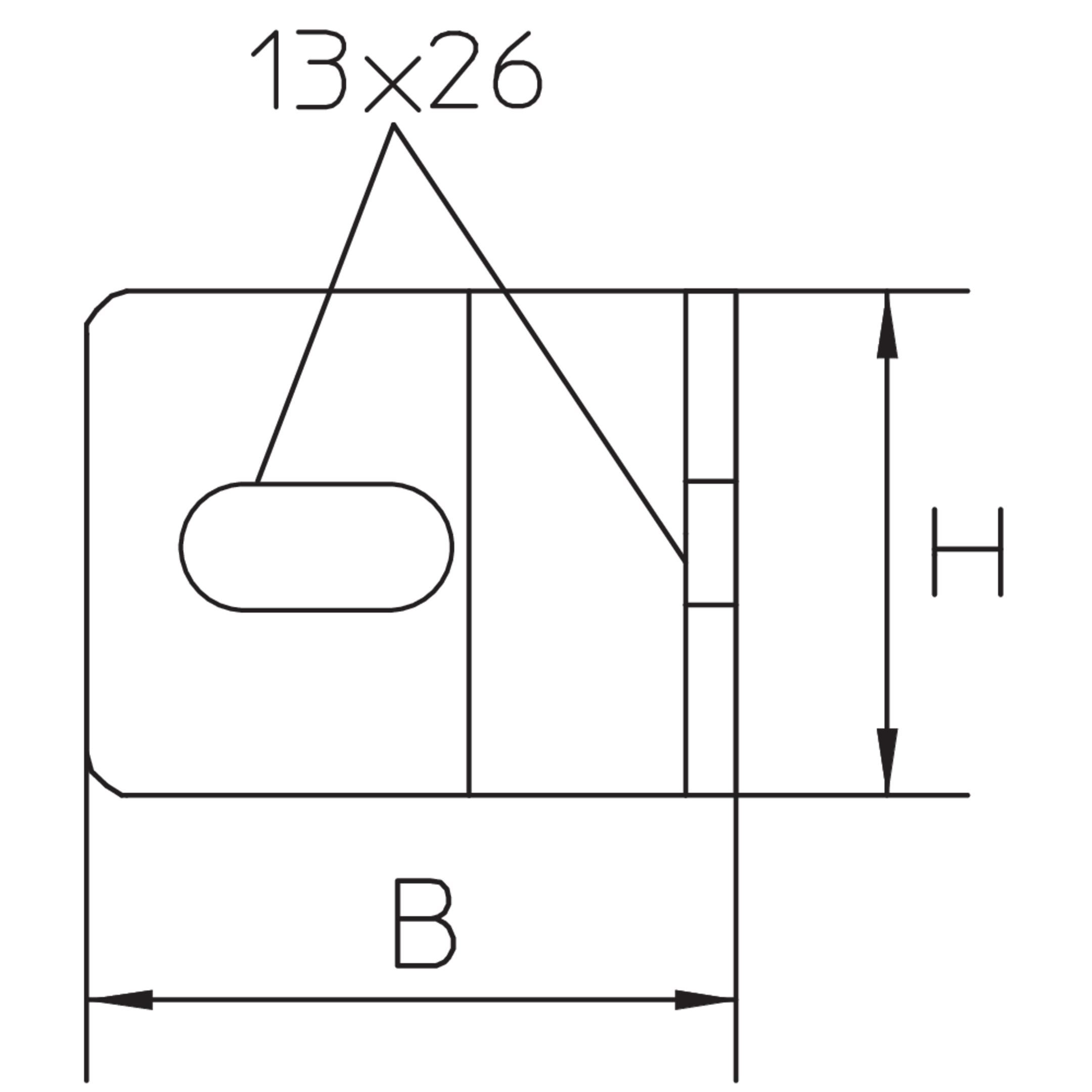

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

Included accessories
  • BL 7F
    Corner angle BL 7F
    height
    65 mm
    width
    50 mm
    length
    65 mm
    material thickness
    5.00 mm
    Weight per storage unit
    0.337 kg
    Included accessories
    More information

Details

  • Fire protection

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    • de

    GA-2025/097 - YN - Fire protection statement

    DIN 4102-12
    Standardised load-bearing structure: Rising routes
    Fire resistance duration: F30; F60; F90
    Functional maintenance classes: E30; E60; F90
    Cable load: ≤ 20 kg/m
    Fastening distance: ≤ 1.2 m
    Product/width: STU-BS 50 ≤ 600; LGG 60 ≤ 400; ST-BS 81 ≤ 600
    Validity period: 3 February 2031

    PDF (1.60 MB)
