KT

Bracket, standard, KDI/KHI

The strut bracket KT is attached to the KDI or KHI bracket holder and is intended for loads up to 2.1 kN. Various surfaces ensure that the corrosion requirements of a wide variety of applications are met.

Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

Article

H

height

B1

width 1

B2

width 2

L

length

Pmax

maximum load

G

Weight per storage unit

Geeignet für Funktionserhalt

  • KT 010F
    Bracket KT 010F
    height
    50 mm
    width 1
    100 mm
    width 2
    120 mm
    length
    124 mm
    maximum load
    2.00 kN
    Weight per storage unit
    0.259 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • KT 020F
    Bracket KT 020F
    height
    70 mm
    width 1
    200 mm
    width 2
    220 mm
    length
    224 mm
    maximum load
    2.00 kN
    Weight per storage unit
    0.484 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • KT 030F
    Bracket KT 030F
    height
    70 mm
    width 1
    300 mm
    width 2
    320 mm
    length
    324 mm
    maximum load
    2.00 kN
    Weight per storage unit
    0.594 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • KT 040F
    Bracket KT 040F
    height
    90 mm
    width 1
    400 mm
    width 2
    420 mm
    length
    424 mm
    maximum load
    2.00 kN
    Weight per storage unit
    0.958 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • KT 050F
    Bracket KT 050F
    height
    110 mm
    width 1
    500 mm
    width 2
    520 mm
    length
    524 mm
    maximum load
    2.00 kN
    Weight per storage unit
    1.429 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • KT 060F
    Bracket KT 060F
    height
    110 mm
    width 1
    600 mm
    width 2
    620 mm
    length
    624 mm
    maximum load
    2.10 kN
    Weight per storage unit
    1.654 kg
    Geeignet für Funktionserhalt
    Nein
    More information

steel, galvanic zinc plated

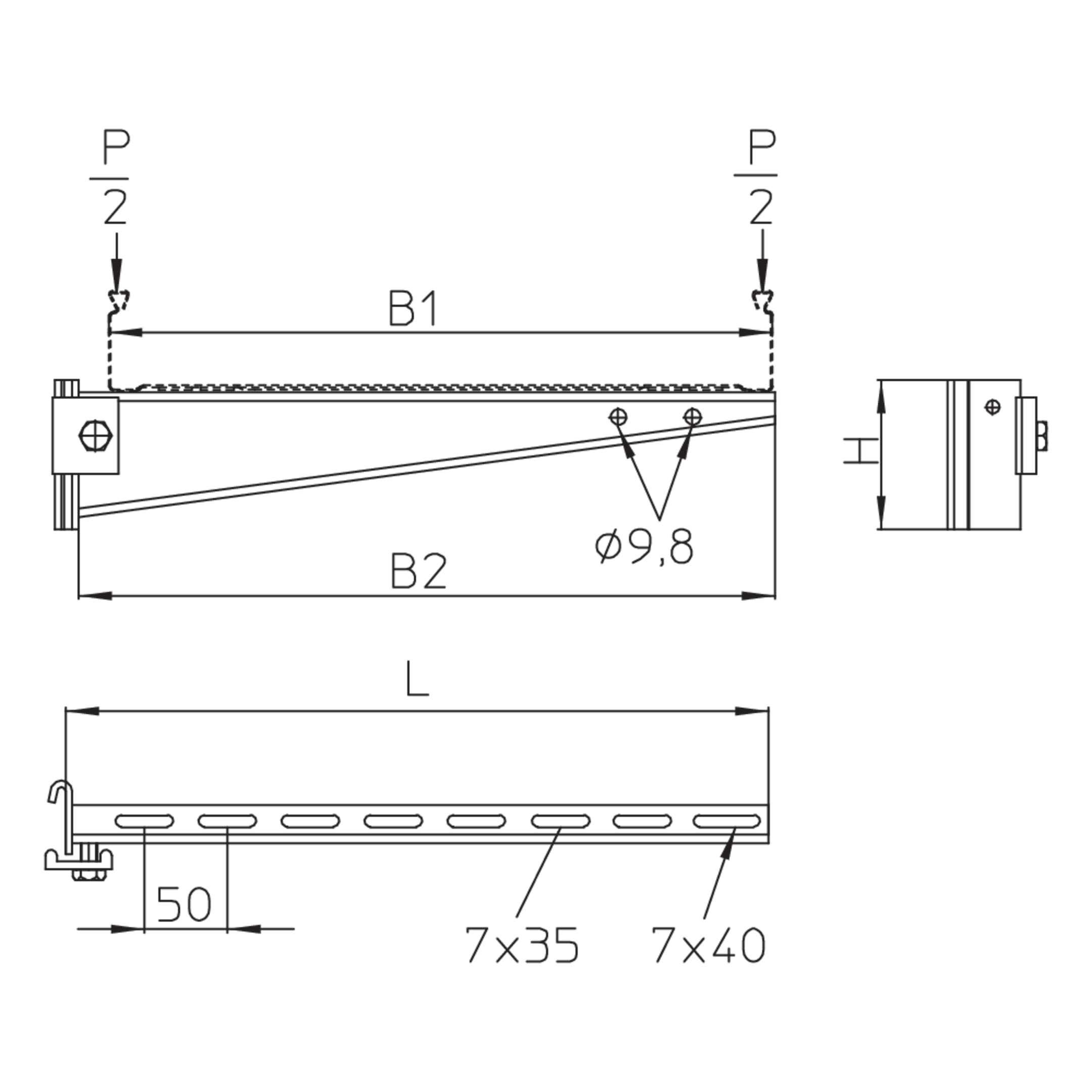

Article

H

height

B1

width 1

B2

width 2

L

length

Pmax

maximum load

G

Weight per storage unit

Geeignet für Funktionserhalt

  • KT 010GV
    Bracket KT 010F
    height
    50 mm
    width 1
    100 mm
    width 2
    120 mm
    length
    124 mm
    maximum load
    2.00 kN
    Weight per storage unit
    0.242 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • KT 020GV
    Bracket KT 020F
    height
    70 mm
    width 1
    200 mm
    width 2
    220 mm
    length
    224 mm
    maximum load
    2.00 kN
    Weight per storage unit
    0.463 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • KT 030GV
    Bracket KT 030F
    height
    70 mm
    width 1
    300 mm
    width 2
    320 mm
    length
    324 mm
    maximum load
    2.00 kN
    Weight per storage unit
    0.558 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • KT 040GV
    Bracket KT 040F
    height
    90 mm
    width 1
    400 mm
    width 2
    420 mm
    length
    424 mm
    maximum load
    2.00 kN
    Weight per storage unit
    0.895 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • KT 050GV
    Bracket KT 050F
    height
    110 mm
    width 1
    500 mm
    width 2
    520 mm
    length
    524 mm
    maximum load
    2.00 kN
    Weight per storage unit
    1.338 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • KT 060GV
    Bracket KT 060F
    height
    110 mm
    width 1
    600 mm
    width 2
    620 mm
    length
    624 mm
    maximum load
    2.10 kN
    Weight per storage unit
    1.548 kg
    Geeignet für Funktionserhalt
    Nein
    More information

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

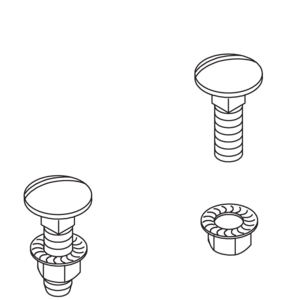

Included accessories
