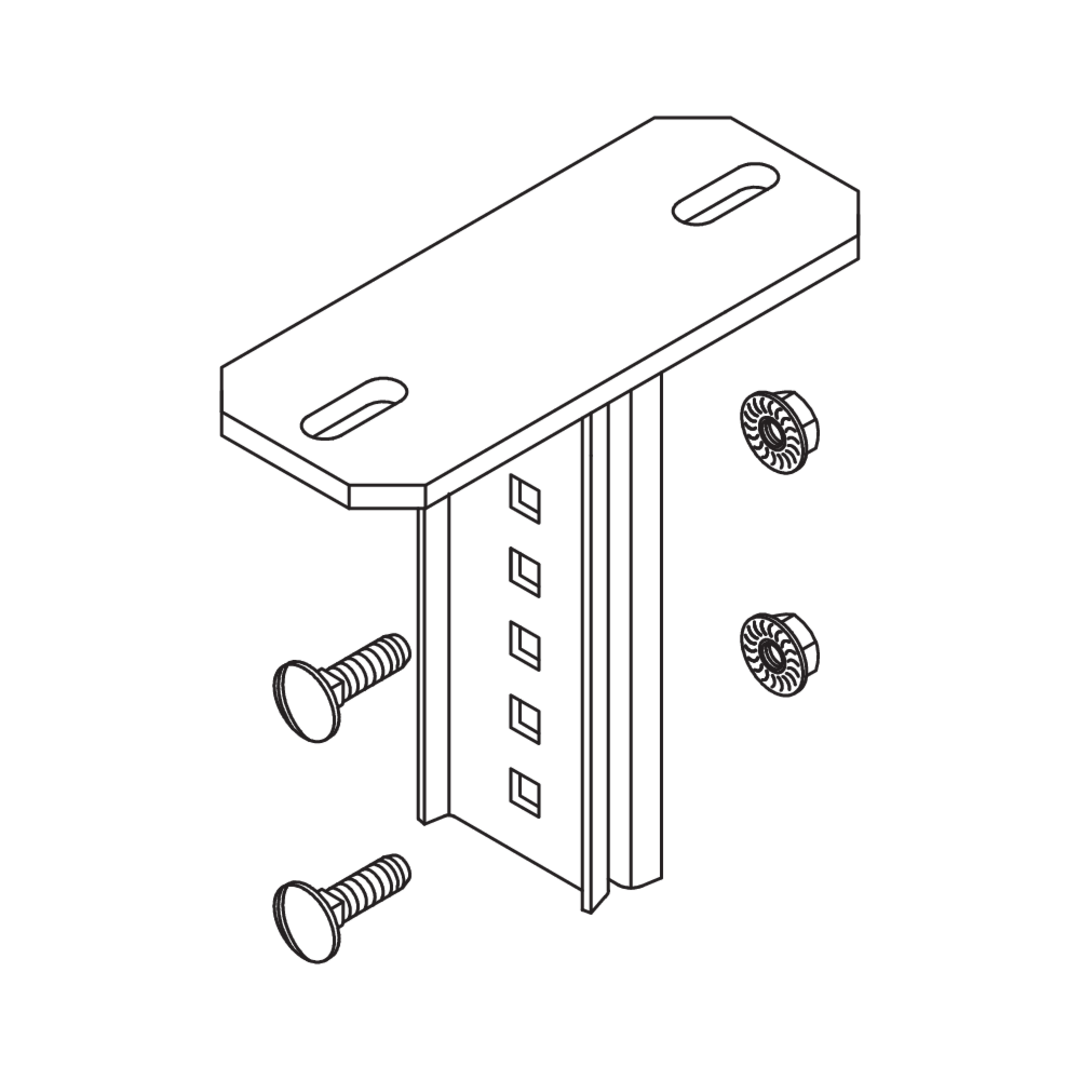

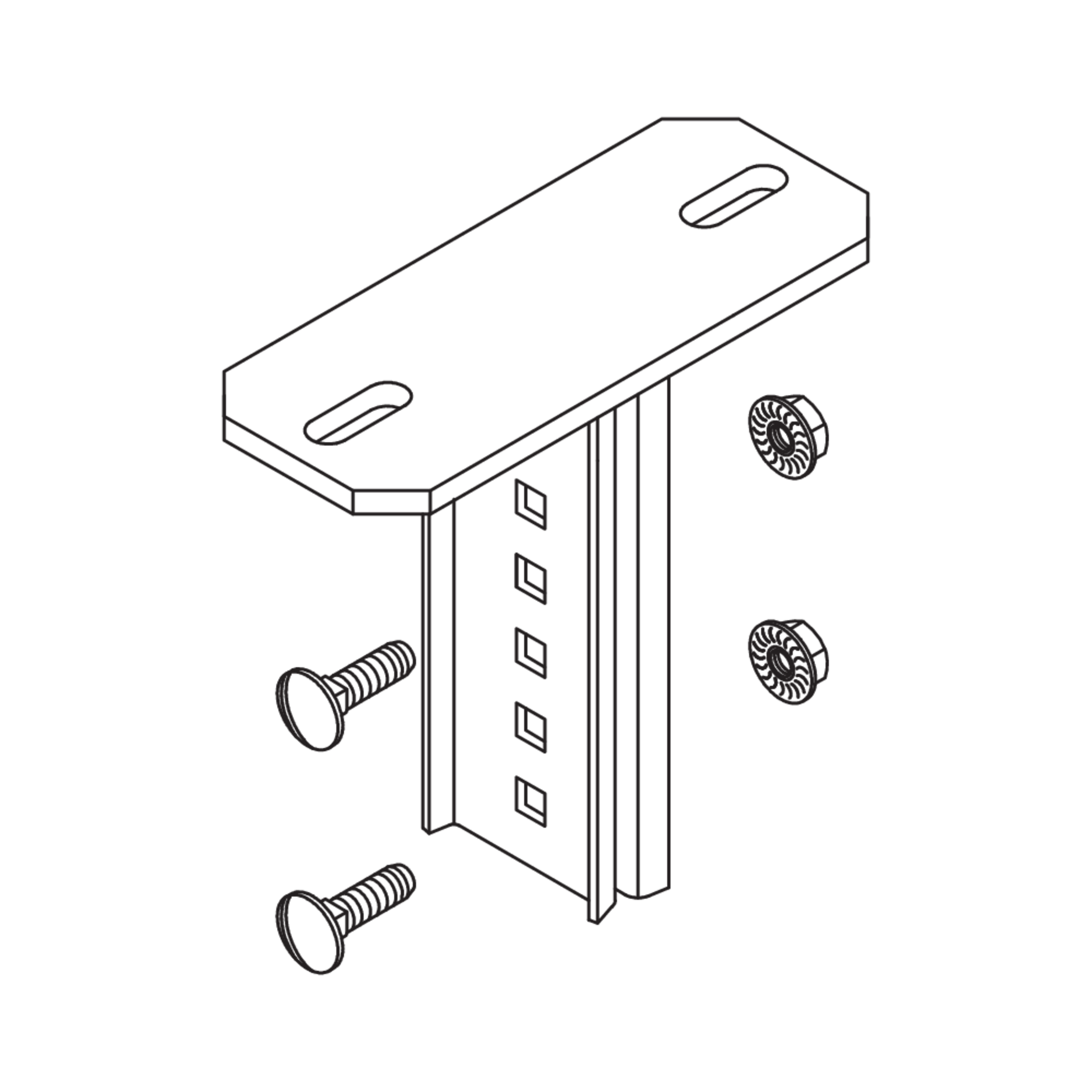

Bolted head plate turned 90°, KHI

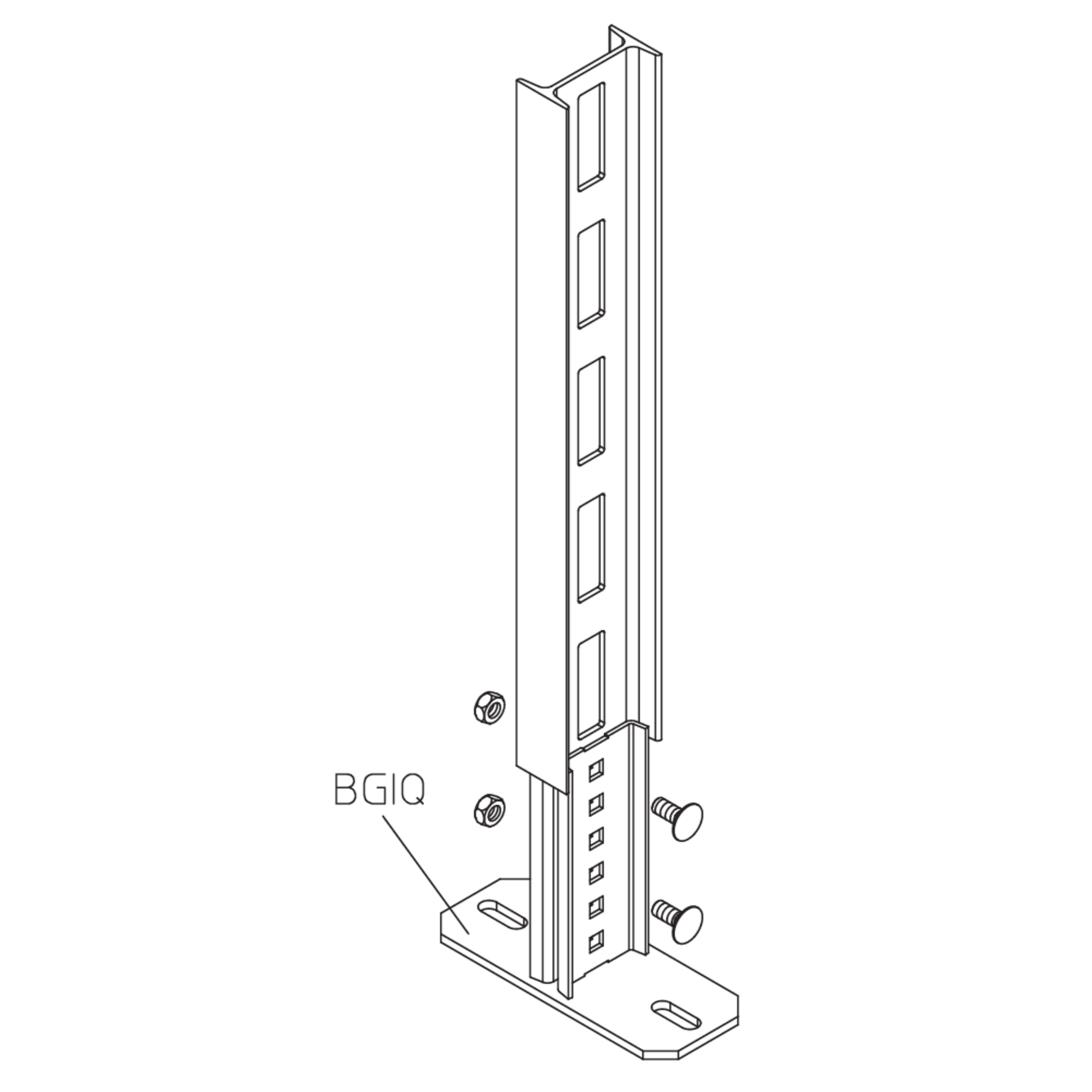

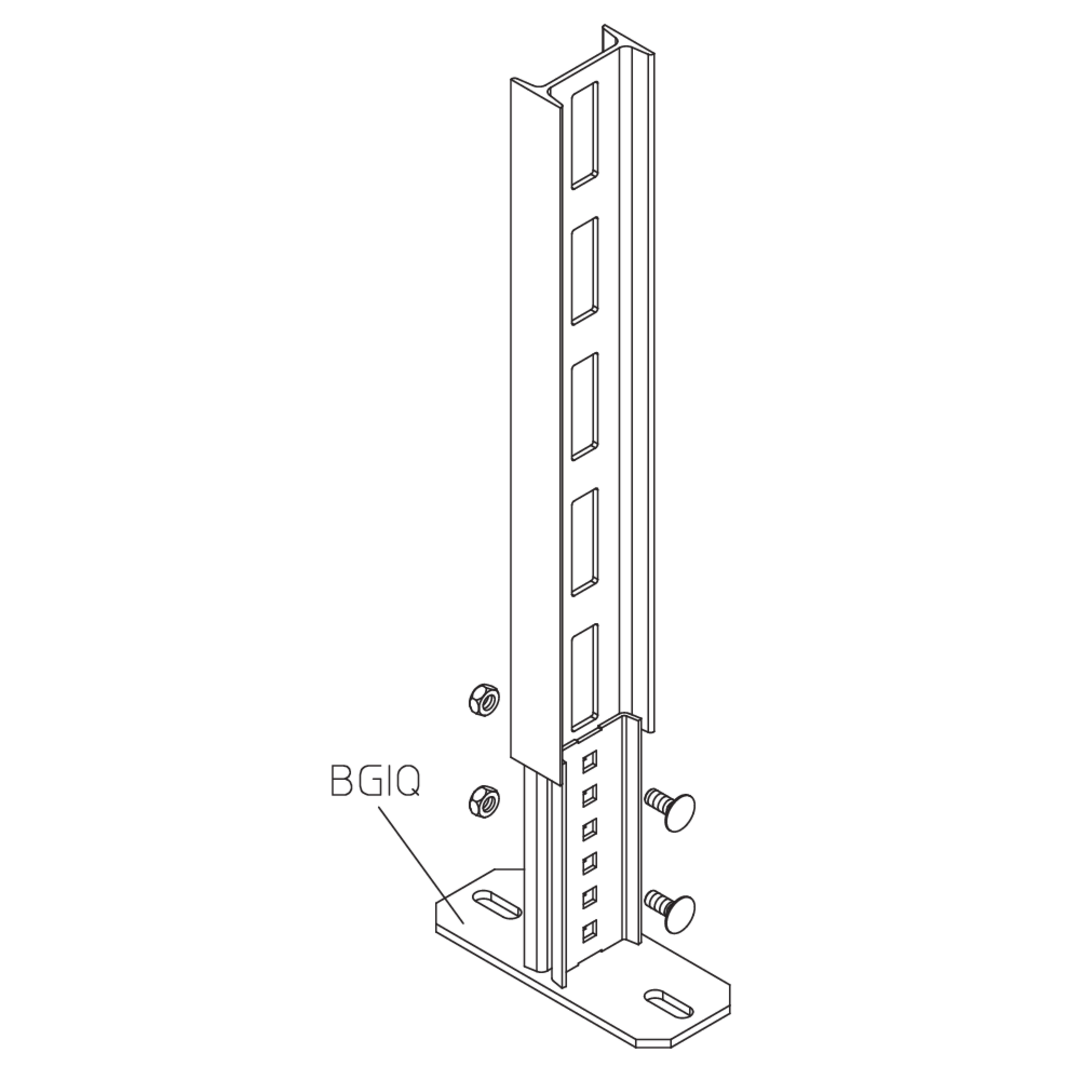

The head plate BGIQ with a plate turned at right angles to the rail is used for mounting KHI bracket holders on ceilings. It is bolted to the bracket holder and dowelled to the ceiling. The ST 81 and 82 vertical ladders can also be attached to the ceiling and/or floor using BGIQ. It is made of hot-dip galvanised steel.

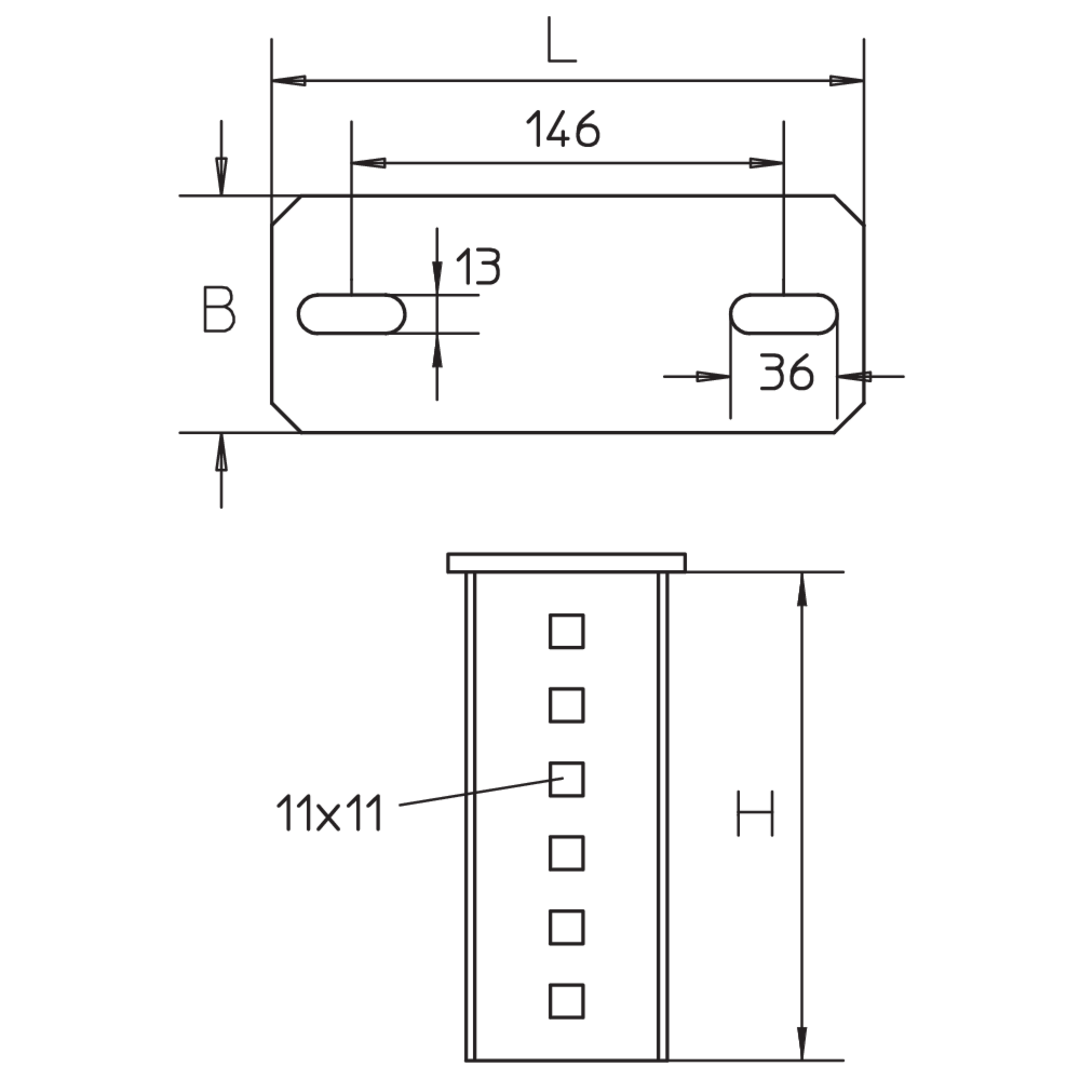

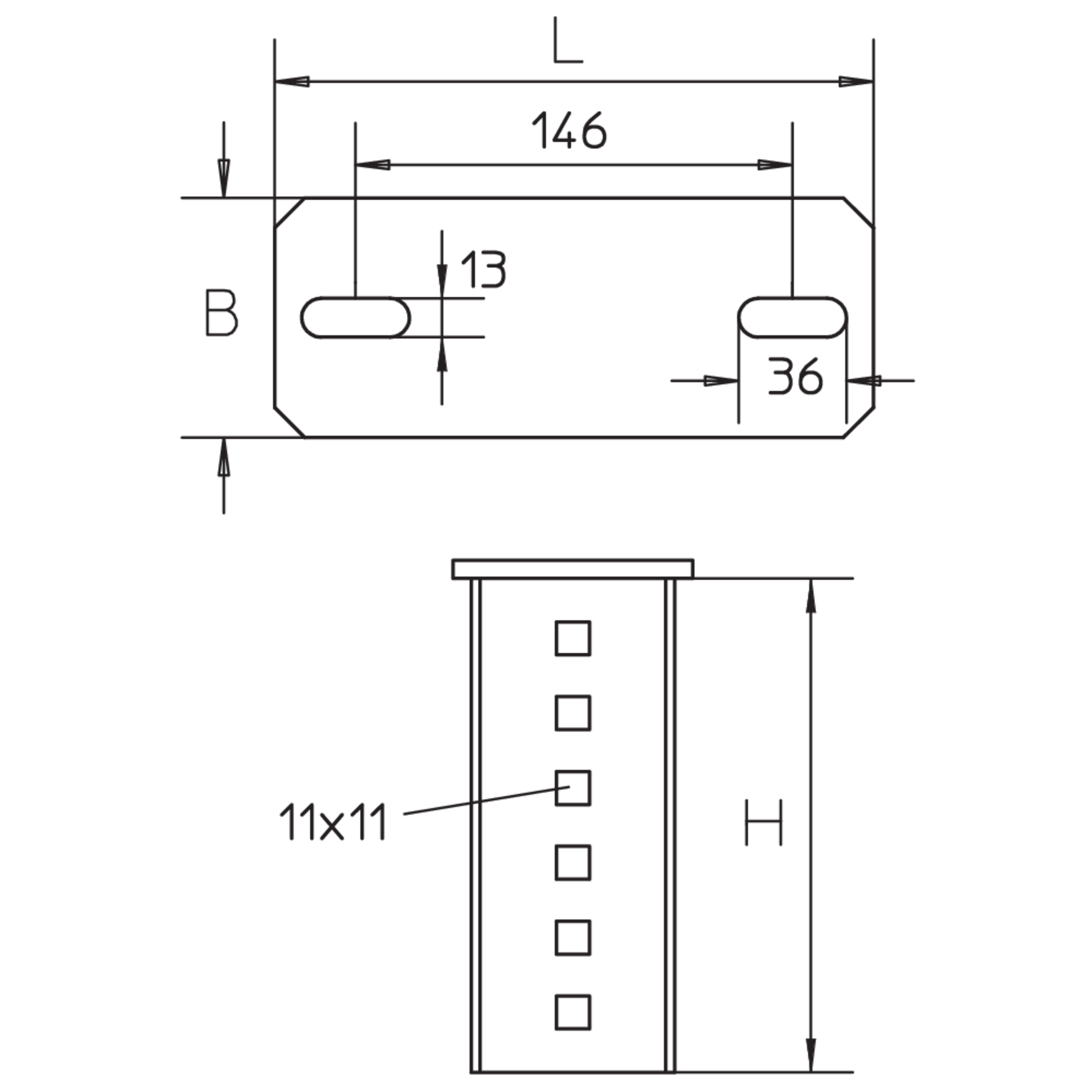

H
height
B
width
L
length
G
Weight per storage unit
de
en
Assembly Instructions
de
en
Technical information
de
en
Valid from February 1st, 2026
de
en
Valid from February 1, 2026
