Art.-Nr. GTDW 6S

Wire-mesh cable support

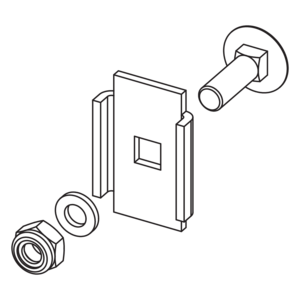

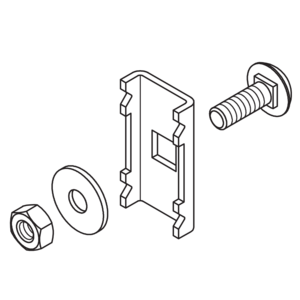

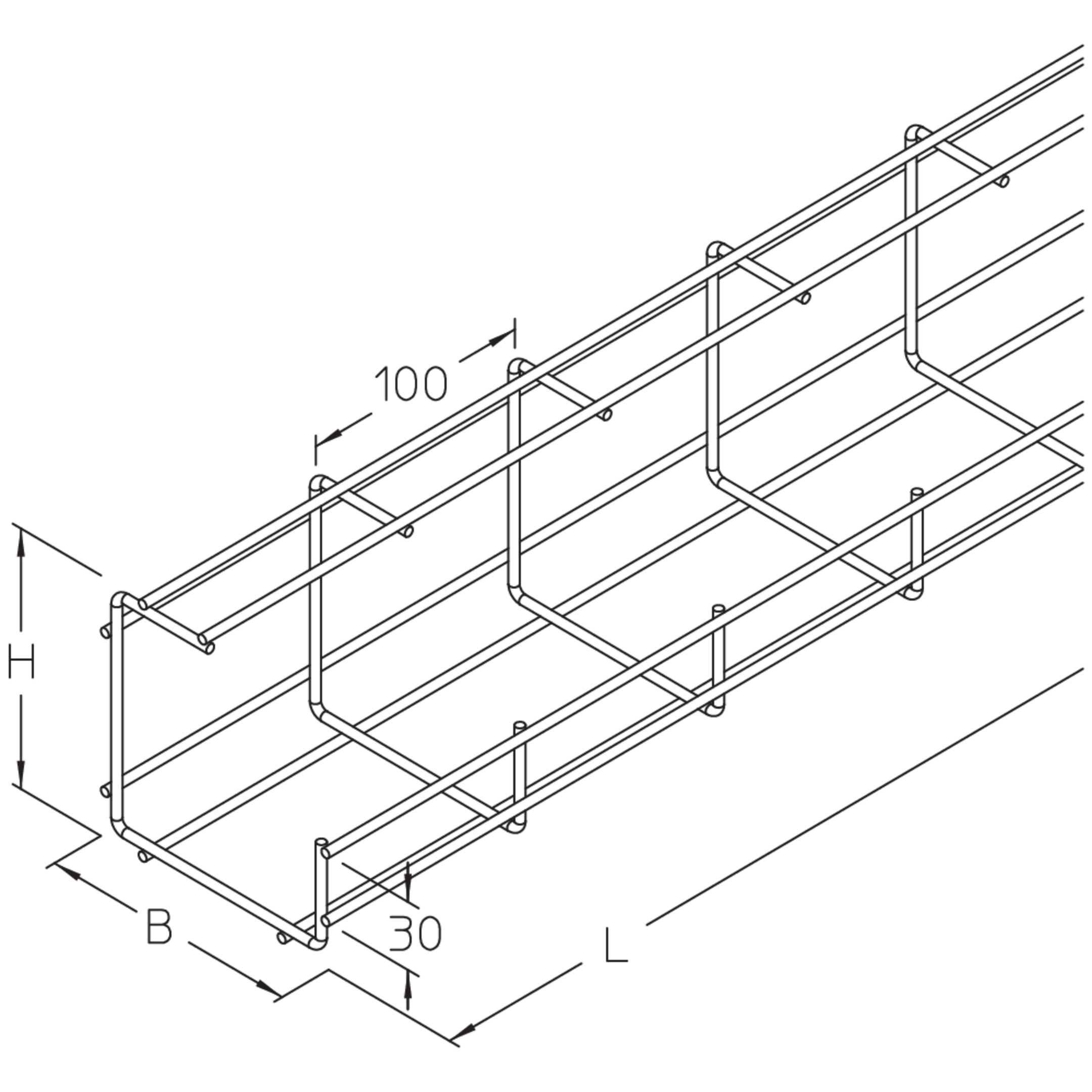

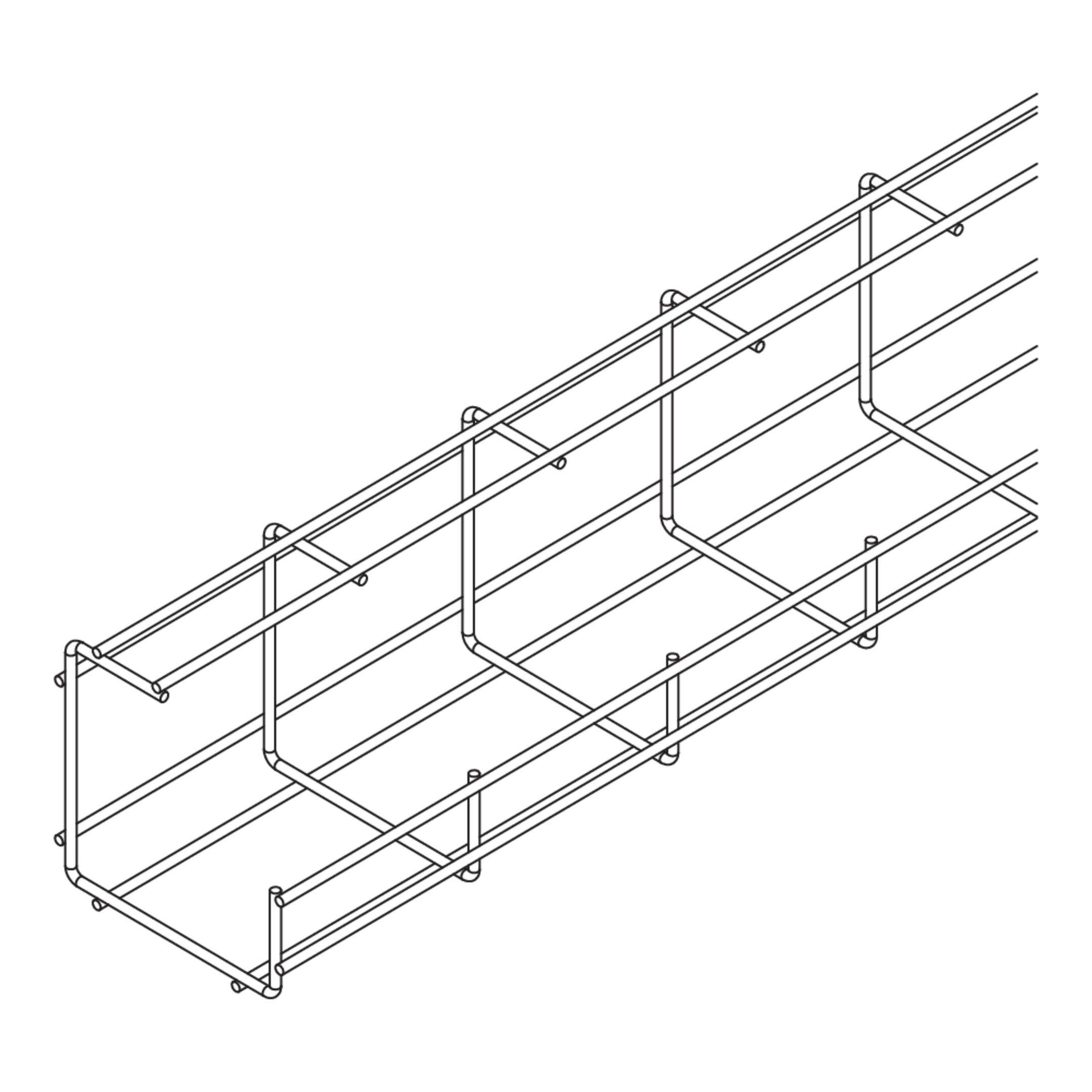

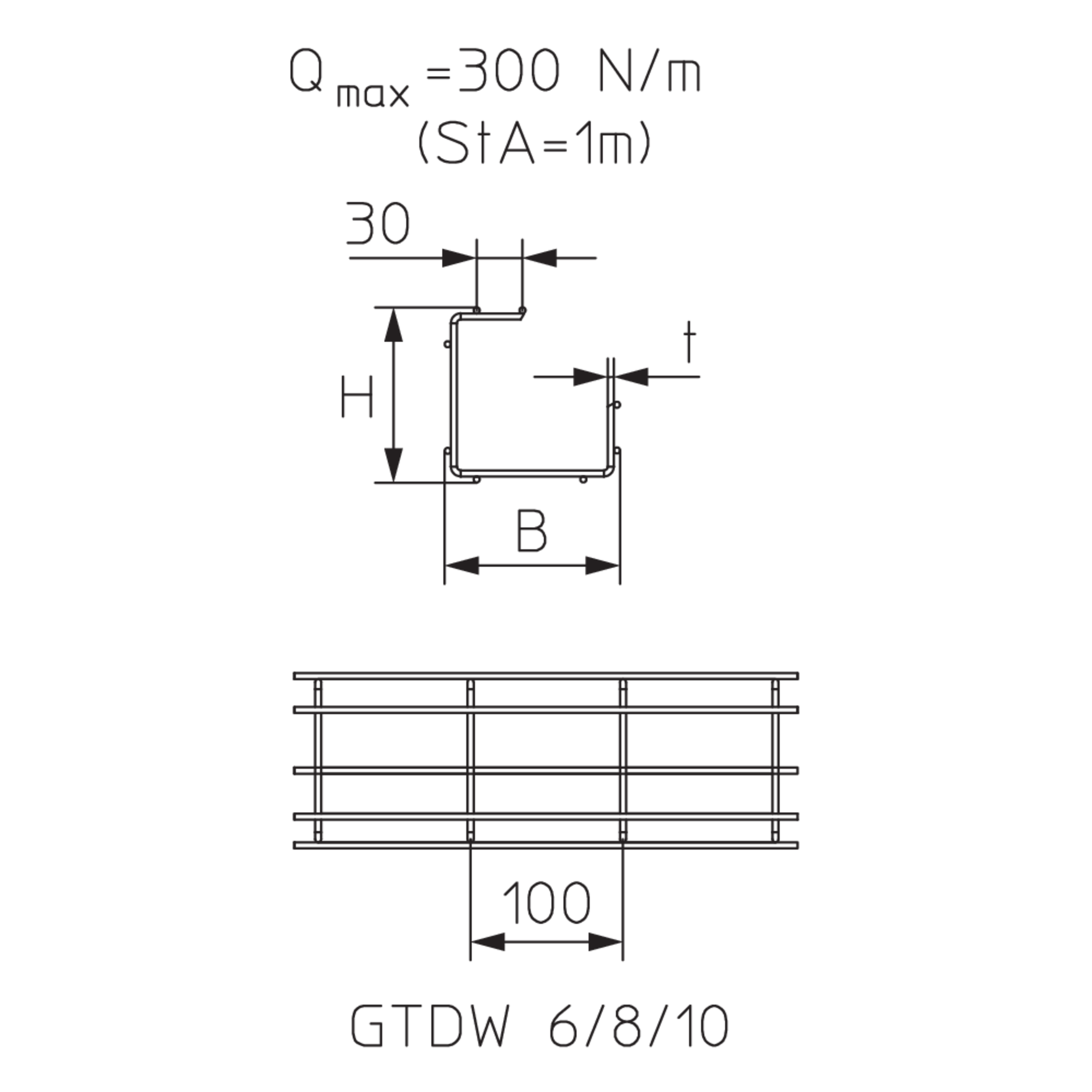

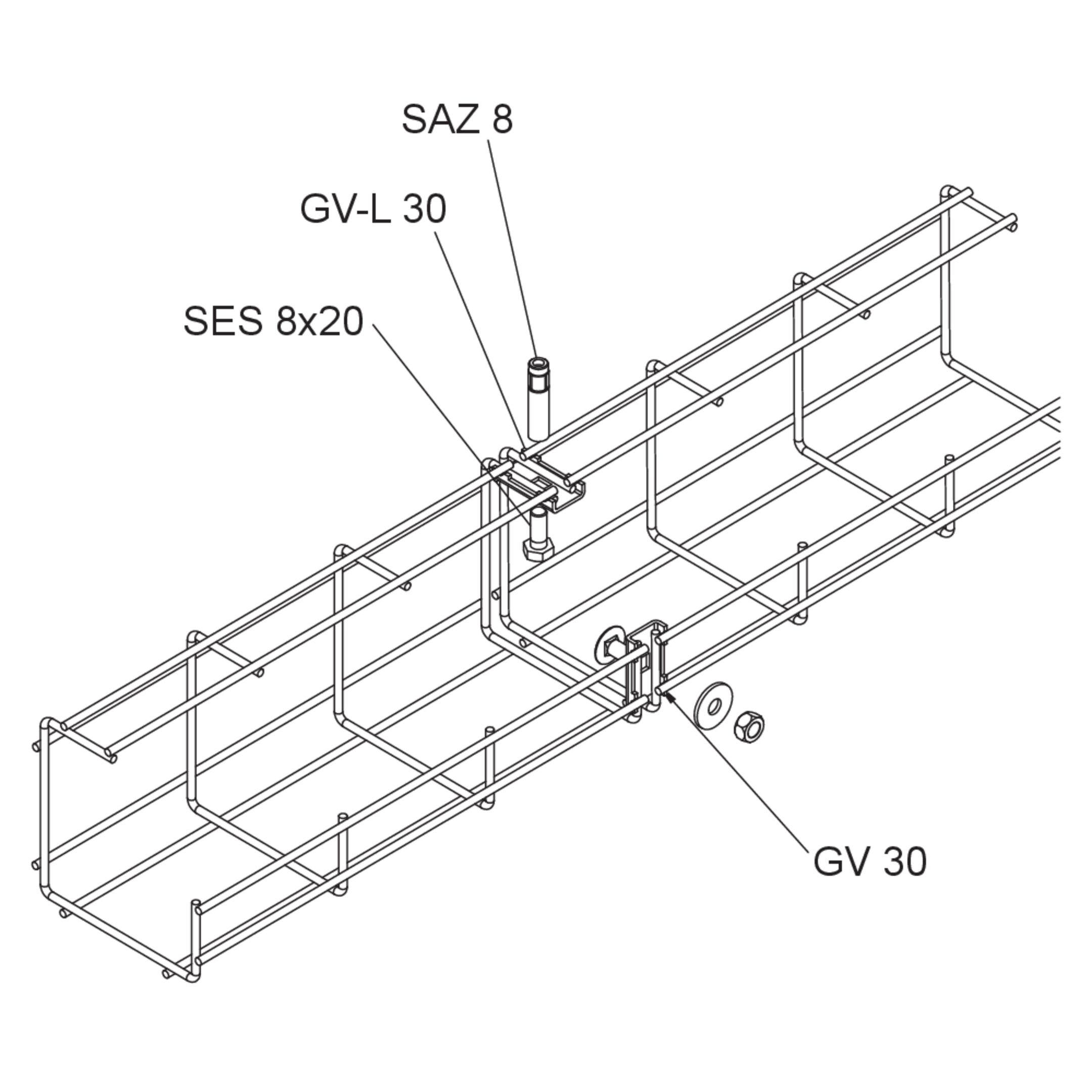

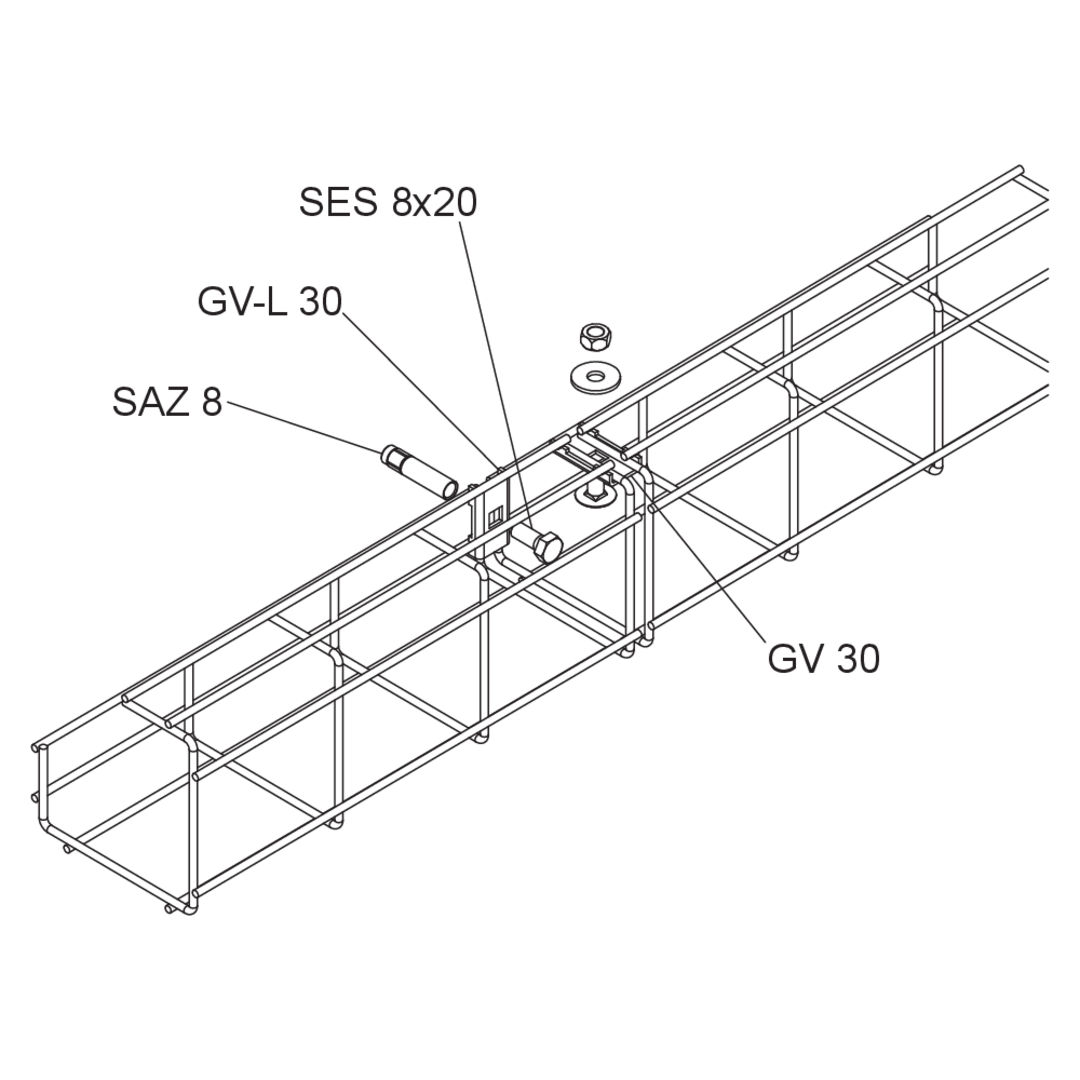

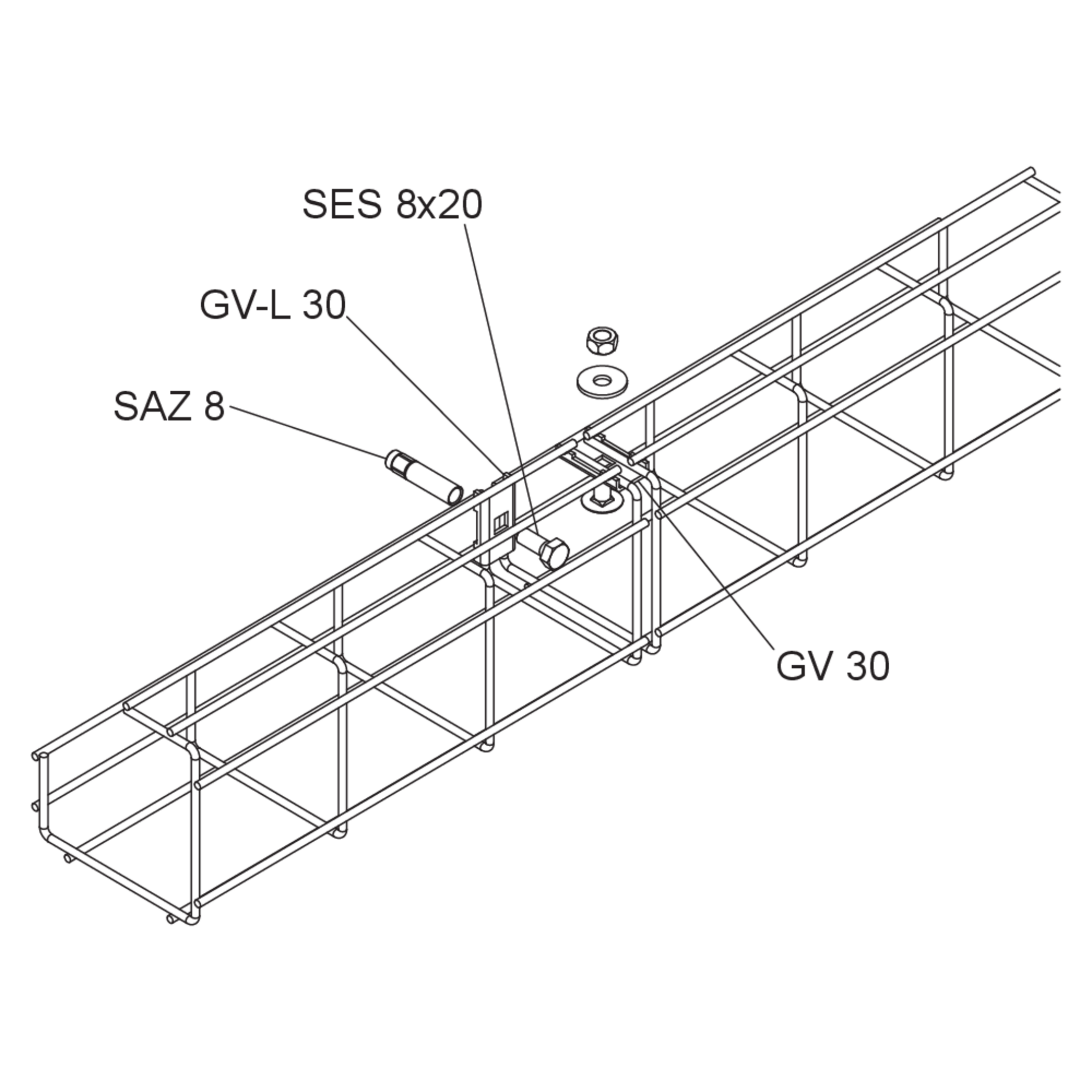

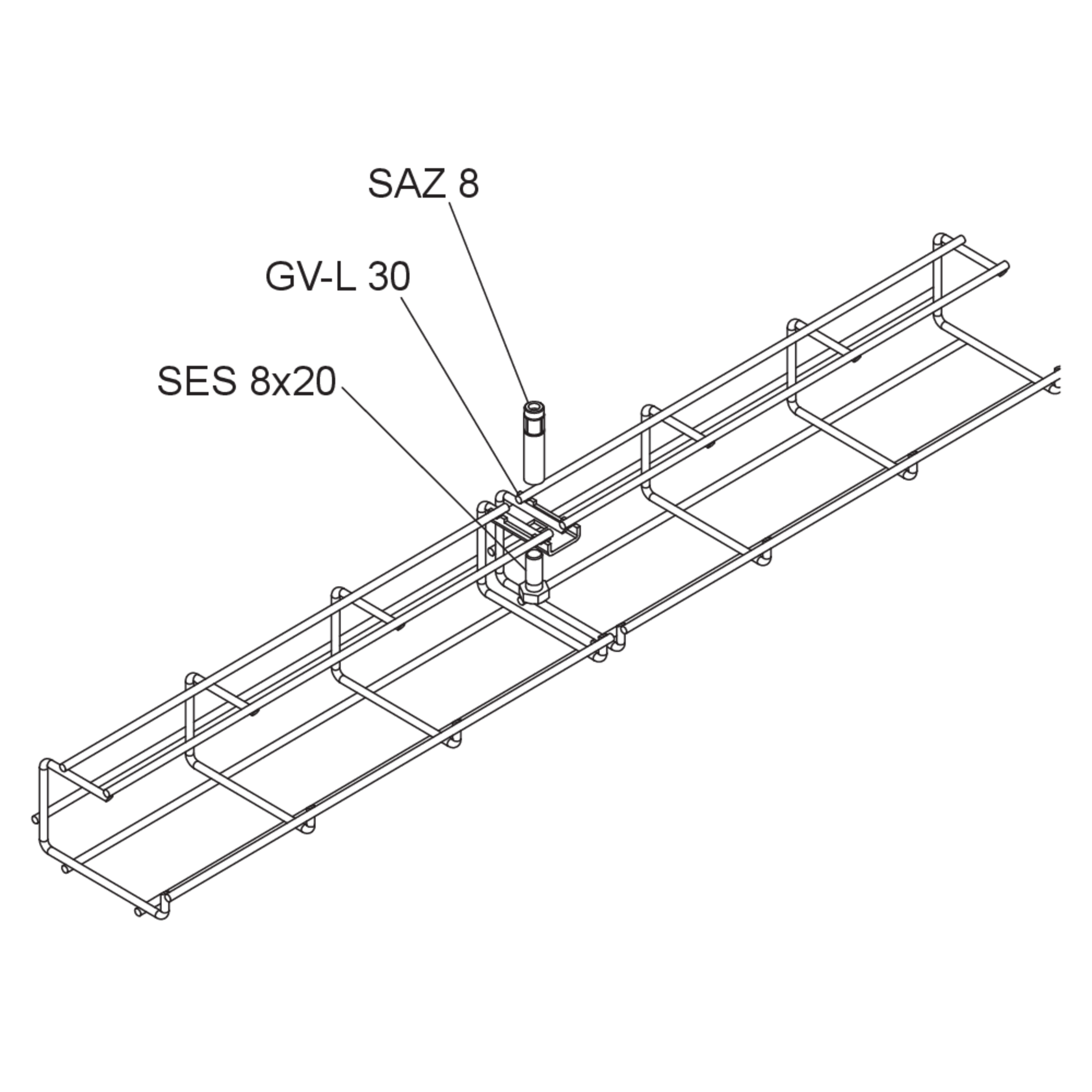

Mesh cable tray, G-shaped

The GTDW G-shaped mesh cable tray is available in different sizes. The standard length is 3000 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Art.-Nr.
GTDW 6S
height
44 mm
width
75 mm
length
3000 mm
material thickness
4.00 mm
distributed load control cable
0.02 kN/m
cross section area
17 cm2
Weight per storage unit
2.260 kg
Geeignet für Funktionserhalt
Nein
No stepping
Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit

Geeignet für Funktionserhalt

  • GTDW 6S
    Wire-mesh cable support
    height
    44 mm
    width
    75 mm
    length
    3000 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.02 kN/m
    cross section area
    17 cm2
    Weight per storage unit
    2.260 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • GTDW 8S
    Assembly plate GTDW 8S
    height
    64 mm
    width
    95 mm
    length
    3000 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.06 kN/m
    cross section area
    38 cm2
    Weight per storage unit
    2.380 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • GTDW 10S
    Wire-mesh cable support GTDW 10S
    height
    115 mm
    width
    115 mm
    length
    3000 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.15 kN/m
    cross section area
    98 cm2
    Weight per storage unit
    3.280 kg
    Geeignet für Funktionserhalt
    Nein
    More information

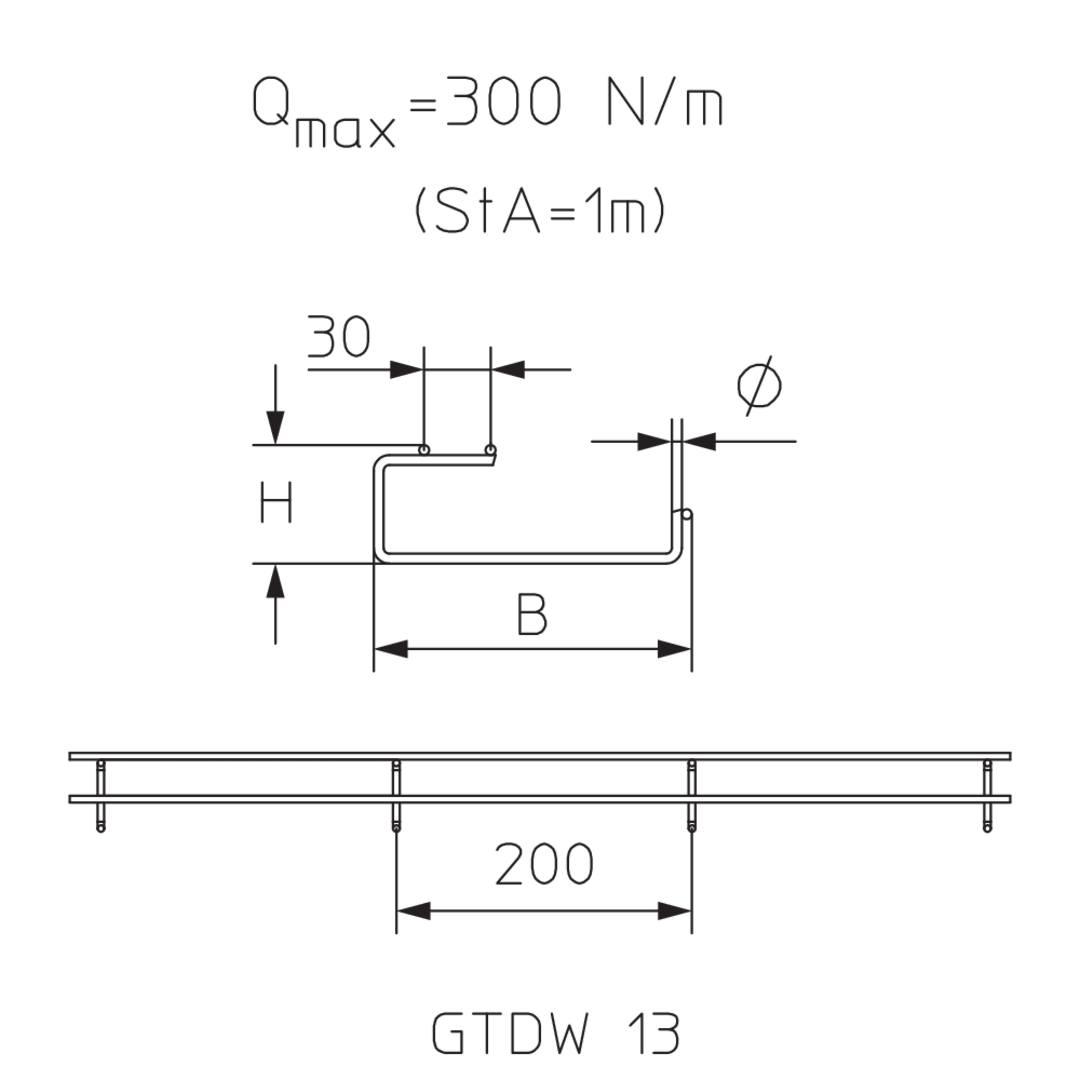

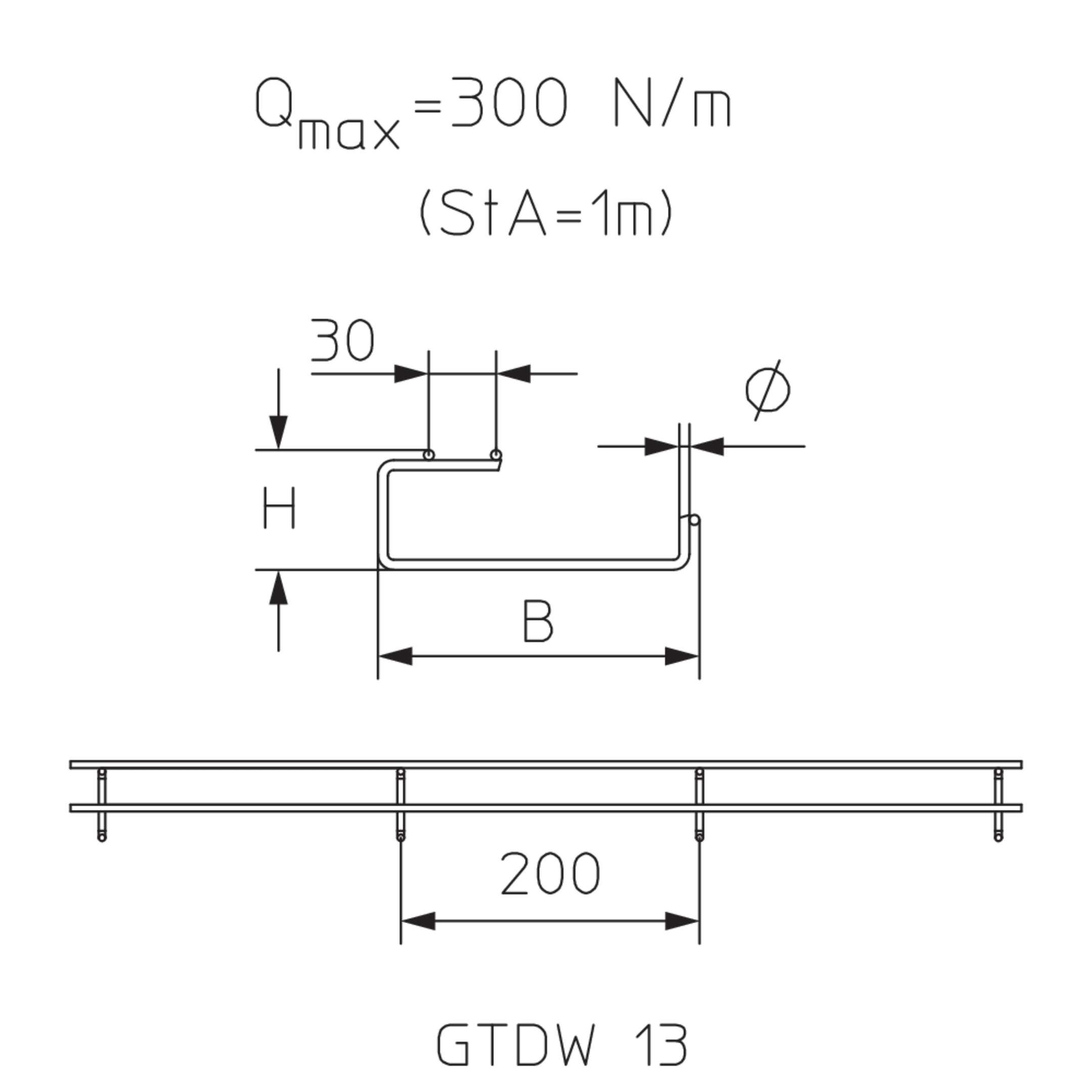

  • GTDW 13S
    Wire-mesh cable support GTDW 13S
    height
    54 mm
    width
    149 mm
    length
    3000 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.08 kN/m
    cross section area
    54 cm2
    Weight per storage unit
    1.610 kg
    Geeignet für Funktionserhalt
    Nein
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit

Geeignet für Funktionserhalt

  • GTDW 6F
    Wire-mesh cable support
    height
    44 mm
    width
    75 mm
    length
    3000 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.02 kN/m
    cross section area
    17 cm2
    Weight per storage unit
    2.410 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • GTDW 8F
    Wire-mesh cable support GTDW 8F
    height
    64 mm
    width
    95 mm
    length
    3000 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.06 kN/m
    cross section area
    38 cm2
    Weight per storage unit
    2.550 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • GTDW 10F
    Wire-mesh cable support GTDW 10F
    height
    115 mm
    width
    115 mm
    length
    3000 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.15 kN/m
    cross section area
    98 cm2
    Weight per storage unit
    3.510 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • GTDW 13F
    Wire-mesh cable support GTDW 13S
    height
    54 mm
    width
    149 mm
    length
    3000 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.08 kN/m
    cross section area
    54 cm2
    Weight per storage unit
    1.730 kg
    Geeignet für Funktionserhalt
    Nein
    More information

steel, galvanic zinc plated

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit

Geeignet für Funktionserhalt

  • GTDW 6GV
    Wire-mesh cable support
    height
    44 mm
    width
    75 mm
    length
    3000 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.02 kN/m
    cross section area
    17 cm2
    Weight per storage unit
    2.260 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • GTDW 8GV
    Assembly plate GTDW 8S
    height
    64 mm
    width
    95 mm
    length
    3000 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.06 kN/m
    cross section area
    38 cm2
    Weight per storage unit
    2.380 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • GTDW 10GV
    Wire-mesh cable support GTDW 10S
    height
    115 mm
    width
    115 mm
    length
    3000 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.15 kN/m
    cross section area
    98 cm2
    Weight per storage unit
    3.280 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • GTDW 13GV
    Wire-mesh cable support GTDW 13S
    height
    54 mm
    width
    149 mm
    length
    3000 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.08 kN/m
    cross section area
    54 cm2
    Weight per storage unit
    1.610 kg
    Geeignet für Funktionserhalt
    Nein
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit

Geeignet für Funktionserhalt

  • GTDW 6E
    Wire-mesh cable support
    height
    44 mm
    width
    75 mm
    length
    3000 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.02 kN/m
    cross section area
    17 cm2
    Weight per storage unit
    2.260 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • GTDW 8E
    Wire-mesh cable support
    height
    64 mm
    width
    95 mm
    length
    3000 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.06 kN/m
    cross section area
    38 cm2
    Weight per storage unit
    2.380 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • GTDW 10E
    Wire-mesh cable support GTDW 10S
    height
    115 mm
    width
    115 mm
    length
    3000 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.15 kN/m
    cross section area
    98 cm2
    Weight per storage unit
    3.280 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • GTDW 13E
    Wire-mesh cable support GTDW 13S
    height
    54 mm
    width
    149 mm
    length
    3000 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.08 kN/m
    cross section area
    54 cm2
    Weight per storage unit
    1.620 kg
    Geeignet für Funktionserhalt
    Nein
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit

Geeignet für Funktionserhalt

  • GTDW 8E4
    Wire-mesh cable support
    height
    64 mm
    width
    95 mm
    length
    3000 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.06 kN/m
    cross section area
    38 cm2
    Weight per storage unit
    2.430 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • GTDW 10E4
    Wire-mesh cable support GTDW 10S
    height
    115 mm
    width
    115 mm
    length
    3000 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.15 kN/m
    cross section area
    98 cm2
    Weight per storage unit
    3.350 kg
    Geeignet für Funktionserhalt
    Nein
    More information

Details

  • No stepping
