Connecting link

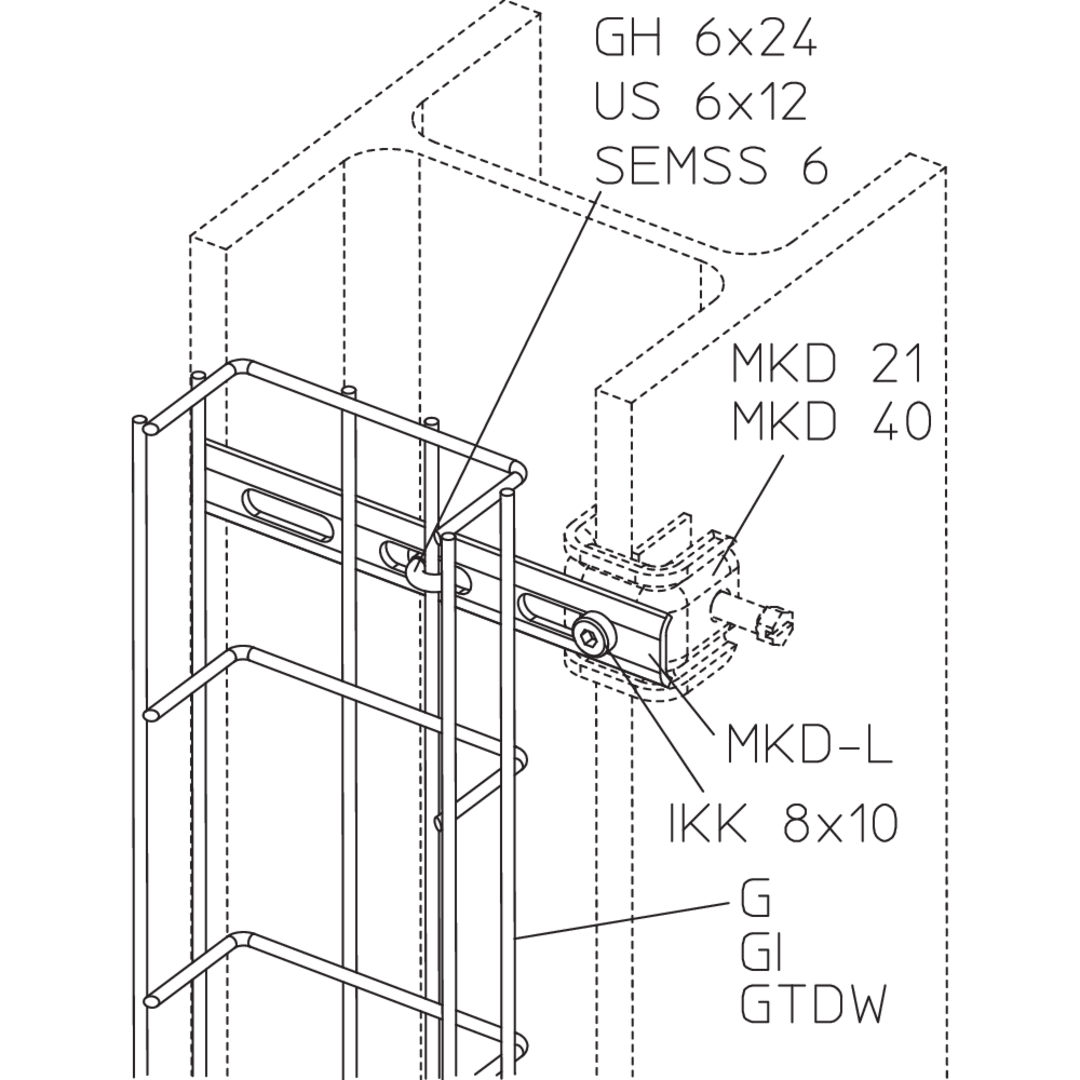

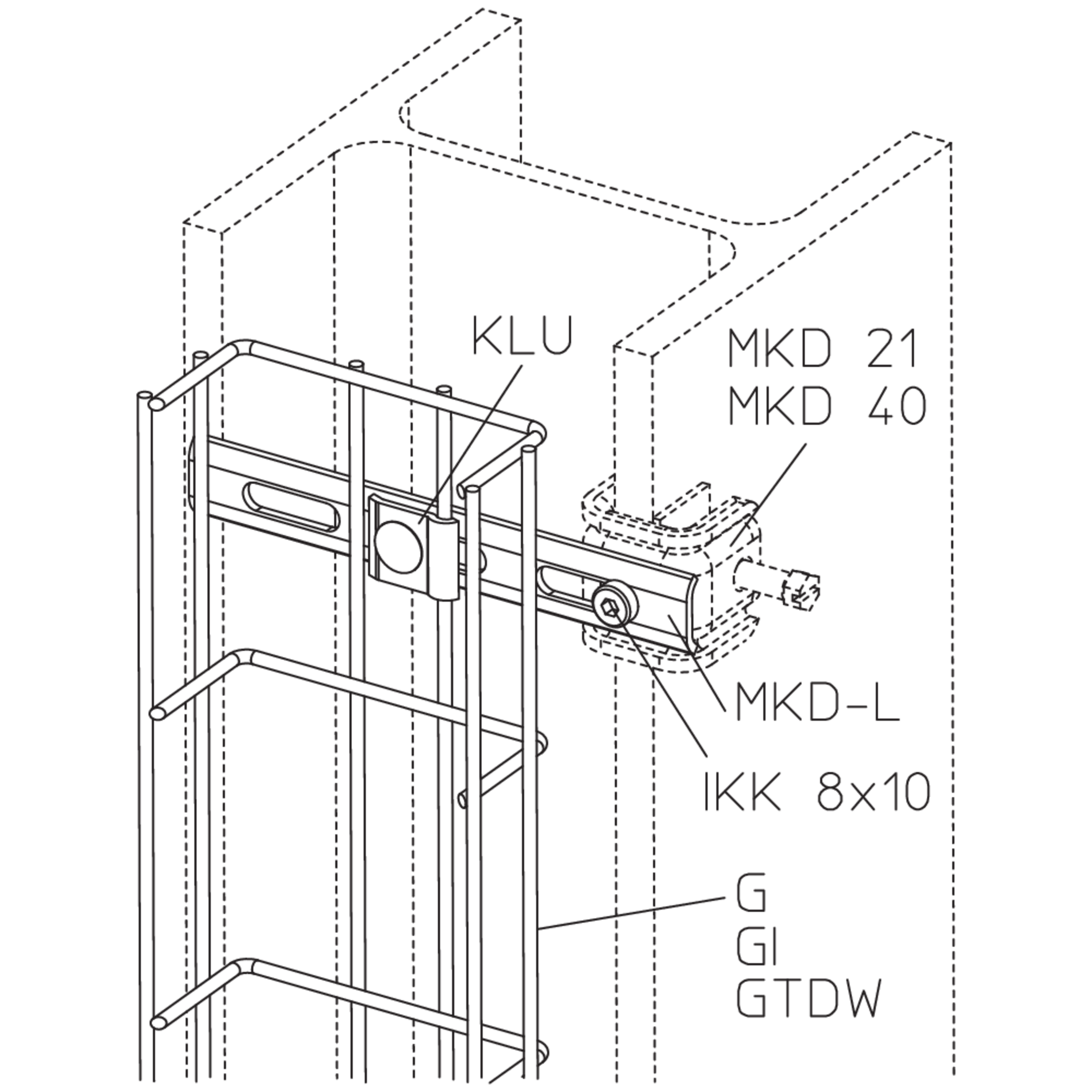

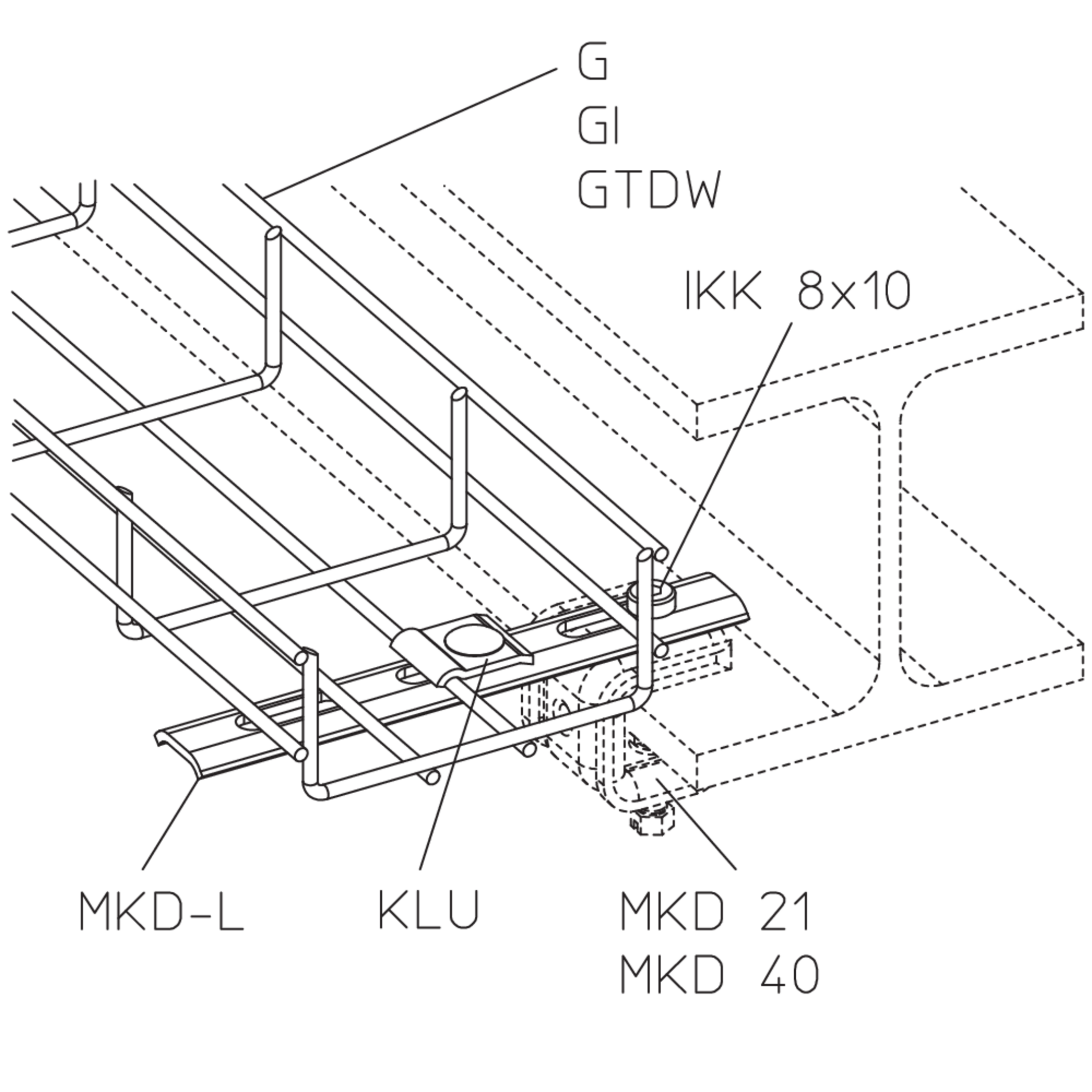

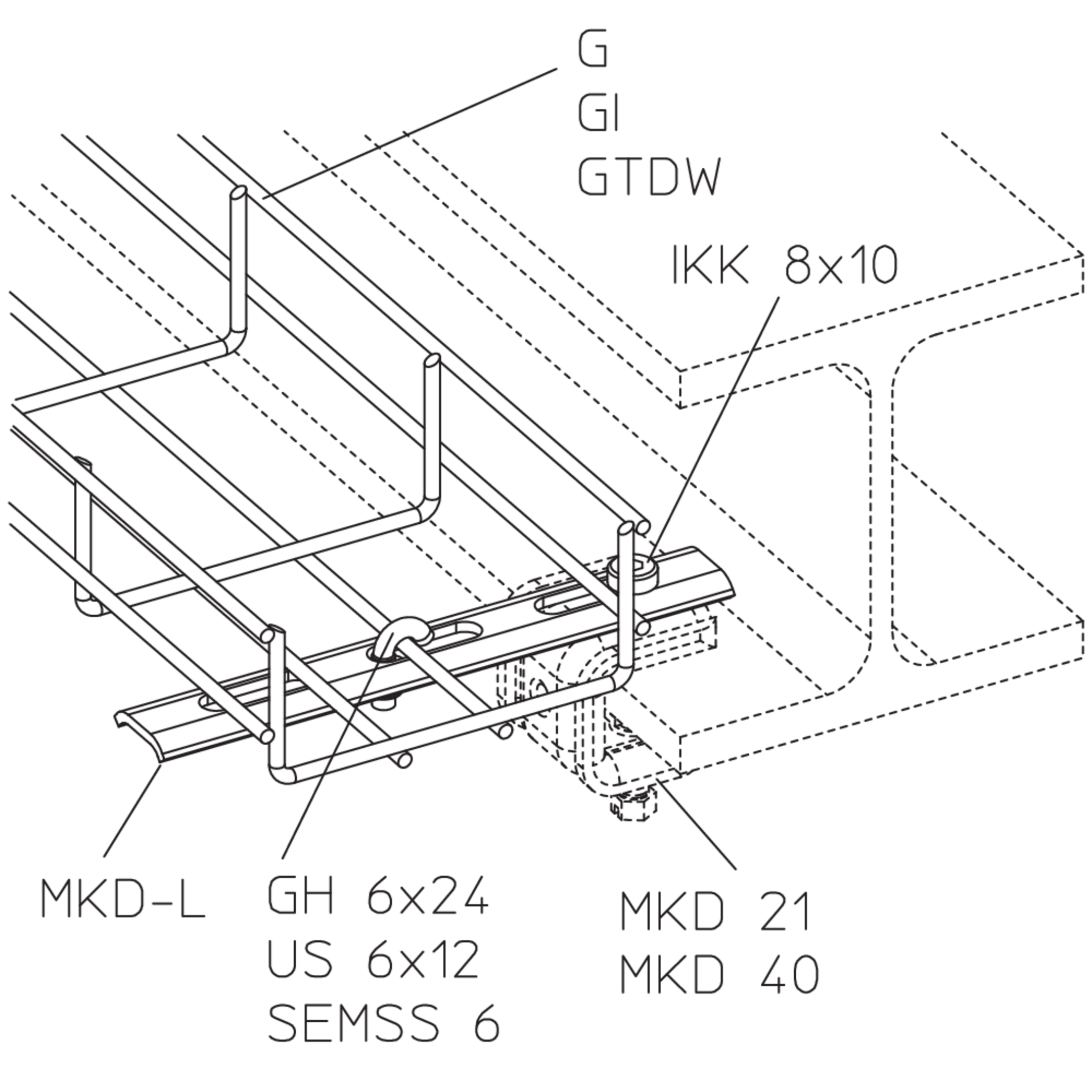

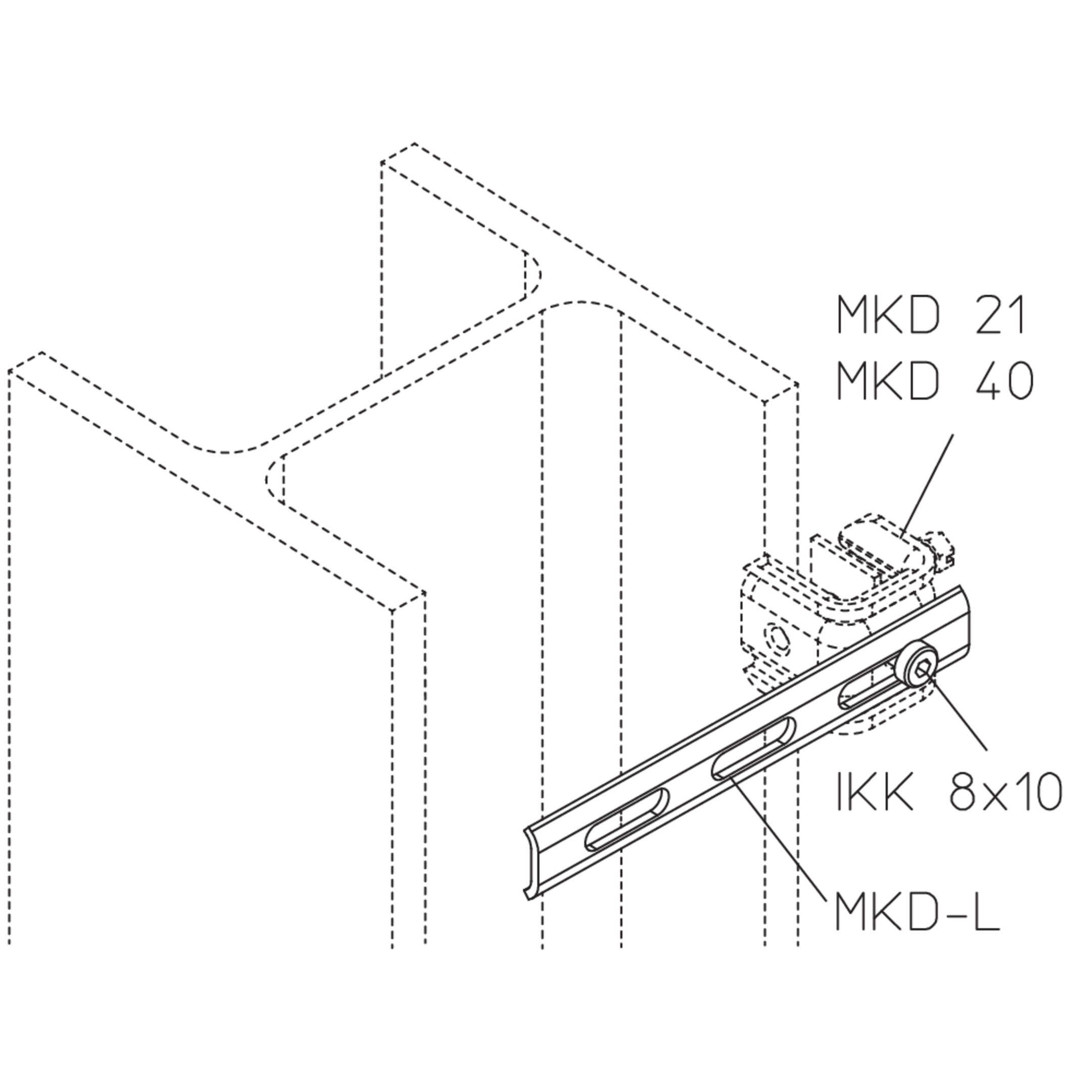

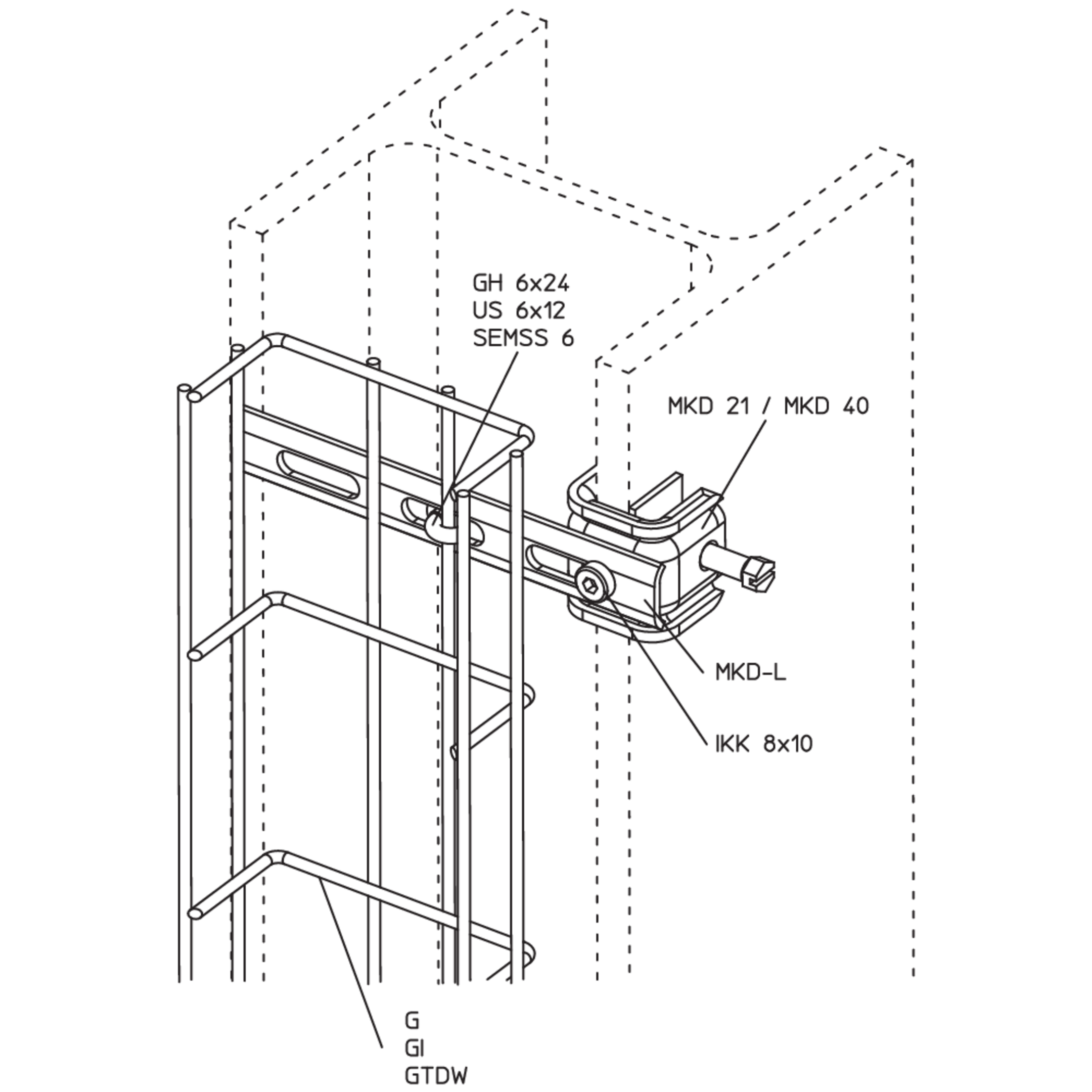

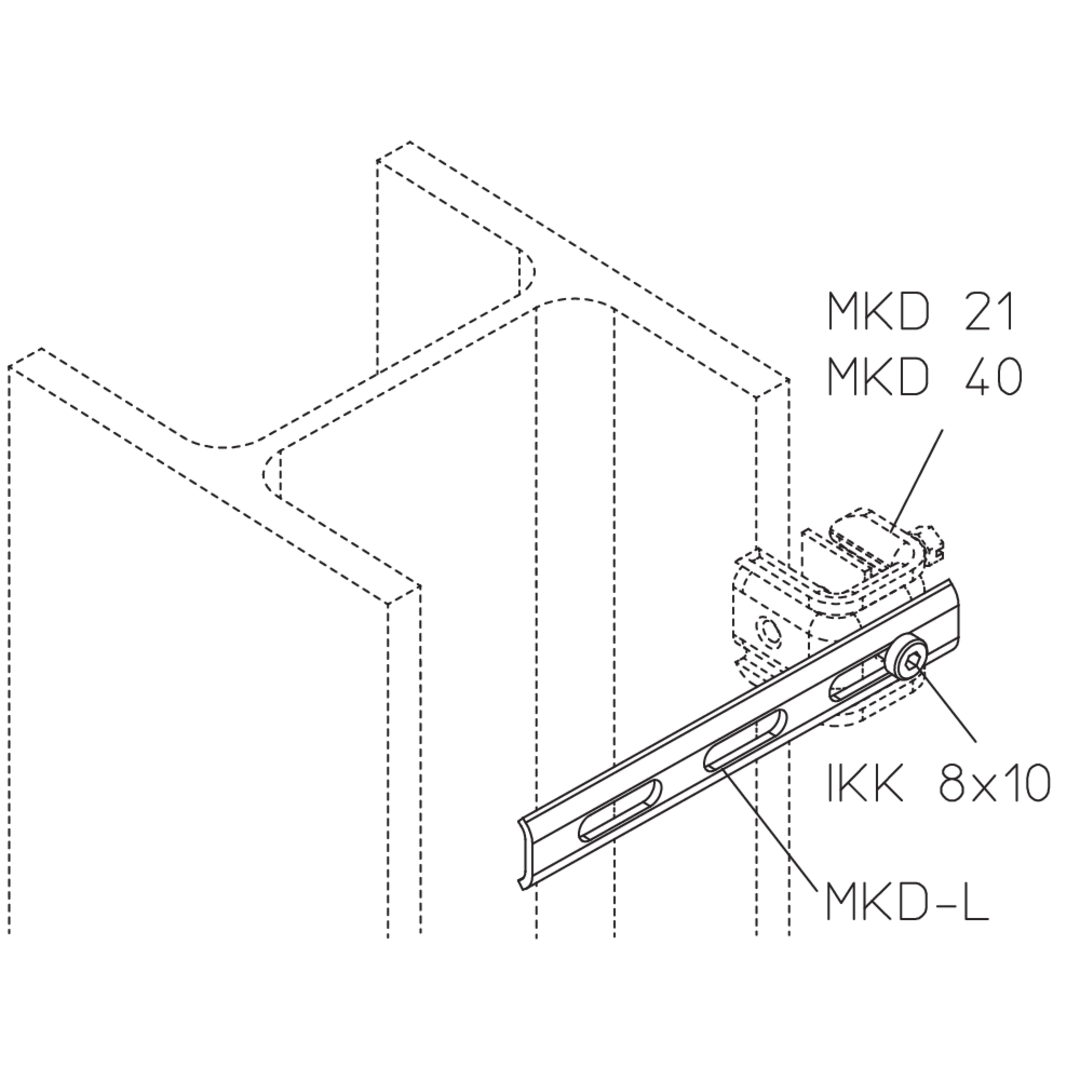

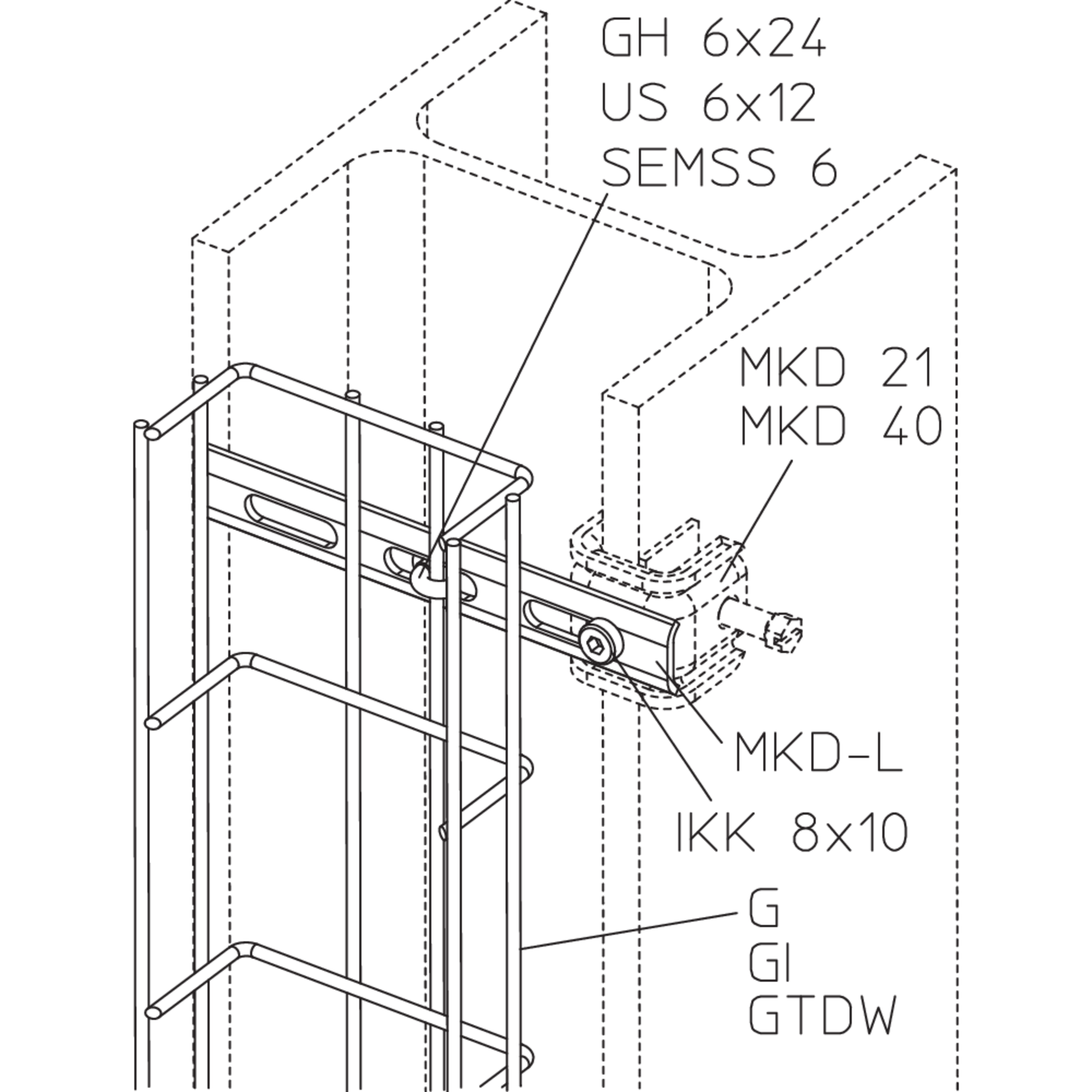

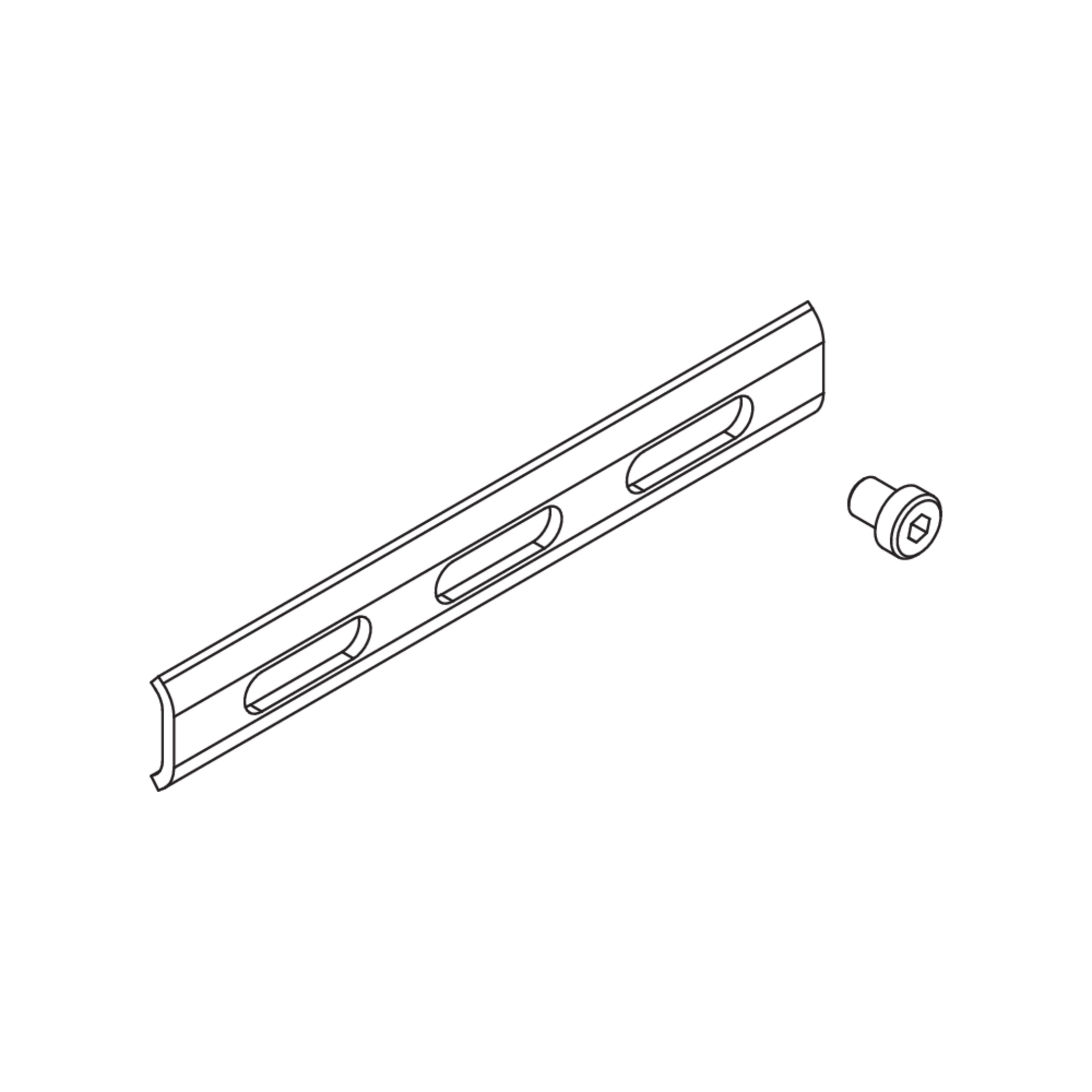

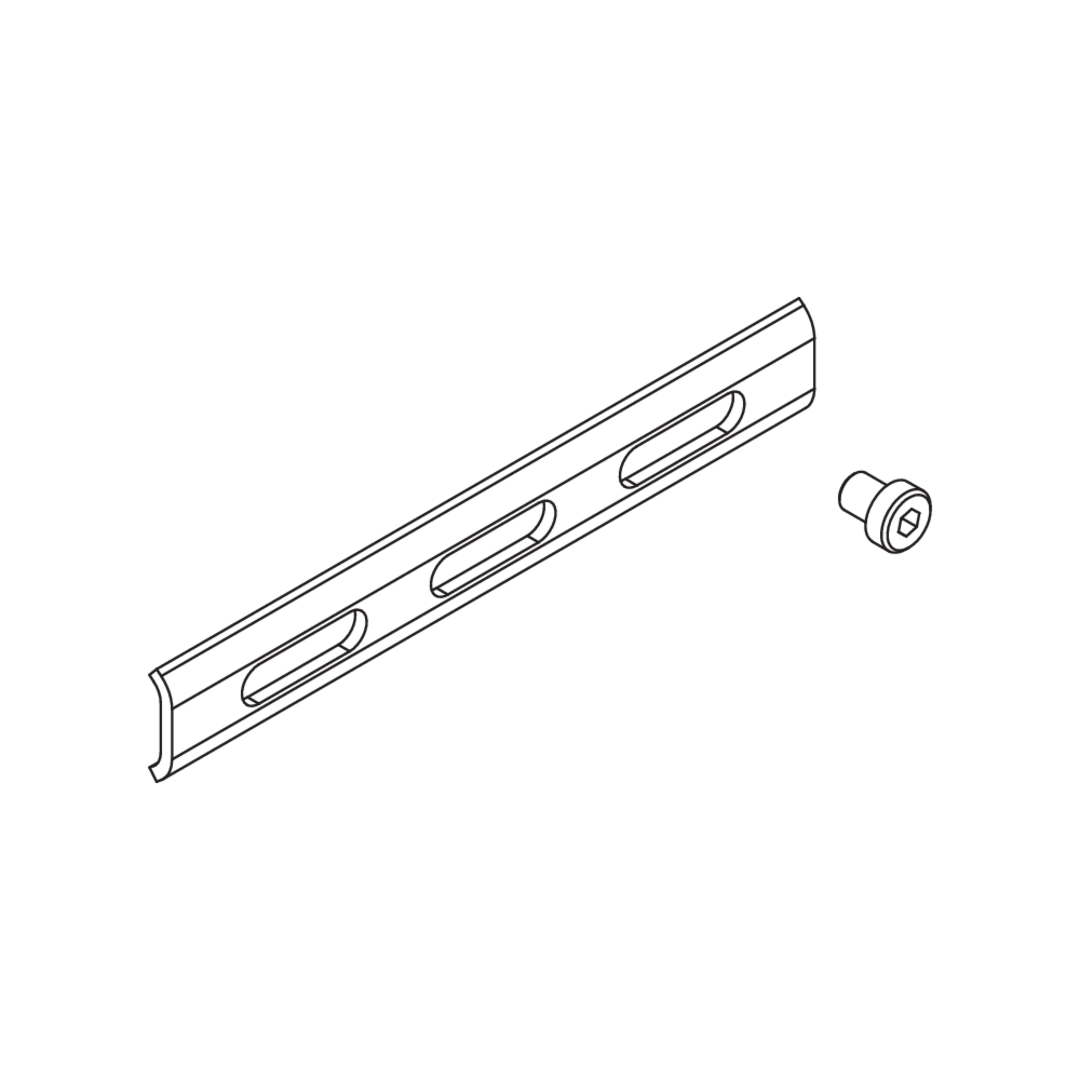

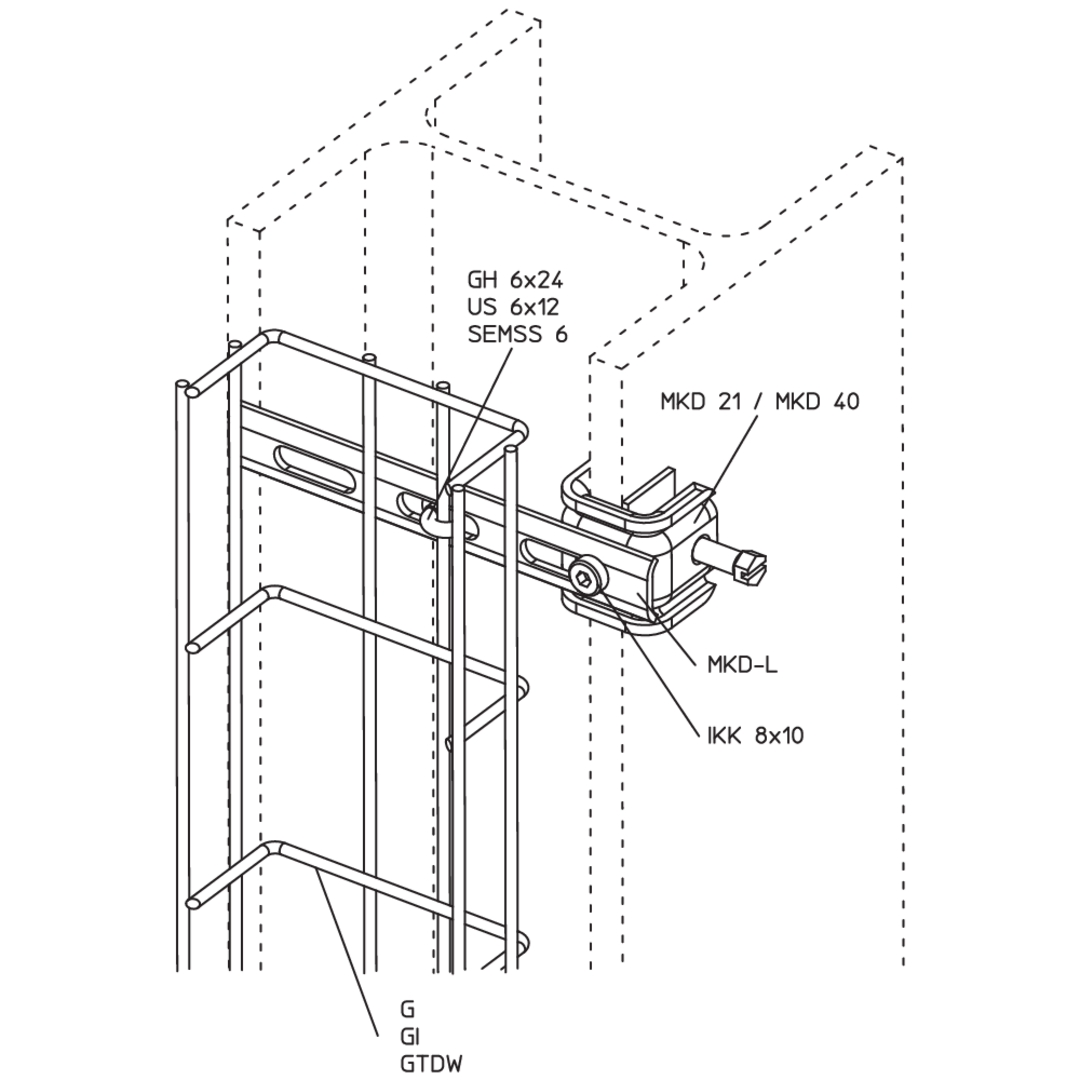

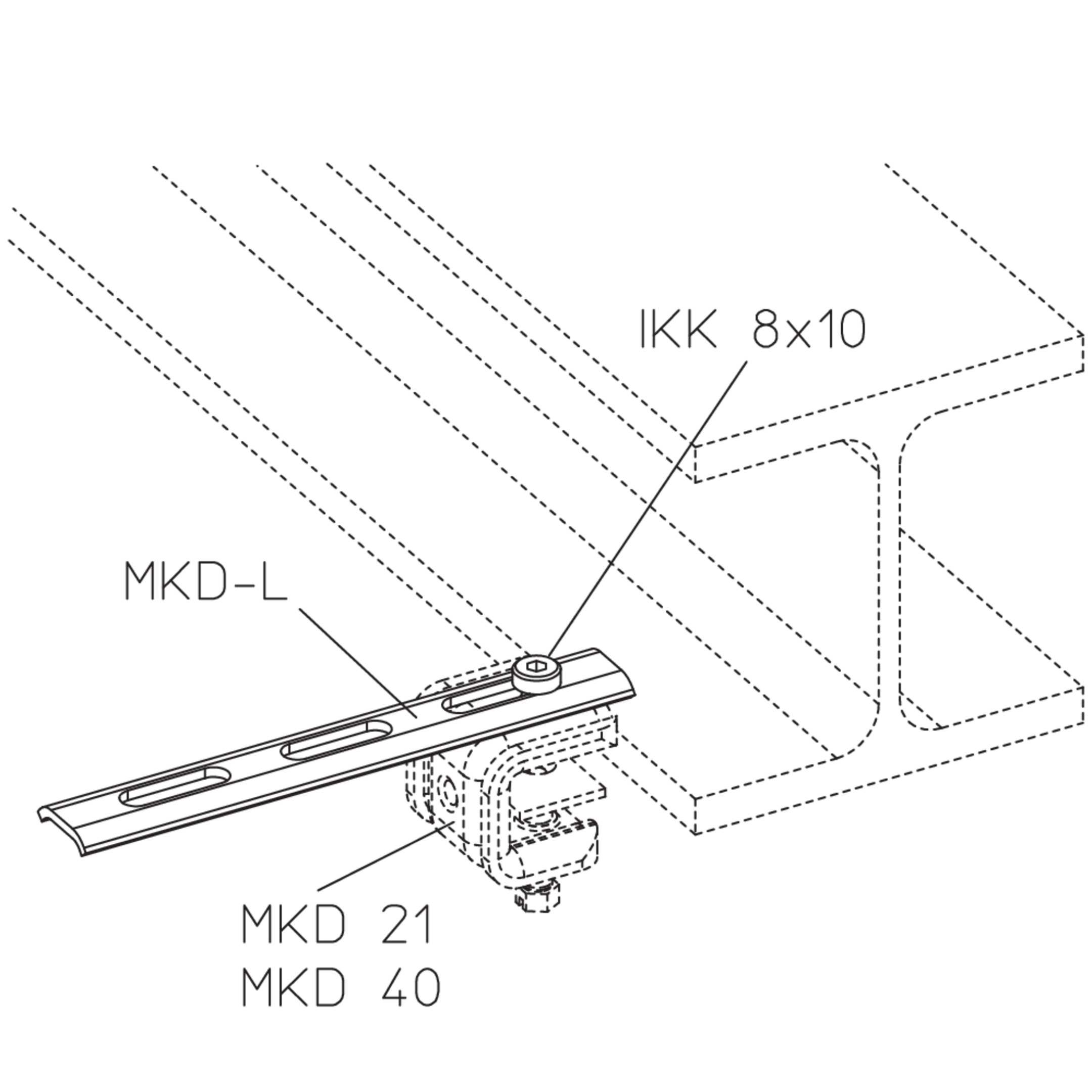

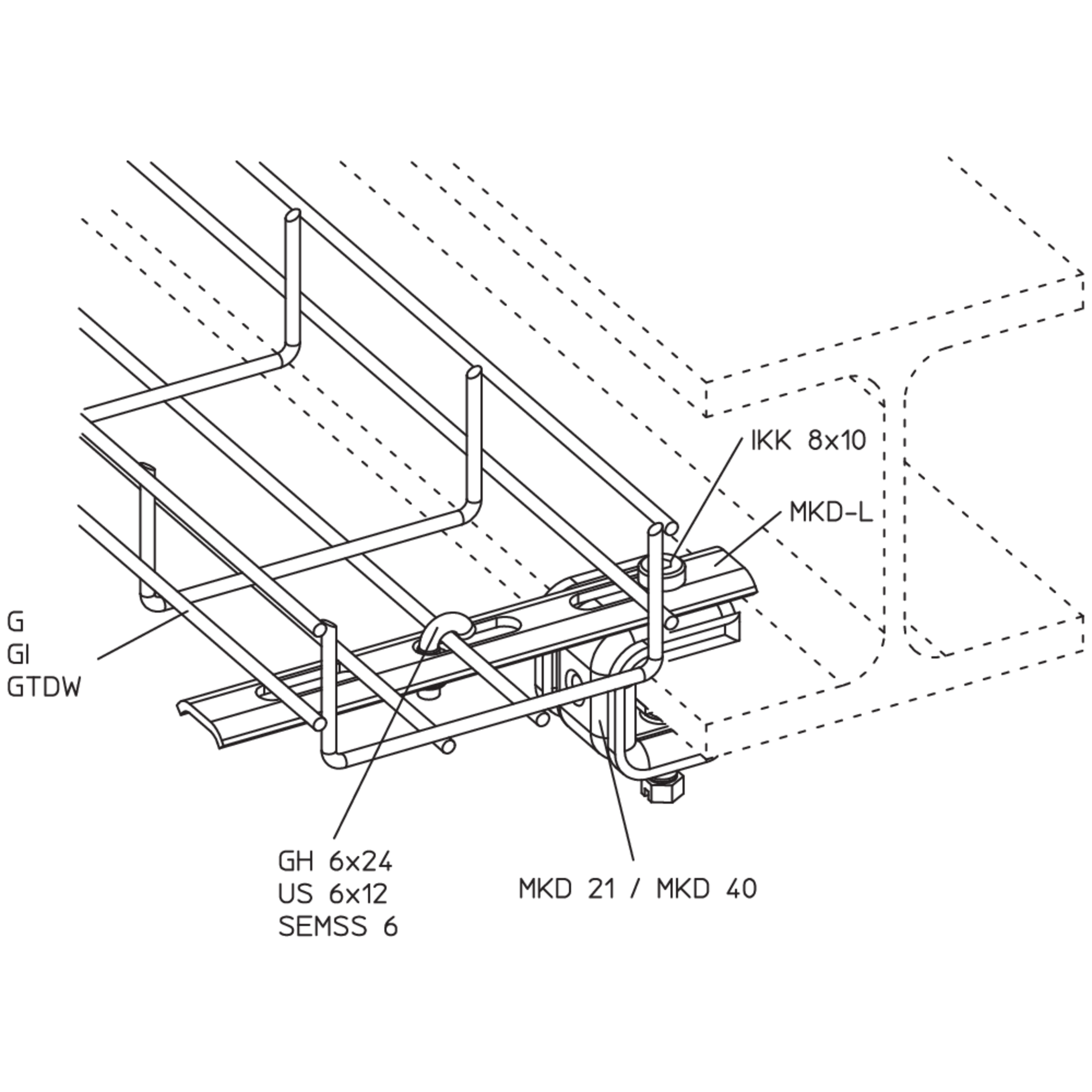

Mesh cable trays of the types G, GI and GTDW can be mounted vertically or horizontally on steel beams using MKD-L connecting links. The connecting link MKD-L is attached to the T-beam together along the MKD mounting clamp. The mesh cable tray is then mounted on the connecting link using either the KLU clamp fastener or a bolt set. The connecting link MKD-L is made of hot-dip galvanised steel.

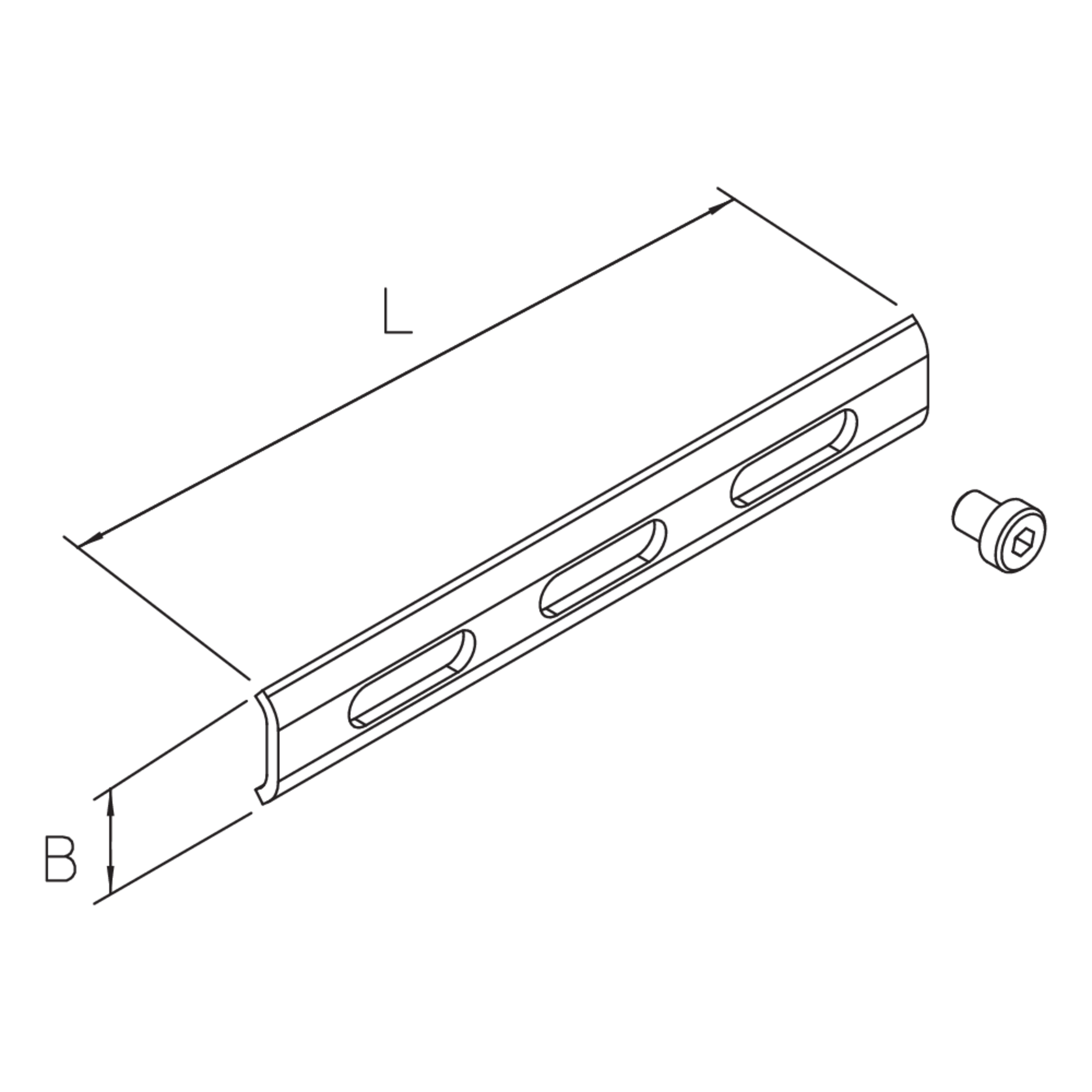

B
width
L
length
t
material thickness
G
Weight per storage unit
