BODO TL

Single outlet, dry-clean, round, empty

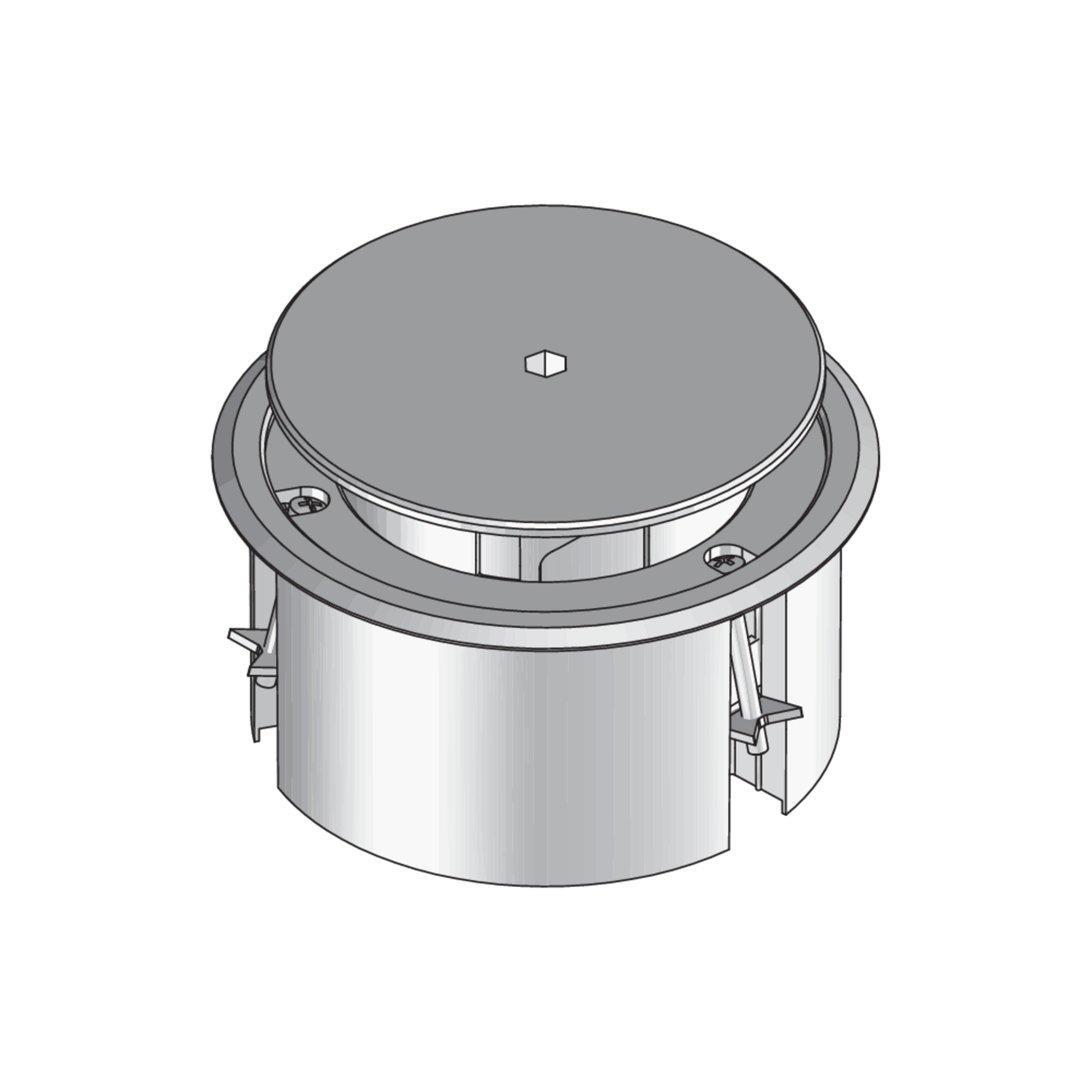

The BODO TL components are round single outlets with a protective frame for the floor covering. They are equipped with a rotating cover with cable outlet and a claw set. The single outlets are suitable for dry-cleaned floor coverings in rooms with office traffic loads. They can be fixed to screed junction boxes or the raw concrete slab or installed in screed and raised or false floor openings. The product is made of high quality plastic (ABS copolymer) and is available in iron grey or graphite black. BODO TL has an installation dimension of mm and a minimum installation height of 63 mm.

dry maintained
Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

polyamide

Article

H

height

Hmin

minimum installation height

D

Diameter (mm)

Pmax

maximum load

ØE

fitting dimension round

colour

color

IPg

IP protection level in used condition

IPn

IP protection level in unused condition

RAL

RAL-Nummer

G

Weight per storage unit

  • BODO TL-G
    Floor socket, round
    height
    86 mm
    minimum installation height
    63 mm
    Diameter (mm)
    140 mm
    maximum load
    1.50 kN
    fitting dimension round
    122 mm
    color
    Iron gray
    IP protection level in used condition
    IP 20
    IP protection level in unused condition
    IP 30
    RAL-Nummer
    7011
    Weight per storage unit
    0.170 kg
    More information
  • BODO TL-S
    Floor socket, round
    height
    86 mm
    minimum installation height
    63 mm
    Diameter (mm)
    140 mm
    maximum load
    1.50 kN
    fitting dimension round
    122 mm
    color
    Graphite black
    IP protection level in used condition
    IP 20
    IP protection level in unused condition
    IP 30
    RAL-Nummer
    9011
    Weight per storage unit
    0.170 kg
    More information

Details

  • VDE/TÜV approval according to DIN EN 50085
  • With inspection stamp dia. 13 mm: 1.5 kN

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

BIM- und CAD-Data

    BIM Data Installation Boxes

    BIM Data

    ZIP (13.12 MB)

    DownloadDownload

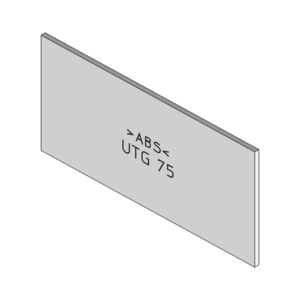

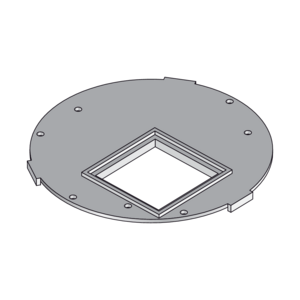

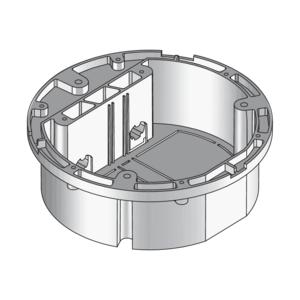

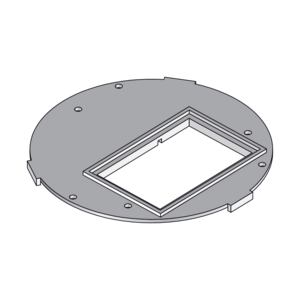

Included accessories
