Cover plate for 2x UDAE22

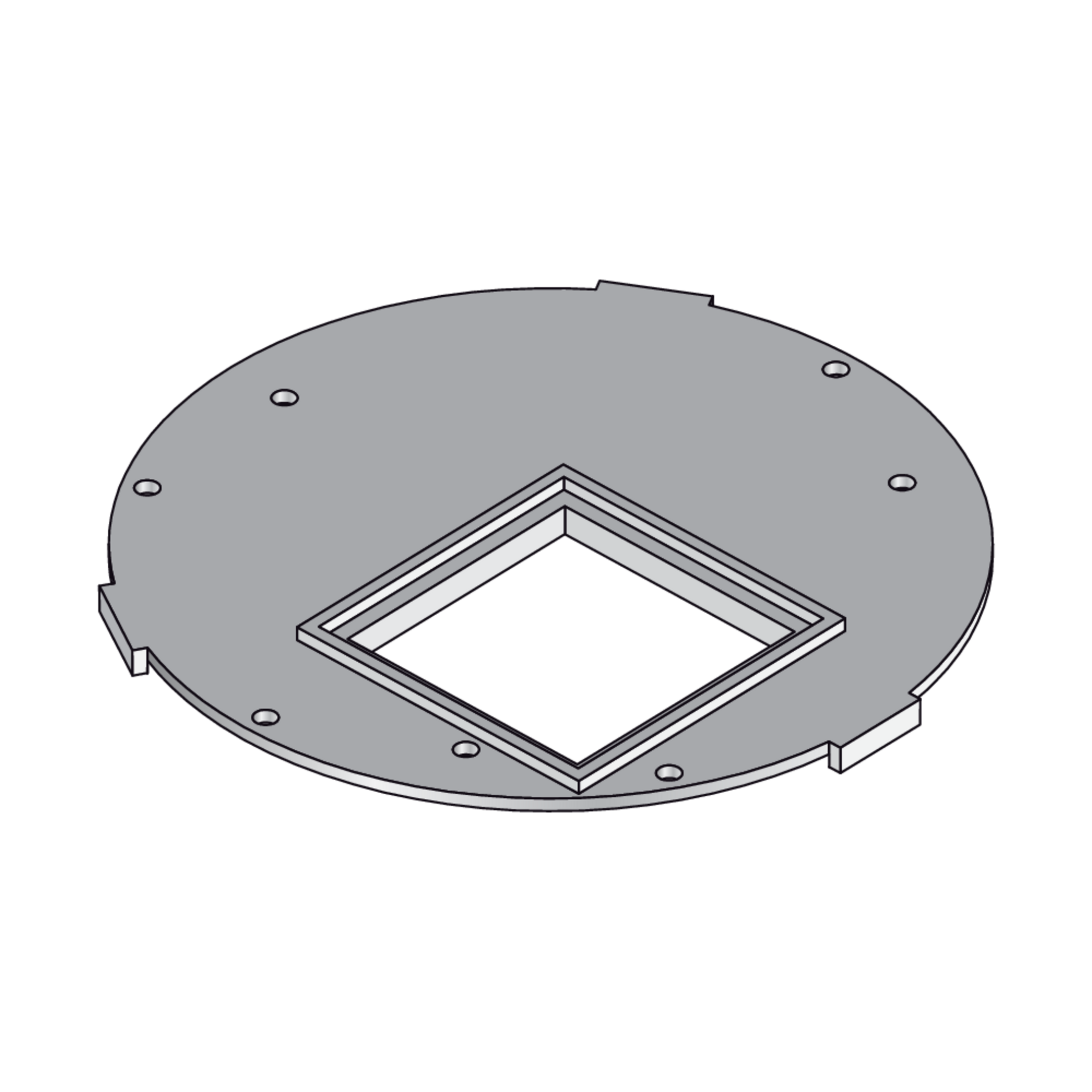

UARM-2-1 components from the underfloor system product range are round, one-piece cover plates with a square opening. Up to two 22x45 mm latching data connection sockets or one 45x45 mm latching Schuko sockets can be installed in the opening. The panels are made of high-quality ABS copolymer (ABS) in graphite black (RAL 9011). They have the installation dimensions of E1 40.5 mm and E2 40.5 mm.

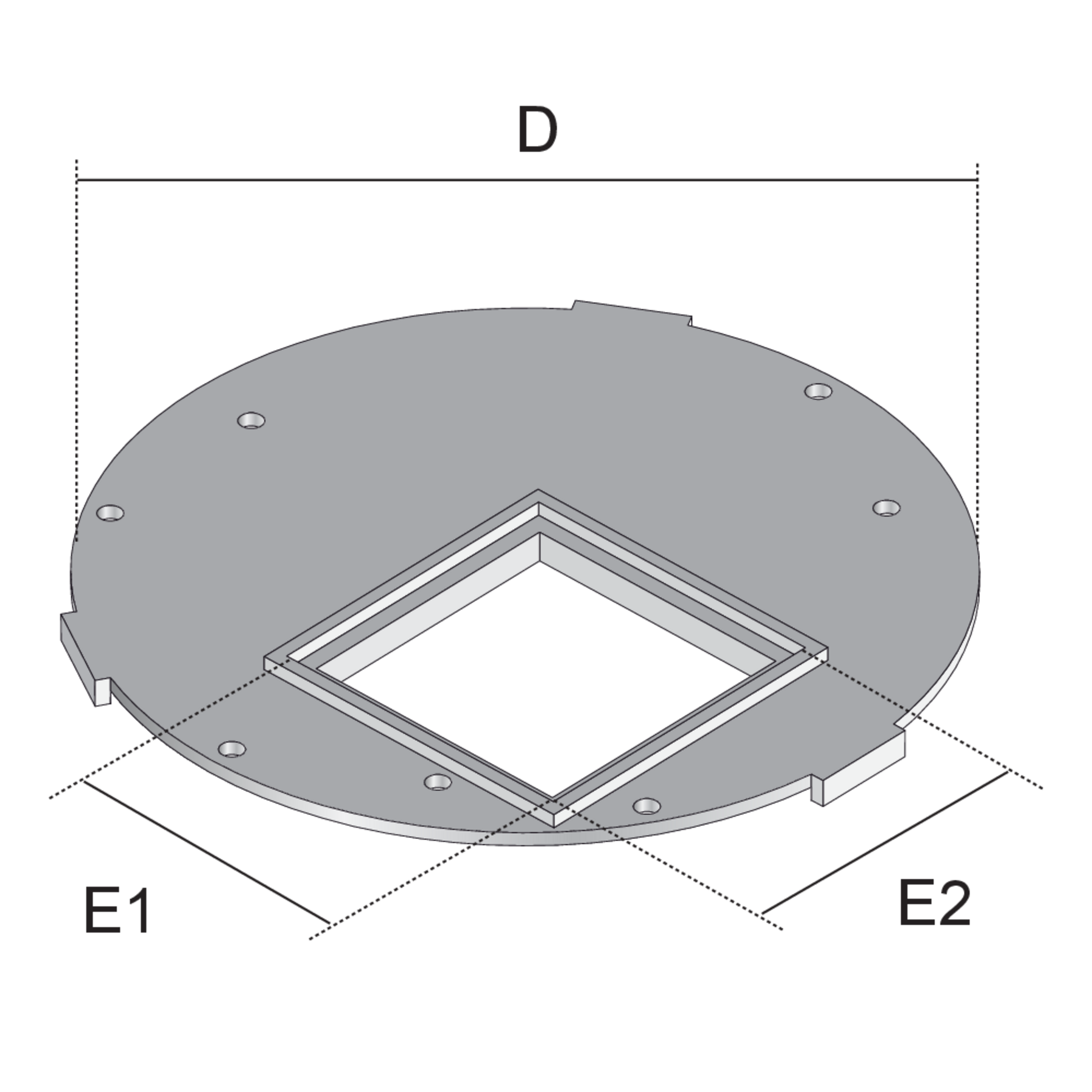

E1
fitting dimension E1
E2
fitting dimension E2
colour
color
G
Weight per storage unit
