Screed junction box, 1x, round
Available from July.

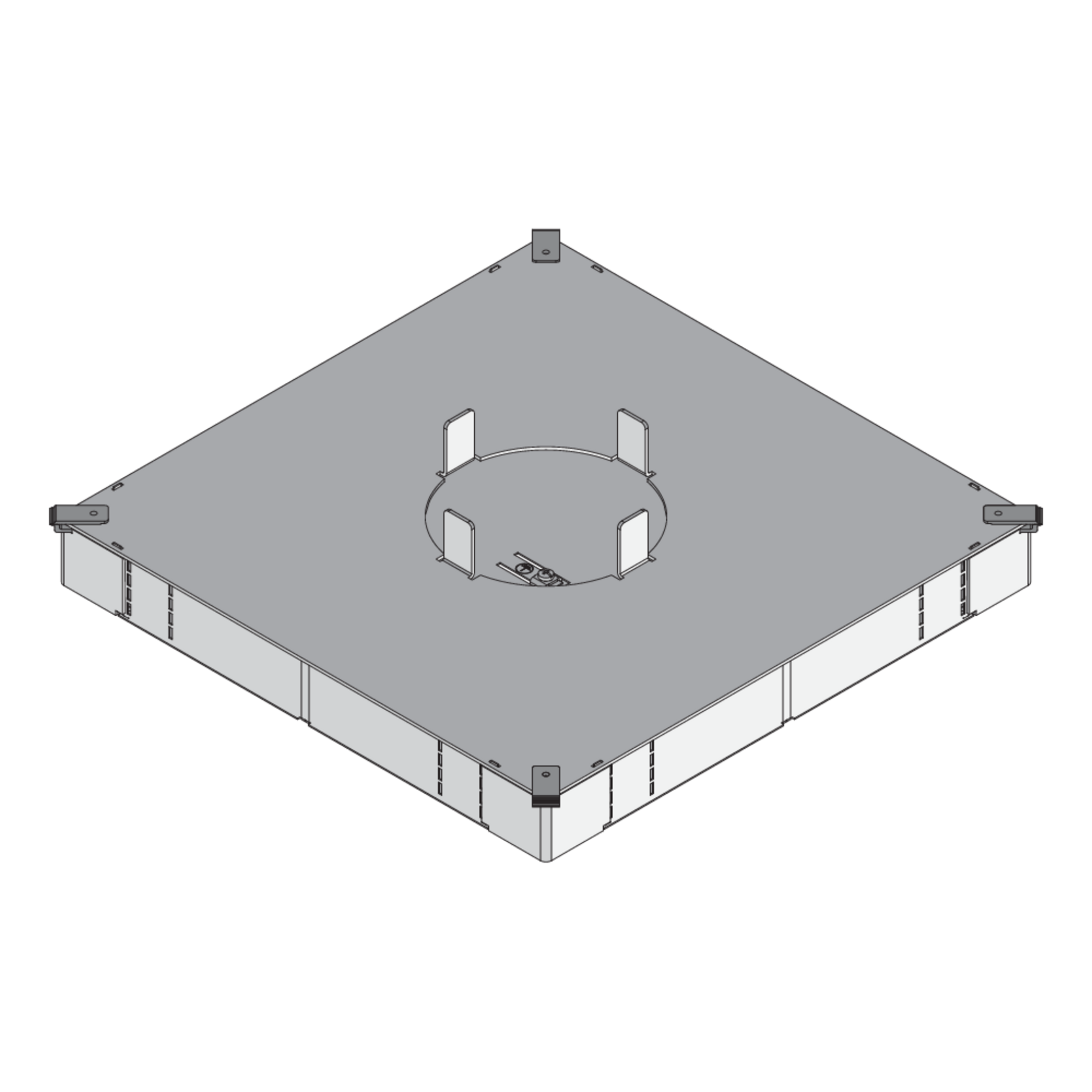

The UDO250 1R screed junction box is certified to DIN EN 50085-2-2 and developed for use in the screed-covered duct system UKO. Manufactured from sendzimir hot-dip galvanized steel sheet to DIN EN 10346, it offers high robustness and corrosion resistance.
UDO250 1R fits 190 mm and 250 mm duct widths. Foldable side walls allow flexible duct connections. The two-piece design includes a removable and snap-on cover. The round opening (Ø 123 mm) holds the shuttering pipe USR, which is later replaced by the BODO device unit. An integrated protective earth terminal ensures proper equipotential bonding.

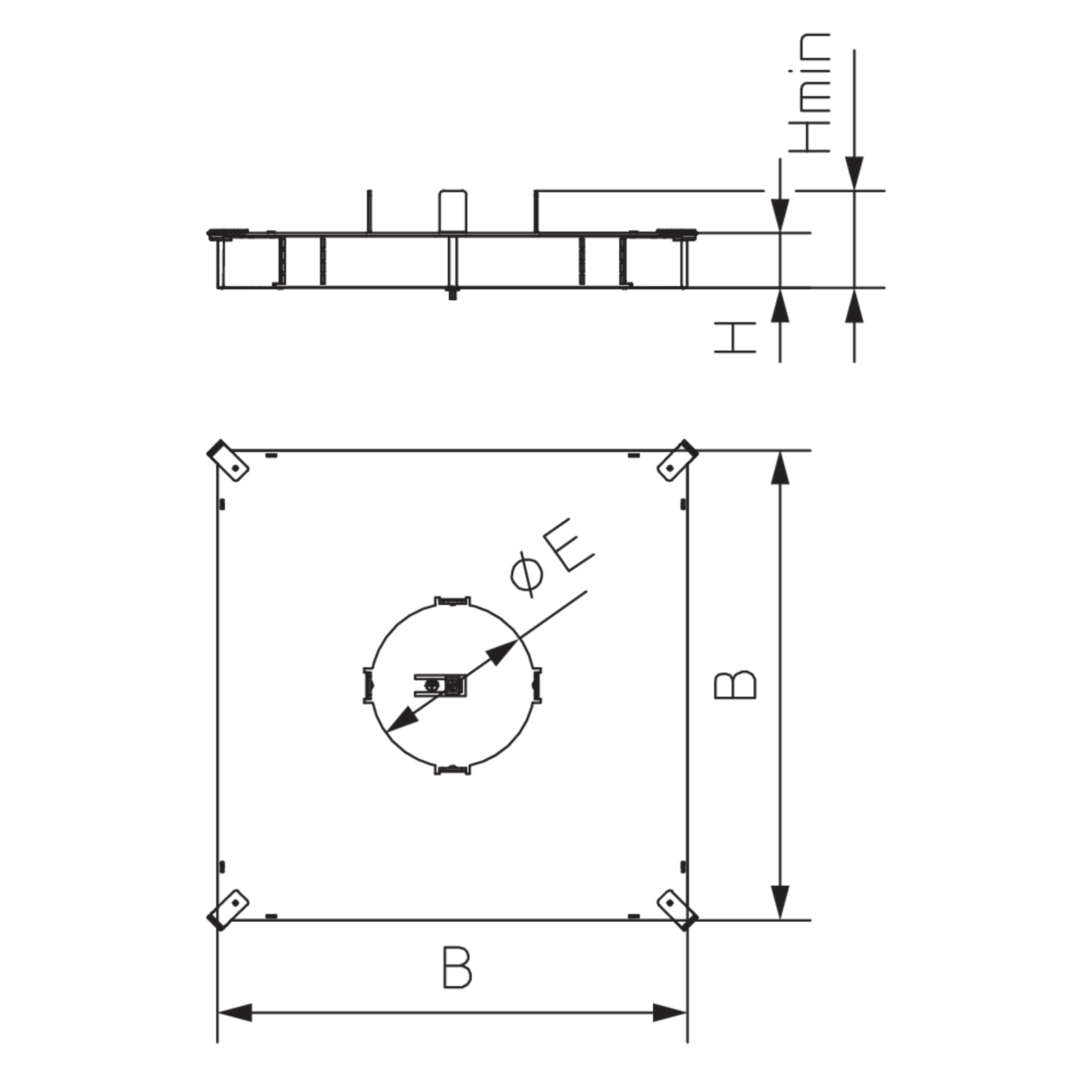

H
height
Hmin
minimum installation height
B
width
ØE
fitting dimension round
G
Weight per storage unit
de
Technical information
PDF (1.02 MB)
DownloadDownload
de
en
Assembly instructions
de
en
Compact overview
