Mounting boxes, round

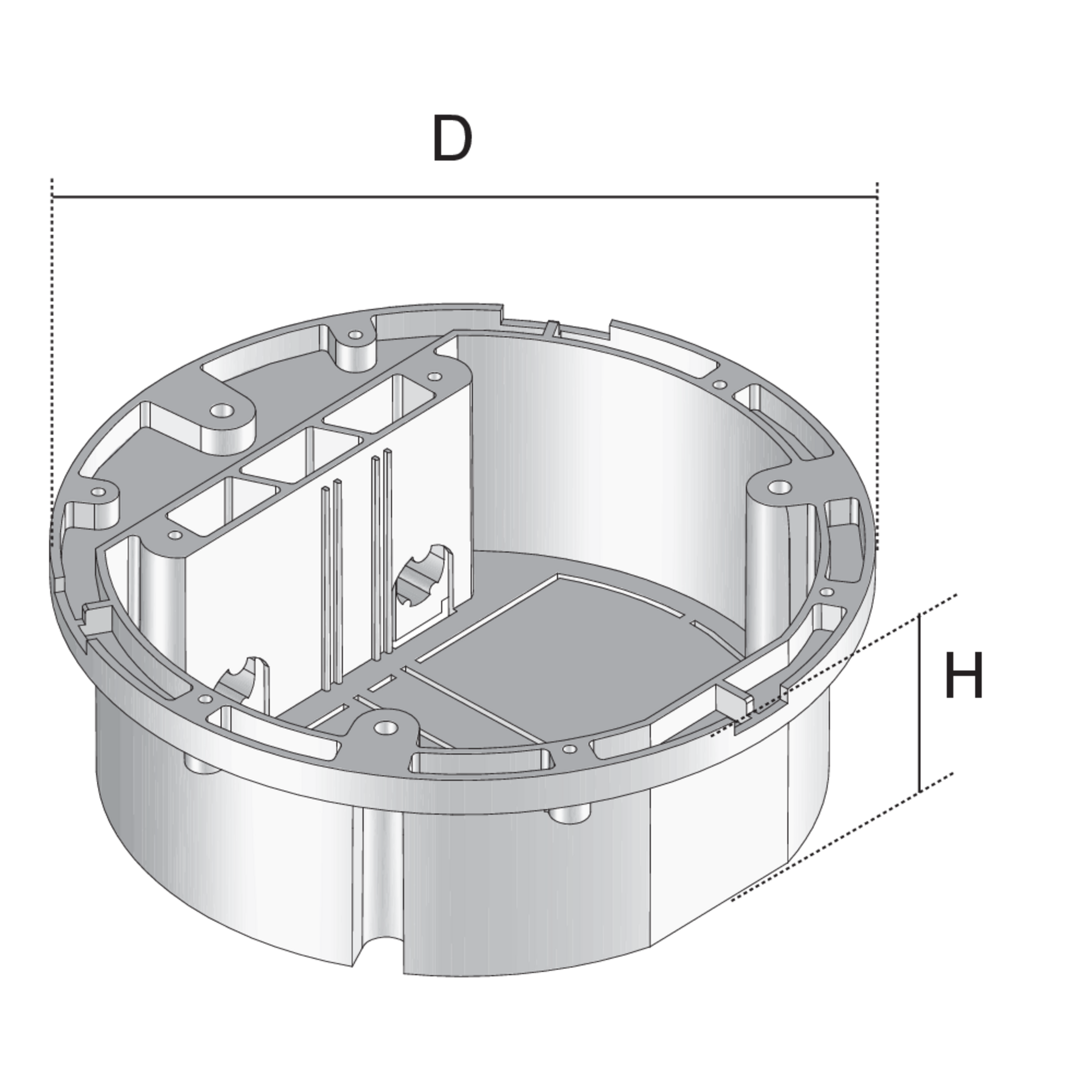

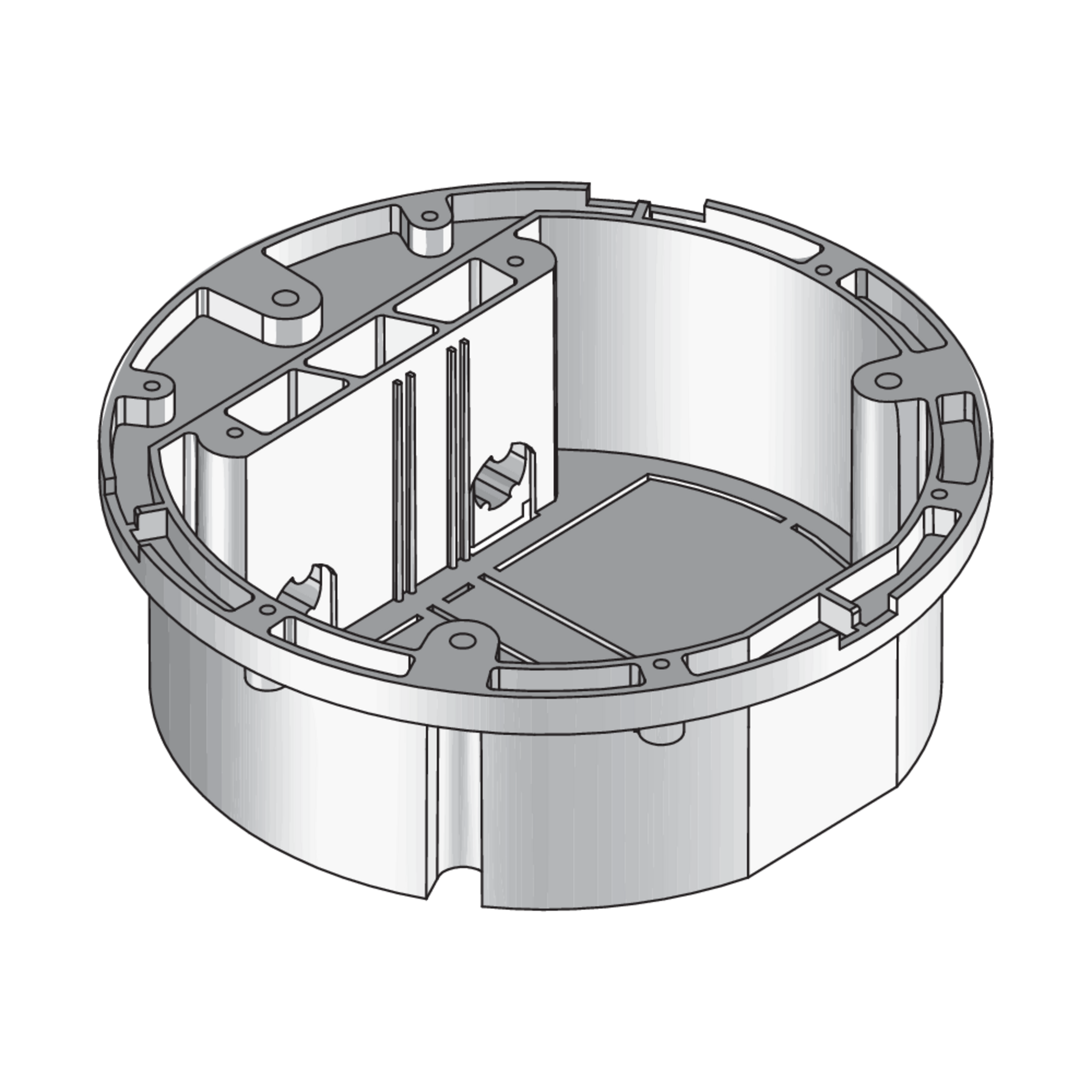

UG R components are round mounting boxes from the underfloor systems range that are used to accommodate installation devices. They are composed of a one-piece shell with a perforated base, two strain relief elements and two sheet metal screws. The mounting boxes can be bolted to BODO installation units or to angular, double single outlets and then fitted with single or double sockets. The mounting boxes are made of high-quality ABS copolymer (ABS) in graphite black (RAL 9011). They are 118 mm wide and 39 mm high.
H
height
B
width
colour
color
G
Weight per storage unit
de
en
Valid from February 1st, 2025, updated version from 31/03/2025.
de
Declaration
PDF, 106.06 KB
DownloadDownload
de
en
Installation equipment for electric cables and circuits
de
en
Catalogue
de
en
Assembly Instructions
de
en
Technical Information
