Cover plate for 3x UDAE22

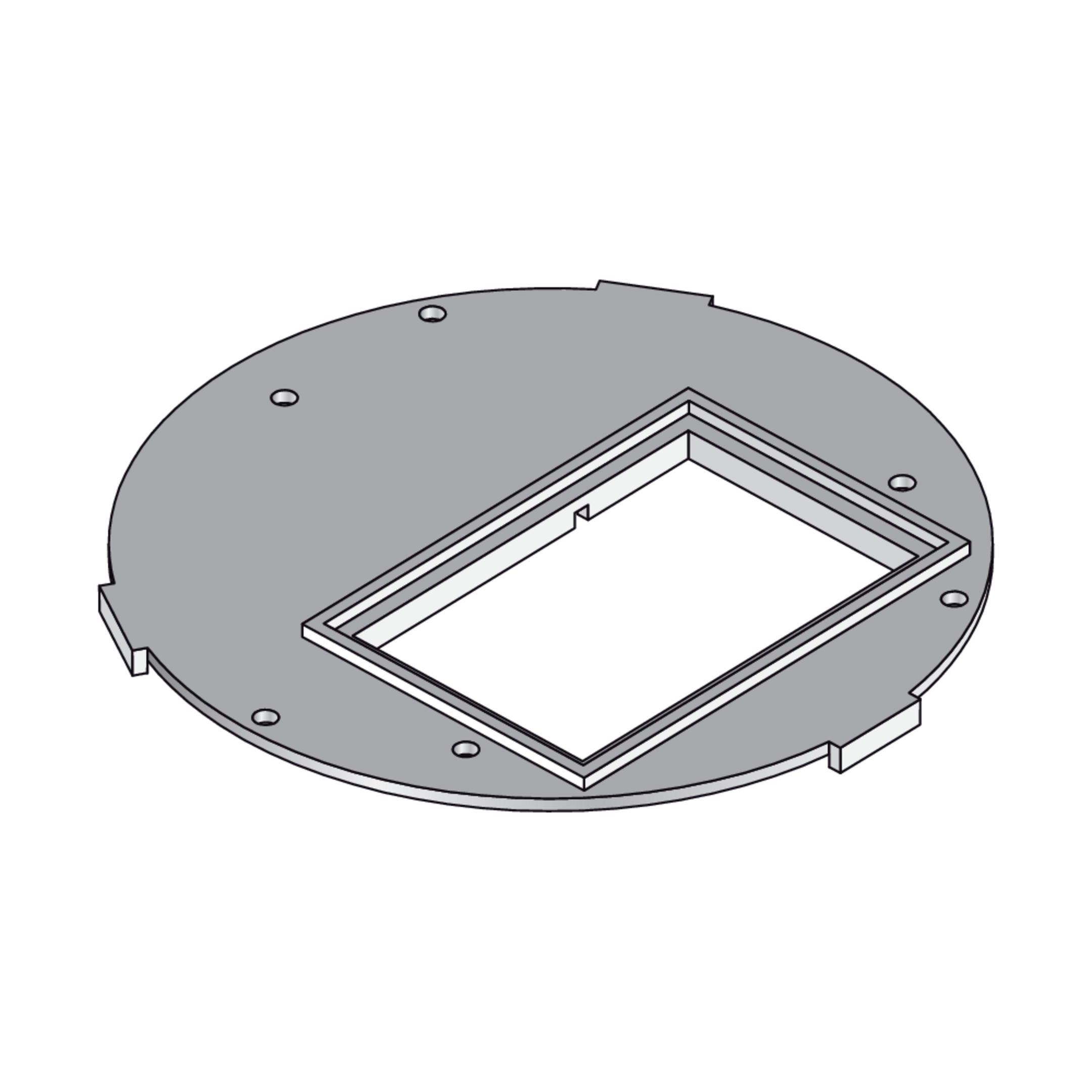

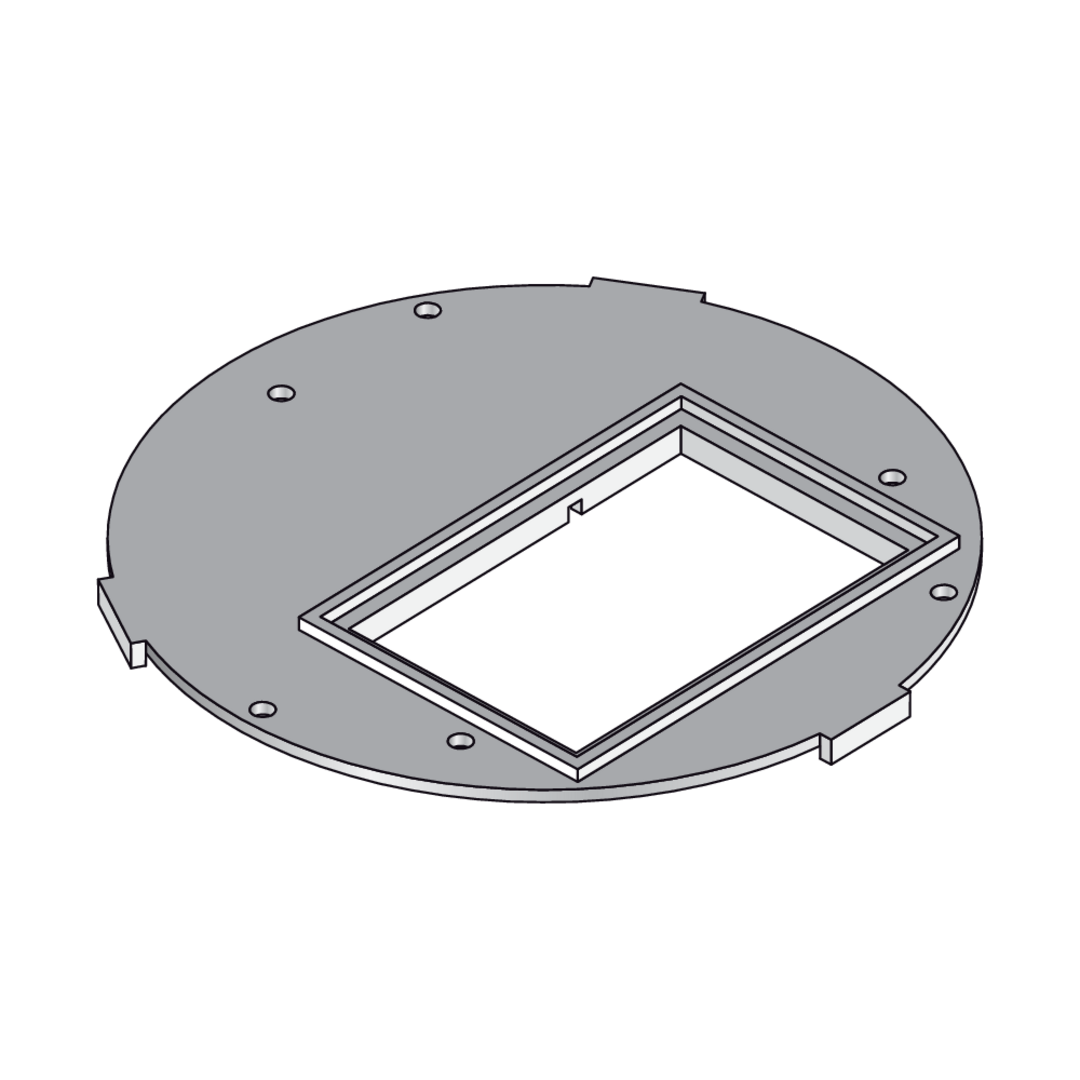

UARM-3-1 components from the underfloor system product range are round, one-piece cover plates with a square opening. Three 22x45 mm latching data junction boxes or one 45x45 mm latching Schuko socket with a 22x45 mm data junction box can be installed in the opening. The panels are made of high-quality ABS copolymer (ABS) in graphite black (RAL 9011). They have the installation dimensions of E1 40.5 mm and E2 63 mm.

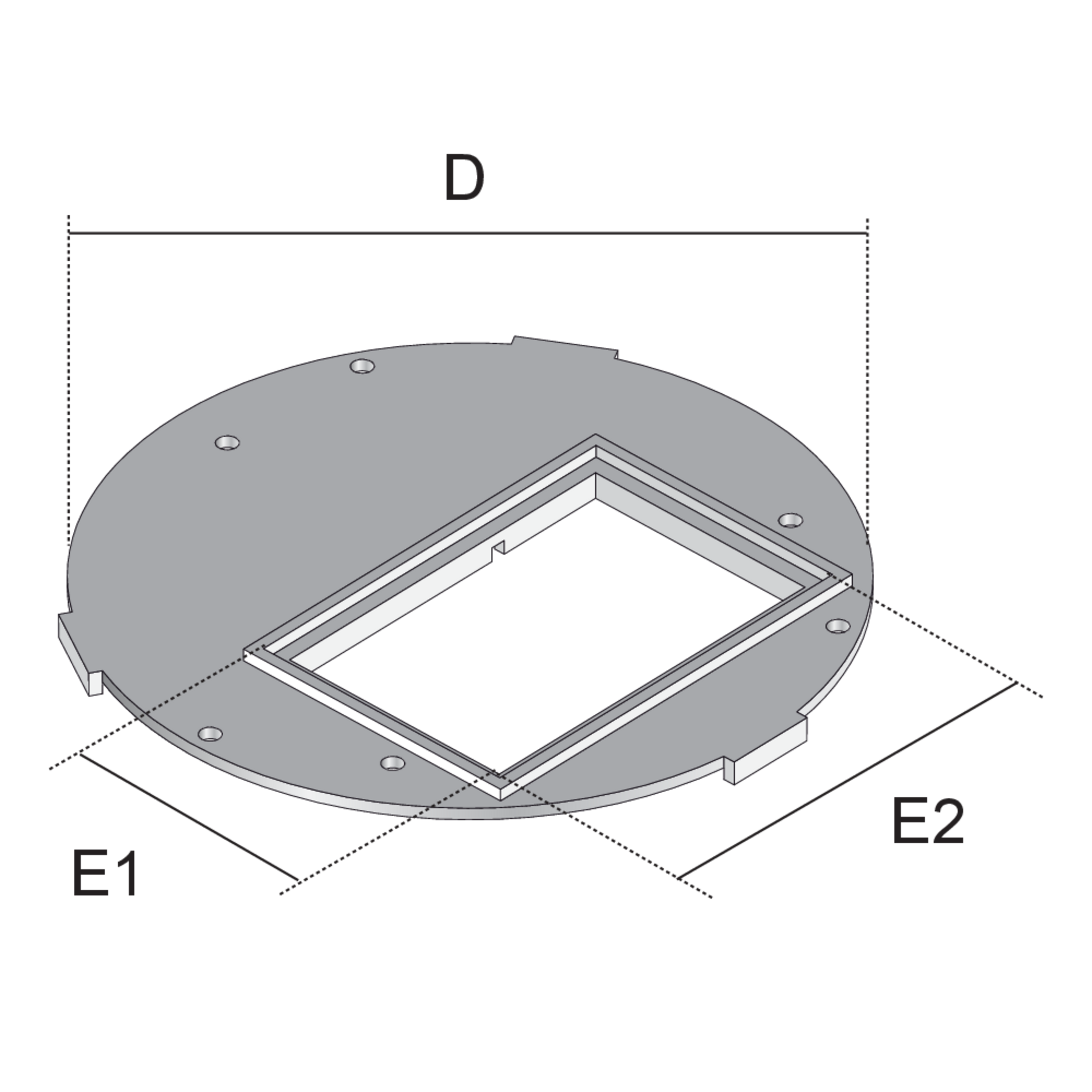

D
Diameter (mm)
E1
fitting dimension E1
E2
fitting dimension E2
colour
color
G
Weight per storage unit
RAL
RAL-Nummer
