BODO NL

Single outlet, wet-clean, round, empty

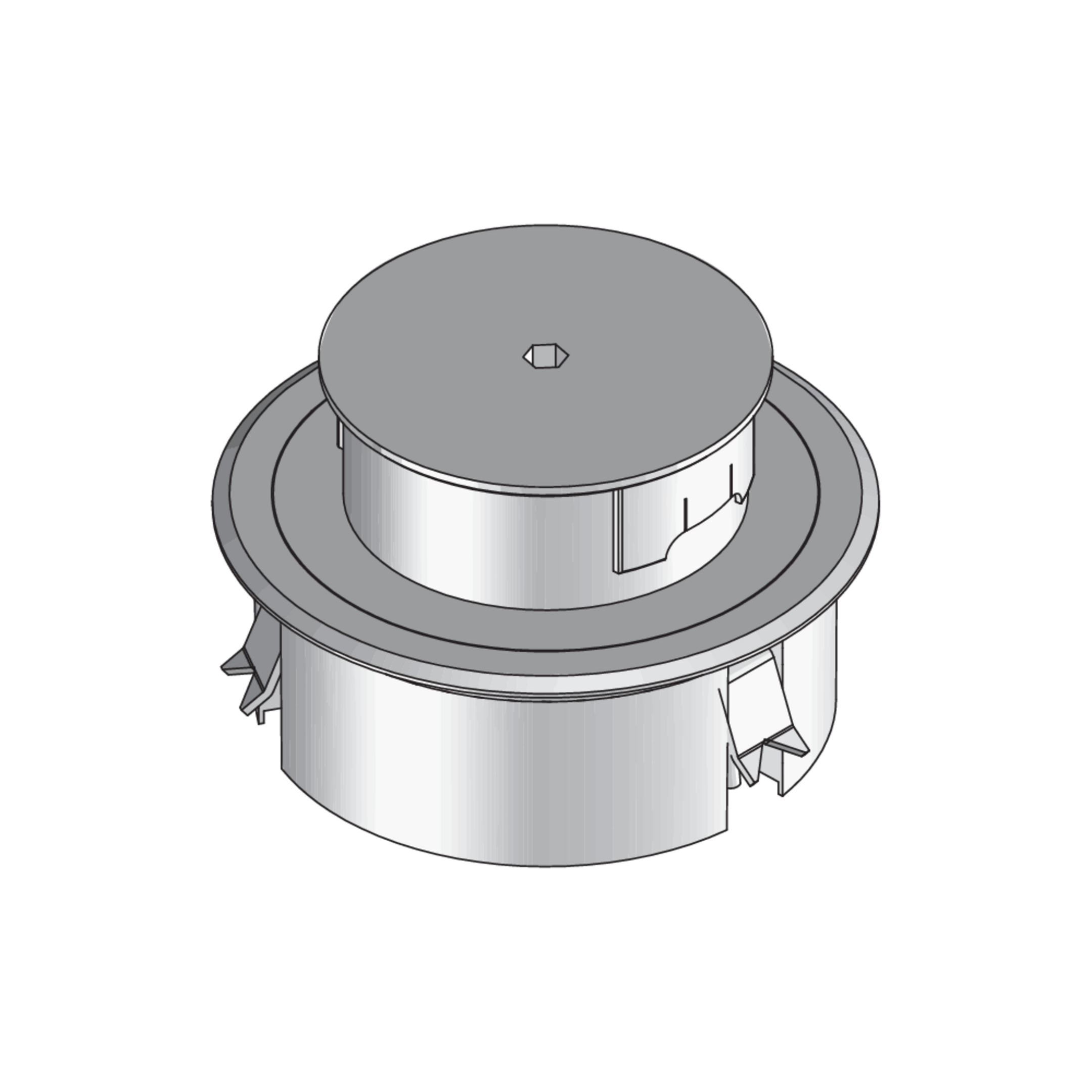

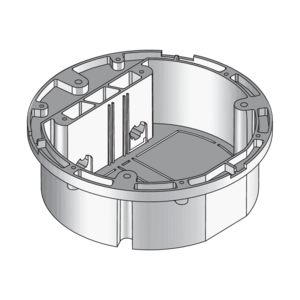

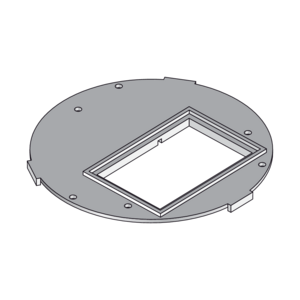

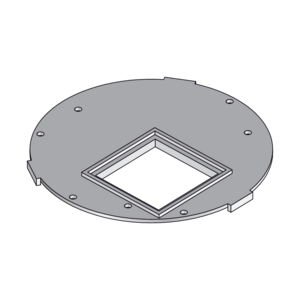

The BODO NL components are round single outlets with a protective frame for the floor covering. They are equipped with a swivelling tube, rotating cable outlet, a cover, a claw set and a rubber seal. The single outlets are suitable for dry-cleaned and wet-cleaned rooms with high traffic loads and can be installed in screed and raised or false floor openings. The tube with cover and tube holder is made of aluminium, brass or stainless steel, material no. 1.4301 (V2A). The frame and the mounting box are made of plastic. The single outlets are available in different sizes depending on the material.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

Article

H

height

Hmin

minimum installation height

Pmax

maximum load

ØB

Installation diameter

ØE

fitting dimension round

colour

color

IPg

IP protection level in used condition

IPn

IP protection level in unused condition

G

Weight per storage unit

  • BODO NL
    single outlet,
    height
    51 mm
    minimum installation height
    48 mm
    maximum load
    15.00 kN
    Installation diameter
    140 mm
    fitting dimension round
    122 mm
    color
    aluminium
    IP protection level in used condition
    IP 43
    IP protection level in unused condition
    IP 66
    Weight per storage unit
    0.554 kg
    More information
  • BODO NL-CR
    single outlet,
    height
    51 mm
    minimum installation height
    48 mm
    maximum load
    15.00 kN
    Installation diameter
    140 mm
    fitting dimension round
    122 mm
    color
    chrome
    IP protection level in used condition
    IP 43
    IP protection level in unused condition
    IP 66
    Weight per storage unit
    0.554 kg
    More information
  • BODO NL-E
    single outlet,
    height
    51 mm
    minimum installation height
    48 mm
    maximum load
    15.00 kN
    Installation diameter
    140 mm
    fitting dimension round
    122 mm
    color
    stainless steel, massive
    IP protection level in used condition
    IP 43
    IP protection level in unused condition
    IP 66
    Weight per storage unit
    1.284 kg
    More information
  • BODO NL-MMS
    single outlet,
    height
    51 mm
    minimum installation height
    48 mm
    maximum load
    15.00 kN
    Installation diameter
    140 mm
    fitting dimension round
    122 mm
    color
    messing, massive
    IP protection level in used condition
    IP 43
    IP protection level in unused condition
    IP 66
    Weight per storage unit
    1.329 kg
    More information
  • BODO NL-SW
    single outlet,
    height
    51 mm
    minimum installation height
    48 mm
    maximum load
    15.00 kN
    Installation diameter
    140 mm
    fitting dimension round
    122 mm
    color
    black
    IP protection level in used condition
    IP 43
    IP protection level in unused condition
    IP 66
    Weight per storage unit
    0.554 kg
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085
  • With test stamp dia. 130 mm: 15 kN

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

BIM- und CAD-Data

    BIM Data Installation Boxes

    BIM Data

    ZIP, 13.12 MB

    DownloadDownload
