The underfloor range includes the UEBS screed-flush duct systems. In conjunction with mounting components and accessories, they are used for horizontal cable routing in dry-cleaned and damp-cleaned floors in rooms with office traffic loads. The removable covers gives users free access to the installed components and lets them be flexibly positioned. They consist of pre-assembled side profiles with rubber seals, dummy covers, crossbeams, screed anchors and carpet profiles. The side profiles are available in three versions for different key requirements. The items are assembled from a channel, two side walls or a tray and four levelling supports.
UEBS Underfloor Duct System
UEBS
Screed-covered duct, one section
UEBSMSP S
Side walls, sheet steel
UEBSMSP
Side walls, plastic
UEBSMSW
Floor tray
UEBSMD 122R
Assembly cover, round
UEBSMD 185V
Assembly cover, angular
UEBSMD 260R
Assembly cover, round
UEBSMD 260V
Assembly cover, angular
UEBSMD 307R
Assembly cover, round
UEBSBMD 185V
Assembly cover, dummy, angular
UEBSBMD 260R
Assembly cover, dummy, round
UEBSBMD 260V
Assembly cover, dummy, angular
UEBSBMD 307R
Assembly cover, dummy, round
UEBSST
Levelling support
UEBSBD
Dummy cartridge, angular
UEBSPT
Cartridge edging
UEBSMA
Mounting kit T branch
UEBSMB
Mounting kit 90° bend
UEBSAM60 R
Add-on unit for screed-flush duct
UEBSAM60 V
Add-on unit for screed-flush duct
UEBSES
End piece
UEBSESK
End piece, cartridge
UEBSV
Corner connector

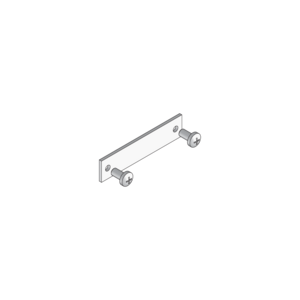

UEBSV S
Connector
UEBSVE S
Corner connector
UEBSVMB S
Corner connector plate
UEBSE
Earth connector
UEBSEL
Earthing lug set
UGM SLF
Subsonic noise sleeve socket - levelling support
UEBSD
Dummy cover
UEBSPT 3
Carpet edge with abutting edge 0/3 mm
UEBSQT
Cross beam
UEBSQT S
Cross beam
UEBSQTF S
Cross beam
UEBSTR
Separating strip
UEBSEA
Screed anchor
UEBSPGD
Rubber seal
Vorteile
- Three different side profile designs
- Reliable impact sound decoupling
- Safe EMC cable routing
- Easy installation and removal of installation devices
- Individual room design through flexible cable routing while maintaining barrier-free access
- For dry-cleaned or wet-cleaned floors
- Low space requirements for electrical installations
