UEBSES

End piece

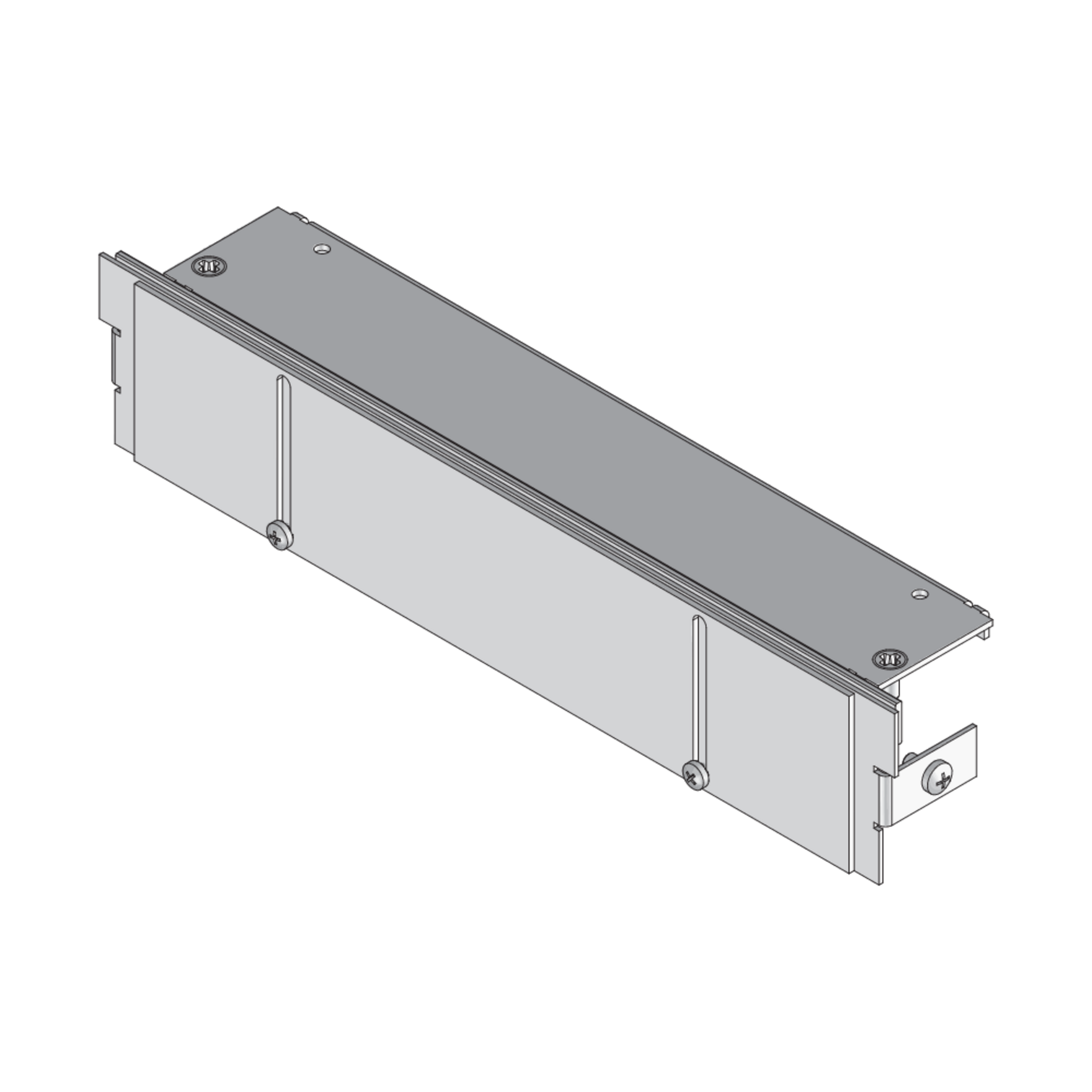

UEBSES components are end pieces that are used to close off screed-flush ducts. The products can be adapted to a floor covering height of 3 mm. They are made from sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346. They have a minimum installation height of 60 or 100 mm and a levelling range of 50 mm. They are 200 to 500 mm wide and come with a cross-beam.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

Article

Hmin

minimum installation height

B

width

N

levelling range

T

Depth of flooring recess

G

Weight per storage unit

  • UEBSES 60-20S
    end piece,
    minimum installation height
    60 mm
    width
    200 mm
    levelling range
    50 mm
    Depth of flooring recess
    0/3 mm
    Weight per storage unit
    0.533 kg
    More information
  • UEBSES 60-30S
    end piece,
    minimum installation height
    60 mm
    width
    300 mm
    levelling range
    50 mm
    Depth of flooring recess
    0/3 mm
    Weight per storage unit
    0.820 kg
    More information
  • UEBSES 60-40S
    end piece,
    minimum installation height
    60 mm
    width
    400 mm
    levelling range
    50 mm
    Depth of flooring recess
    0/3 mm
    Weight per storage unit
    1.106 kg
    More information
  • UEBSES 60-50S
    end piece,
    minimum installation height
    60 mm
    width
    500 mm
    levelling range
    50 mm
    Depth of flooring recess
    0/3 mm
    Weight per storage unit
    1.664 kg
    More information
  • UEBSES 100-20S
    end piece,
    minimum installation height
    100 mm
    width
    200 mm
    levelling range
    50 mm
    Depth of flooring recess
    0/3 mm
    Weight per storage unit
    0.643 kg
    More information
  • UEBSES 100-30S
    end piece,
    minimum installation height
    100 mm
    width
    300 mm
    levelling range
    50 mm
    Depth of flooring recess
    0/3 mm
    Weight per storage unit
    0.993 kg
    More information
  • UEBSES 100-40S
    end piece,
    minimum installation height
    100 mm
    width
    400 mm
    levelling range
    50 mm
    Depth of flooring recess
    0/3 mm
    Weight per storage unit
    1.341 kg
    More information
  • UEBSES 100-50S
    end piece,
    minimum installation height
    100 mm
    width
    500 mm
    levelling range
    50 mm
    Depth of flooring recess
    0/3 mm
    Weight per storage unit
    1.962 kg
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link
