UEBSMA

Mounting kit T branch

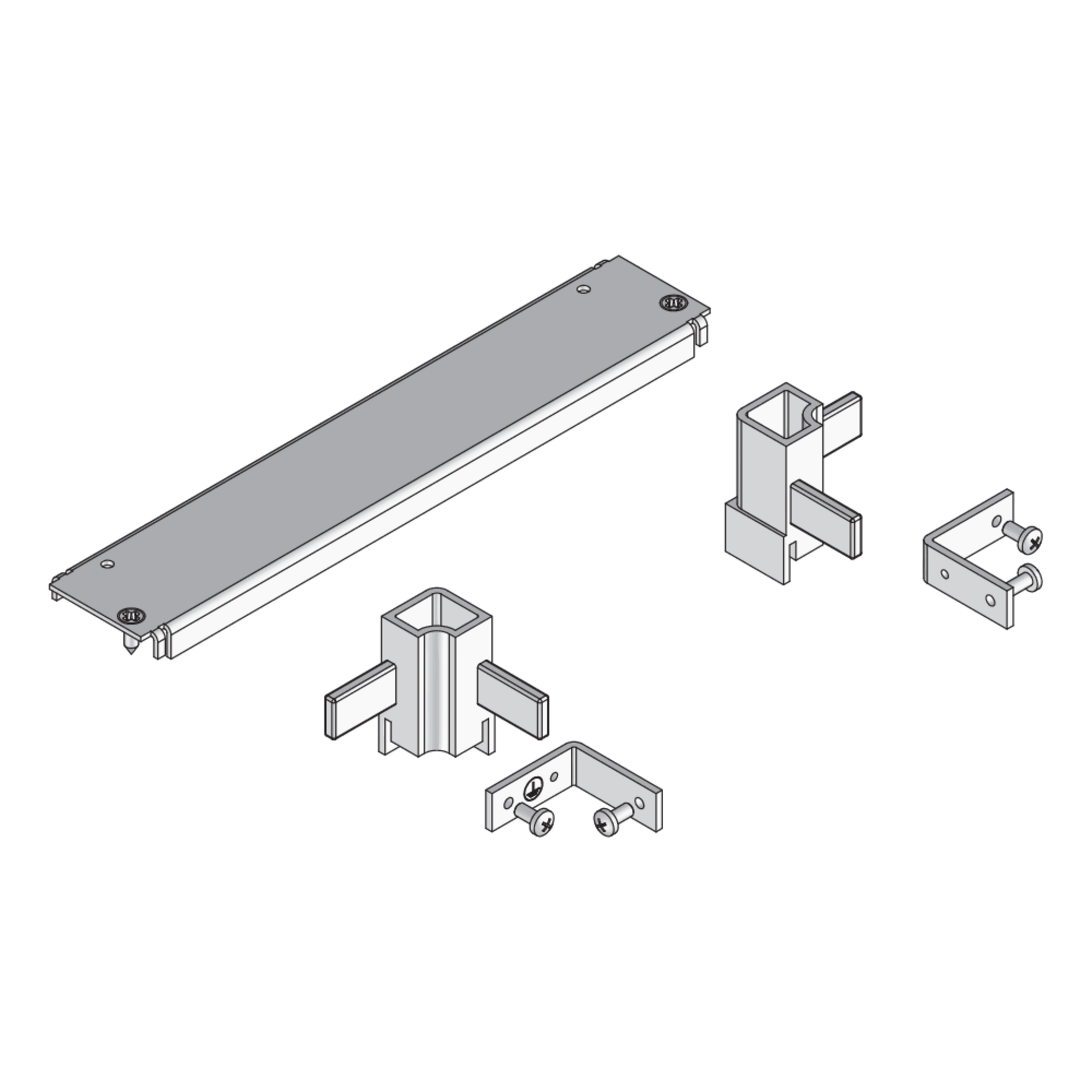

UEBSMA components are T-branch mounting kits. To install the screed-flush duct systems, the duct is connected using the T-branch installation set and then bolted together using the corner connectors supplied. Two T-branch installation sets are required to create an crossing. For the final assembly of the T-branch, transverse cross-beams are inserted to give additional support to the cover joints. The components of the sets are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346 and include the transverse cross-beams with countersunk sheet metal bolts and corner connectors with button head screws.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

Article

G

Weight per storage unit

Included accessories
  • UEBSMA 20S
    installation set T-junction,
    Weight per storage unit
    0.299 kg
    Included accessories
    More information
  • UEBSMA 30S
    installation set T-junction,
    Weight per storage unit
    0.408 kg
    Included accessories
    More information
  • UEBSMA 40S
    installation set T-junction,
    Weight per storage unit
    1.007 kg
    Included accessories
    More information
  • UEBSMA 50S
    installation set T-junction,
    Weight per storage unit
    1.253 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

BIM- und CAD-Data

    BIM Data Screed-Flush Duct Systems

    BIM Data

    ZIP (4.77 MB)

    DownloadDownload
