UEBSBD

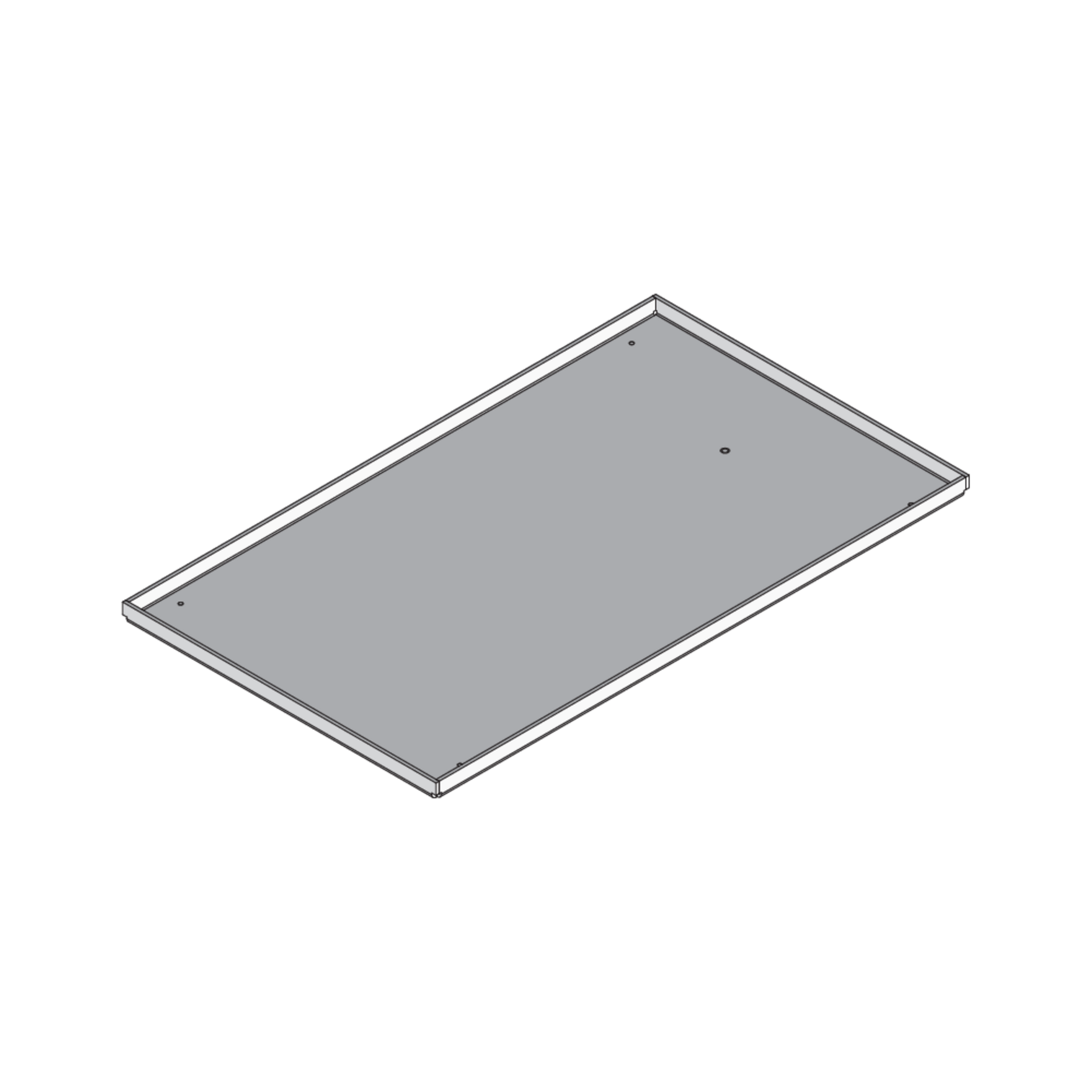

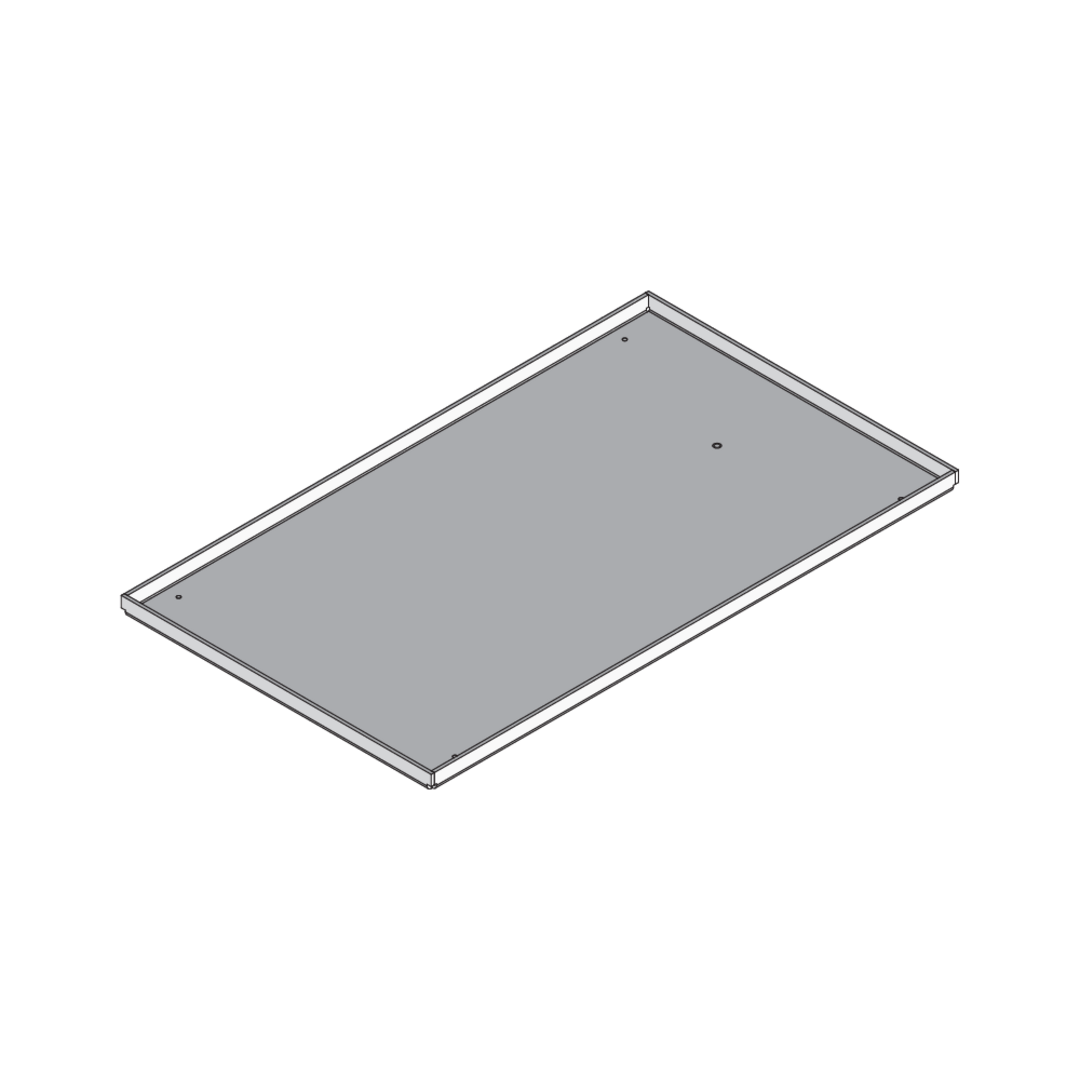

Dummy cartridge, angular

UEBSBD components are square dummy cartridges that are mounted with their abutting edges on the side walls of screed-flush duct systems. They can alternatively be used with dummy covers in rooms with office traffic loads. The cartridges are made of stainless steel with chrome and nickel alloys (material no. 1.4301, V2A) and have VDE approval according to DIN EN 50085. They are 500 mm long and the material is 3 mm thick. They are available in two different height and depth dimensions and are from 194 mm wide.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

Article

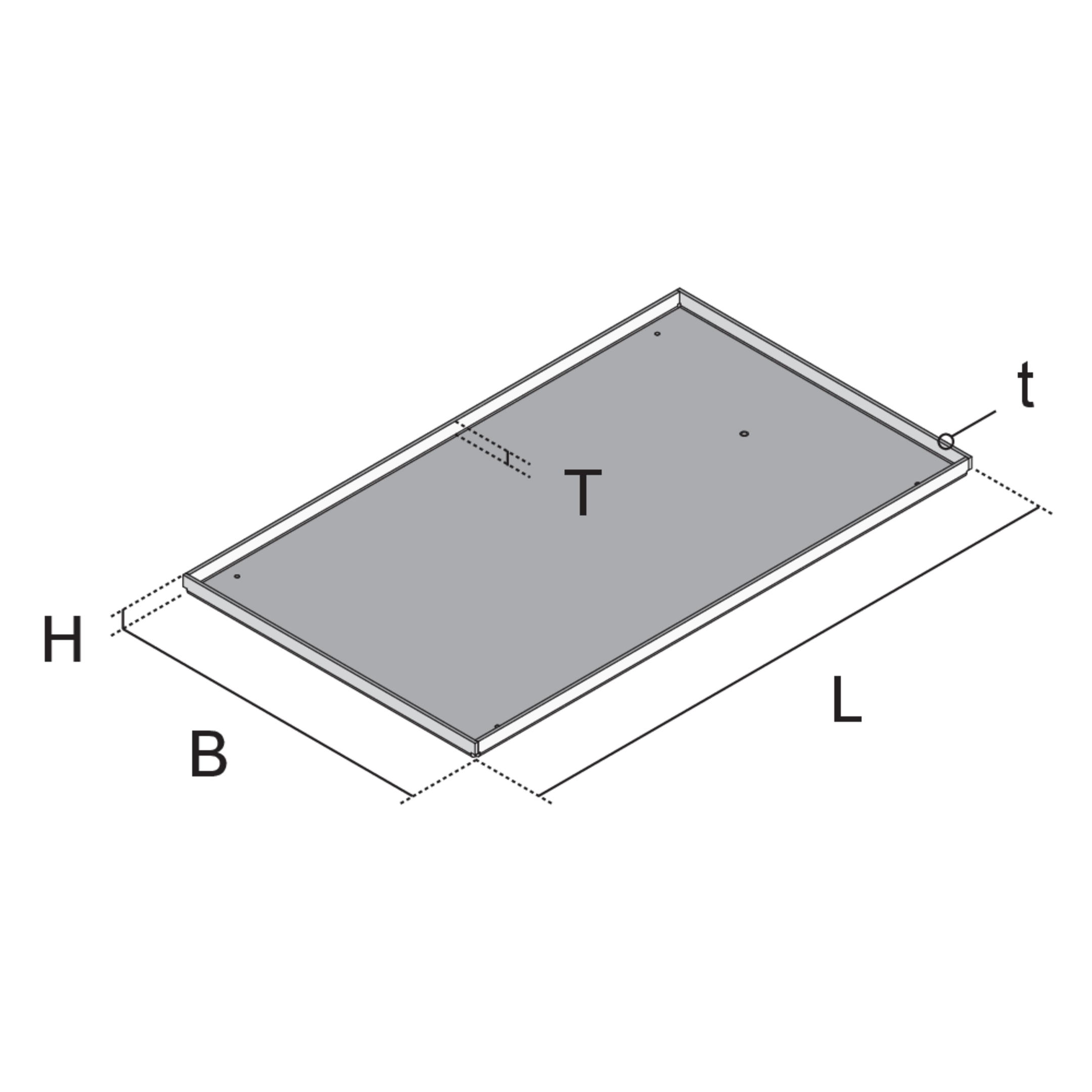

H

height

B

width

L

length

t

material thickness

T

Depth of flooring recess

G

Weight per storage unit

  • UEBSBD 15-20E
    dummy cartridge,
    height
    15 mm
    width
    200 mm
    length
    500 mm
    material thickness
    3.00 mm
    Depth of flooring recess
    12 mm
    Weight per storage unit
    2.675 kg
    More information
  • UEBSBD 15-30E
    dummy cartridge,
    height
    15 mm
    width
    300 mm
    length
    500 mm
    material thickness
    3.00 mm
    Depth of flooring recess
    12 mm
    Weight per storage unit
    3.914 kg
    More information
  • UEBSBD 15-40E
    dummy cartridge,
    height
    15 mm
    width
    400 mm
    length
    500 mm
    material thickness
    3.00 mm
    Depth of flooring recess
    12 mm
    Weight per storage unit
    5.153 kg
    More information
  • UEBSBD 15-50E
    dummy cartridge,
    height
    15 mm
    width
    500 mm
    length
    500 mm
    material thickness
    3.00 mm
    Depth of flooring recess
    12 mm
    Weight per storage unit
    6.395 kg
    More information
  • UEBSBD 25-20E
    dummy cartridge,
    height
    25 mm
    width
    200 mm
    length
    500 mm
    material thickness
    3.00 mm
    Depth of flooring recess
    22 mm
    Weight per storage unit
    3.001 kg
    More information
  • UEBSBD 25-30E
    dummy cartridge,
    height
    25 mm
    width
    300 mm
    length
    500 mm
    material thickness
    3.00 mm
    Depth of flooring recess
    22 mm
    Weight per storage unit
    4.287 kg
    More information
  • UEBSBD 25-40E
    dummy cartridge,
    height
    25 mm
    width
    400 mm
    length
    500 mm
    material thickness
    3.00 mm
    Depth of flooring recess
    22 mm
    Weight per storage unit
    5.574 kg
    More information
  • UEBSBD 25-50E
    dummy cartridge,
    height
    25 mm
    width
    500 mm
    length
    500 mm
    material thickness
    3.00 mm
    Depth of flooring recess
    22 mm
    Weight per storage unit
    6.861 kg
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link
