PohlCon carries various device inserts suitable for the range of mounting boxes and installation devices. They are made of galvanised sheet steel and are preferably used for low floor construction heights of 100, 85 or 65 mm. The inserts with suitable panels can be inserted into round or square plastic and stainless steel units and can accommodate up to four installation devices measuring 45x45 mm and a maximum of six simple data jacks. The power or data technology cables can then be connected using straight or angled plugs. The installation space and the dimensions of the connection system must be taken into account.
Mounting Box Inserts

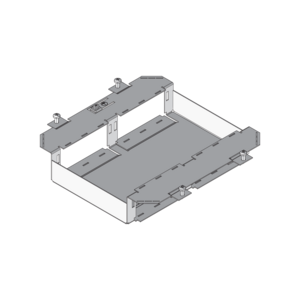

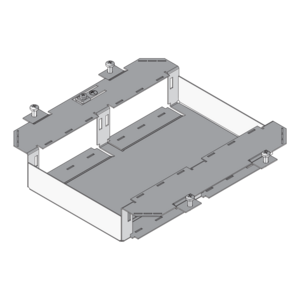

UGE3 VRK
Mounting box insert, 3x, for plastic units

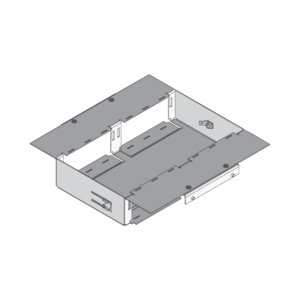

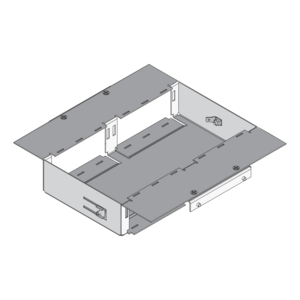

UGE3 VE
Mounting box insert, 3x, for stainless steel units, angular

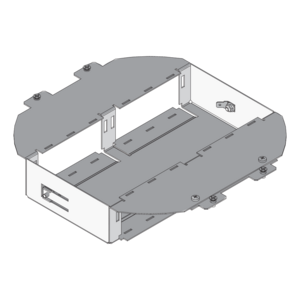

UGE3 RE
Mounting box insert, 3x, for stainless steel units, round

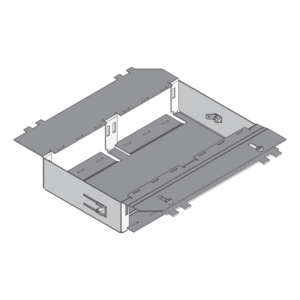

UGE3 VDDE
Mounting box insert, 3x, for stainless steel units, angular

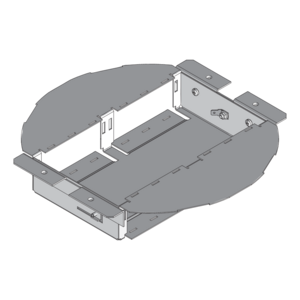

UGE3 RDDE
Mounting box insert, 3x, for stainless steel units, round

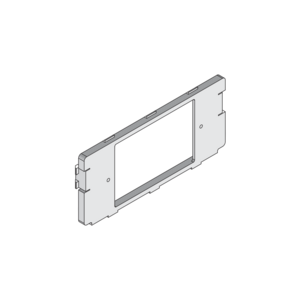

UGEE 1 DEP S
Device panel, data technology

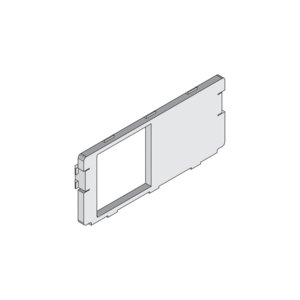

UGEE 1 UST S
Device panel, power technology

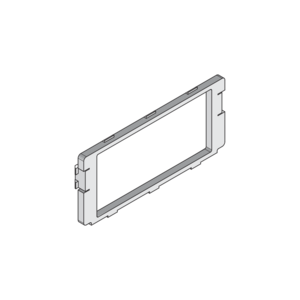

UGEE 2 UST S
Device panel, power technology
Vorteile
- Optional combination with various installation units
- Can be used in very shallow floors from 65 mm
- Easy to equip with up to four installation devices and six simple data jacks
- Inconspicuously blends into underfloor systems of modern interior design
