The extensive underfloor range includes CHALI duct systems. These screed-flush brush ducts are optimally suited to the requirements of modern building equipment in offices and public buildings. They allow cables to be routed horizontally across the room or directly on walls and feature coverable brushes and removable covers. The ducts consist of a pre-assembled, height-adjustable upper and lower part. They allow VDE-certified applications in which electrical installations can be supplied with power at any point along the duct. This means that nothing stands in the way of flexible room design in spaces with dry-cleaned and wet-cleaned floors.
CHALI Underfloor Duct System
CHALI
Screed-flush brush duct
UBEBBDL
Dummy cover set
UBEBV
Connector
UBEBGT
Device carrier fixture
UBEBTR
Separating strip
UBEBES
End piece
UBDSLF
Levelling support
UGM SLF
Subsonic noise sleeve socket - levelling support

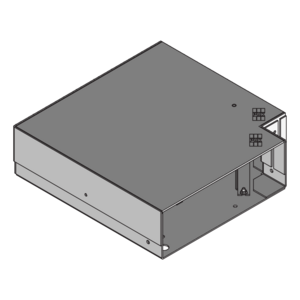

UBEBMBA
Outside bend

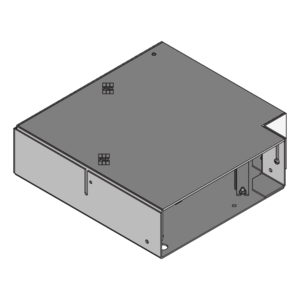

UBEBMBI
Inside bend
UBEBMAL
T-junction, left
UBEBMAR
T-junction, right
UBEBMAIL
T-junction, left, inner
UBEBMAIR
T-junction, right, inner
UKBS CHALI
Fire-resistant partition
UBEBBS
Fastening set for fire-resistant partition, CHALI
Vorteile
- VDE-certified due to coverable brush cable outlet
- Robust compensation of structural tolerances
- Reliable impact sound decoupling thanks to free-standing installation without contact with the screed
- For dry-cleaned or wet-cleaned floors
- Easy installation and removal of installation devices
- Individual room design through flexible cable routing while maintaining barrier-free access
- Low space requirements for electrical installations
Downloads
de
en
de
en
de
en
de
en
de
de
de
en
Technical Information for Flush-Mounted Duct Systems
Technical Information
Floor installation systems - Catalogue
Catalogue for screed-flush and screed-covered duct systems, installation units, floor sockets, mounting boxes and accessories.

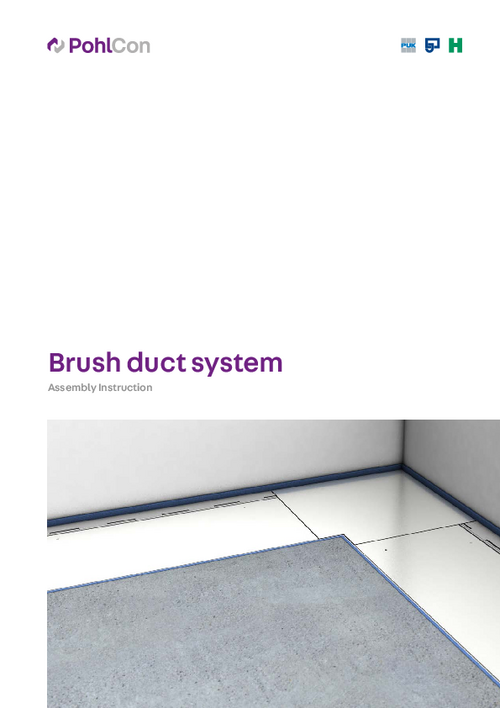

Installation Instructions CHALI
