UEBSMSP S

Side walls, sheet steel

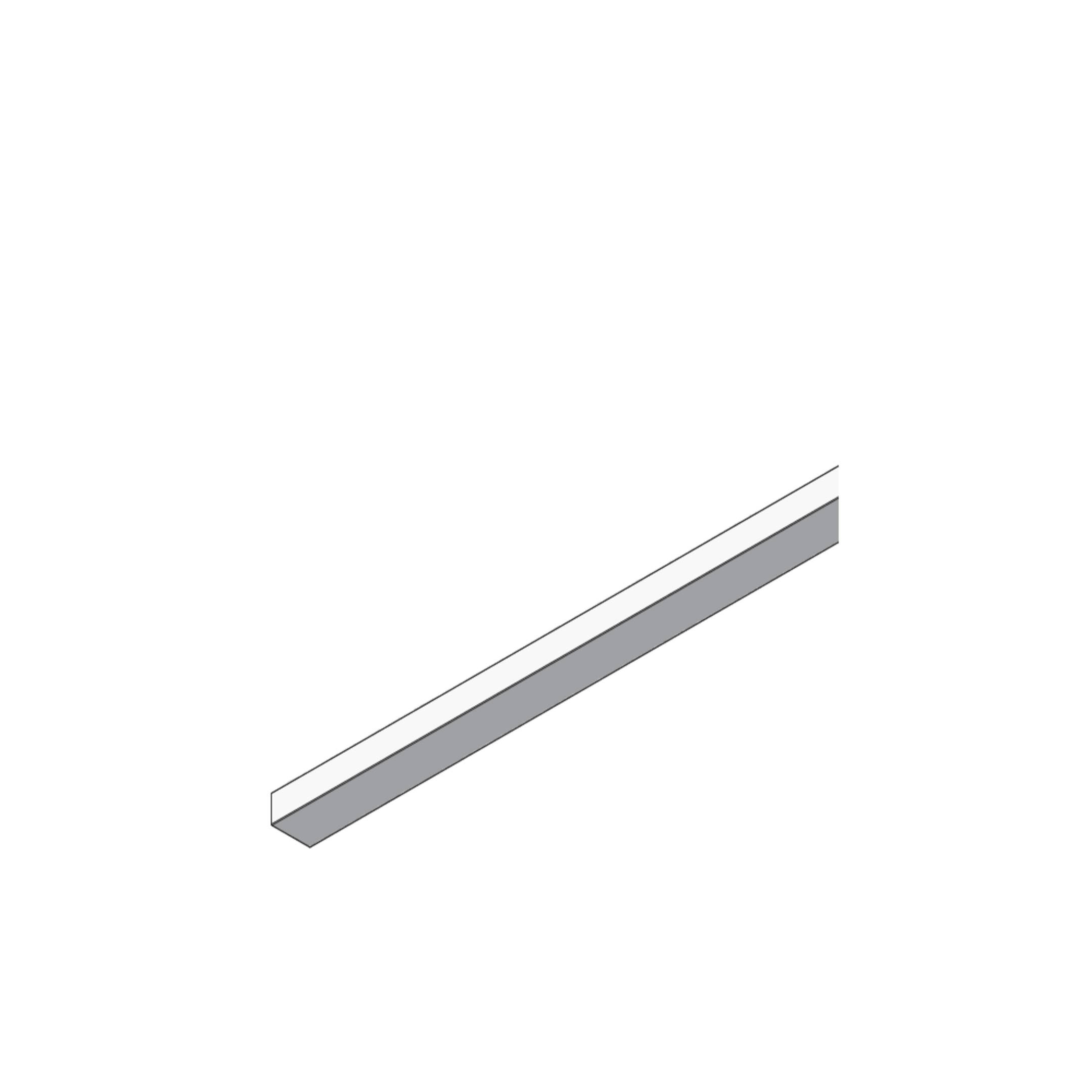

UEBSMSP S mounting components are side walls for screed-flush duct systems. UEBSMSP S side walls are made of steel. The product solution consists of two rotatable profiles that are used in conjunction with the UEBSST levelling supports to adjust the height and form the sides of the ducts. The side walls are available in various heights and with various adjustment ranges. They are 2000 mm long and they have a minimum installation height of 60 or 100 mm.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

Article

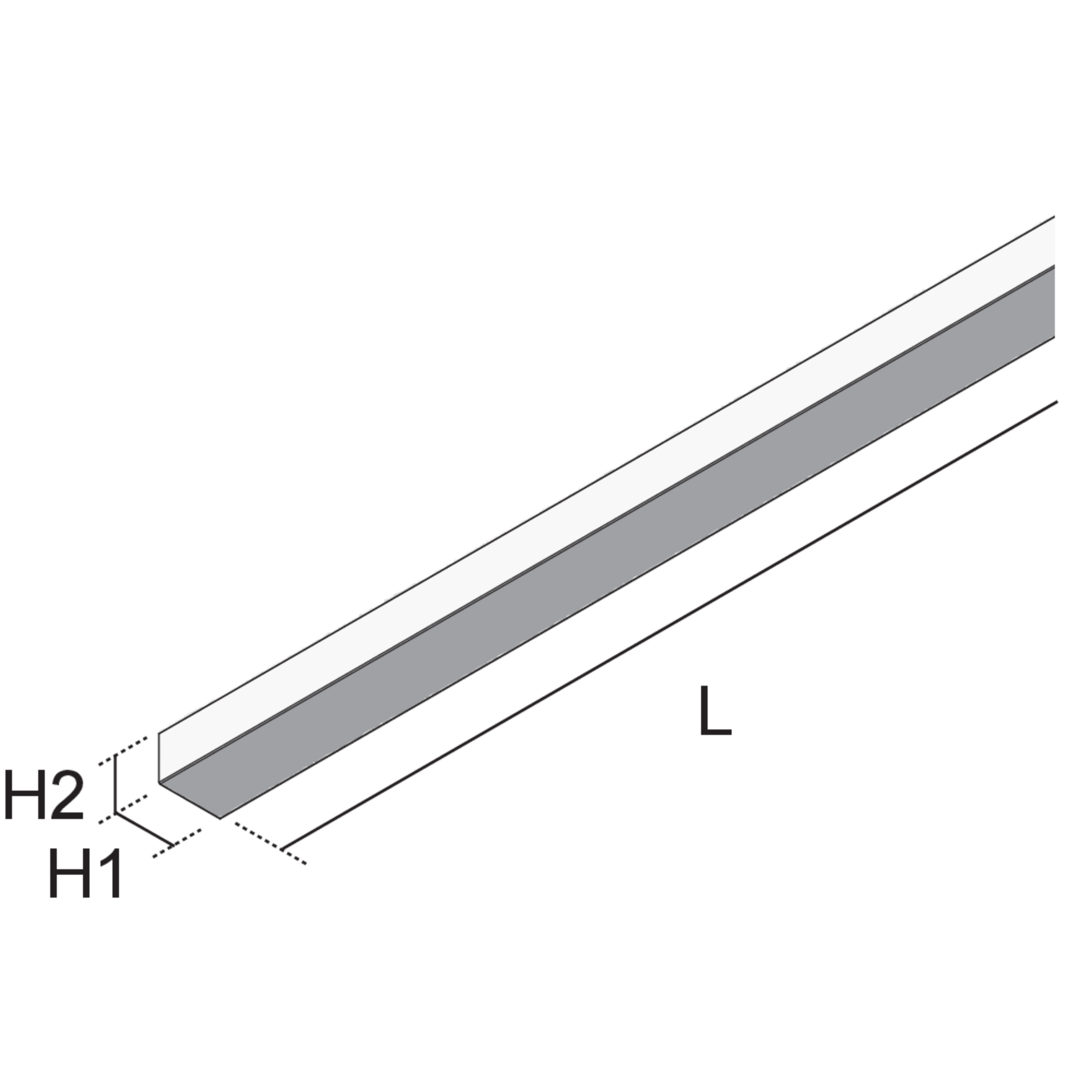

H1

height 1

H2

height 2

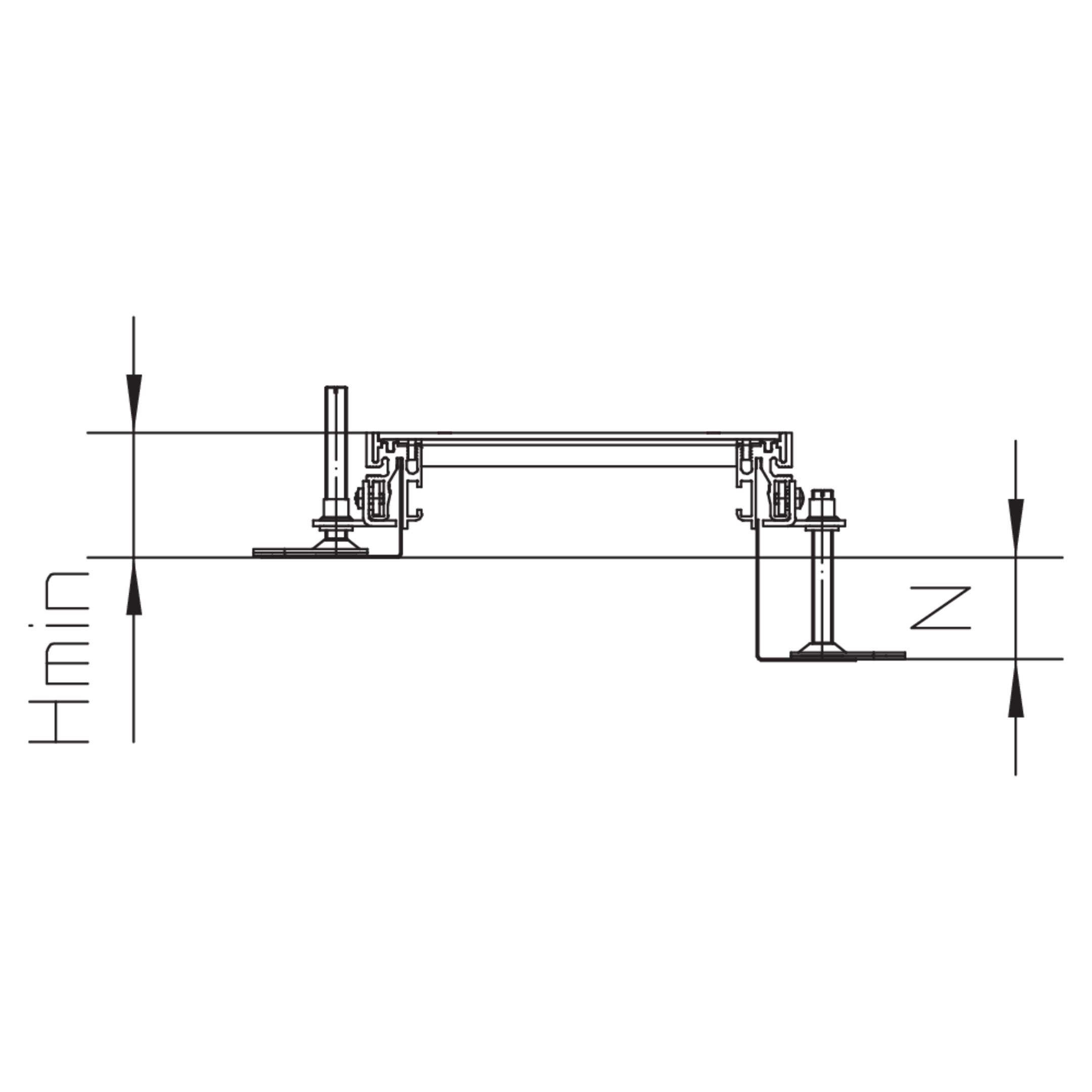

Hmin

minimum installation height

L

length

N

levelling range

G

Weight per storage unit

  • UEBSMSP 60S
    side wall-set,
    height 1
    48 mm
    height 2
    68 mm
    minimum installation height
    60 mm
    length
    2000 mm
    levelling range
    50 mm
    Weight per storage unit
    2.700 kg
    More information
  • UEBSMSP 100S
    side wall-set,
    height 1
    88 mm
    height 2
    108 mm
    minimum installation height
    100 mm
    length
    2000 mm
    levelling range
    50 mm
    Weight per storage unit
    4.584 kg
    More information
  • UEBSMSP 150S
    side wall-set,
    height 1
    88 mm
    height 2
    138 mm
    minimum installation height
    100 mm
    length
    2000 mm
    levelling range
    80 mm
    Weight per storage unit
    5.290 kg
    More information
  • UEBSMSP 180S
    side wall-set,
    height 1
    88 mm
    height 2
    168 mm
    minimum installation height
    100 mm
    length
    2000 mm
    levelling range
    110 mm
    Weight per storage unit
    5.998 kg
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085
