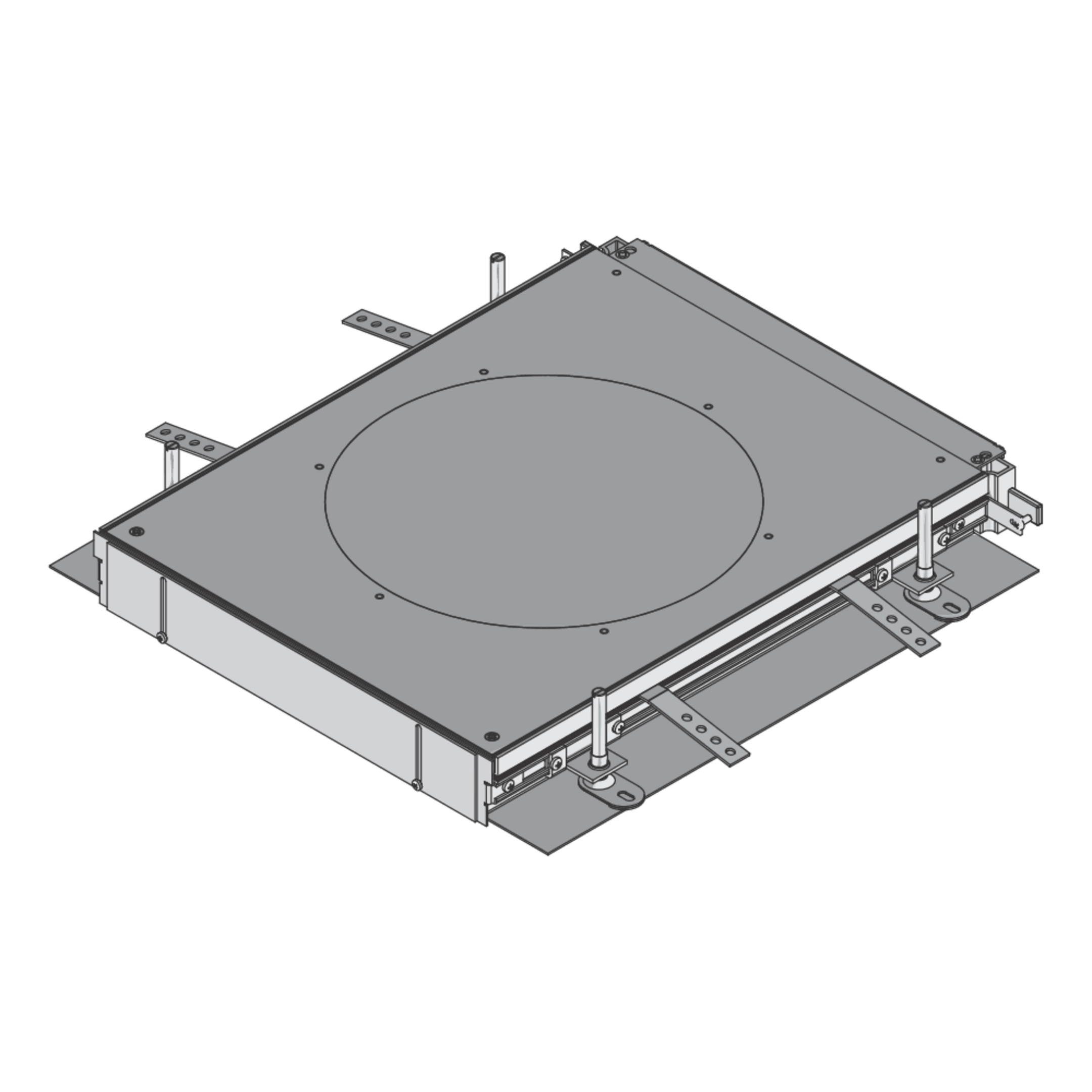

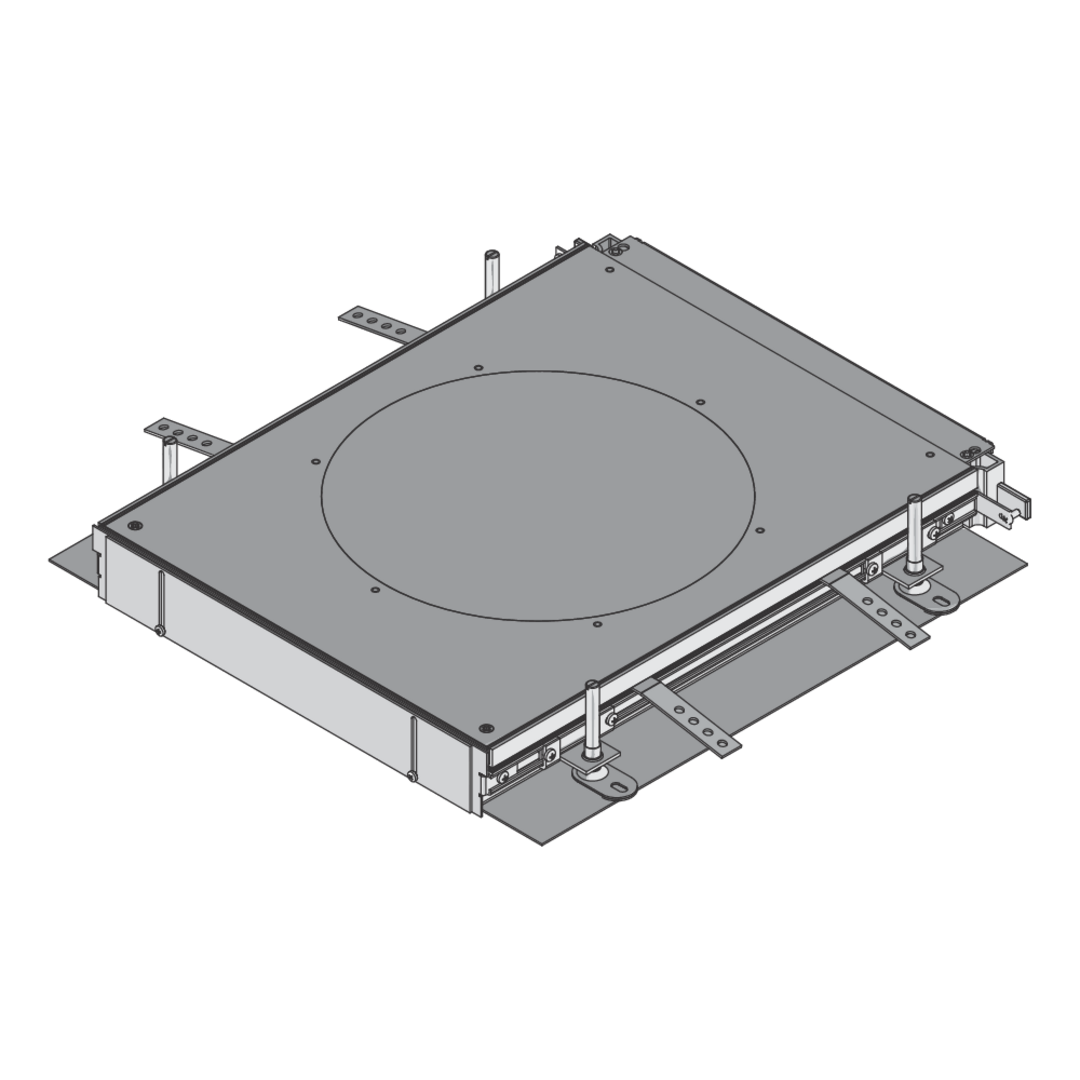

UEBSAM60 R

Add-on unit for screed-flush duct

UEBSAM60 R is an attachment accessory for screed-covered duct systems. The items are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346 and are designed for typical office traffic loads. The sets are delivered pre-assembled on aluminium side profiles with bolted cross-beams, blanked assembly openings, corner pieces and various additional components. UEBSAM60 R add-on units have mounting openings with round cut-outs and are 400 mm wide, 500 mm long and are made of material 3 mm thick. The minimum installation height is 60 mm and the levelling range is 50 mm.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

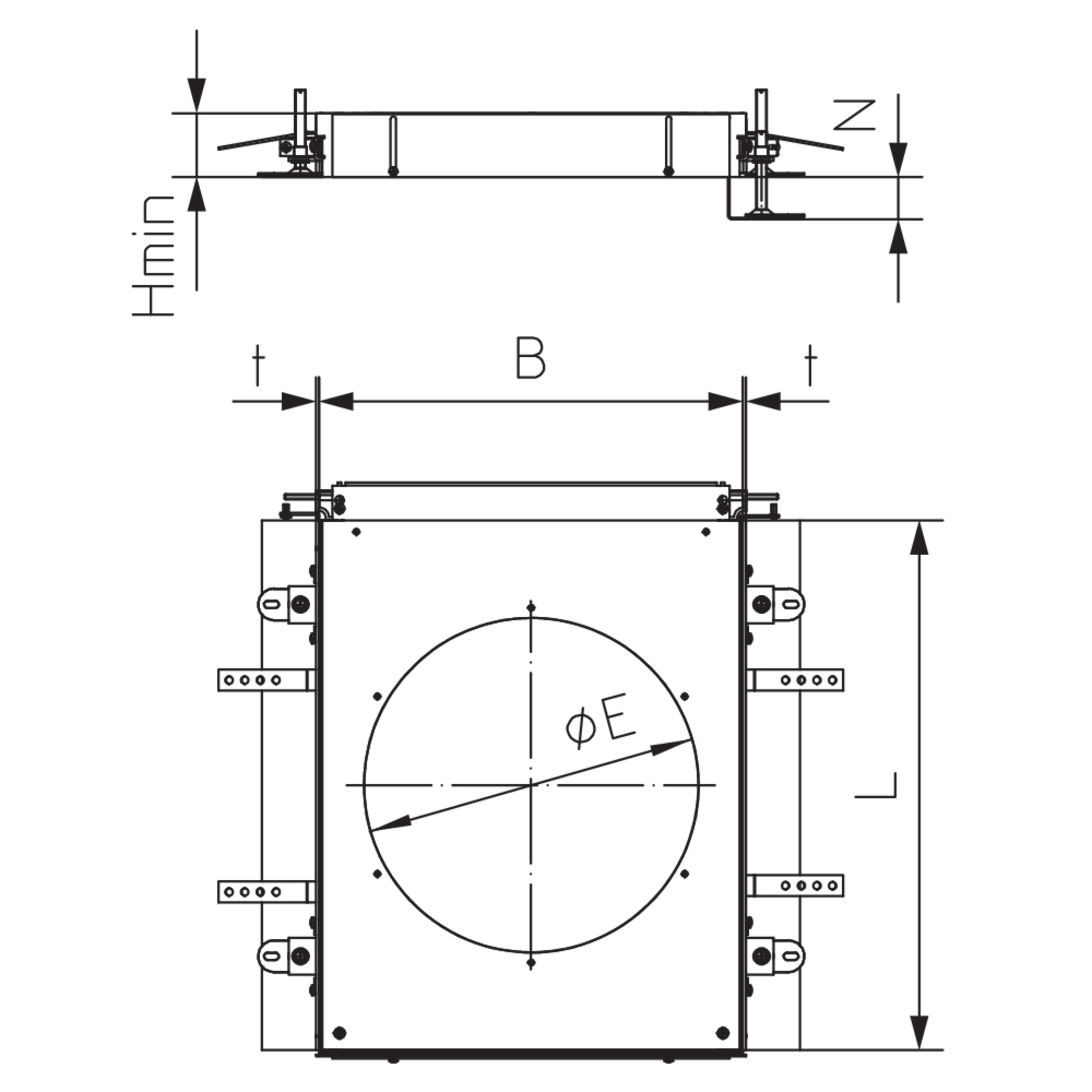

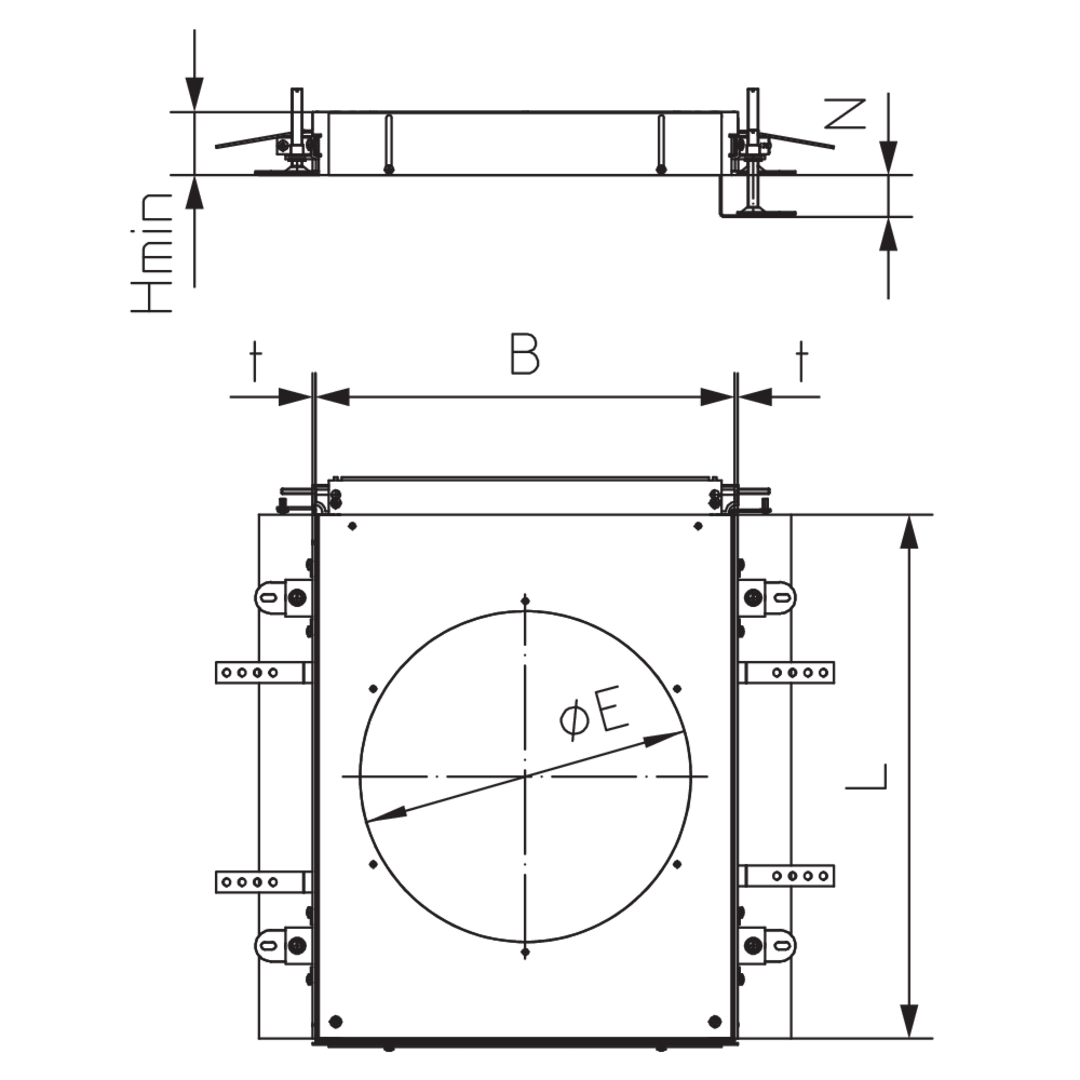

Article

Hmin

minimum installation height

B

width

L

length

N

levelling range

t

material thickness

ØE

fitting dimension round

G

Weight per storage unit

Included accessories
  • UEBSAM60-307R 40S
    Attachment assembly cover set,
    minimum installation height
    60 mm
    width
    400 mm
    length
    500 mm
    levelling range
    50 mm
    material thickness
    3 mm
    fitting dimension round
    307 mm
    Weight per storage unit
    9.002 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

BIM- und CAD-Data

    BIM Data Screed-Flush Duct Systems

    BIM Data

    ZIP (4.77 MB)

    DownloadDownload

Included accessories
