PohlCon carries protective and flush-mounted sockets and installation devices for power technology suitable for our range of underfloor products. Using these installation devices, leakage current can be dissipated and thus electric shocks can be prevented. They can be used in combination with the UAM cover plates in installation units.. The sockets are available in different versions: 1x, 2x, 3x and 4x variants in the colours white, red, orange or green. The colour variants clearly identify the various circuits. For the French market, we produce protective sockets with corresponding earthing pins in 1x, 2x and 3x versions in the colours red and white.
Installation Devices Power Engineering
UST45 1
Socket, 1x
UST45 2
Socket, 2x
UST45 3
Socket, 3x
UST45 4
Socket, 4x
UST45FR 1
Installation socket with earthing pin, 1x

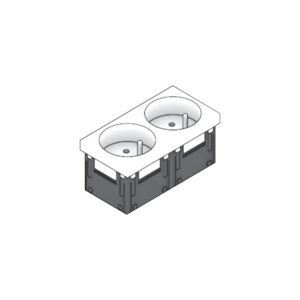

UST45FR 2
Installation socket with earthing pin, 2x

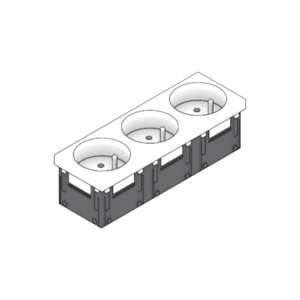

UST45FR 3
Installation socket with earthing pin, 3x
Vorteile
- The product is available in 1x, 2x, 3x and 4x versions.
- Various colour variants
- Model with earthing pins for the French market
- Increased protection against accidental contact according to VDE 0620
- Suitable for rated voltage/current: AC 250 V, 10/16 A
