JWP windposts and the associated JMA brick tie anchors are ideal for bracing facings in new energy-efficient buildings and in buildings with perforated facades. They replace cavity wall anchors when load-bearing walls are missing or support the facing masonry in applications affected by high wind loads. The JWP Windpost is a U-shaped construction with slots into which the brick tie anchors are inserted. JWP windposts are attached to transoms or ceilings made of reinforced concrete to absorb the loads floor by floor. They secure the masonry horizontally and reliably bridge the area of the thermal insulation or lightweight walls.
Windpost JWP
Vorteile
- For securing the horizontal position
- For high wind loads
- Lean Duplex steel for thermally and statically optimised designs
- Rated load is 0.75 kN/m
- For height between floors of up to 4 m
- Also for securing perforated masonry
- Replace cavity wall anchors when load-bearing walls are missing
- Customisable on request
Downloads
de
en
de
en

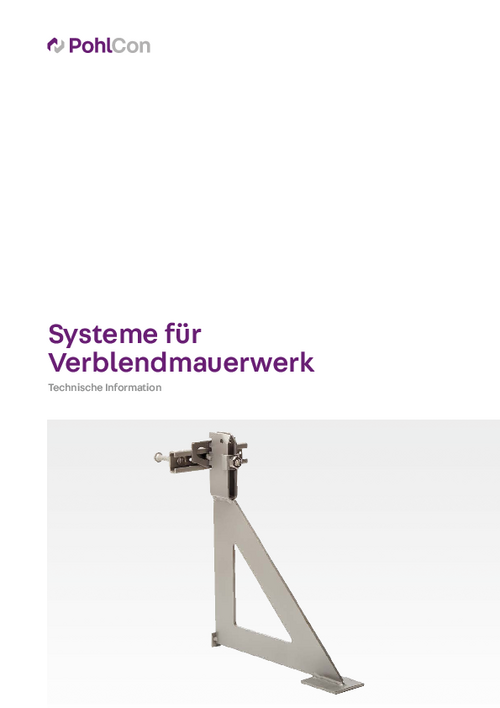

Technical information Systems for Facing Masonry
Brickwork support brackets, angled brackets, cavity wall anchors, parapet brick anchors and accessories
Price list 2026 Shell construction / facade
Valid from February 1st, 2026
