The levellable UBS floor sockets are part of the floor installation systems portfolio and are particularly suitable for temporary use, for example for connecting cleaning machines. Thanks to various designs - with blank, hinged or tubular covers - a wide range of requirements can be met flexibly. UBS are purpose-designed floor sockets that are considered standard in building services engineering and are included in virtually every design. To ensure an optimal power supply to the connected devices, the sockets should be positioned at a maximum distance of 9 m apart. Furthermore, care must be taken to ensure that each floor socket is assigned to a separate circuit.
Levellable Floor Sockets UBS
UBST R WD
Cleaning socket, single, round, levelable
UBSK V E
Cleaning socket, single, angular, levelable
UBSK VP E
Cleaning socket, single, angular, levelable
UET120 WD
Tube

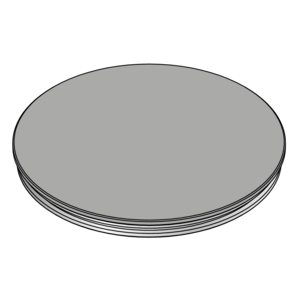

UETD120 WD
Tube cover
Vorteile
- Compact design for localised supply
- VDE-compliant power supply
- Levelling capability allows for subsequent adjustment to the floor level
Downloads
de
en
de
en
de
en
de
de
en
Units for screed and hollow floors - Technical information
Technical Information
Floor installation systems - Catalogue
Catalogue for screed-flush and screed-covered duct systems, installation units, floor sockets, mounting boxes and accessories.

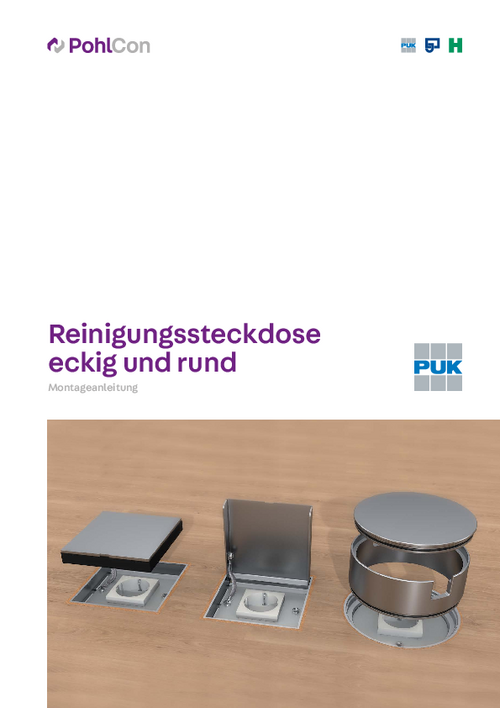

Installation Instruction Cleaning Socket
Cleaning socket angular and round
Electrical and Electronic Devices – Information from Manufacturers for Commercial Users
Declaration
PDF (106.06 KB)
DownloadDownload
EC Declaration of Conformity for Underfloor systems
Installation equipment for electric cables and circuits
BIM- und CAD-Data
BIM Data Installation Boxes
BIM Data
ZIP (13.12 MB)
DownloadDownload
