In addition to the covers, optional accessories in various materials and coatings are available for the ST 81 and ST 82 to supplement the cable support system, e.g. side connectors, separating strips, head plates, angle brackets and protective covers.
Riser Duct Accessories ST 81/82
AC
Cable clamp for fastening to C profile rails
STDE
Vertical ladder collision protection
STDES
Vertical ladder divider, height = 50 mm

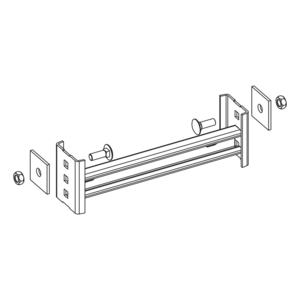

STIS
Rung

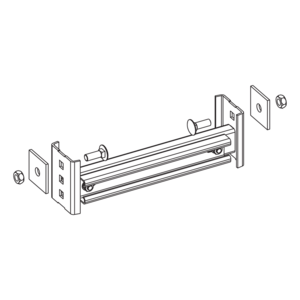

STISD
Rung

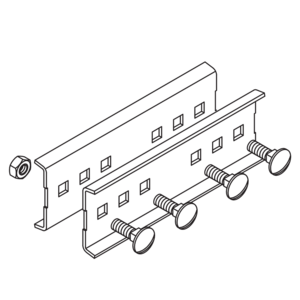

HKI
Connector, KHI

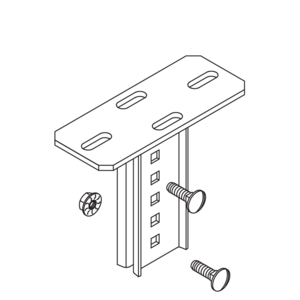

BGI
Bolted head plate, KHI

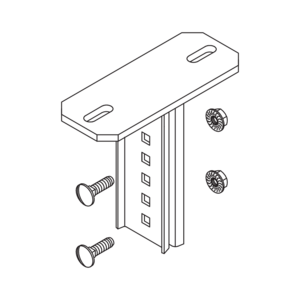

BGIQ
Bolted head plate turned 90°, KHI
BL 7
Mounting bracket
SI
Protection cap, KDI/KHI
KZF
Cold zinc paint
KZS
Cold zinc spray
STR 110
Vertical ladder divider, height = 33 mm
Downloads
de
en
de
en
de
en
de
en
de
Price list 2025 Building extension
Valid from February 1st, 2025, updated version from 31/03/2025.
Cable support systems - Complete catalogue
Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.

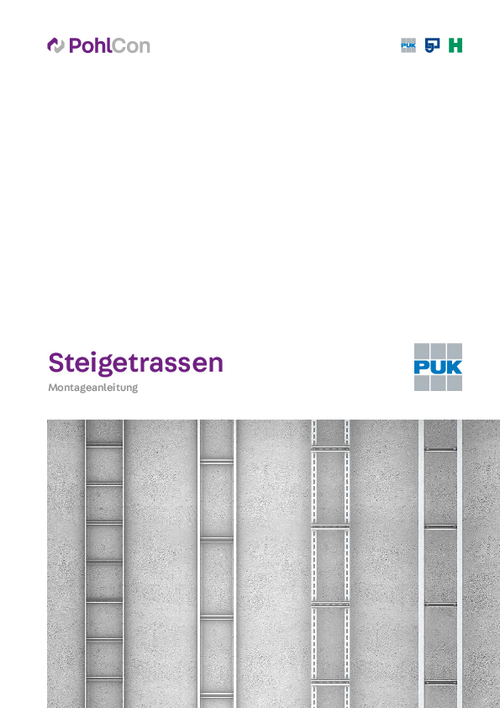

Installation Instruction Vertical Ladders
Assembly instruction for vertical ladders LGG 60, STU 50, STU 60, STU 62, ST 81, ST 82

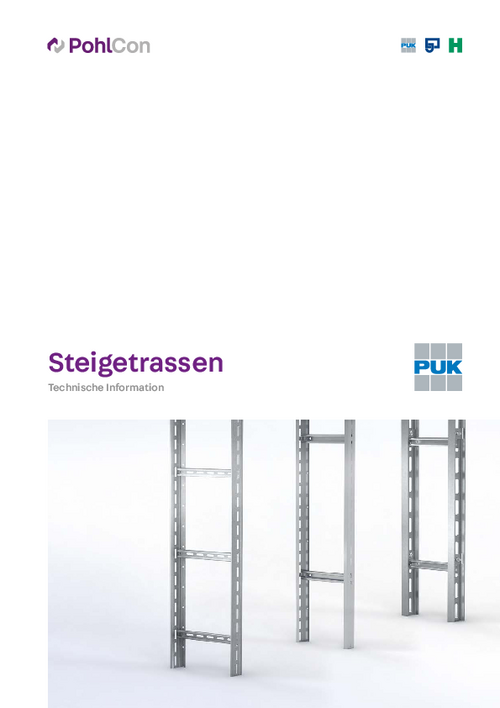

Cable Route Technical Information
Technical Information for vertical ladders LGG, STU, ST and accessories.
Vertical ladder LGG, STU, ST - Compact overview
Compact overview for LGG 60, STU 50, STU 50-3E, STU 60, STU 62, ST 81, ST 82, LGV, LGTR, STD-A, RD, STLS, STUS
