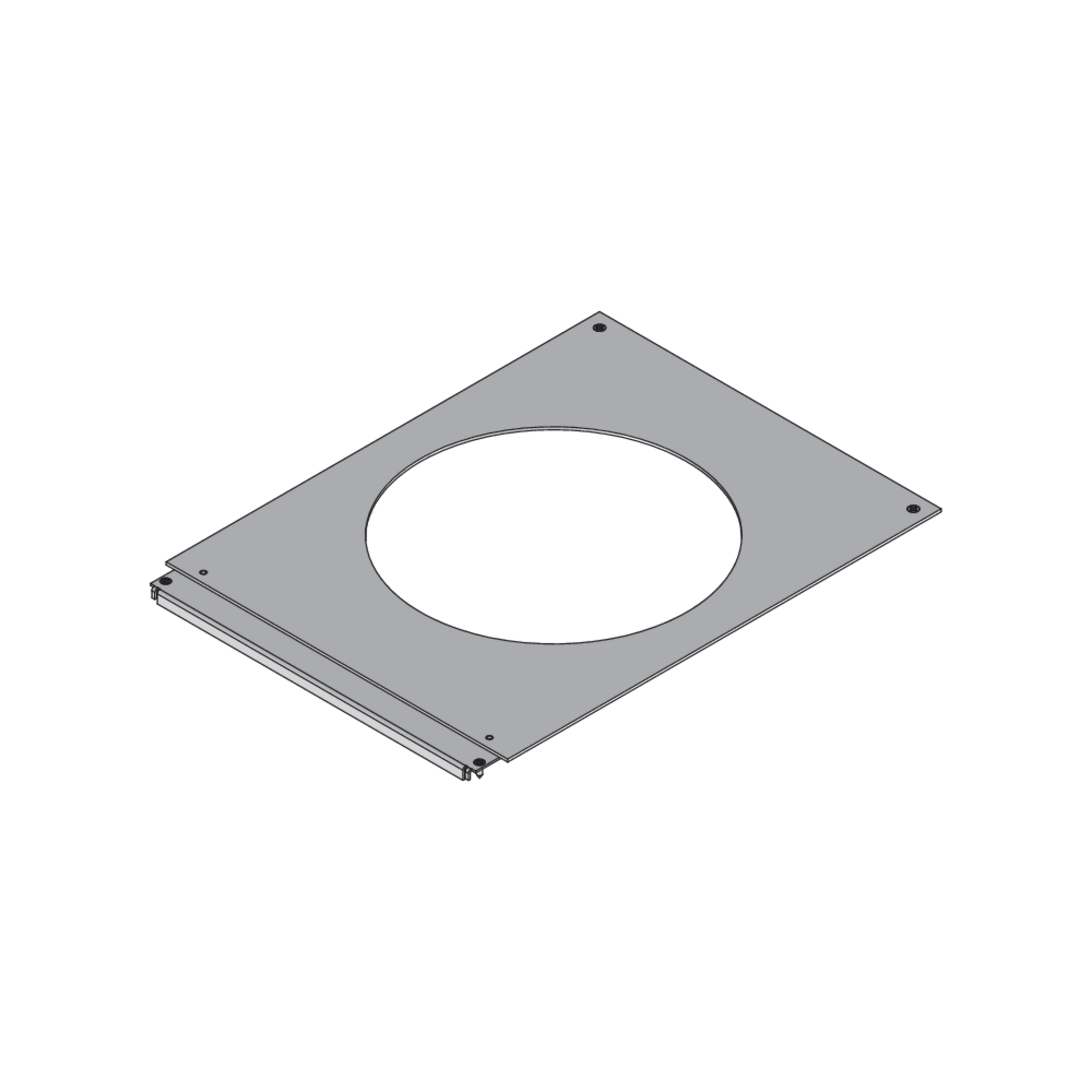

UEBSMD 307R

Assembly cover, round

UEBSMD components are assembly covers for screed-flush duct systems. These products are made of sendzimir hot-dip galvanised sheet steel (DIN EN 10346), have round or square openings and come in a range of sizes. The articles are suitable for typical office loads. They can alternatively be installed with a dummy cover to accommodate a single BODO outlet or in combination with plastic installation units for two to three mounting boxes. The assembly covers have a VDE approval according to DIN EN 50085 and are supplied with two galvanised (in line with DIN EN ISO 4042) countersunk sheet metal bolts BSS 4.8 x 16.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

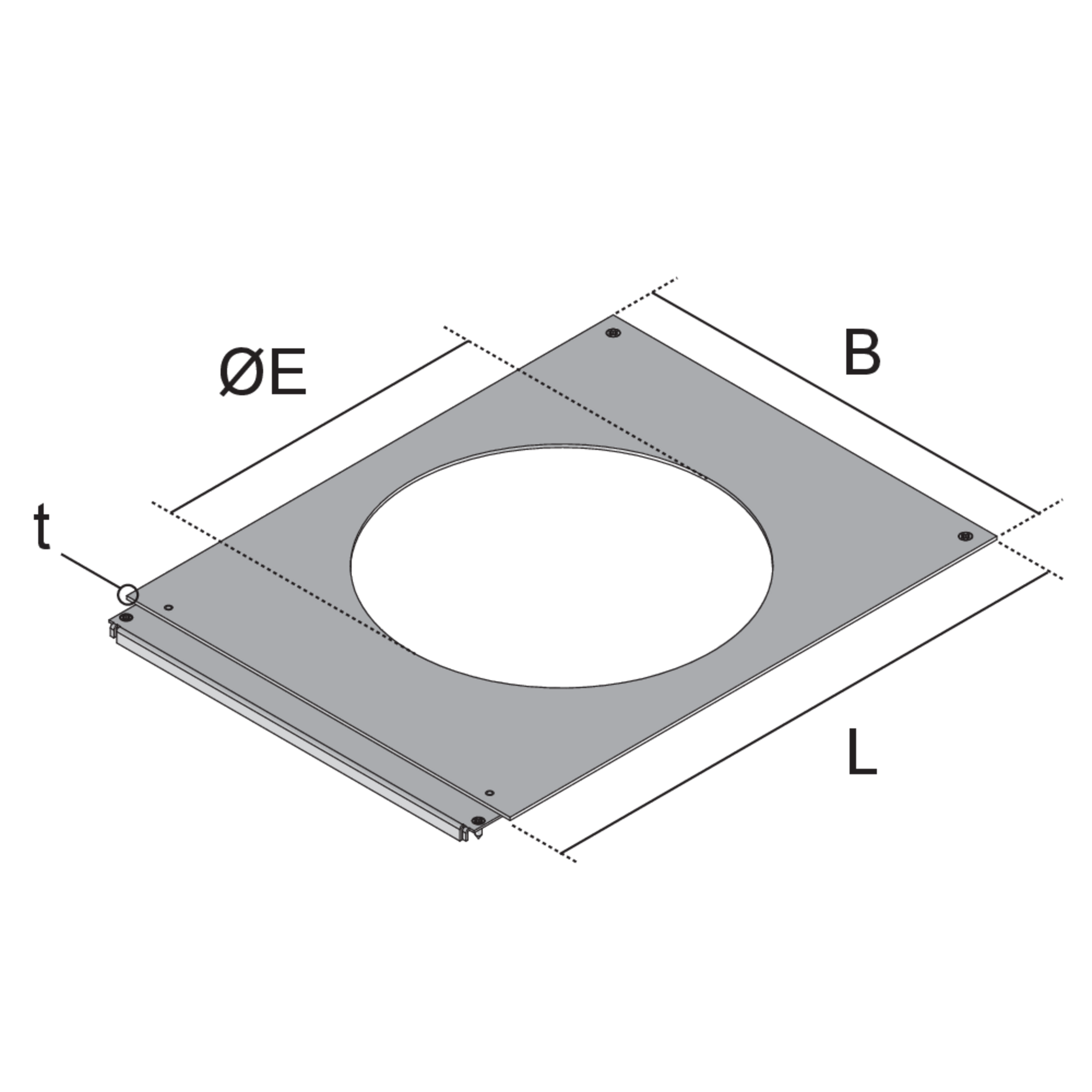

Article

B

width

L

length

t

material thickness

mounting box

maximum number of installable device casings

ØE

fitting dimension round

G

Weight per storage unit

Included accessories
  • UEBSMD-307R 40S
    assembly cover,
    width
    400 mm
    length
    500 mm
    material thickness
    3.00 mm
    maximum number of installable device casings
    3
    fitting dimension round
    307 mm
    Weight per storage unit
    3.802 kg
    Included accessories
    More information
  • UEBSMD-307R 50S
    assembly cover,
    width
    500 mm
    length
    500 mm
    material thickness
    3.00 mm
    maximum number of installable device casings
    3
    fitting dimension round
    307 mm
    Weight per storage unit
    5.224 kg
    Included accessories
    More information

Details

  • VDE/TÜV approval according to DIN EN 50085

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link
