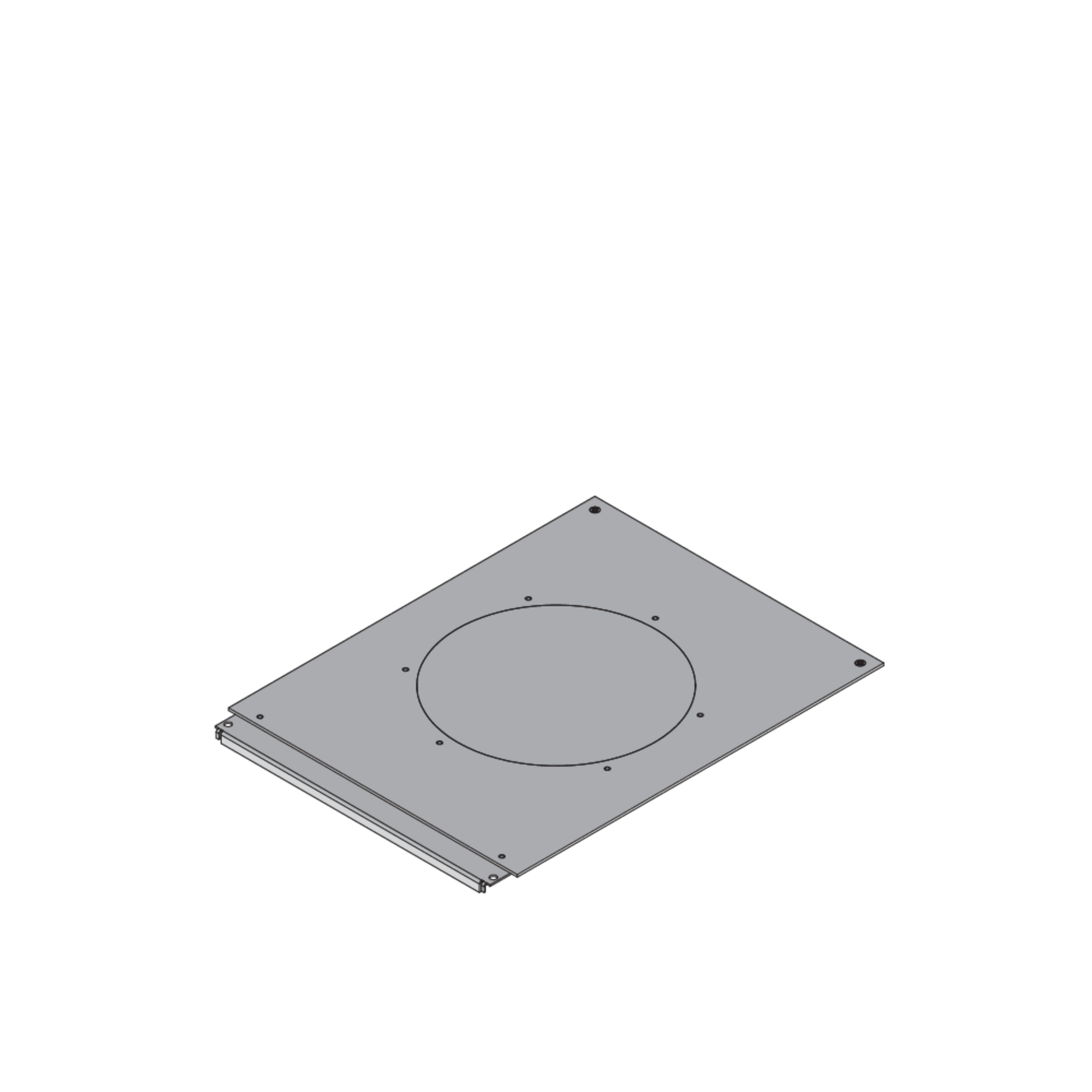

Assembly cover, dummy, round
The UEBSBMD components are dummy assembly covers for screed-flush duct systems. These products are made of sendzimir hot-dip galvanised sheet steel in line with DIN EN 10346 and have round or square cut-outs of various sizes. The products are designed for typical office loads and can alternatively be combined with a dummy cover to accommodate two to three mounting boxes. The assembly covers are supplied with two galvanised (in line with DIN EN ISO 4042) countersunk sheet metal bolts BSS 4.8 x 16.

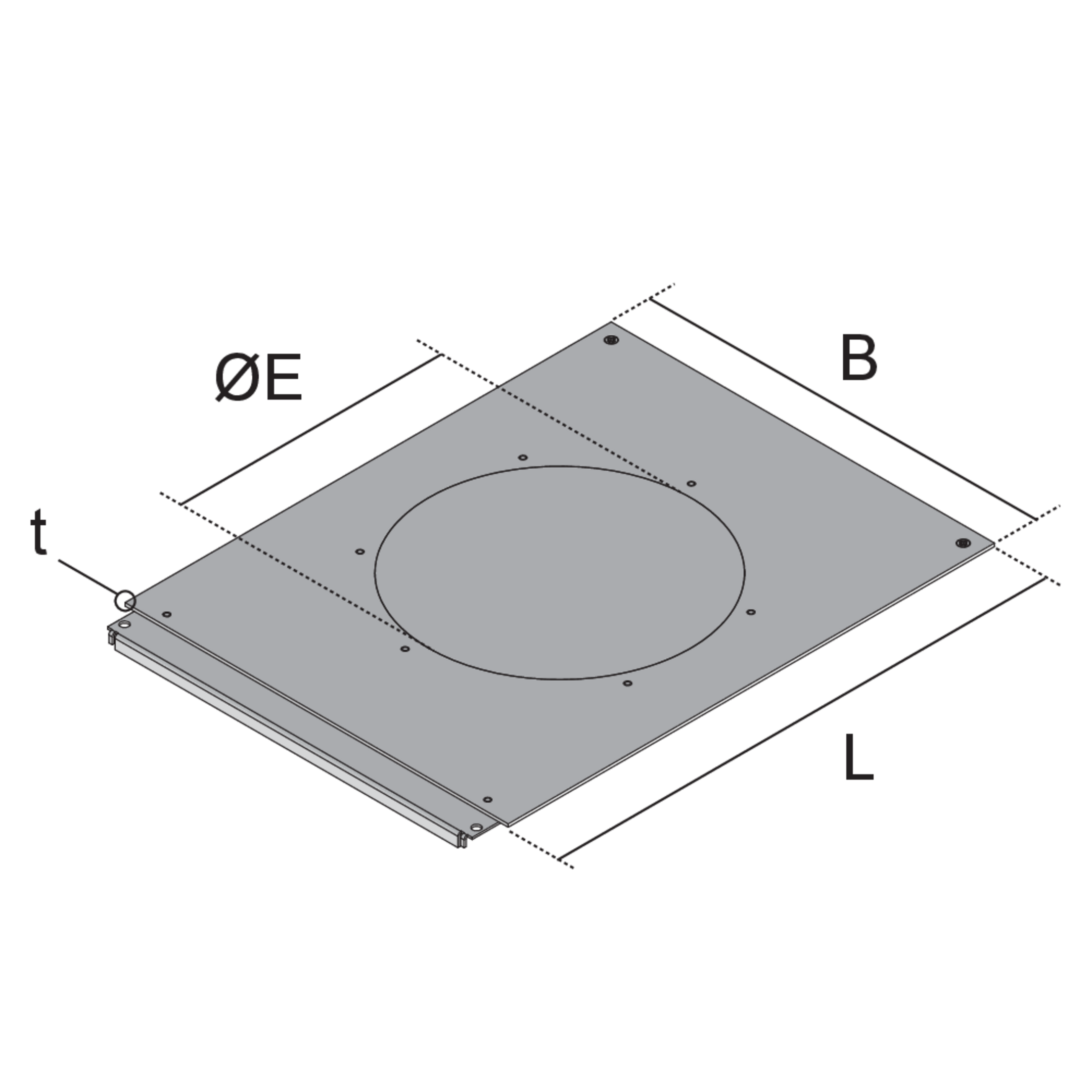

B
width
L
length
t
material thickness
mounting box
maximum number of installable device casings
E
fitting dimension
G
Weight per storage unit
