Installation units made of plastic are used to accommodate different power supplies, such as sockets or data technology. Their material makes them an inexpensive installation unit variant compared to stainless steel models. They are installed in assembly covers, screed junction boxes and raised or false floor openings. Due to their low weight and the fact that they are fixed using claws, they are ideal for dry-cleaned rooms with office traffic loads and especially for carpeted floors and quick conversions or renovations. The installation units are available as hinged or dummy cover units in round or square shapes for two to three mounting boxes.
Installation Units Polyamide
UEB3 R
Plastic dummy cover unit, 3x, round
UEK3 R
Plastic hinged cover unit, 3x, round
UEBD2 R
Plastic dummy cover unit, 2x, round

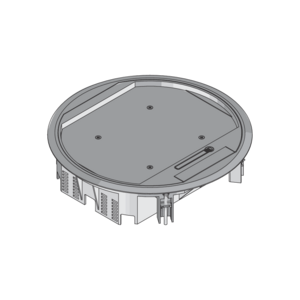

UEKD2 R
Plastic hinged cover unit, 2x, round
UEB3 V
Plastic dummy cover unit, 3x, angular
UEK3 V
Plastic hinged cover unit, 3x, angular
UEBD2 V
Plastic dummy cover unit, 2x, angular

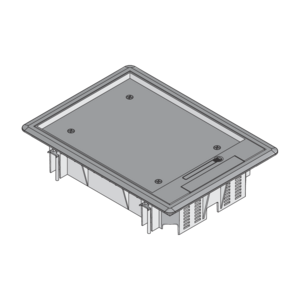

UEKD2 V
Plastic hinged cover unit, 2x, angular
Vorteile
- Ideal product for dry-cleaned floors
- Flexible applications
- VDE/TÜV-certified
Downloads
de
en
de
en
de
de
en
Units for screed and hollow floors - Technical information
Technical Information
Floor installation systems - Catalogue
Catalogue for screed-flush and screed-covered duct systems, installation units, floor sockets, mounting boxes and accessories.
Electrical and Electronic Devices – Information from Manufacturers for Commercial Users
Declaration
PDF (106.06 KB)
DownloadDownload
EC Declaration of Conformity for Underfloor systems
Installation equipment for electric cables and circuits
BIM- und CAD-Data
BIM Data Installation Boxes
BIM Data
ZIP (13.12 MB)
DownloadDownload
