Variants
brass
Article
H
height
B
width
L
length
G
Weight per storage unit
- BKPA
Floor ductheight45 mmwidth20 mmlength24 mmWeight per storage unit0.122 kg
BKPA

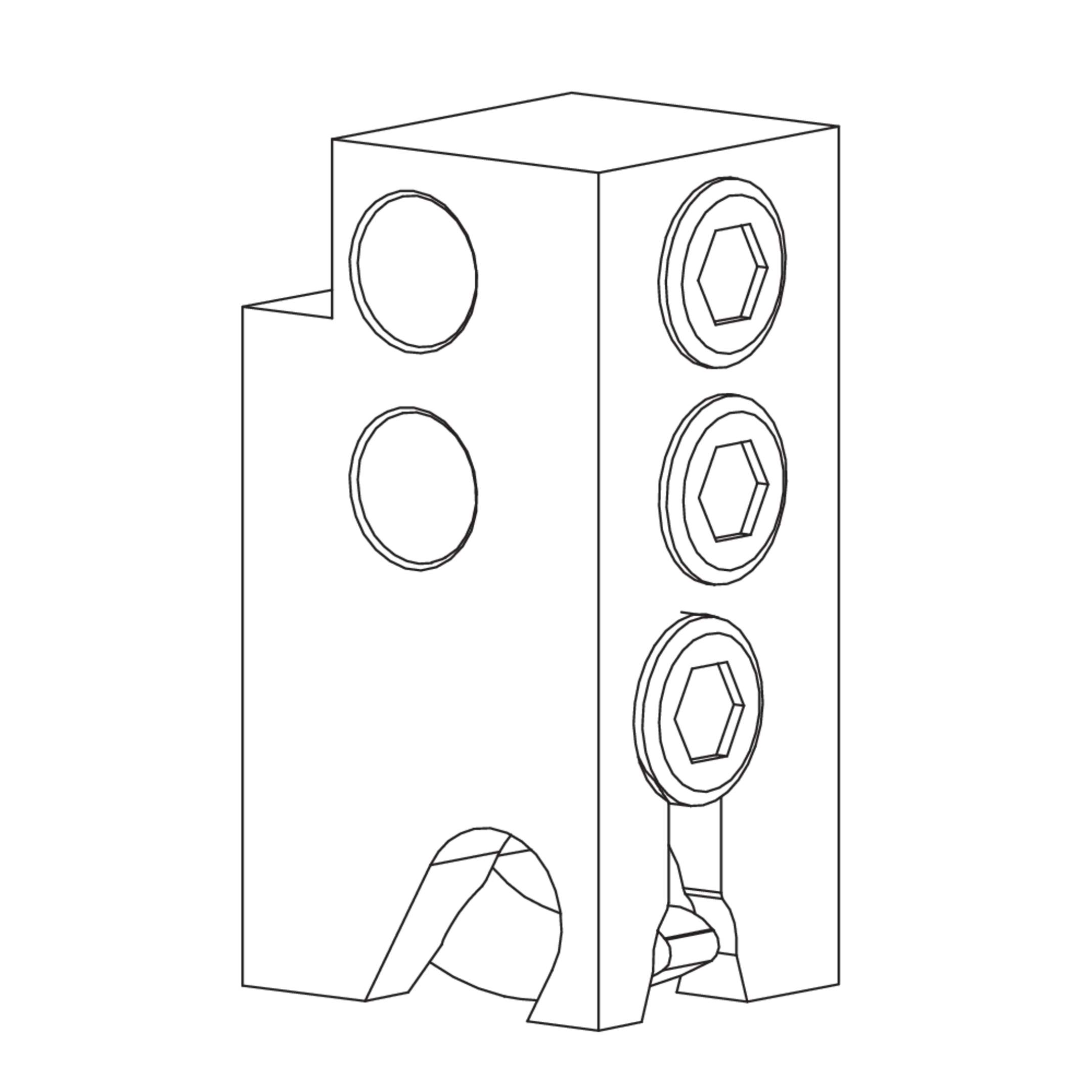

Floor duct equipotential bonding terminal block

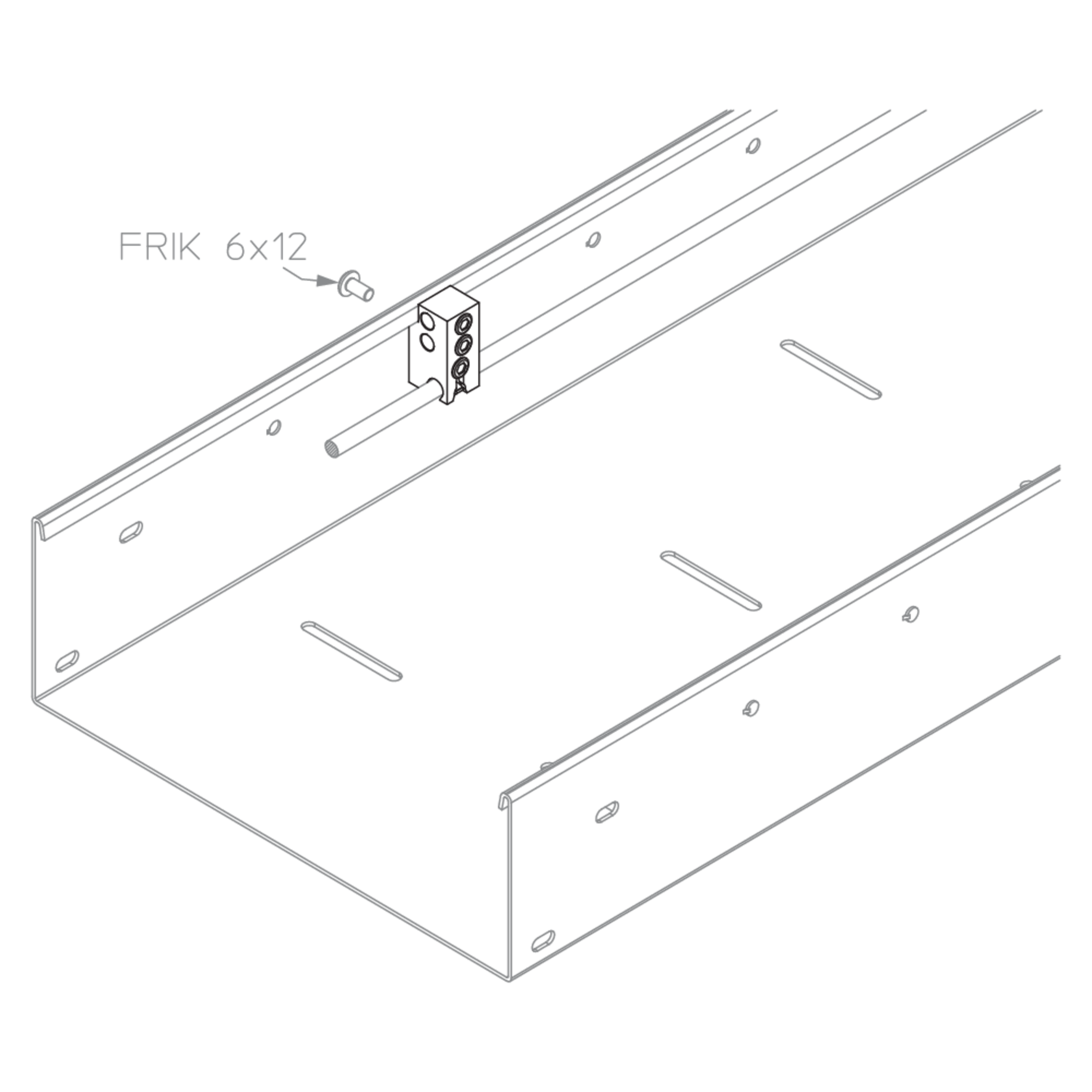

The BKPA brass floor duct equipotential bonding terminal block can be attached to the previously knocked out slugs on the side walls of floor ducts. In this way, the floor duct system can be incorporated into the equipotential bonding of the entire installation to protect electrical equipment and prevent electric shocks.
Tender texts
Downloads
de
en
de
en
de
en
Price list 2025 Building extension
Valid from February 1st, 2025, updated version from 31/03/2025.
BK Floor Duct - Technical Information
Technical Information
Floor ducts - Assembly instructions
Assembly Instructions
BIM- und CAD-Data
BIM for BK floor ducts
BIM data
ZIP (5.50 MB)
DownloadDownloadIncluded accessories
