BKHRSV

Floor duct side trim

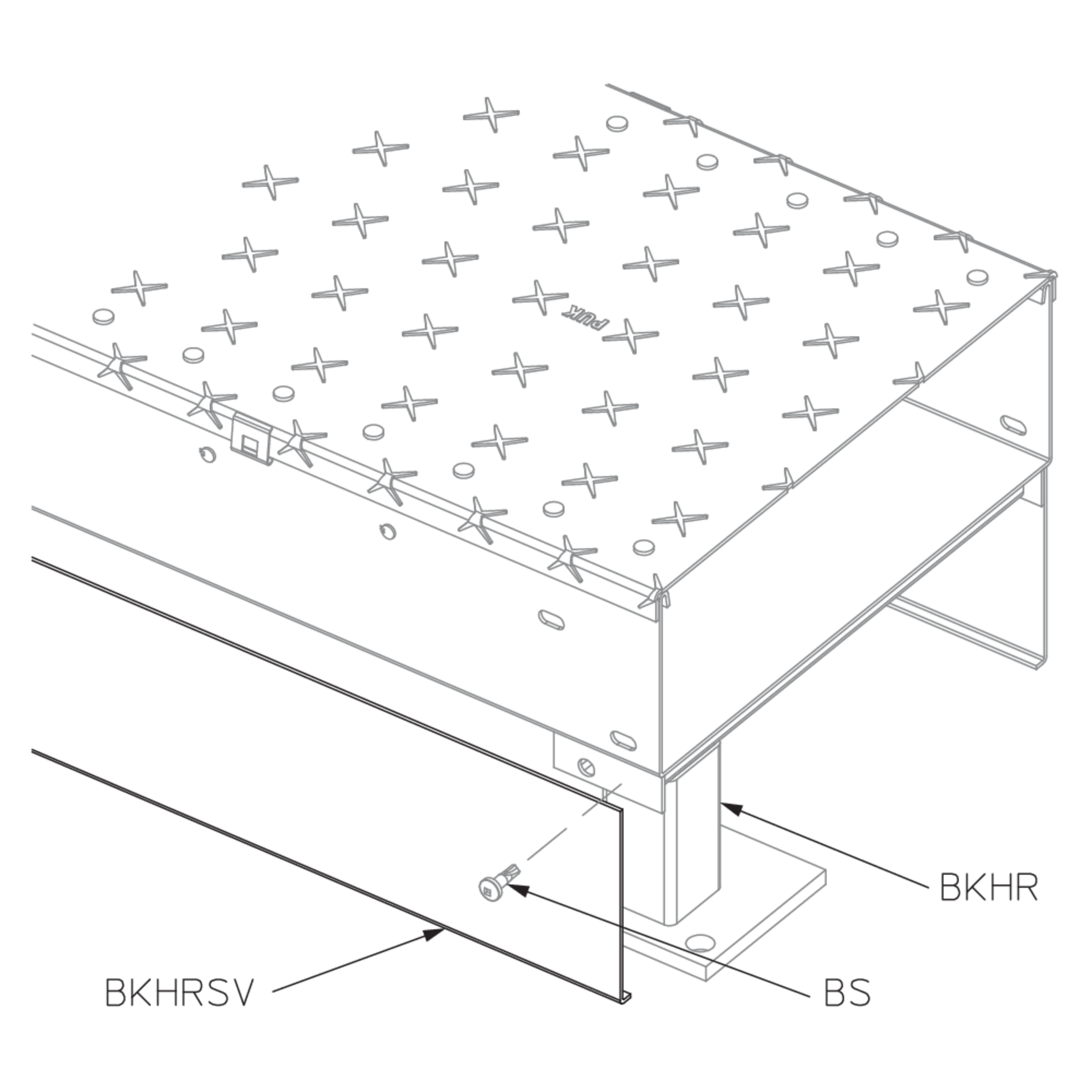

BKHRSV floor duct side trim is used when the floor duct is elevated by BKHR floor duct brackets and is fastened using a BS 4.2x13 drilling screw. The side trims protect raised floor ducts from footfall and dirt and close off the floor duct system underneath. They are 108 mm high, 1000, 1500 or 3000 mm long and are made of sendzimir hot-dip galvanised steel.

Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

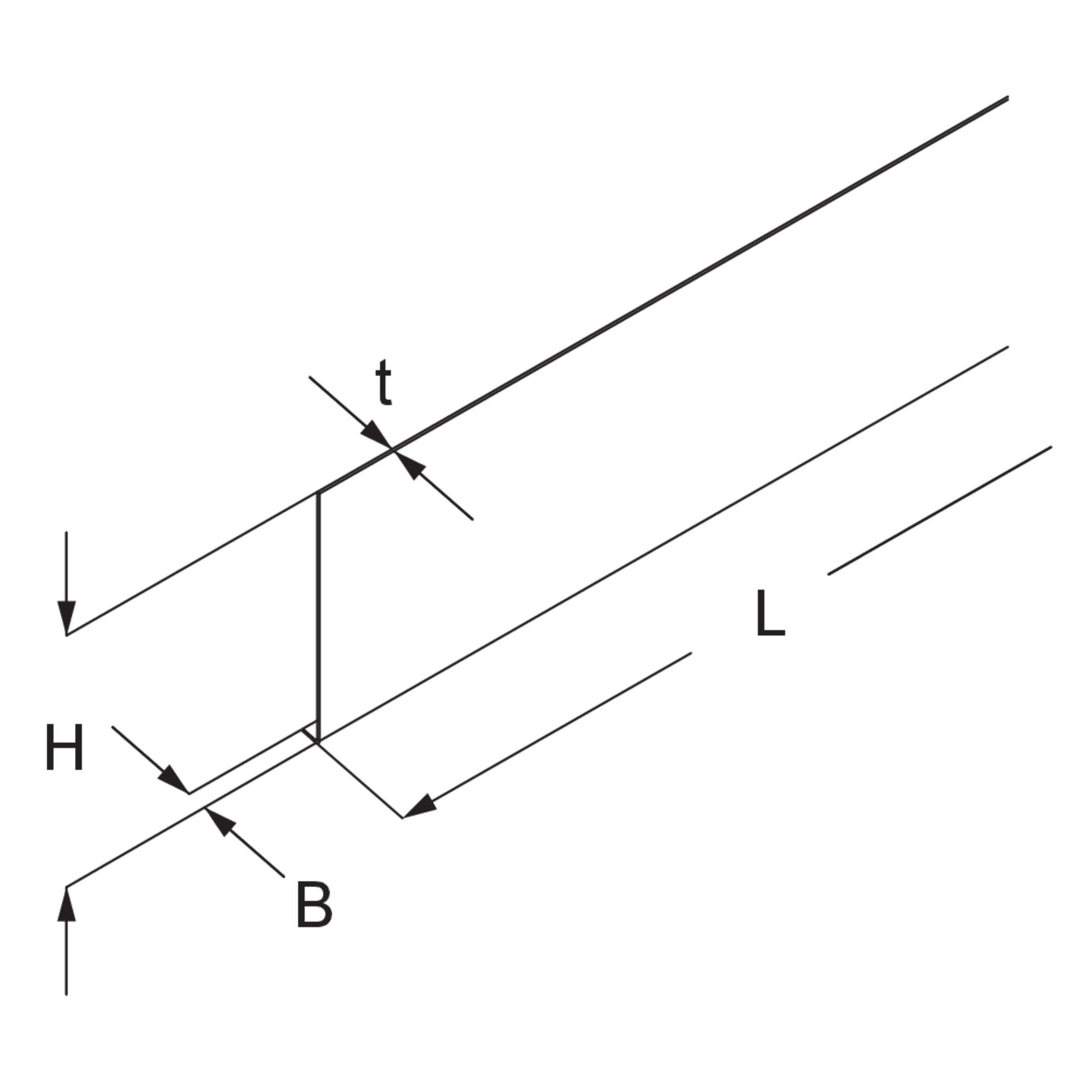

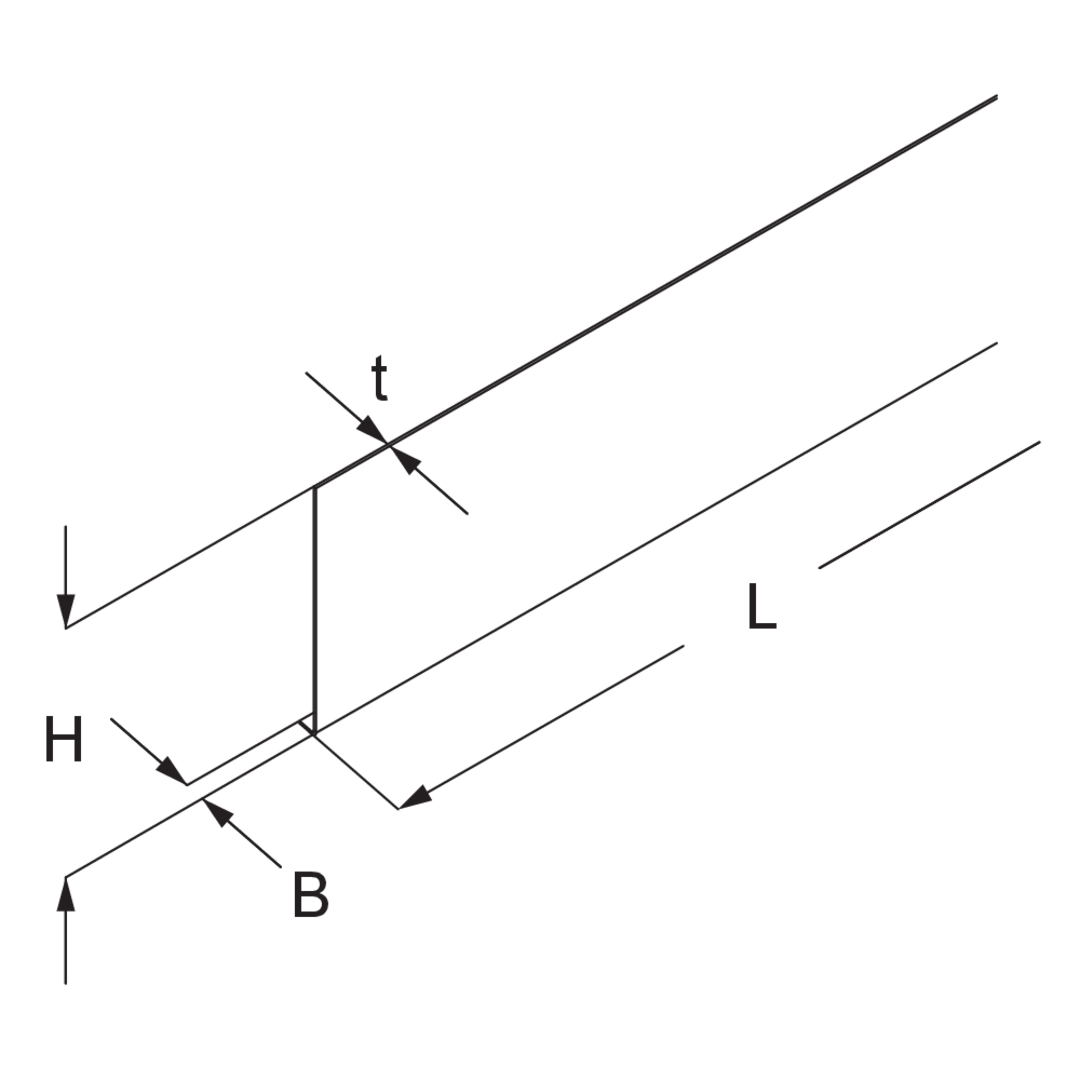

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

  • BKHRSV 1S
    Floor duct side trim
    height
    108 mm
    width
    8 mm
    length
    1000 mm
    material thickness
    1.00 mm
    Weight per storage unit
    0.900 kg
    More information
  • BKHRSV 1.5S
    Floor duct side trim
    height
    108 mm
    width
    8 mm
    length
    1500 mm
    material thickness
    1.00 mm
    Weight per storage unit
    1.350 kg
    More information
  • BKHRSV S
    Floor duct side trim
    height
    108 mm
    width
    8 mm
    length
    3000 mm
    material thickness
    1.00 mm
    Weight per storage unit
    2.690 kg
    More information
