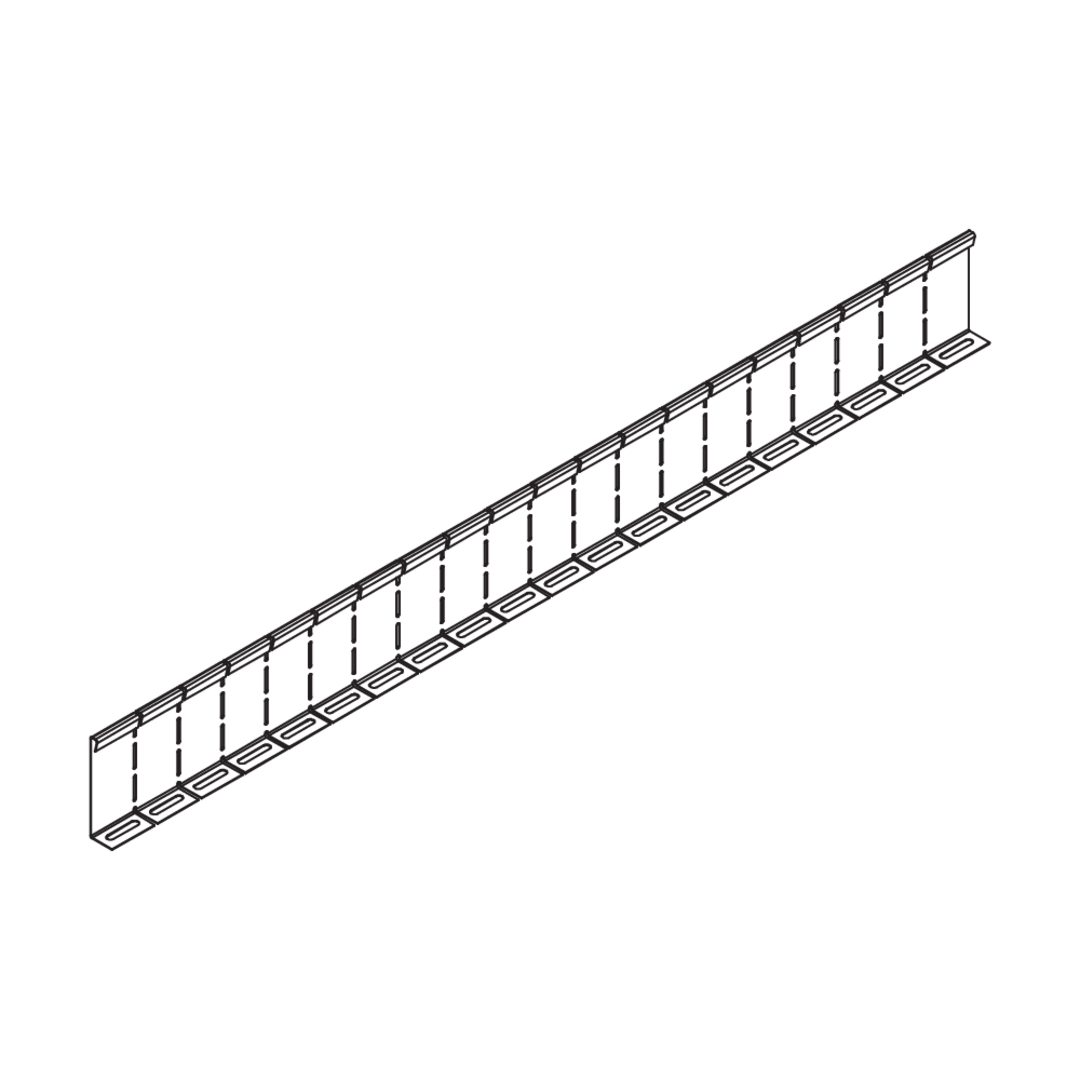

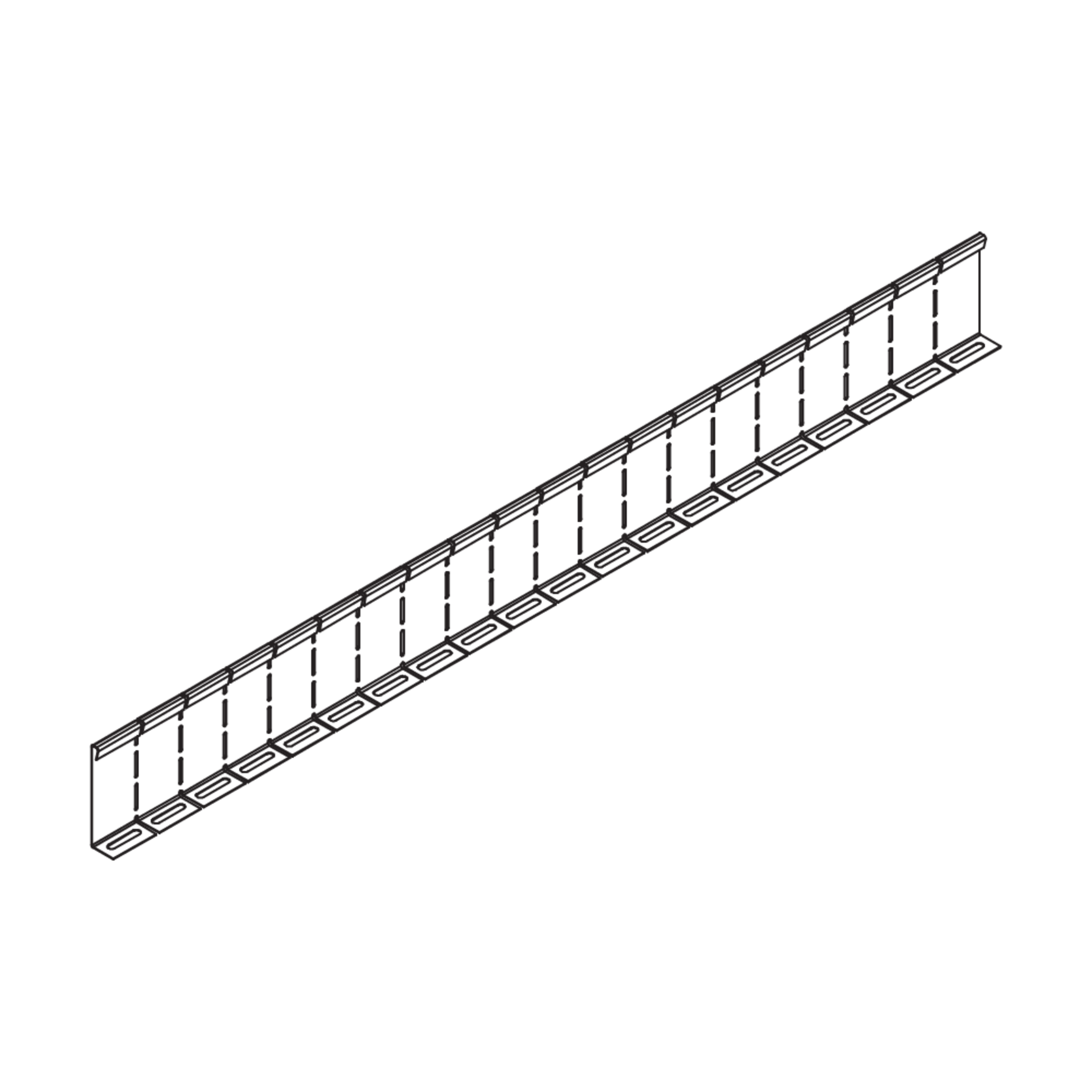

LGTRV 100

Cable ladder divider, variable, height = 80 mm

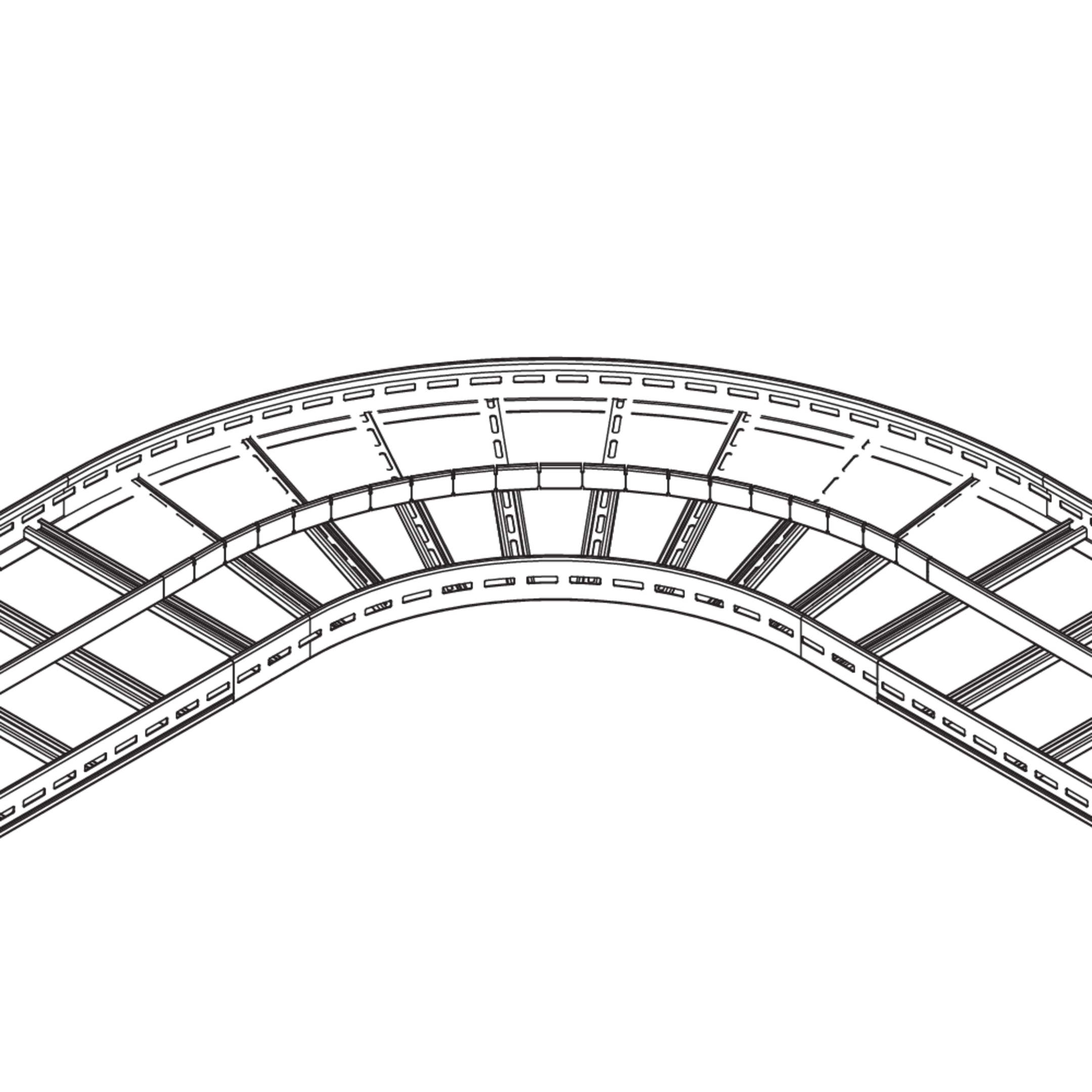

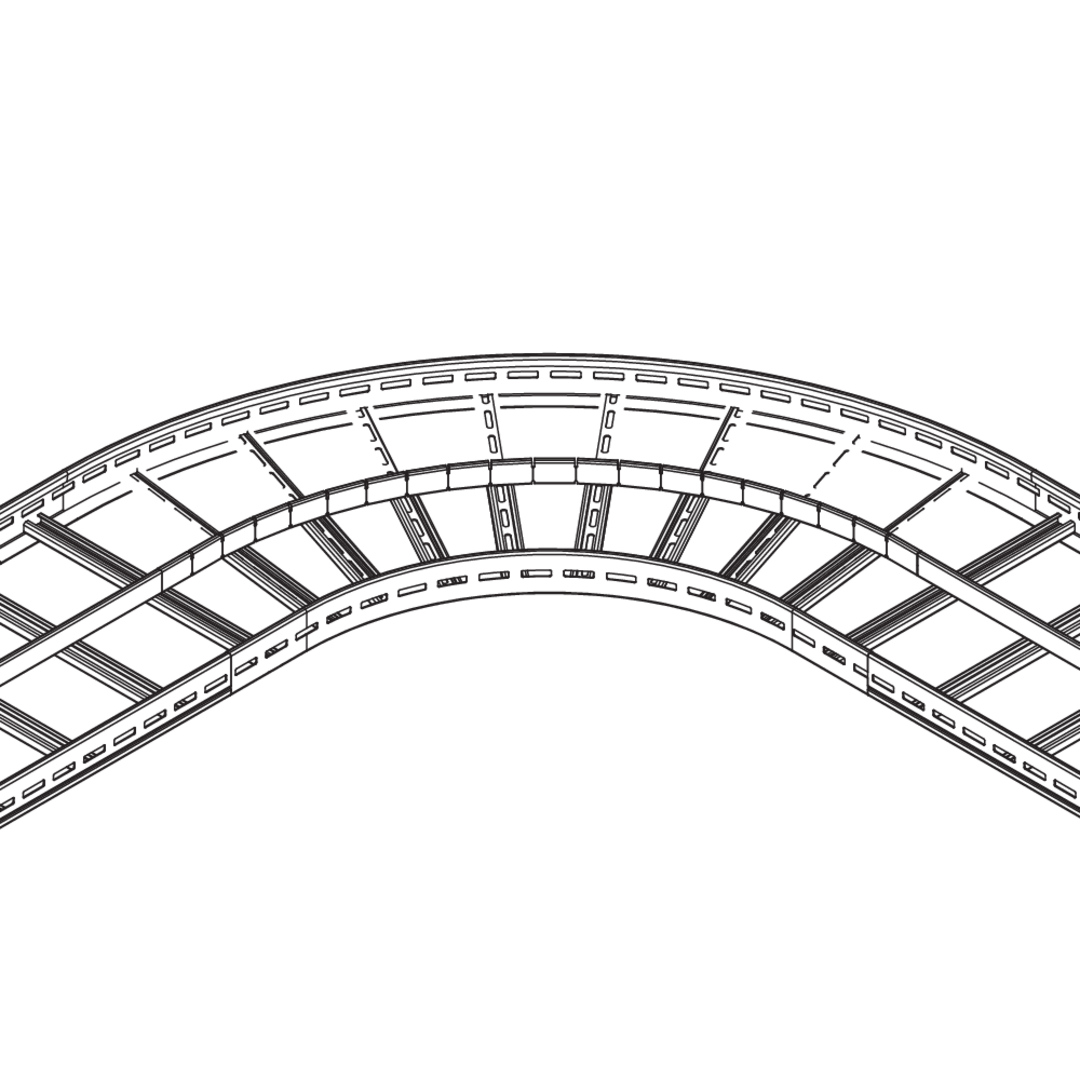

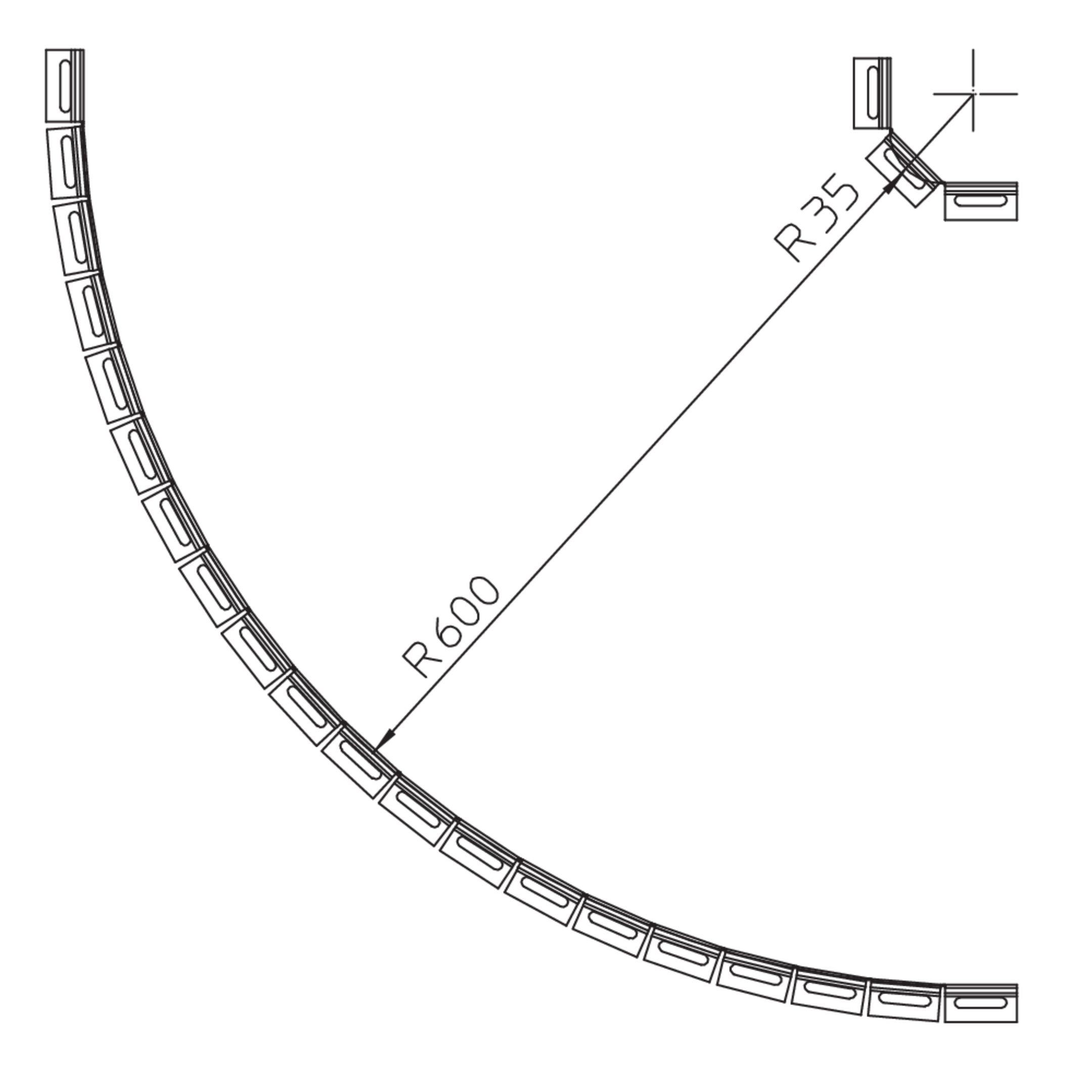

Cables and wires with different functions or voltages can be routed separately from one another by using the variable separating strip LGTRV 100. The separating strip is separated into segments. This makes it flexible and ideal for being installed in formed parts. Mounting bolts are included. The separating strip LGTRV 100 is suitable for the LGG 100 cable ladder. It is 80 mm high and 1000 mm long. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

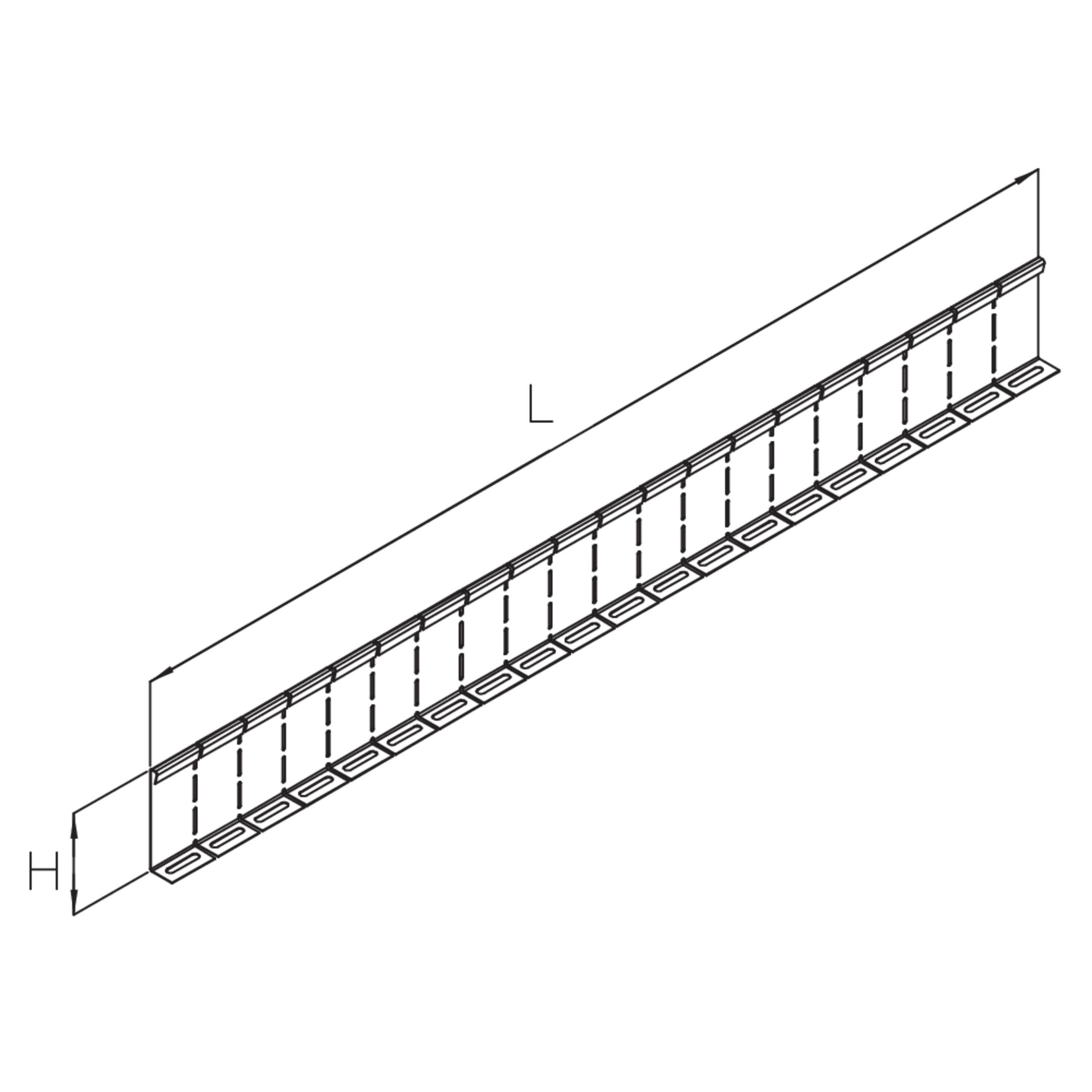

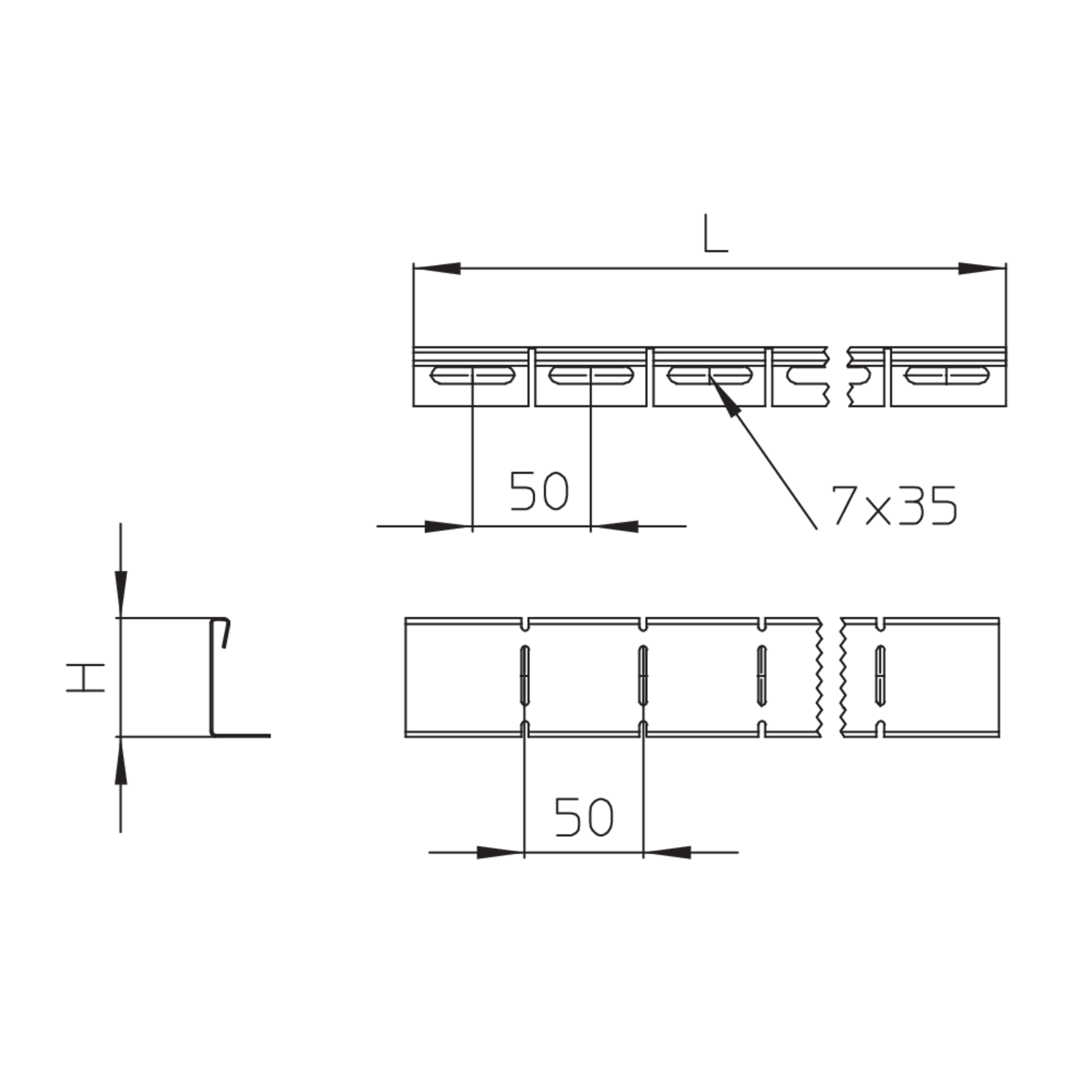

H

height

L

length

t

material thickness

G

Weight per storage unit

Included accessories
  • LGTRV 100S
    Cable ladder barrier strip
    height
    80 mm
    length
    1000 mm
    material thickness
    0.75 mm
    Weight per storage unit
    0.710 kg
    Included accessories
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

L

length

t

material thickness

G

Weight per storage unit

Included accessories
  • LGTRV 100E
    Cable ladder barrier strip
    height
    80 mm
    length
    1000 mm
    material thickness
    0.80 mm
    Weight per storage unit
    0.755 kg
    Included accessories
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

H

height

L

length

t

material thickness

G

Weight per storage unit

Included accessories
  • LGTRV 100E4
    Cable ladder barrier strip
    height
    80 mm
    length
    1000 mm
    material thickness
    0.80 mm
    Weight per storage unit
    0.767 kg
    Included accessories
    More information
