LGV 60

Cable ladder connector, height = 60 mm

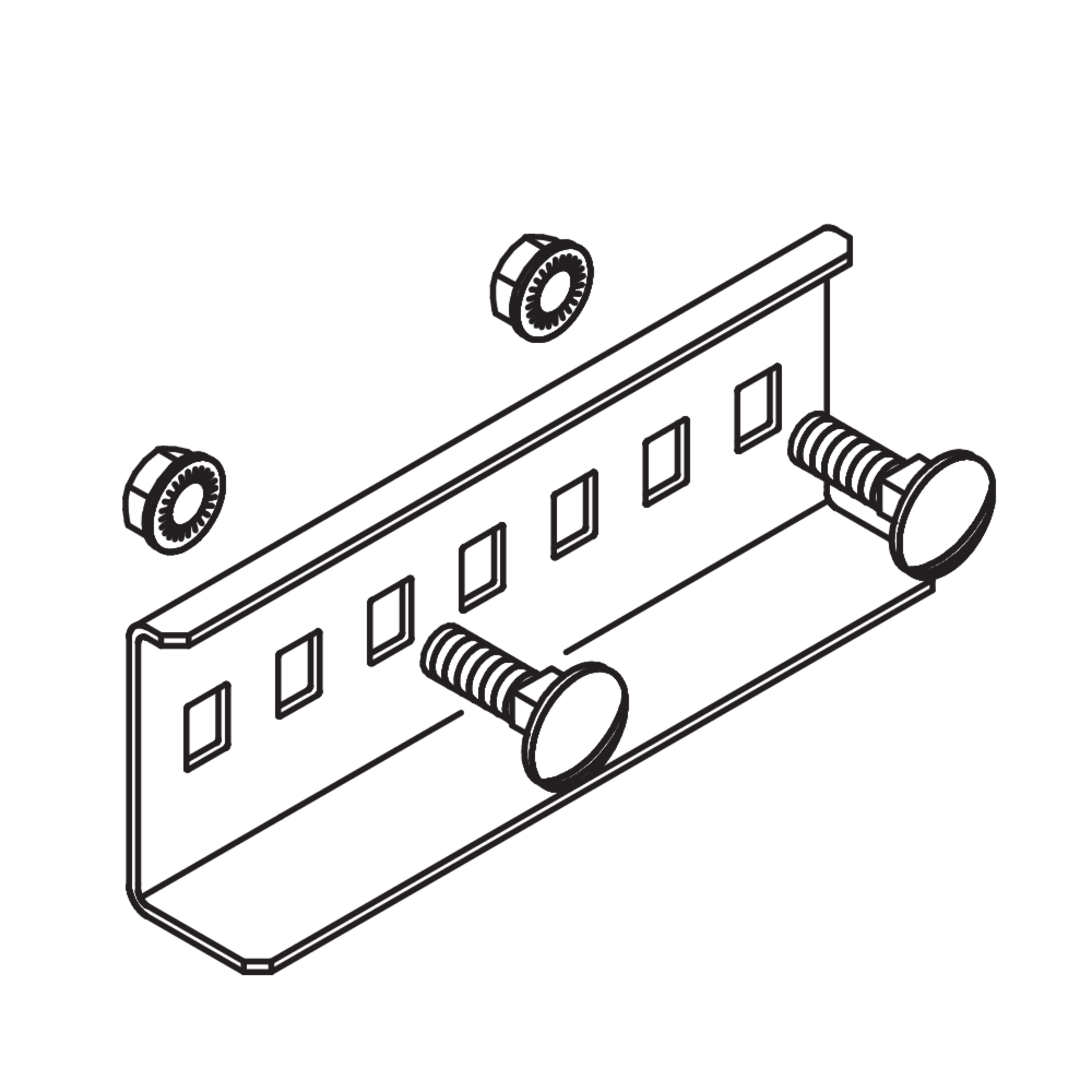

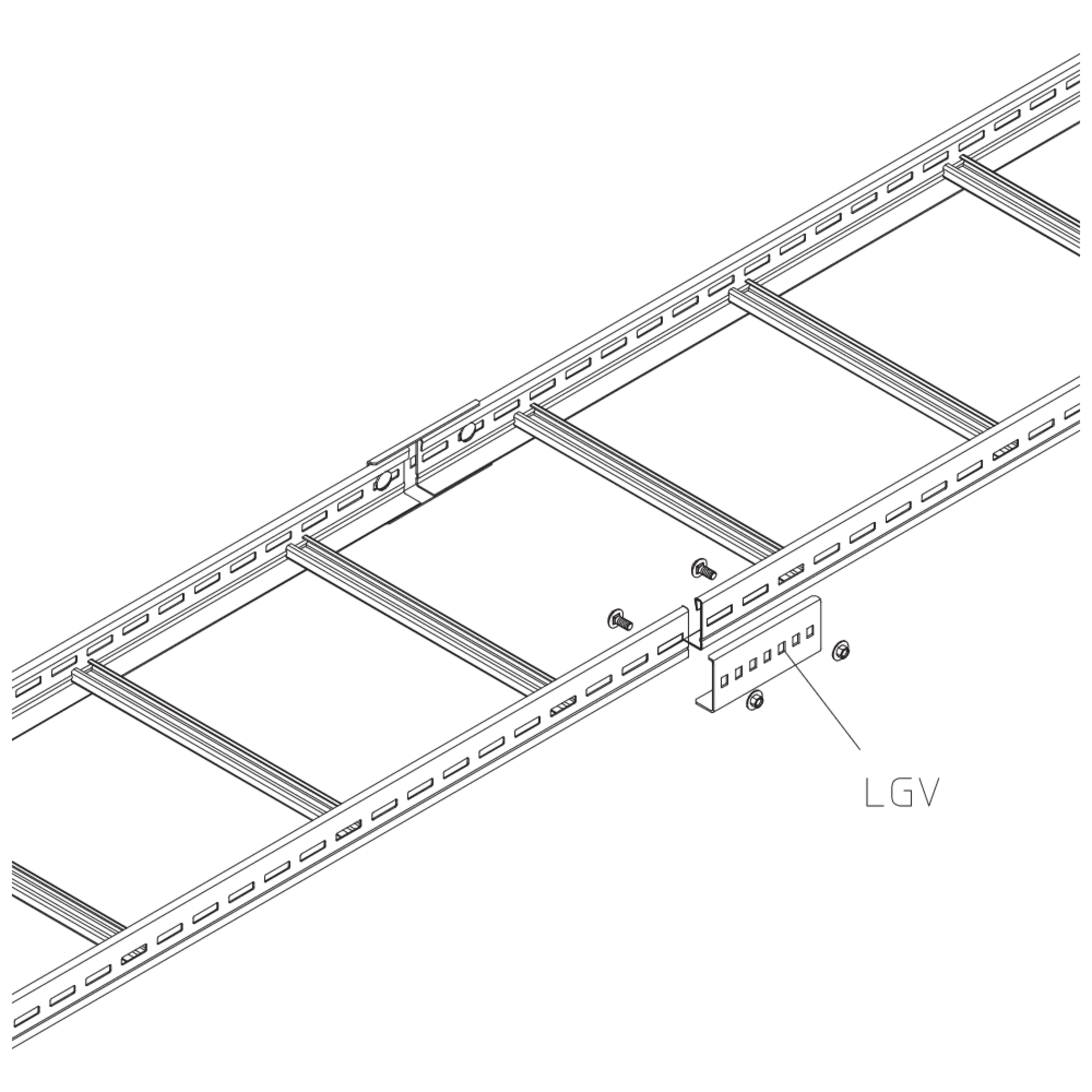

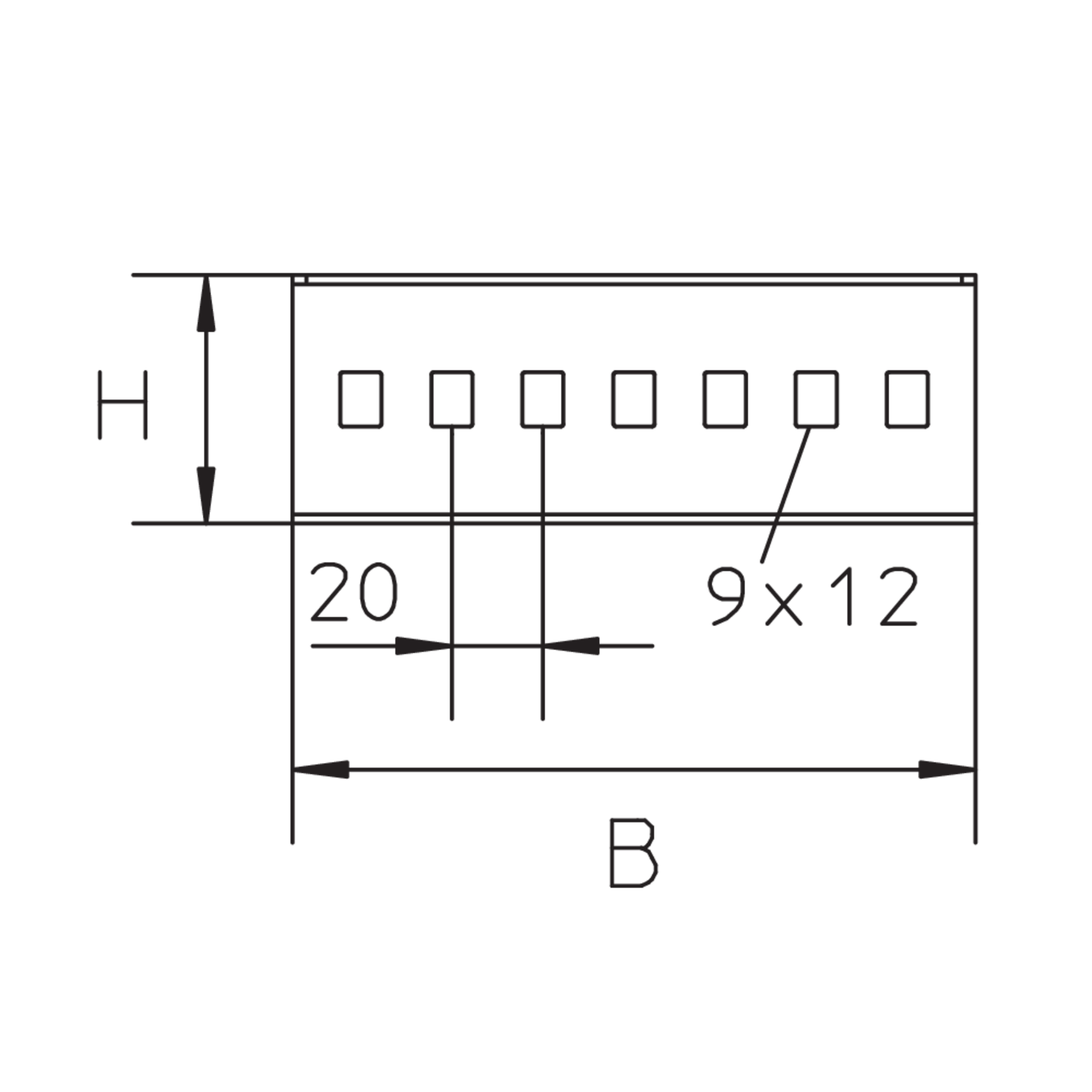

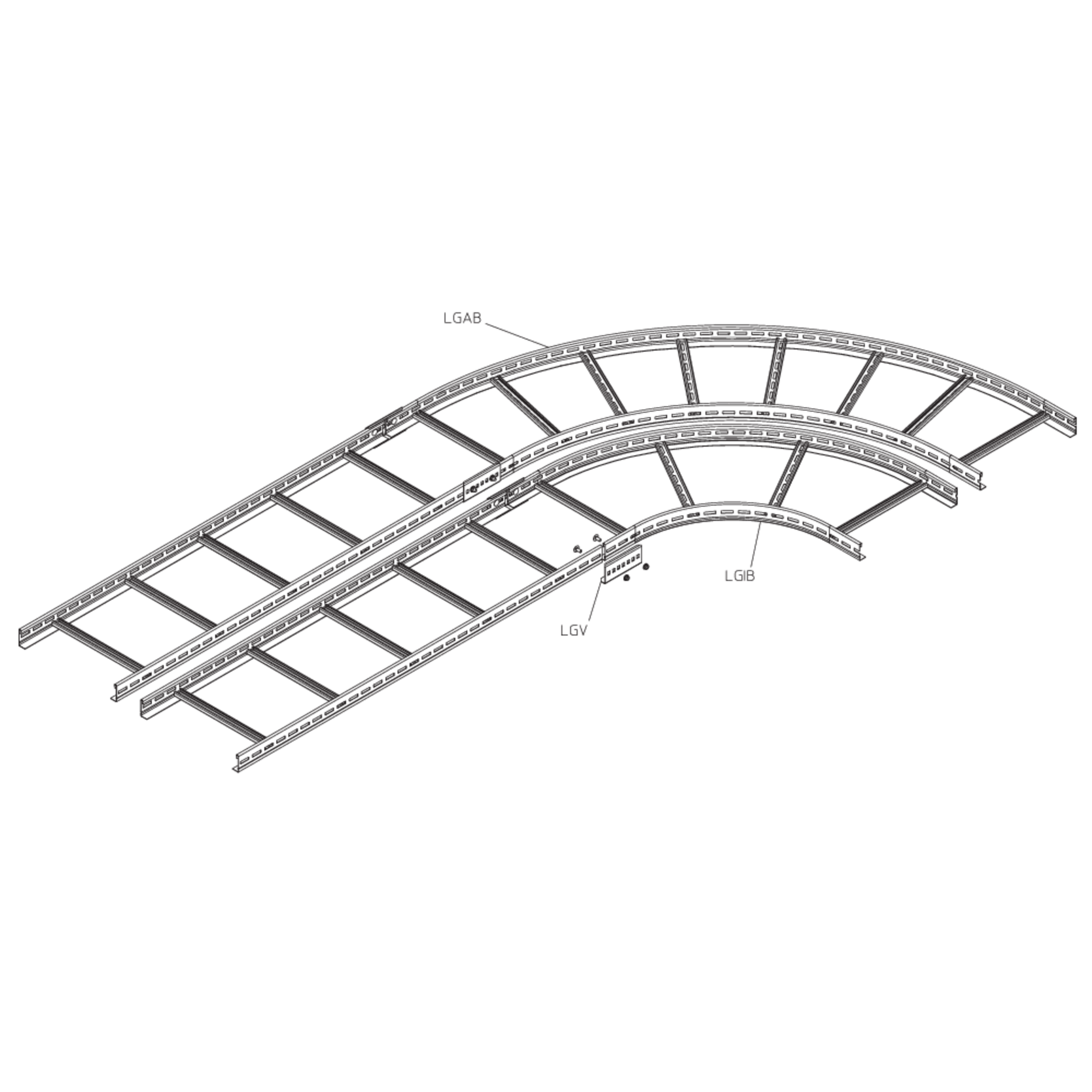

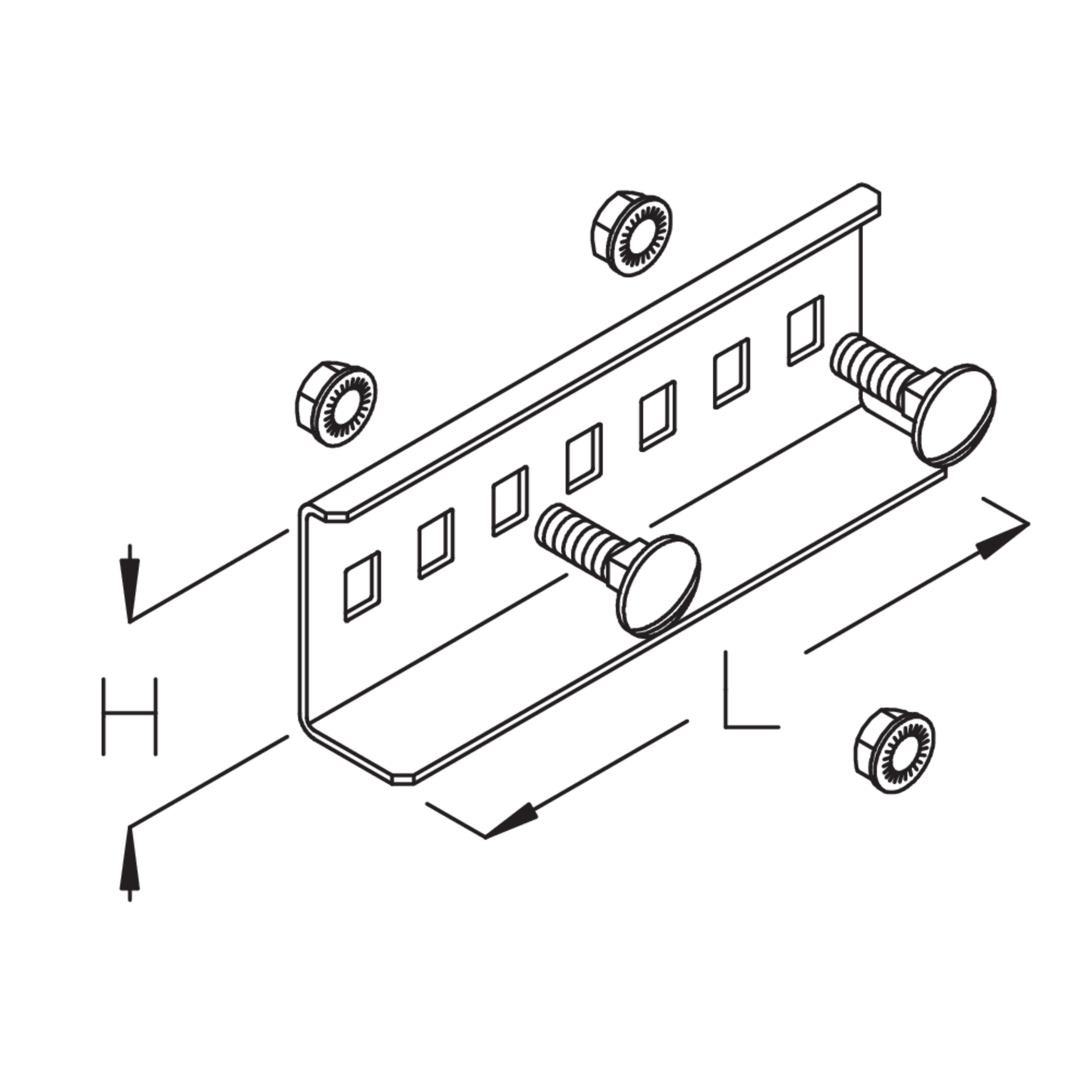

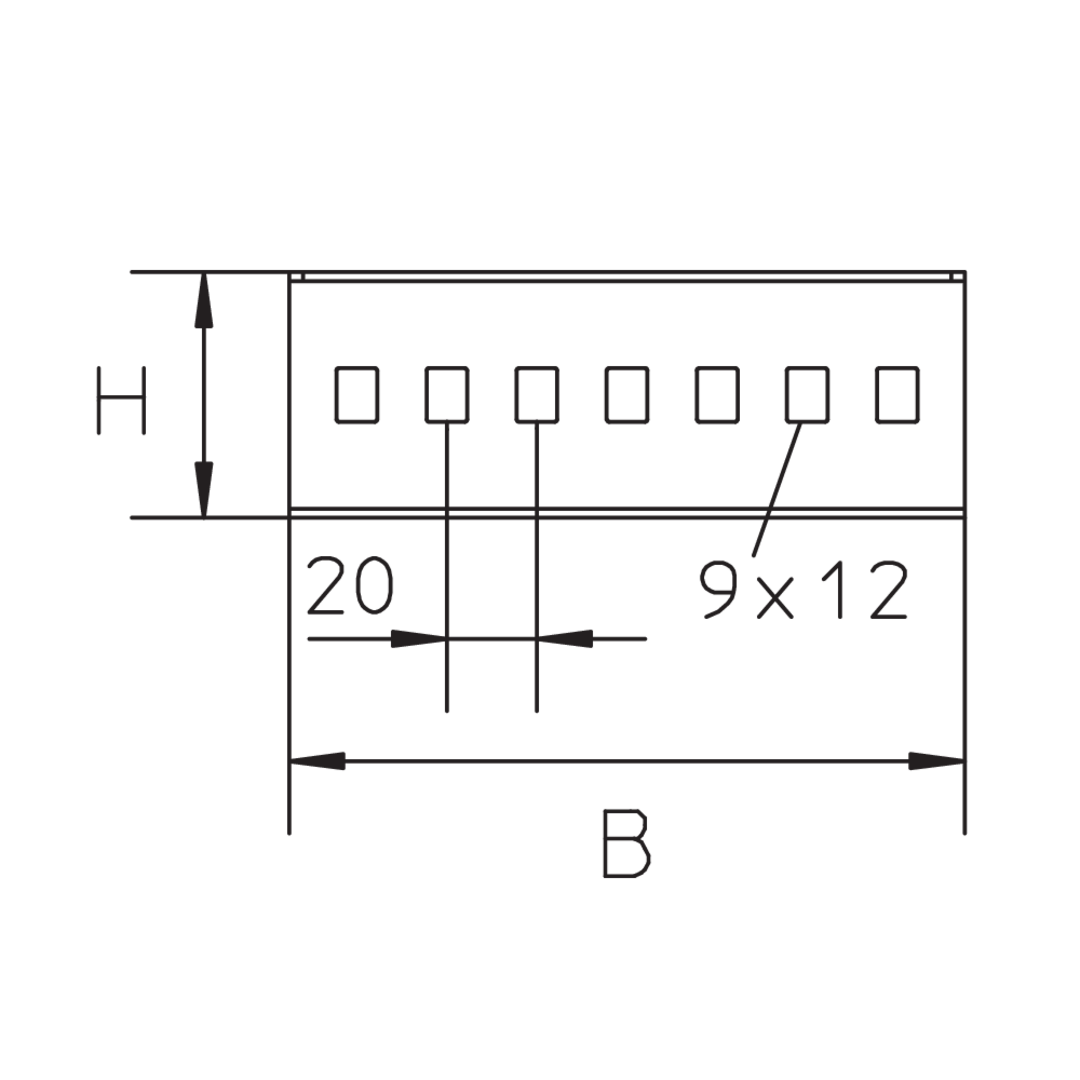

The side connector LGV 60 can be used to connect LGG 60 vertical ladders/cable ladders or cable ladders and formed parts. It is pushed onto the rail of the cable ladder or vertical ladder from the outside and bolted in place with the clamp fastener. The connecting rack is then pushed in and also bolted in place. The side connector LGV 60 is 60 mm high and 150 mm long. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

L

length

G

Weight per storage unit

Included accessories
  • LGV 60S
    Cable ladder coupler
    height
    60 mm
    length
    150 mm
    Weight per storage unit
    0.236 kg
    Included accessories
    More information

Steel, hot-dip galvanised

Article

H

height

L

length

G

Weight per storage unit

Included accessories
  • LGV 60F
    Cable ladder coupler
    height
    60 mm
    length
    150 mm
    Weight per storage unit
    0.247 kg
    Included accessories
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

L

length

G

Weight per storage unit

Included accessories
  • LGV 60E
    Cable ladder coupler
    height
    60 mm
    length
    150 mm
    Weight per storage unit
    0.245 kg
    Included accessories
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

H

height

L

length

G

Weight per storage unit

Included accessories
  • LGV 60E4
    Cable ladder coupler
    height
    60 mm
    length
    150 mm
    Weight per storage unit
    0.238 kg
    Included accessories
    More information
