KLUT

Clamping fasteners

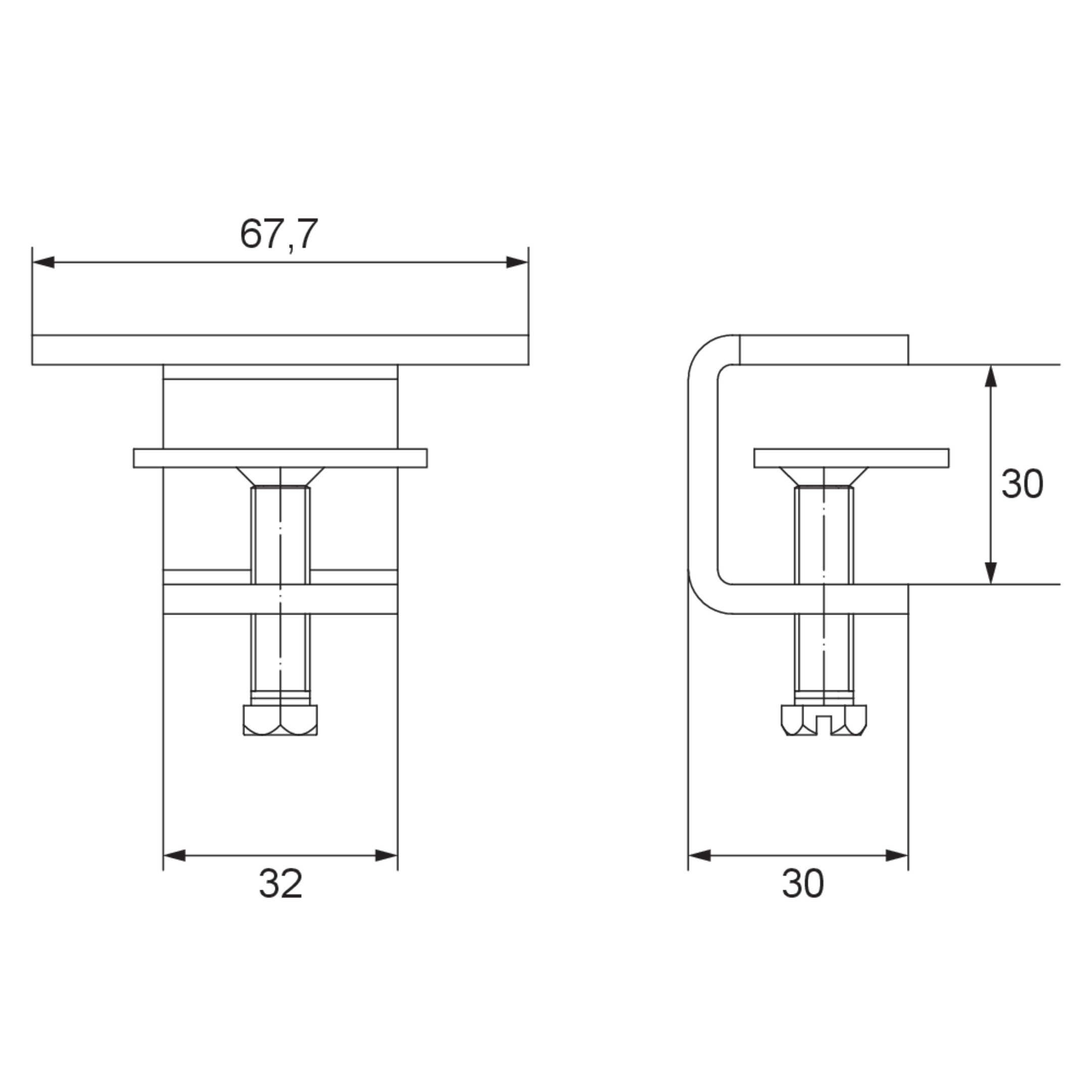

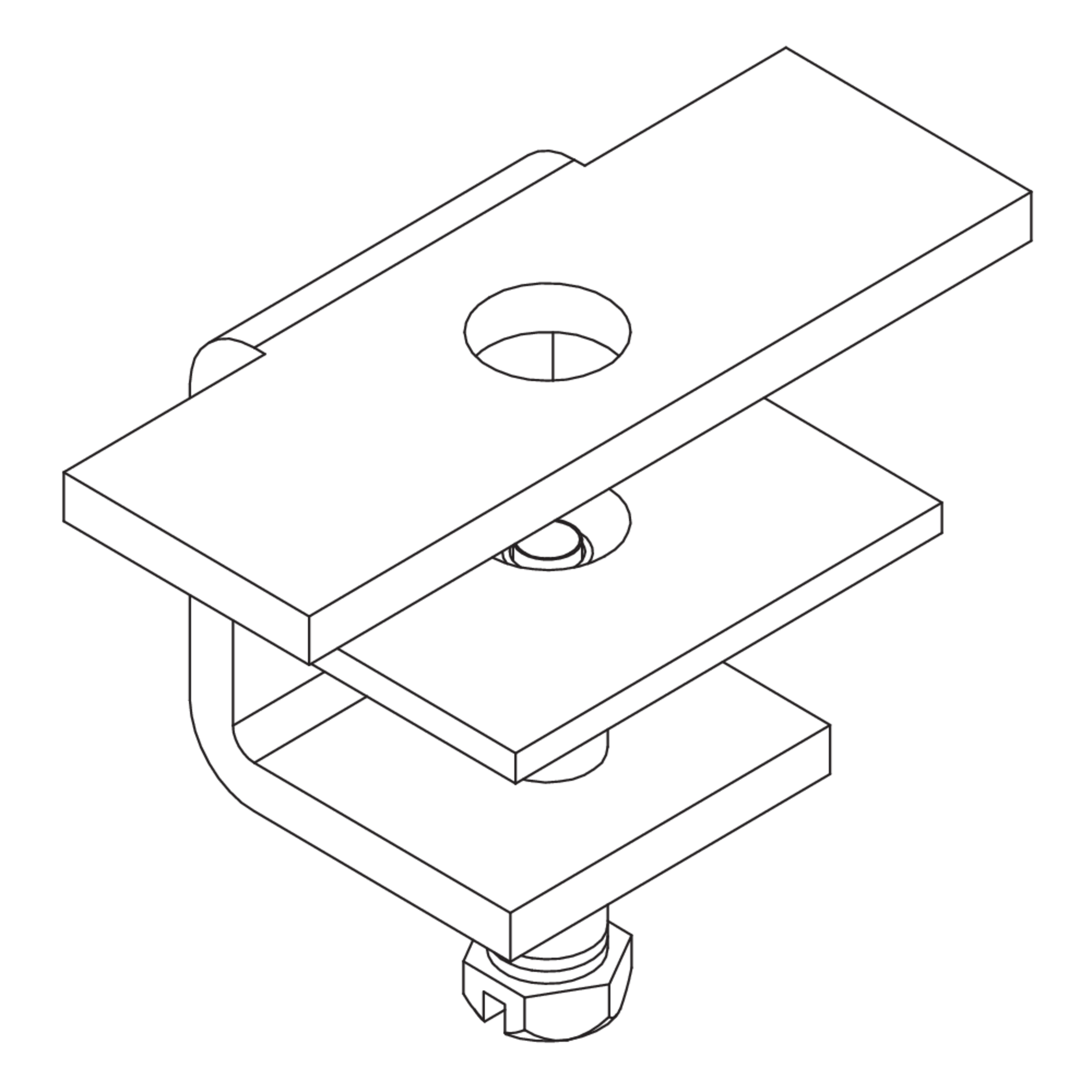

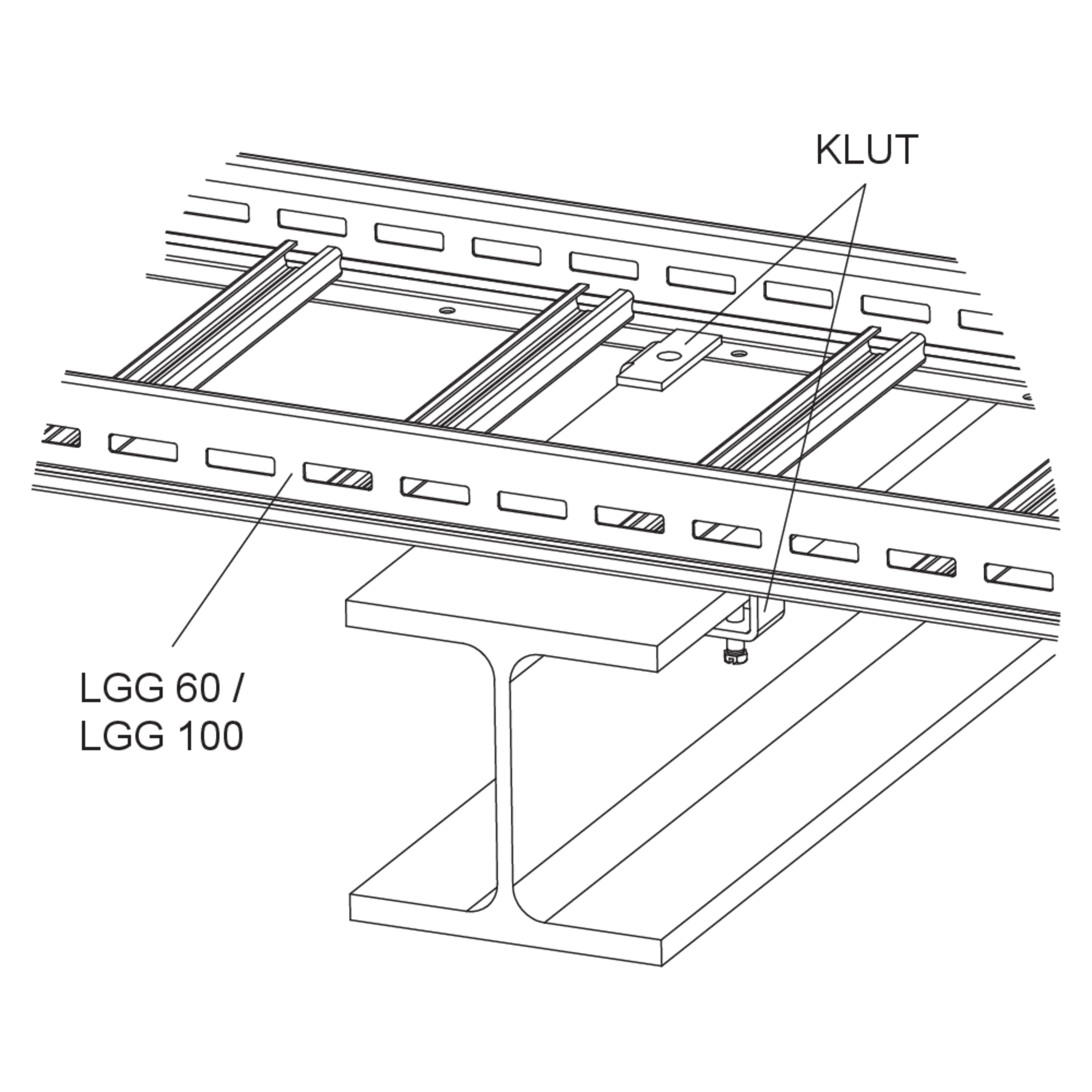

Clamp fastener KLUT is used to secure the position of cable ladders on steel beams. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met. The item is delivered unassembled.

Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

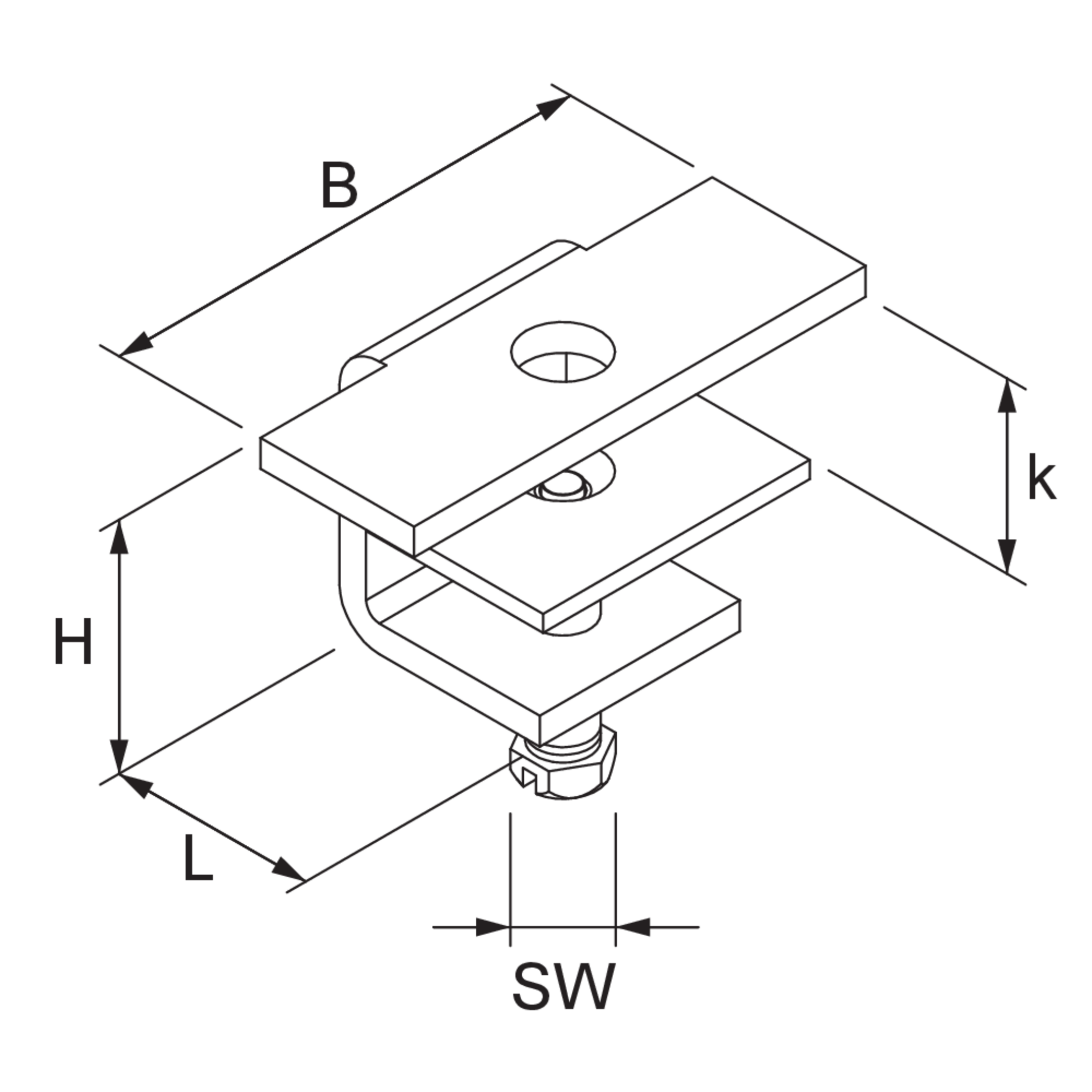

Article

H

height

B

width

L

length

M

torque

k

clamping range

SW

wrench size

G

Weight per storage unit

  • KLUT F
    Cable ladder mounting clamp - profiles
    height
    38 mm
    width
    68 mm
    length
    30 mm
    torque
    4.0 Nm
    clamping range
    3 - 25 mm
    wrench size
    10 mm
    Weight per storage unit
    0.141 kg
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

B

width

L

length

M

torque

k

clamping range

SW

wrench size

G

Weight per storage unit

  • KLUT E
    Conductor terminal
    height
    38 mm
    width
    68 mm
    length
    30 mm
    torque
    4.0 Nm
    clamping range
    3 - 25 mm
    wrench size
    10 mm
    Weight per storage unit
    0.136 kg
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

H

height

B

width

L

length

M

torque

k

clamping range

SW

wrench size

G

Weight per storage unit

  • KLUT E4
    Conductor terminal
    height
    38 mm
    width
    68 mm
    length
    30 mm
    torque
    4.0 Nm
    clamping range
    3 - 25 mm
    wrench size
    10 mm
    Weight per storage unit
    0.137 kg
    More information
