UEBDSM R WD

Stainless steel heavy-duty tube cover unit, 3x, round

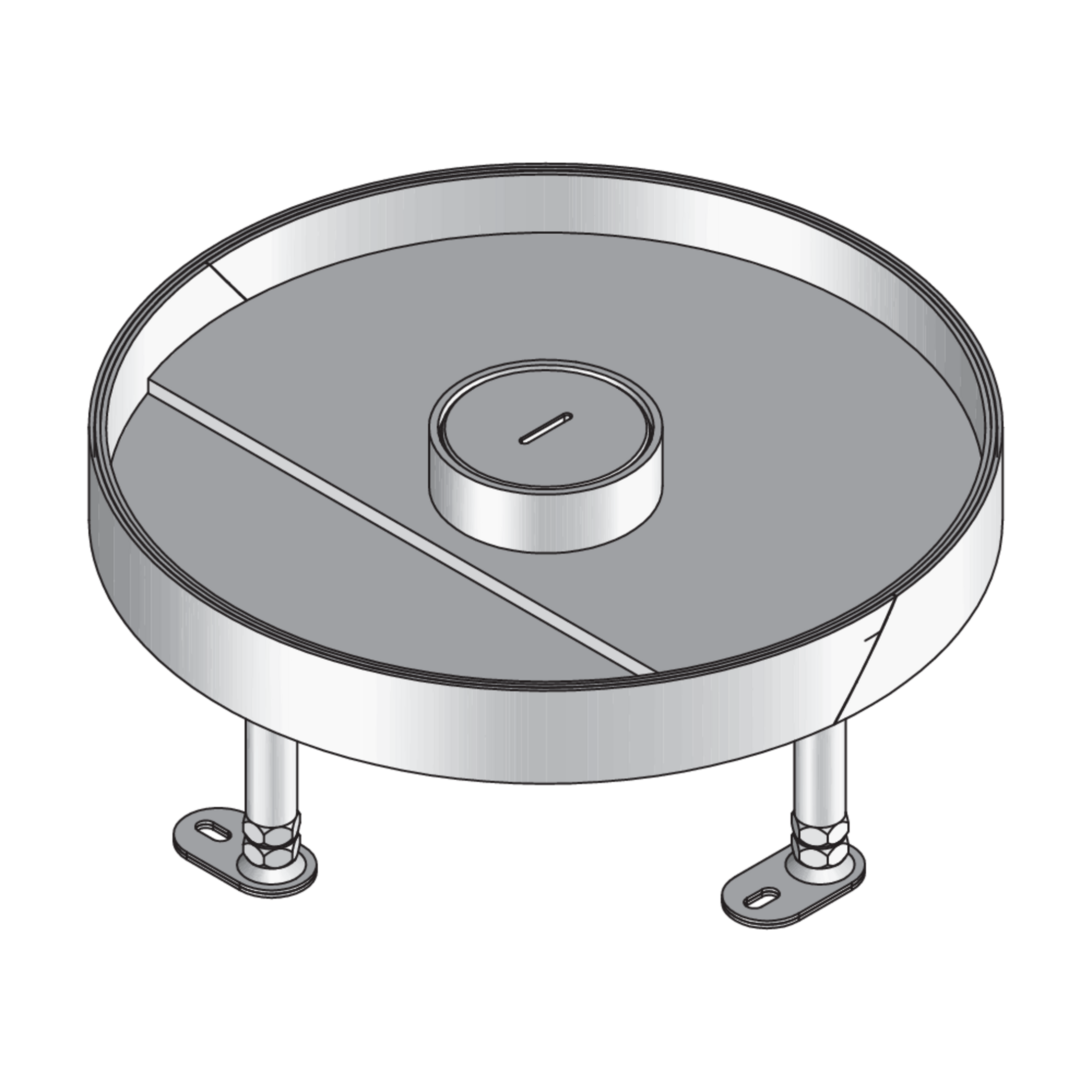

UEBDSM R WD are round heavy-duty tube cover units for holding three mounting boxes. They consist of a height-adjustable cartridge mounting frame with tube outlet cartridge, bolted assembly kit and rubber seal. They are suitable for wet-cleaned rooms with high traffic loads where they are installed in floor sockets, assembly covers and raised or false floor openings.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

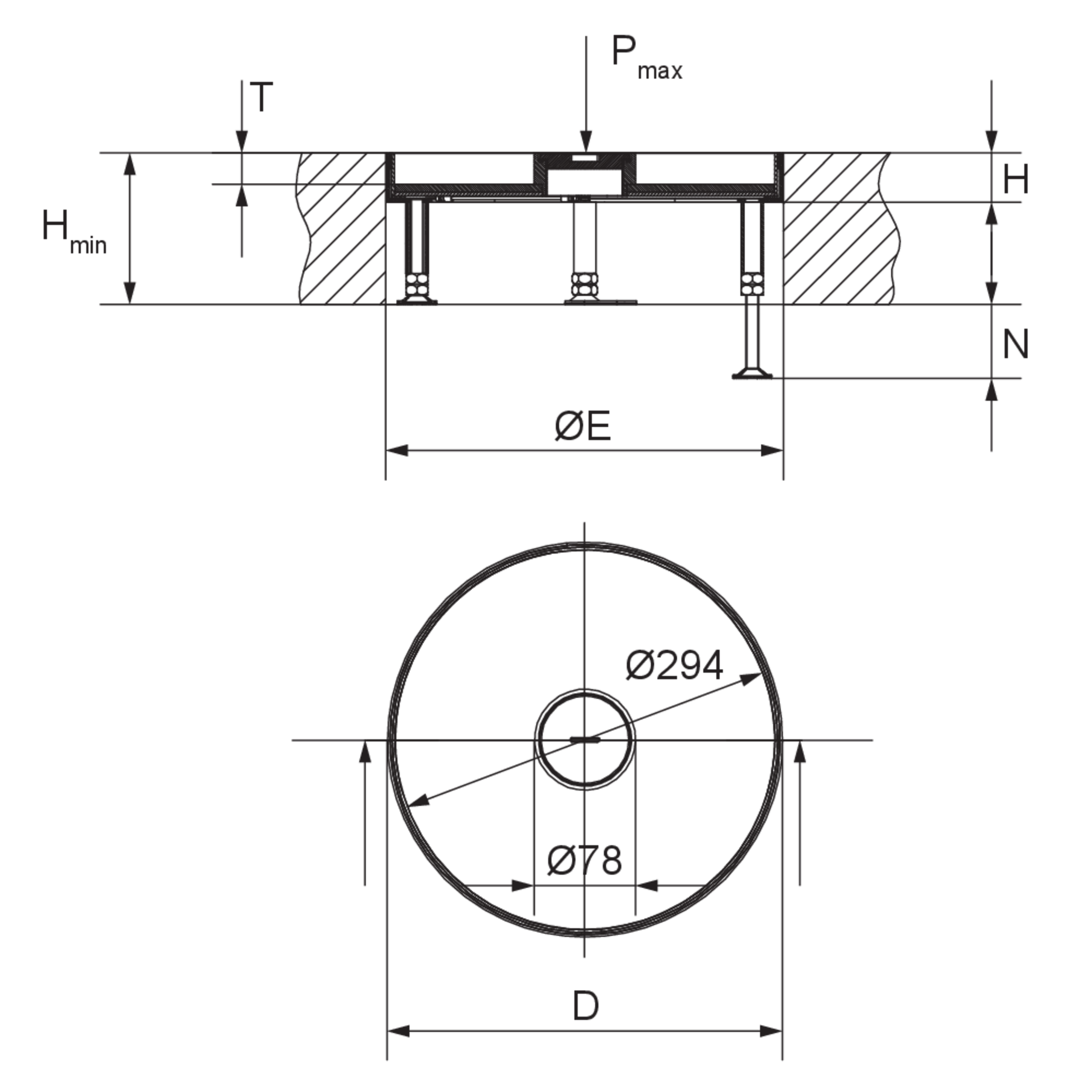

H

height

Hmin

minimum installation height

N

levelling range

D

diameter

Pmax

maximum load

mounting box

maximum number of installable device casings

ØE

fitting dimension round

IPg

IP protection level in used condition

IPn

IP protection level in unused condition

T

Depth of flooring recess

G

Weight per storage unit

Included accessories
  • UEBDSM 25-R6-WD
    Heavy duty cassette unit,
    height
    29 mm
    minimum installation height
    110 mm
    levelling range
    55 mm
    diameter
    307 mm
    maximum load
    20.00 kN
    maximum number of installable device casings
    3
    fitting dimension round
    304 mm
    IP protection level in used condition
    IP 22
    IP protection level in unused condition
    IP 54
    Depth of flooring recess
    16 mm
    Weight per storage unit
    5.970 kg
    Included accessories
    More information
  • UEBDSM 35-R6-WD
    heavy duty cartridge unit,
    height
    38 mm
    minimum installation height
    117 mm
    levelling range
    55 mm
    diameter
    305 mm
    maximum load
    20.00 kN
    maximum number of installable device casings
    3
    fitting dimension round
    307 mm
    IP protection level in used condition
    IP 22
    IP protection level in unused condition
    IP 54
    Depth of flooring recess
    24 mm
    Weight per storage unit
    7.087 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085
  • With inspection stamp dia. 130 mm: 20 kN

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

BIM- und CAD-Data

    BIM Data Installation Boxes

    BIM Data

    ZIP (13.12 MB)

    DownloadDownload
