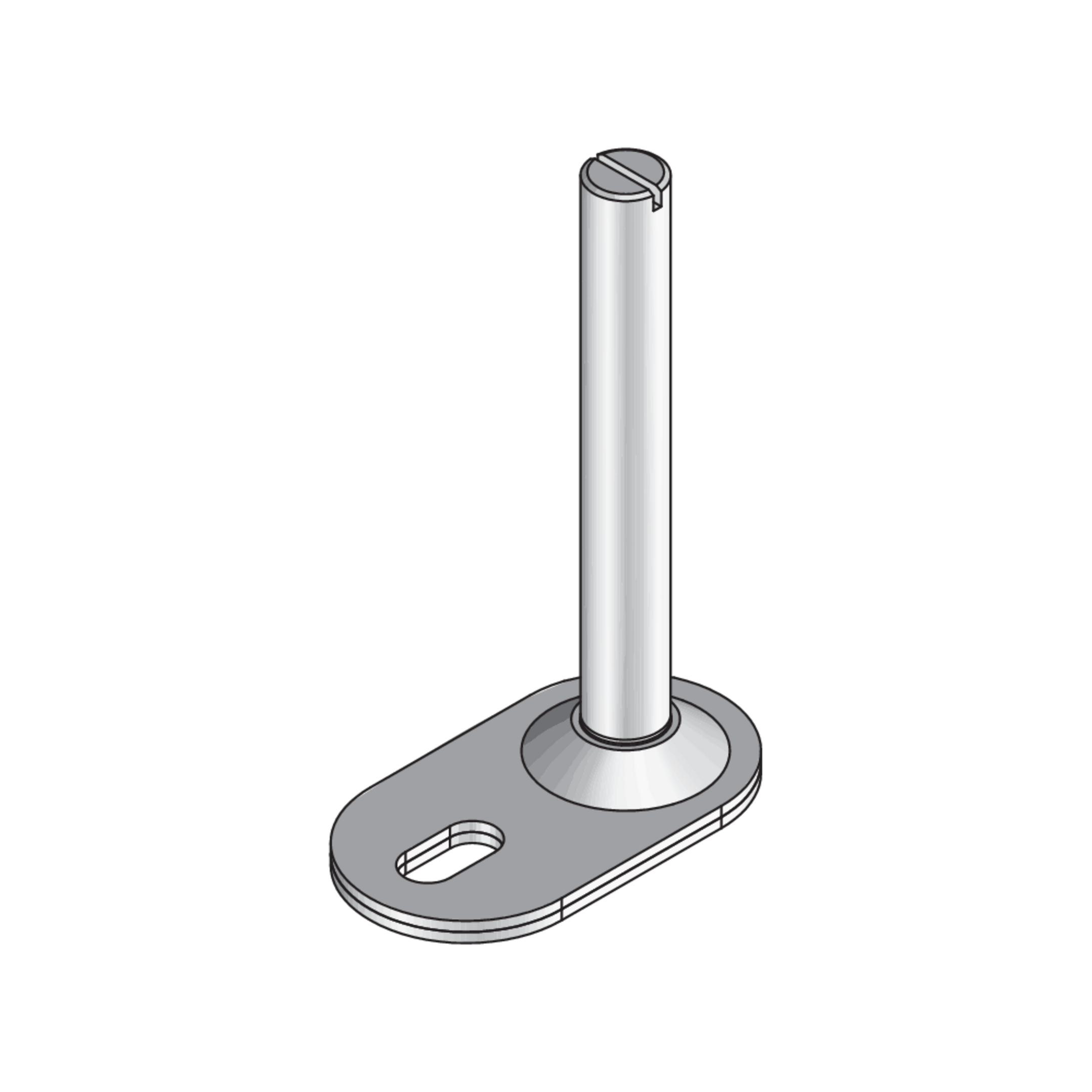

Levelling support
UBDSLF products are levelling supports including nuts, that are used in floor boxes or cavity floor openings in conjunction with a levelling piece, but also in the screed-flush ducts. These installation components are suitable for high traffic loads and consist of a base plate and a levelling screw. Manufactured from sendzimir hot-dip galvanised sheet steel and complying with DIN EN 10346, the components are available in lengths from 60 to 220 mm. The component complies with DIN EN 50085 - the European standard for electrical installation duct systems, and is tested and certified by VDE.

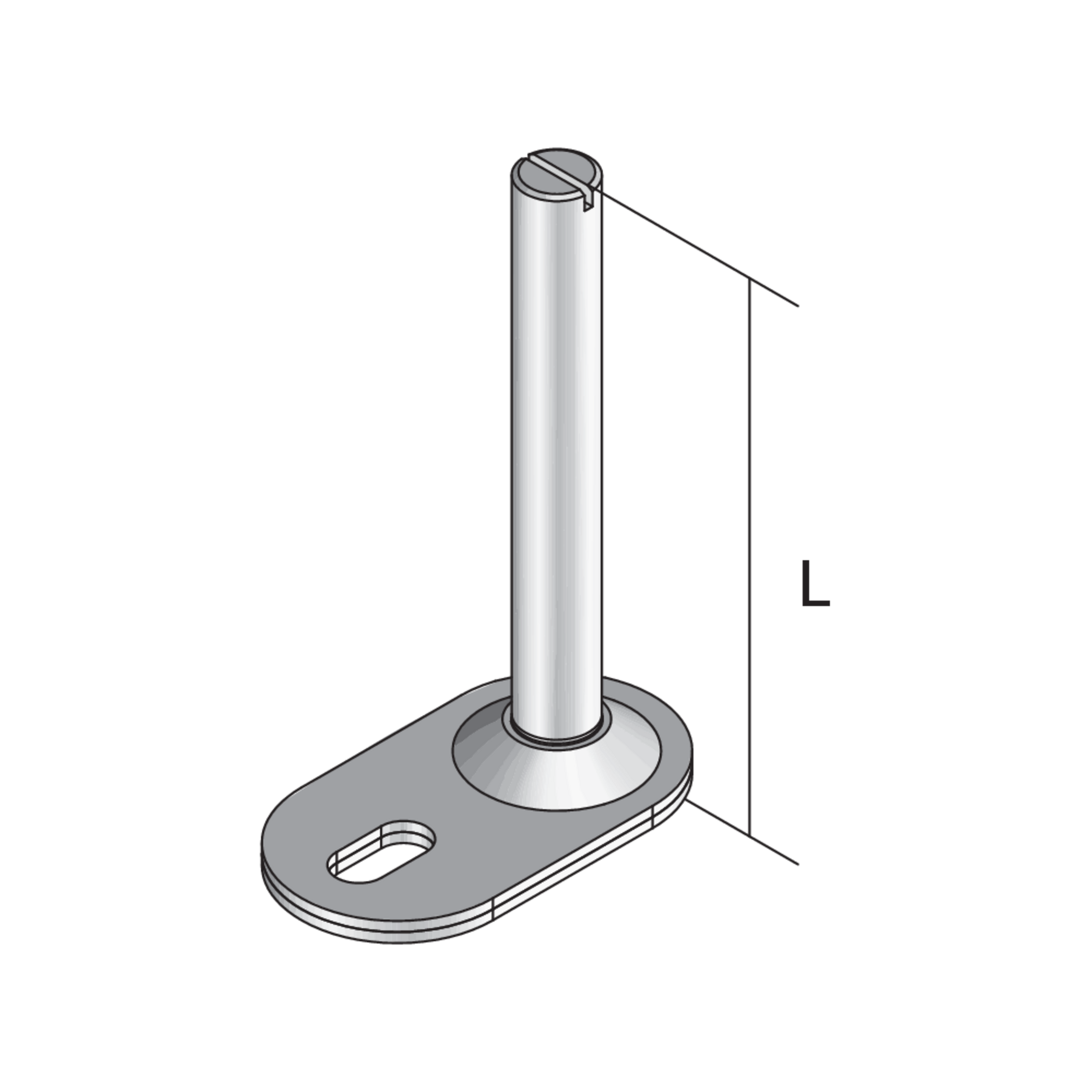

L
length
G
Weight per storage unit
