SKS A

Clamping claw, heavy, A/KHA 21/41/42/82

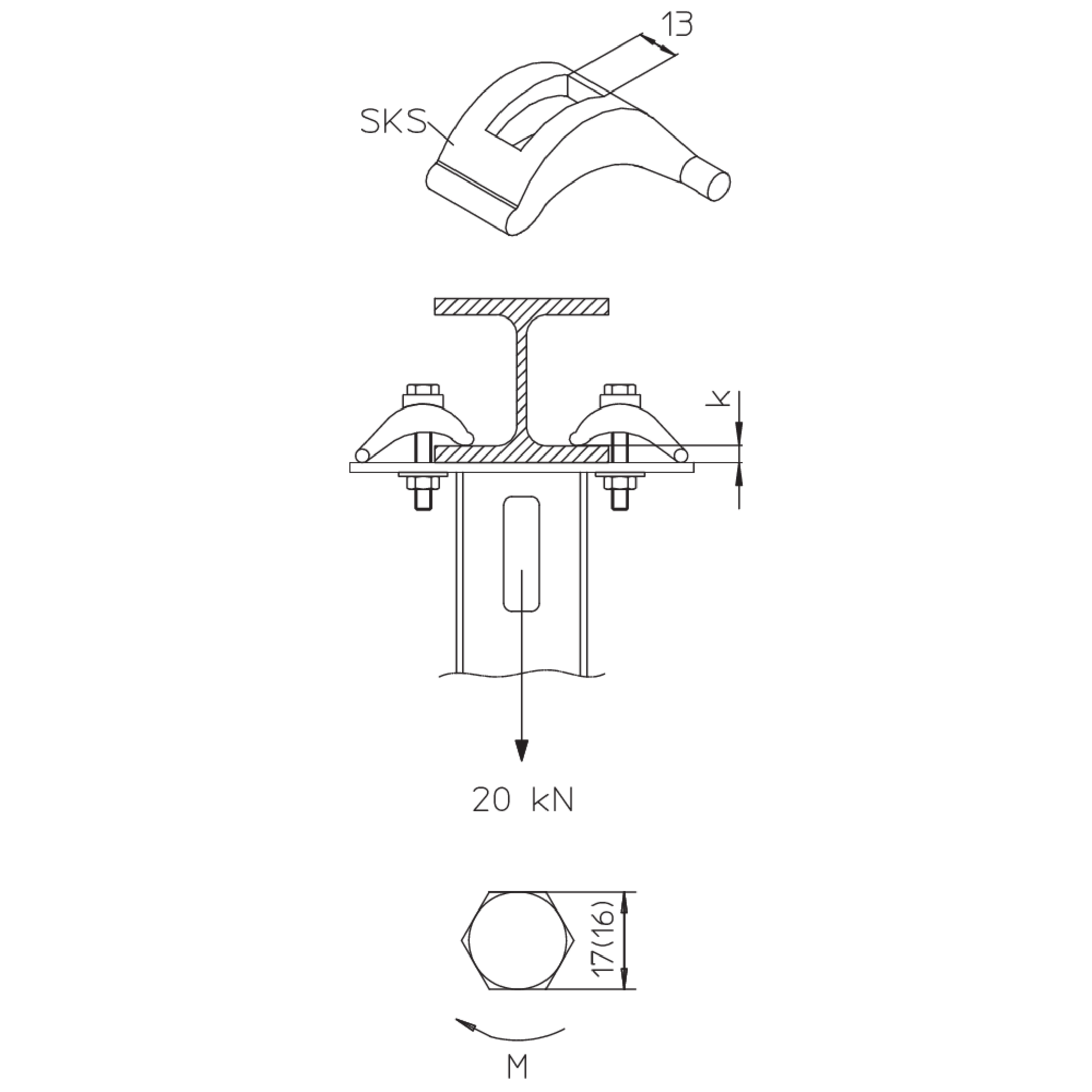

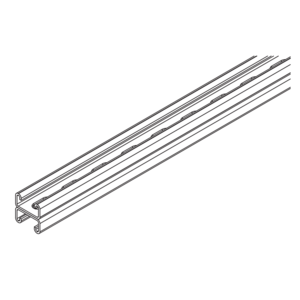

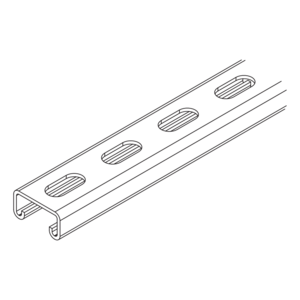

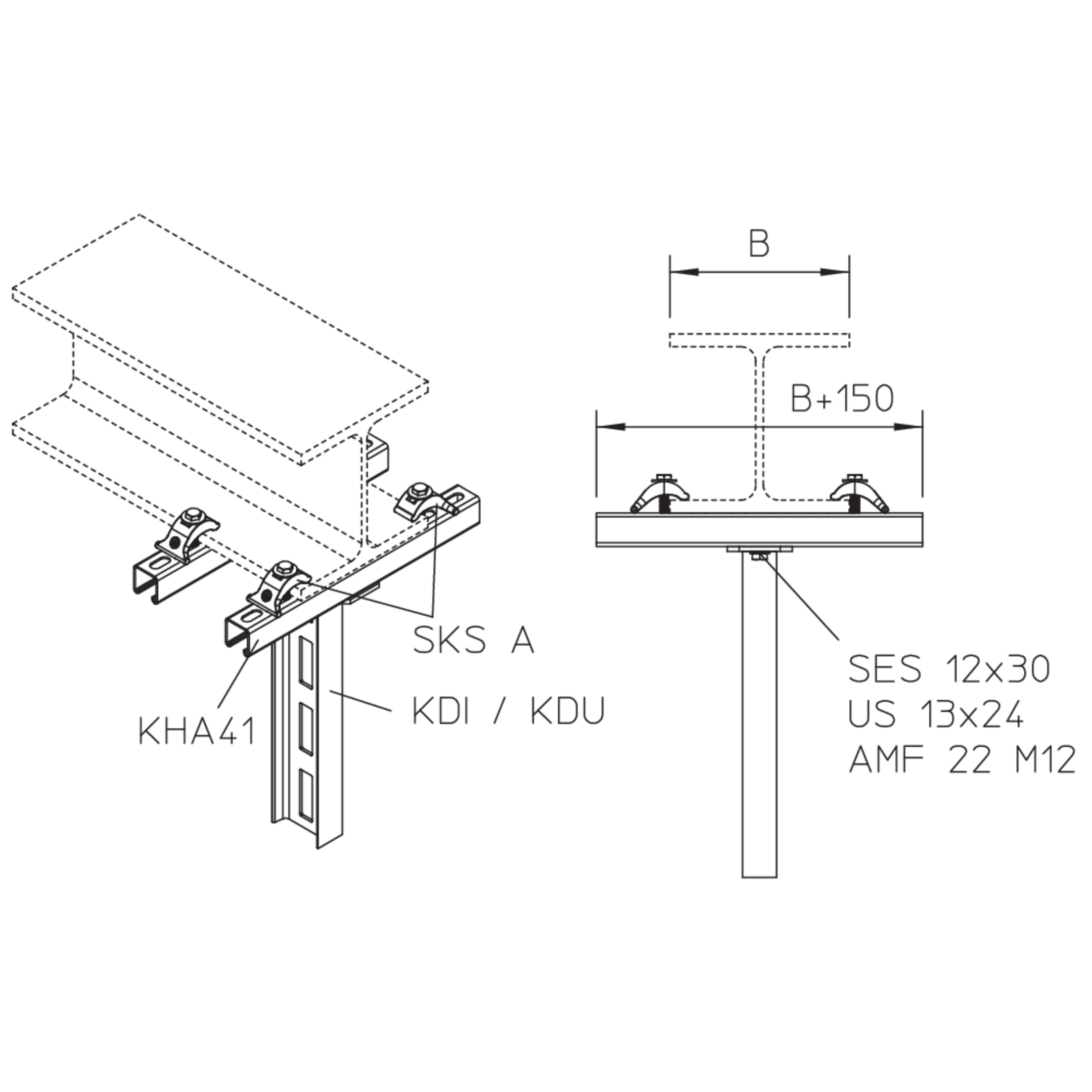

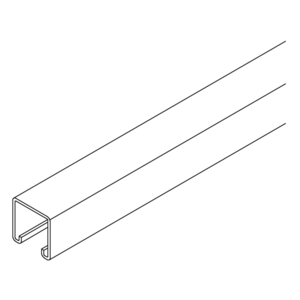

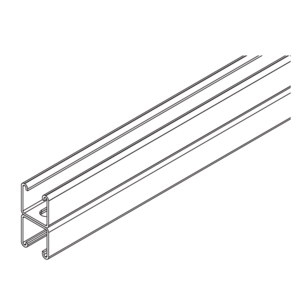

The beam clamp set SKS A can be combined with mounting channels A 41 or KHA 21, 41, 42 and 82. It is used to attach bracket supports on steel beams. The set can be loaded up to 20 kN. The clamping range extends from 10 - 30 mm. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

Article

Pmax

maximum load

M

torque

k

clamping range

G

Weight per storage unit

Included accessories
  • SKS AF
    Beam clamps SKS AF
    maximum load
    20.00 kN
    torque
    50 Nm
    clamping range
    10 - 30 mm
    Weight per storage unit
    0.541 kg
    Included accessories
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

Pmax

maximum load

M

torque

k

clamping range

G

Weight per storage unit

Included accessories
  • SKS AE4
    Beam clamps SKS AE4
    maximum load
    20.00 kN
    torque
    50 Nm
    clamping range
    10 - 30 mm
    Weight per storage unit
    0.552 kg
    Included accessories
    More information
