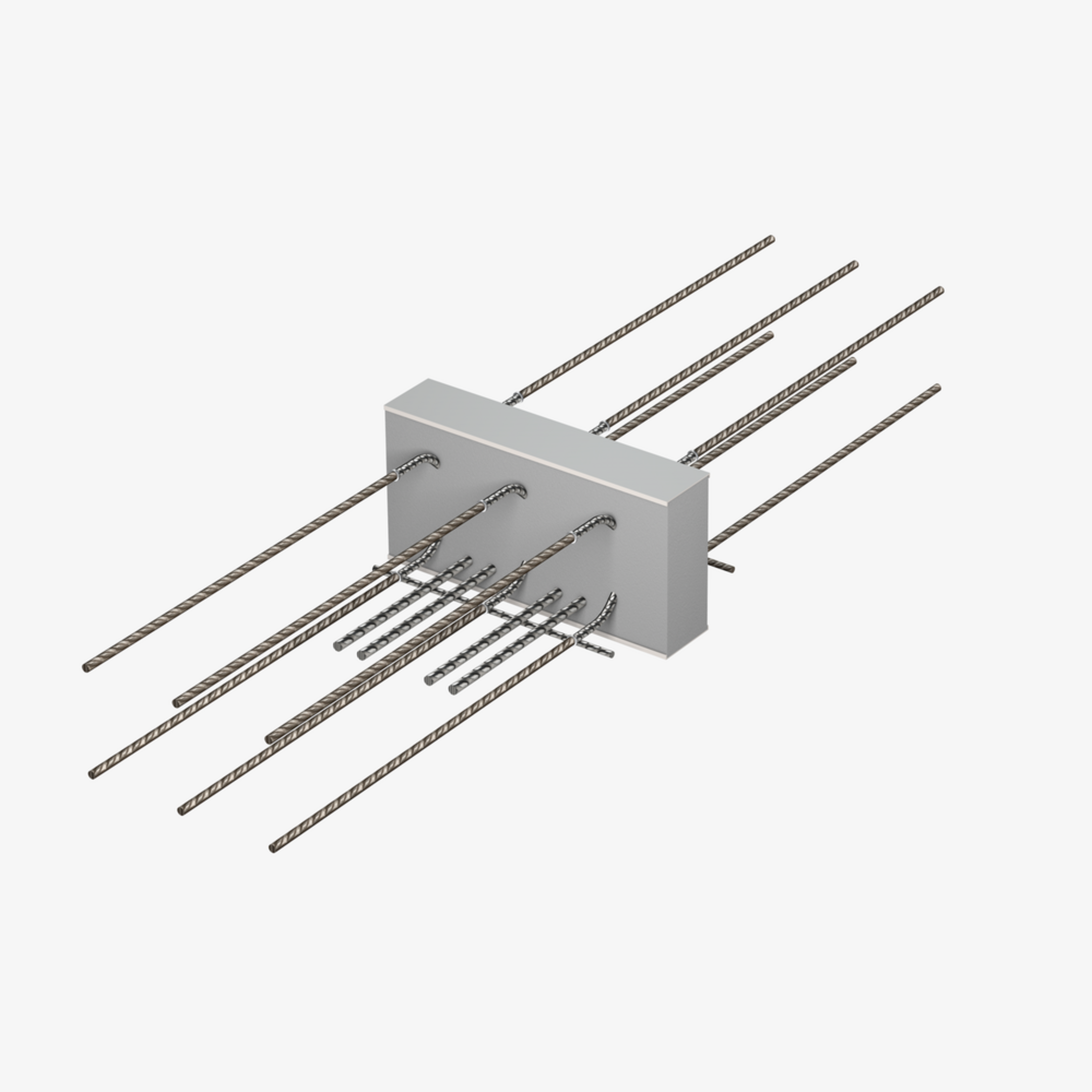

ISOPRO® IPTQQS

Thermally insulated slab connection for punctual transmission of positive and negative shear forces

ISOPRO® IPTQQS is a thermally insulated slab connection with an 80 mm insulating body for transmitting positive and negative shear forces in supported reinforced concrete components with uplifting loads and for punctual force transmission. The stainless steel rebar is resistant to corrosion. The pressure plane consists of steel compression rods. It complies with fire protection requirements: ISOPRO® IPTQQS is available for fire protection structures up to REI 120. Please specify the load-bearing capacity, element height and fire protection version when ordering.

European Technical Assessment: ETA-17/0466
General Building Approval: Z-15.7-354 (combined with ETA-17/0466)
Get in touchDownload datasheet

Variants

Article

G

Weight per storage unit

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

BIM- und CAD-Data

    CAD ISOPRO® Type IPTQQS (DWG)

    CAD Data

    ZIP (500.22 KB)

    DownloadDownload

Included accessories
