T-junction, left, inner

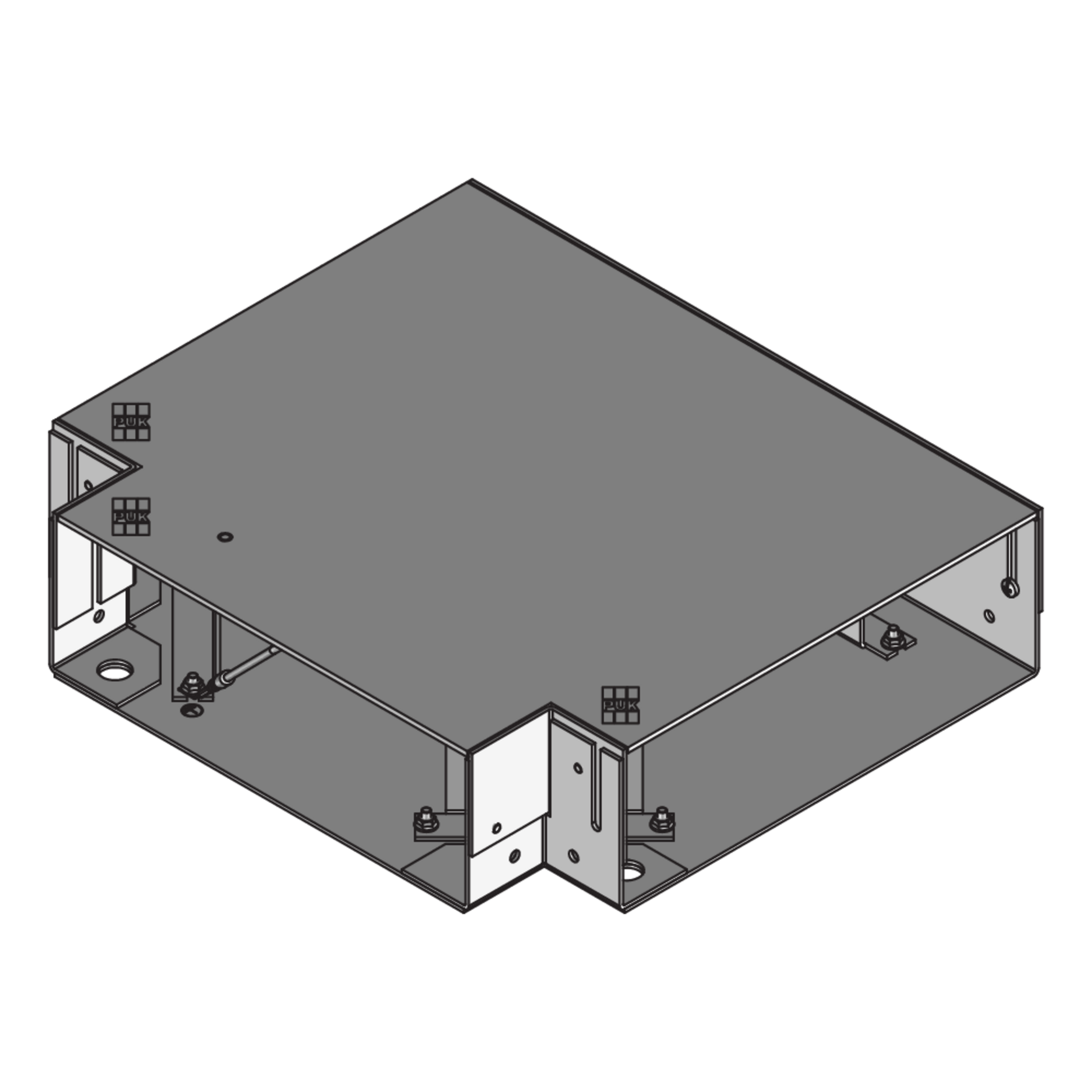

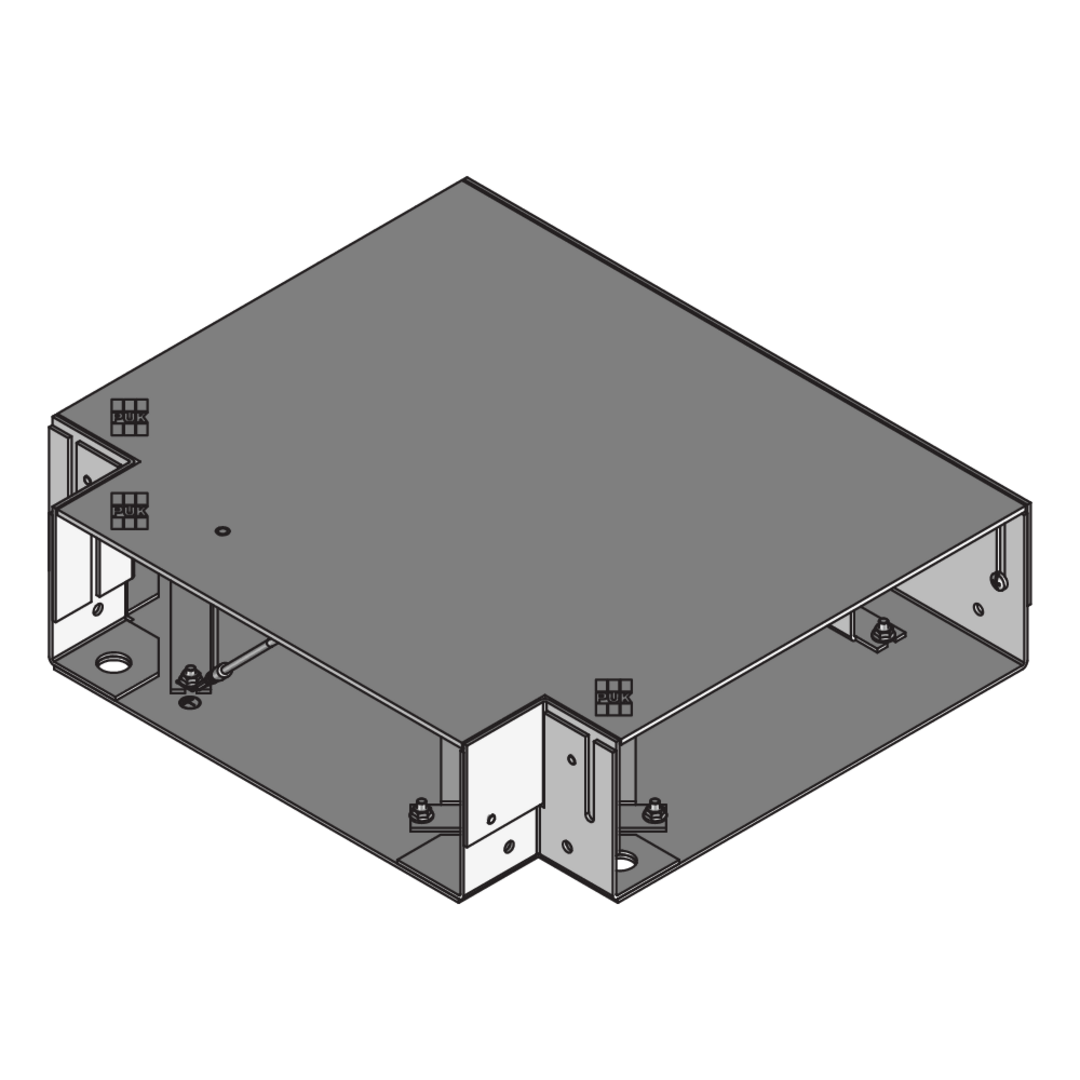

The UBEBMAIL T-junction is a component within the CHALI screed-flush brush ducts system. This product serves as a connector between two duct sections. Thanks to its T-shape, cables can be laid within a trunk section in the desired direction. The component is made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346.

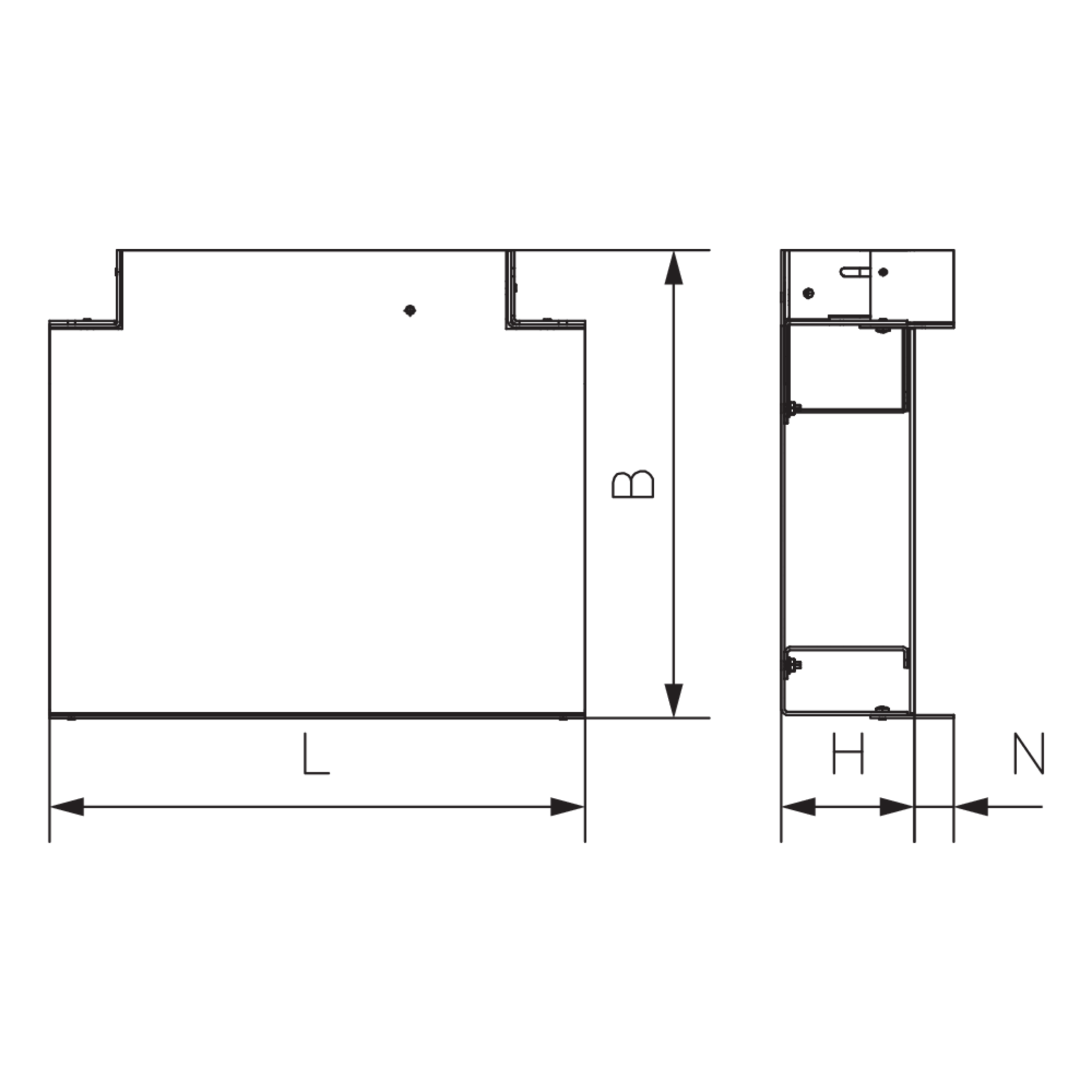

H
height
B
width
L
length
N
levelling range
W
Angle
G
Weight per storage unit
