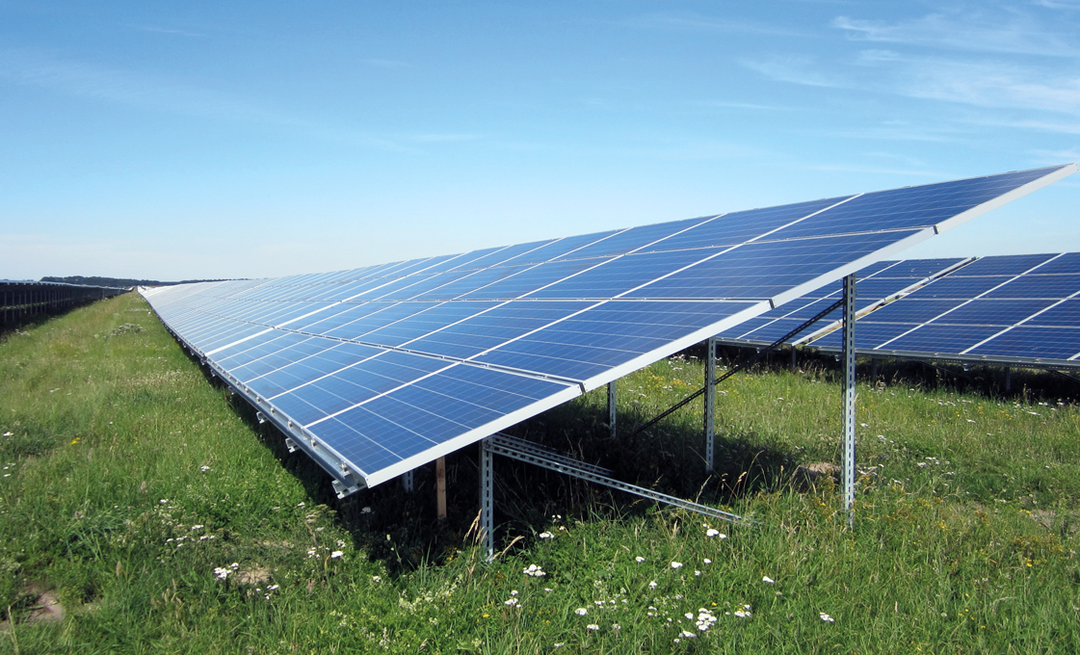

Substructure for small to medium-sized open space installations
Our standard PV racks consist of two rows of modules, each with three, six, or nine vertically aligned modules, and are ideal for small to medium-sized solar parks with a total output of up to approximately 800 kWp—both in the private and commercial sectors. The two-support system ensures high stability, while the 20° tilt angle guarantees optimum energy efficiency. The solar substructure made of hot-dip galvanized steel in combination with aluminum module clamps offers lasting corrosion protection. A static analysis confirms its suitability for 80% of snow and wind load zones in Germany. The tables are specially designed for 60-cell PV modules and also impress with their easy-to-assemble design and easy-to-understand, illustrated assembly instructions.
Easy installation of the standard solar substructure
-
Flexible mounting
Our standard PV tables can be mounted in a variety of ways and offer mounting options such as pile driving, screw fastening, or concrete foundations. This allows them to adapt optimally to different ground and site conditions.
-
Safety and handlingg
Thanks to sophisticated technology, the systems combine stability with ease of use—for reliable installation.
-
Efficiency and cost-effectiveness
Efficient planning ensures the smooth implementation of your projects while also guaranteeing an economical overall concept.

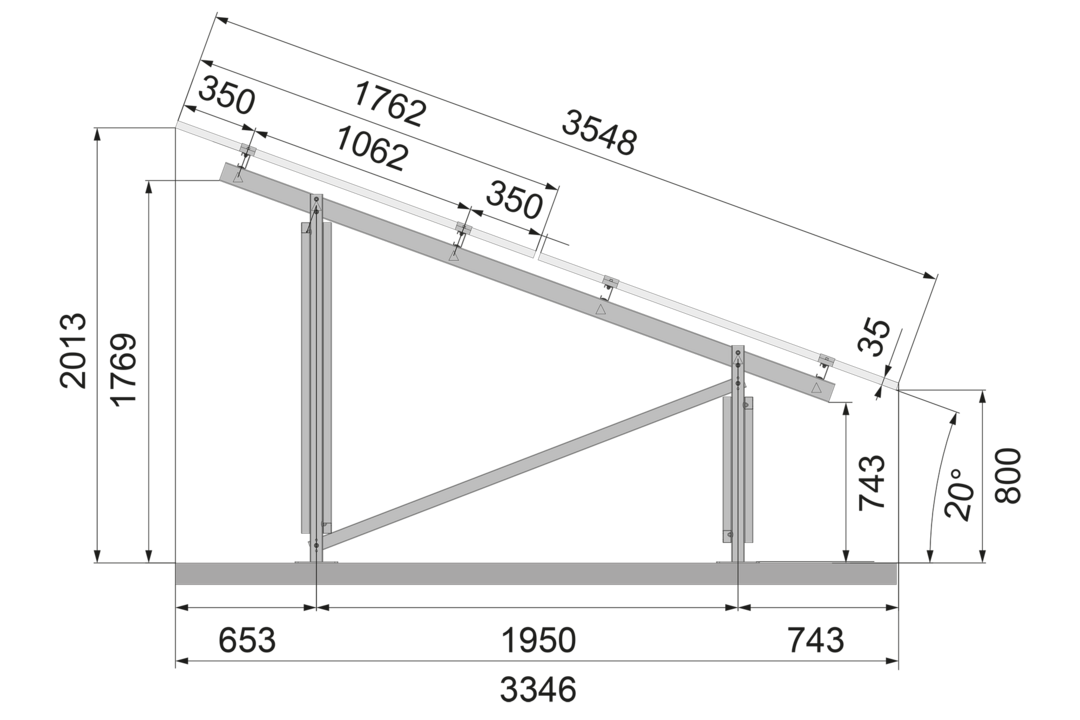

Product specifications of the PV tables
The three versions of our standard PV tables—with 6, 12, or 18 modules—impress with their robust materials, practical dimensions, and easy-to-assemble design.
| Material | Steel, galvanized |
| Module dimensions | 1.762 × 1.134 × 35 mm |
| Eave height / slope | 800 mm / 20° |
| Table height | 2.050 mm |
| Module clamps | Aluminum, bare with 4 mm wall thickness |
| Transport length | max. 4.000 mm |

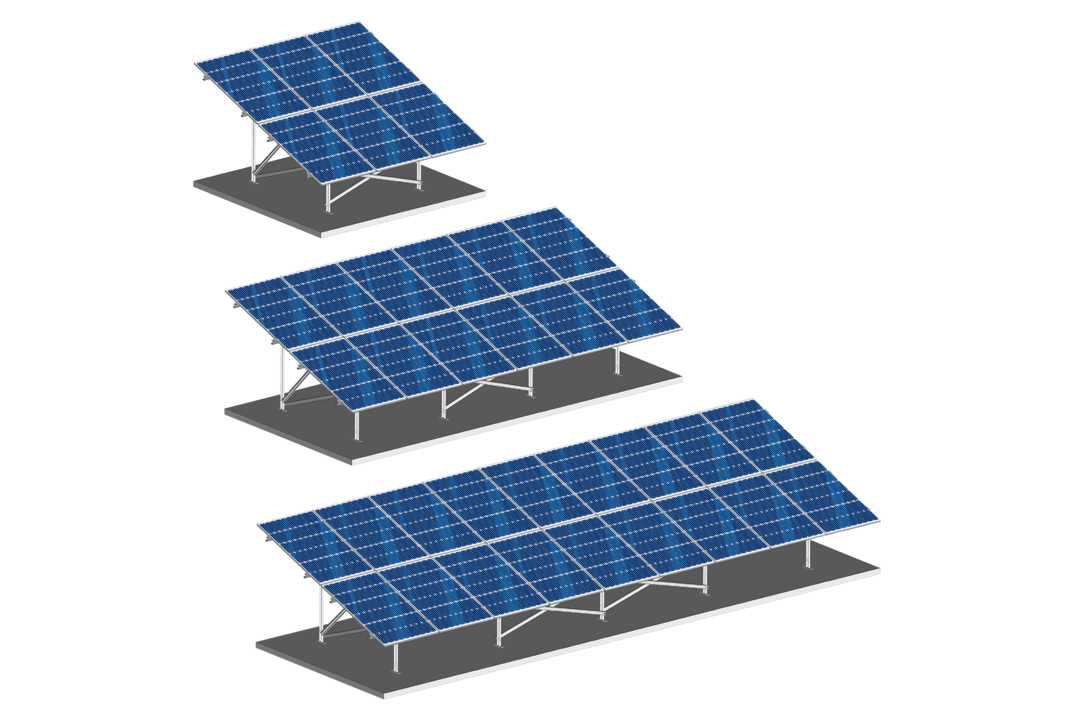

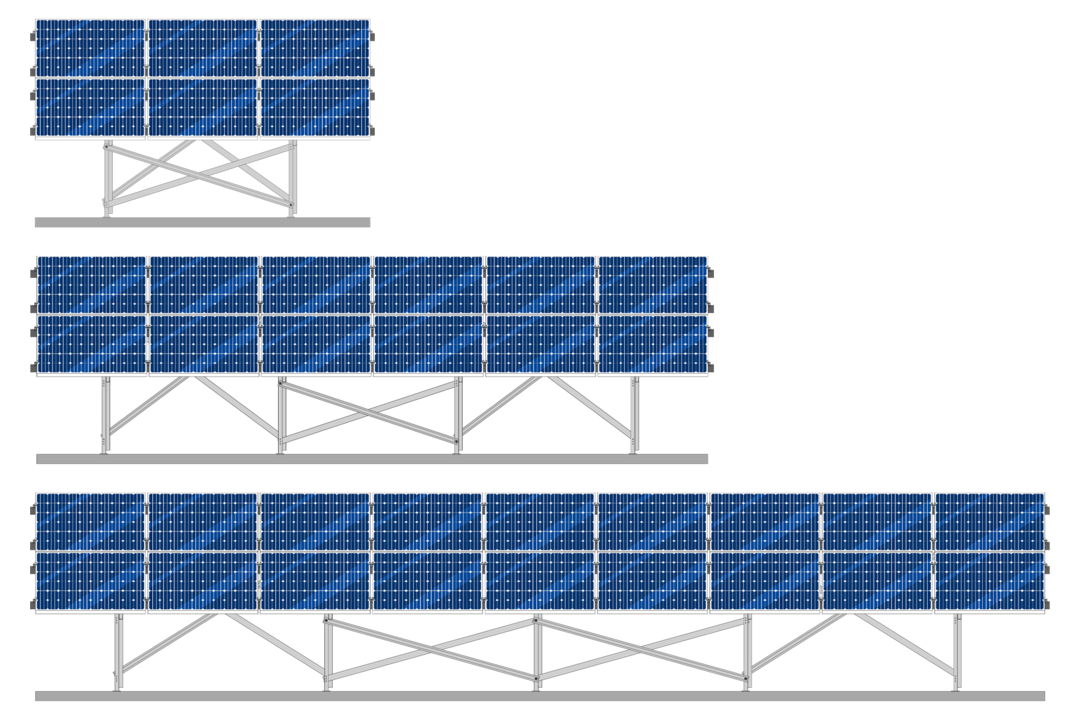

Overview of PV rack variants
Depending on the size of the project, our standard photovoltaic racks are available in various designs – from 6 to 18 modules.
| Number of modules | 6 | 12 | 18 |
| Rack length | 3.550 mm | 7.050 mm | 10.500 mm |
| Module arrangement | 2 rows, horizontal | 2 rows, horizontal | 2 rows , horizontal |
| Support spacing | 1.900 mm | 2.000 mm* | 2.000 mm* |
| Weight (without modules) | 130 kg | 240 kg | 340 kg |
* Die Angaben können sich ändern.
