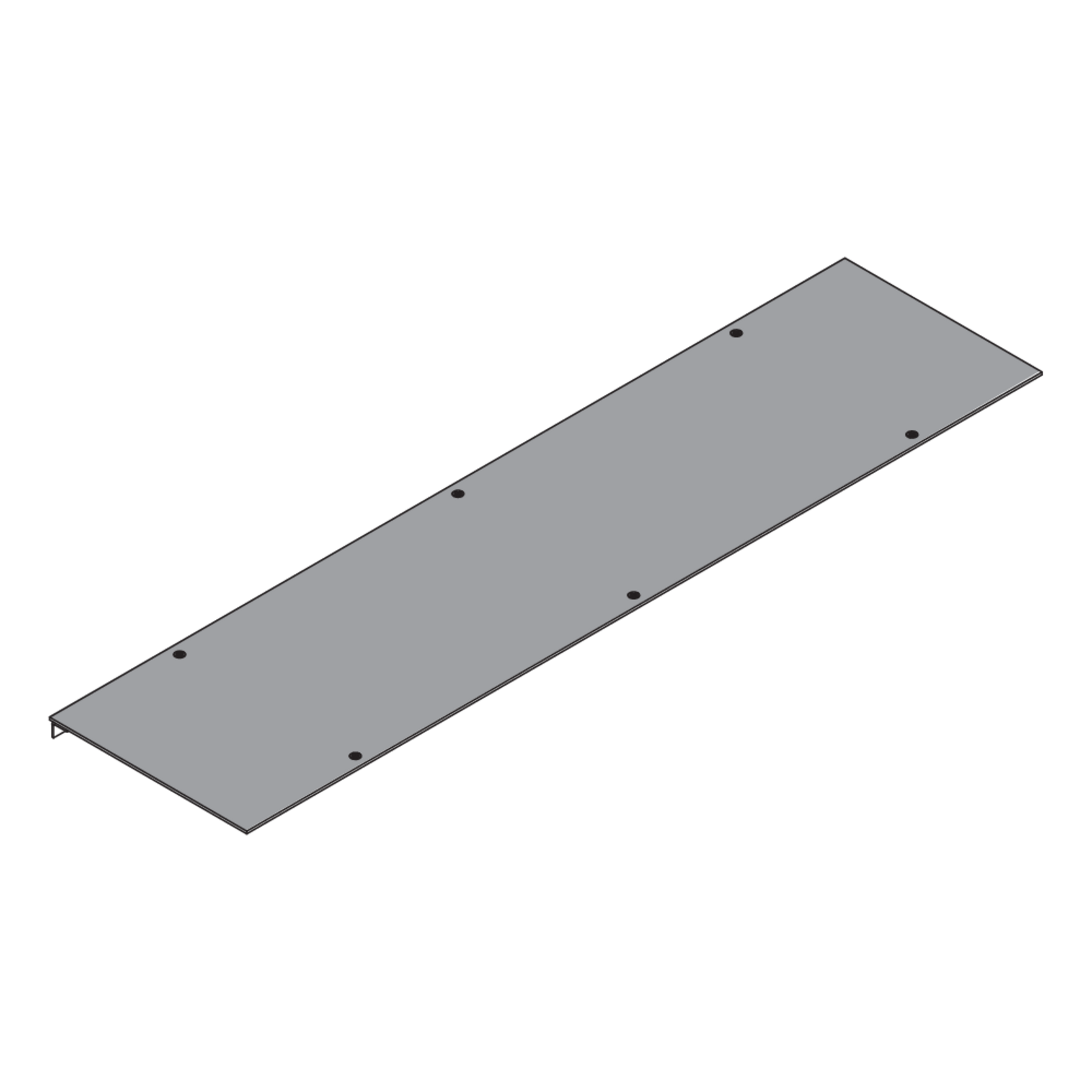

Dummy cover set
UBEBBDL components are a dummy cover set for screed-flush duct systems CHALI. They can bei used for the CHALI floor pan and for door crossings in exchange for hinged cover.These products are made of sendzimir hot-dip galvanised sheet steel (DIN EN 10346). The articles are suitable for typical office loads. The set is supplied including six galvanised (in line with DIN EN ISO 4042) countersunk sheet metal bolts BSS 4.8 x 16.

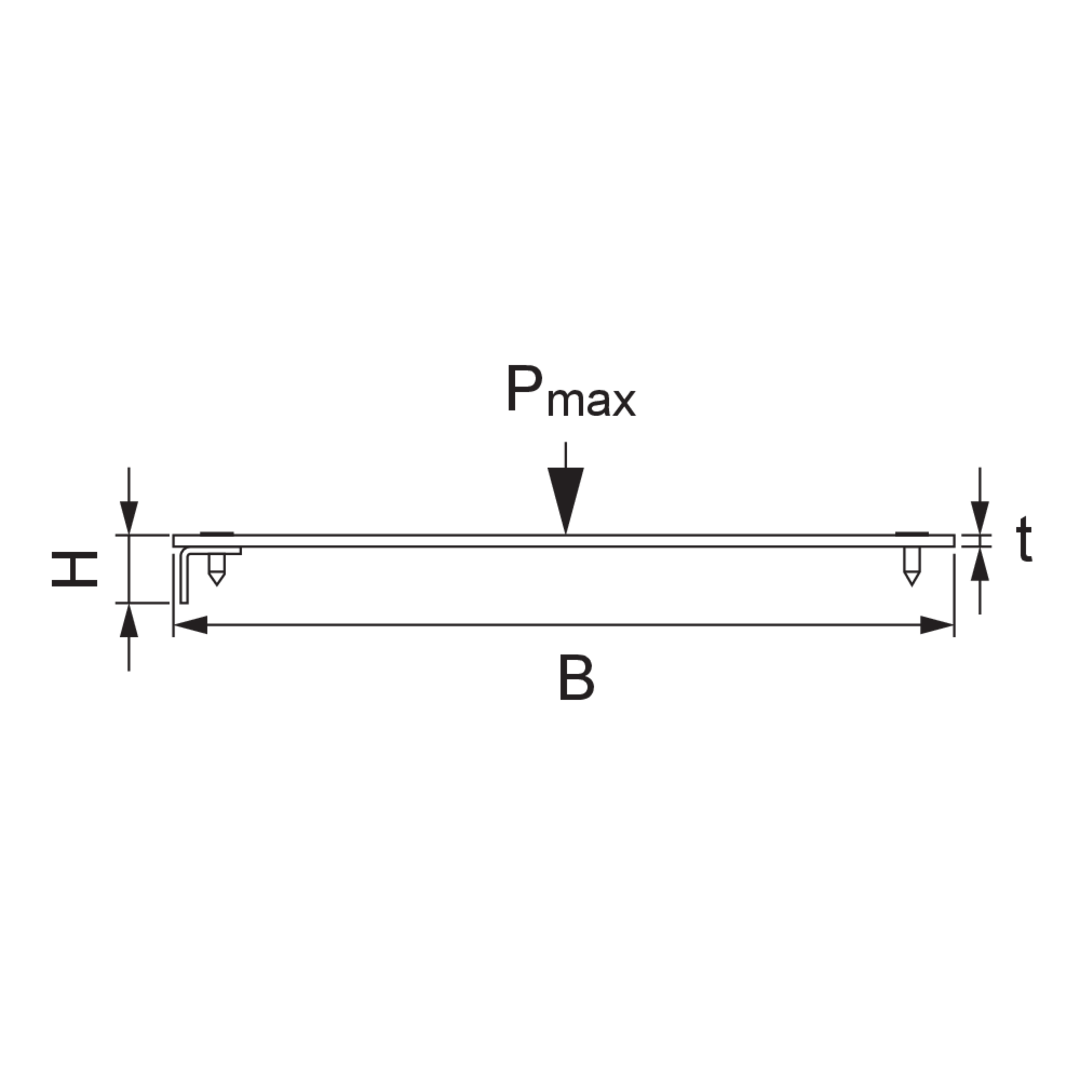

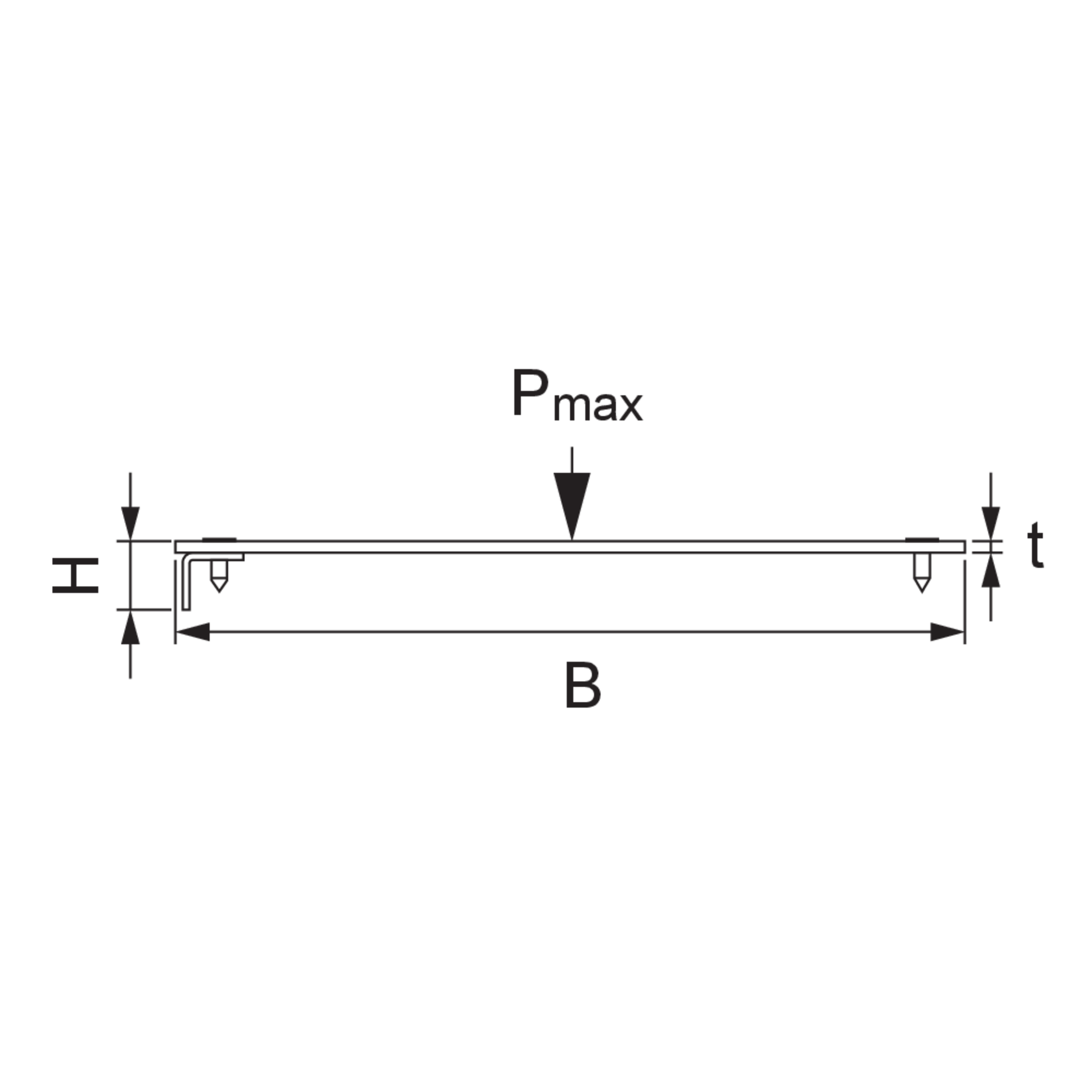

H
height
B
width

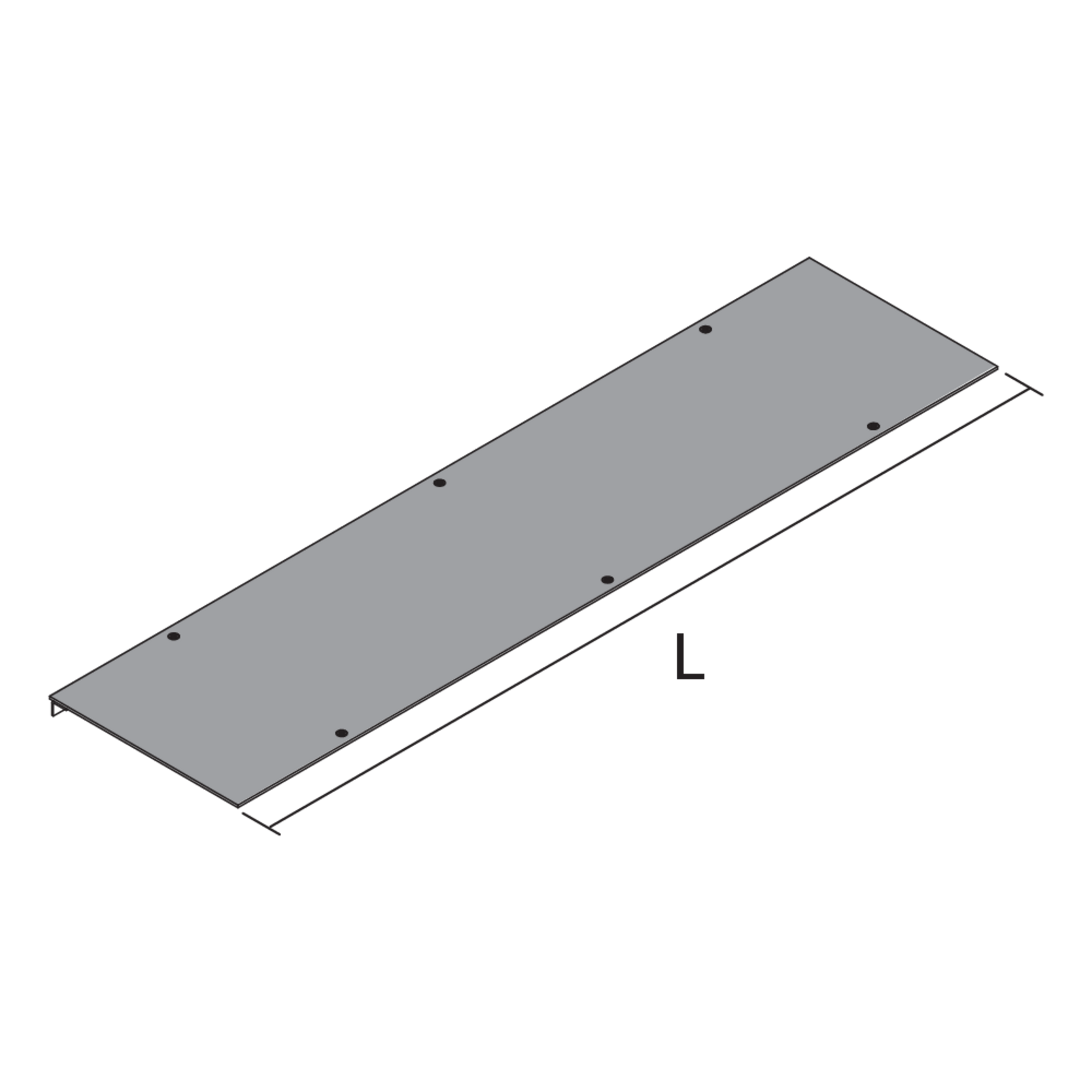

L
length
t
material thickness
Pmax
maximum load
G
Weight per storage unit
de
en
Valid from February 1st, 2025, updated version from 31/03/2025.
