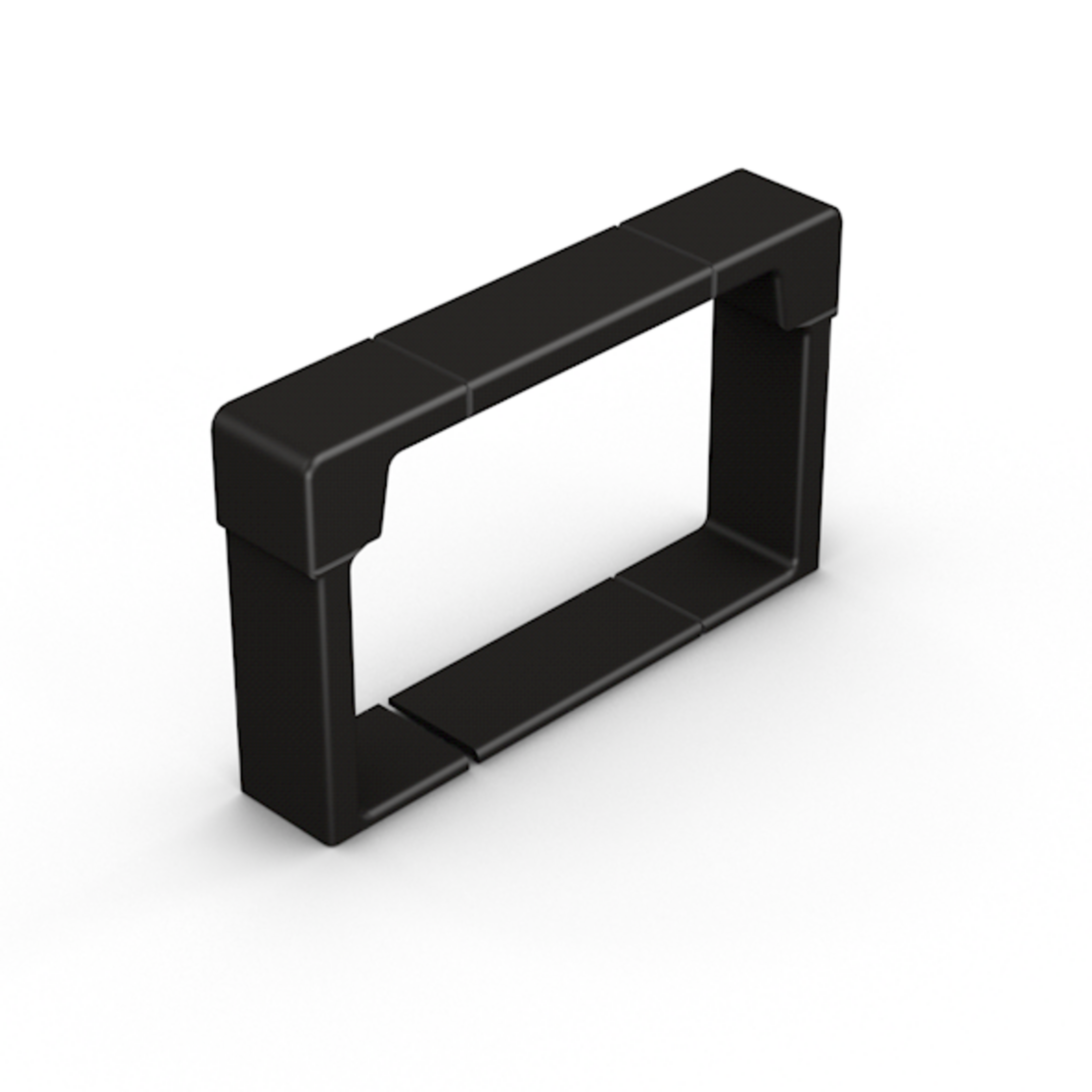

SRI 60

Protection cap

The protective caps SRI 60 made of polyethylene are suitable for RI installation cable trays with covers and protect the cable tray ends. The protective cap is provided with separation points for easier dividing. For trays 50 mm wide, remove the middle part of the protective cap. For trays from 150 to 300 mm wide, divide the protective cap and add extensions SRI-EO and SRI-EU (included accessories).

Get in touchDownload datasheet

Variants

polyamide

Article

H

height

B

width

G

Weight per storage unit

  • SRI 60-05
    channel end caps SAI 21-white-PE
    height
    60 mm
    width
    50 mm
    Weight per storage unit
    0.014 kg
    More information
  • SRI 60-10
    channel end caps SAI 21-white-PE
    height
    60 mm
    width
    100 mm
    Weight per storage unit
    0.014 kg
    More information
  • SRI 60-15
    channel end caps SAI 21-white-PE
    height
    60 mm
    width
    150 mm
    Weight per storage unit
    0.018 kg
    More information
  • SRI 60-20
    channel end caps SAI 21-white-PE
    height
    60 mm
    width
    200 mm
    Weight per storage unit
    0.023 kg
    More information
  • SRI 60-30
    channel end caps SAI 21-white-PE
    height
    60 mm
    width
    300 mm
    Weight per storage unit
    0.032 kg
    More information
