HF-EL 1-4

HF cable clamps for fastening to walls

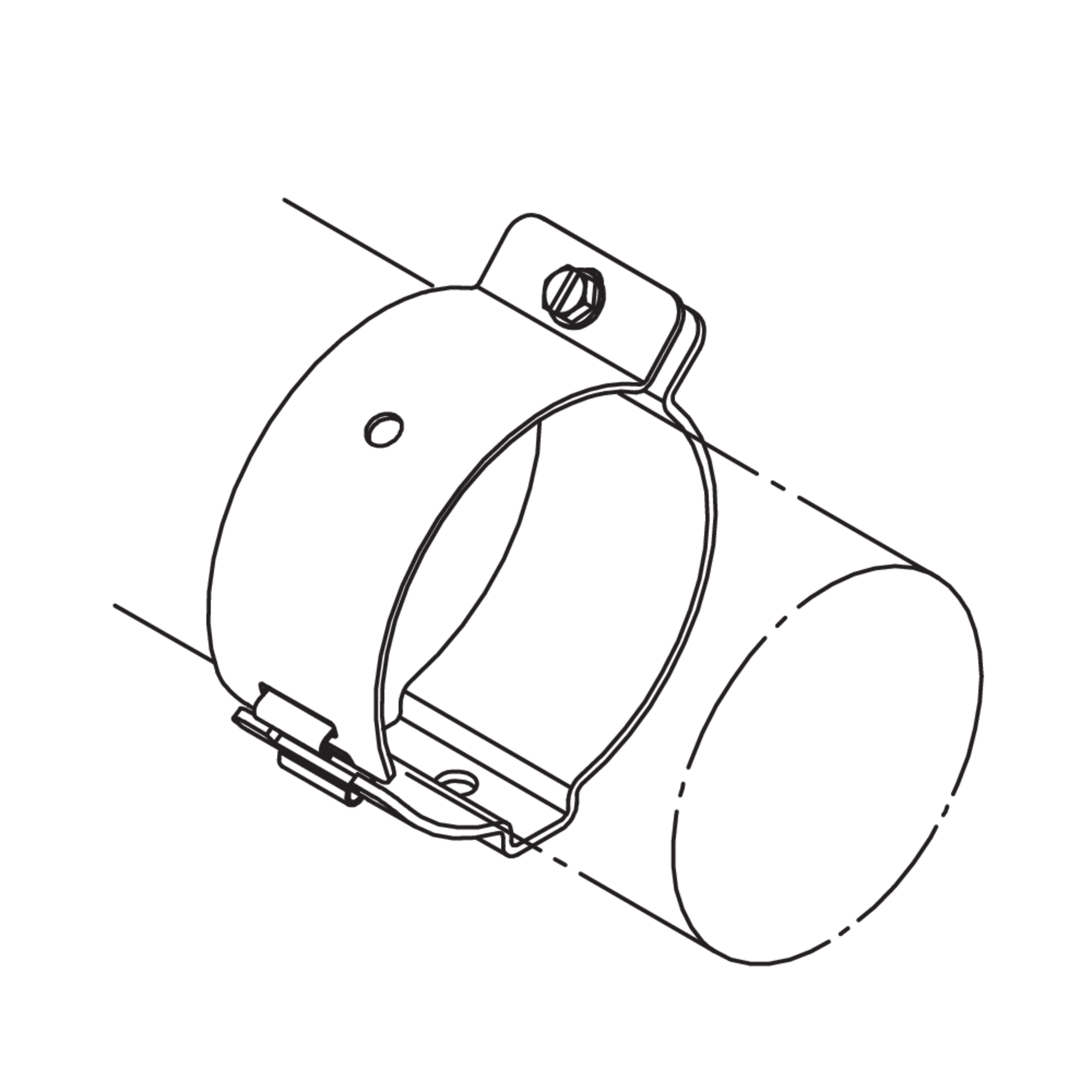

The HF cable clamps HF-EL 1-4 can be used to route fibre-optic/high-frequency cables with a maximum diameter of 100 mm. They are suitable for mounting directly on the wall and are made of galvanised steel. Use HF-EE clamp inserts to accommodate various elliptical cables.

Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

Article

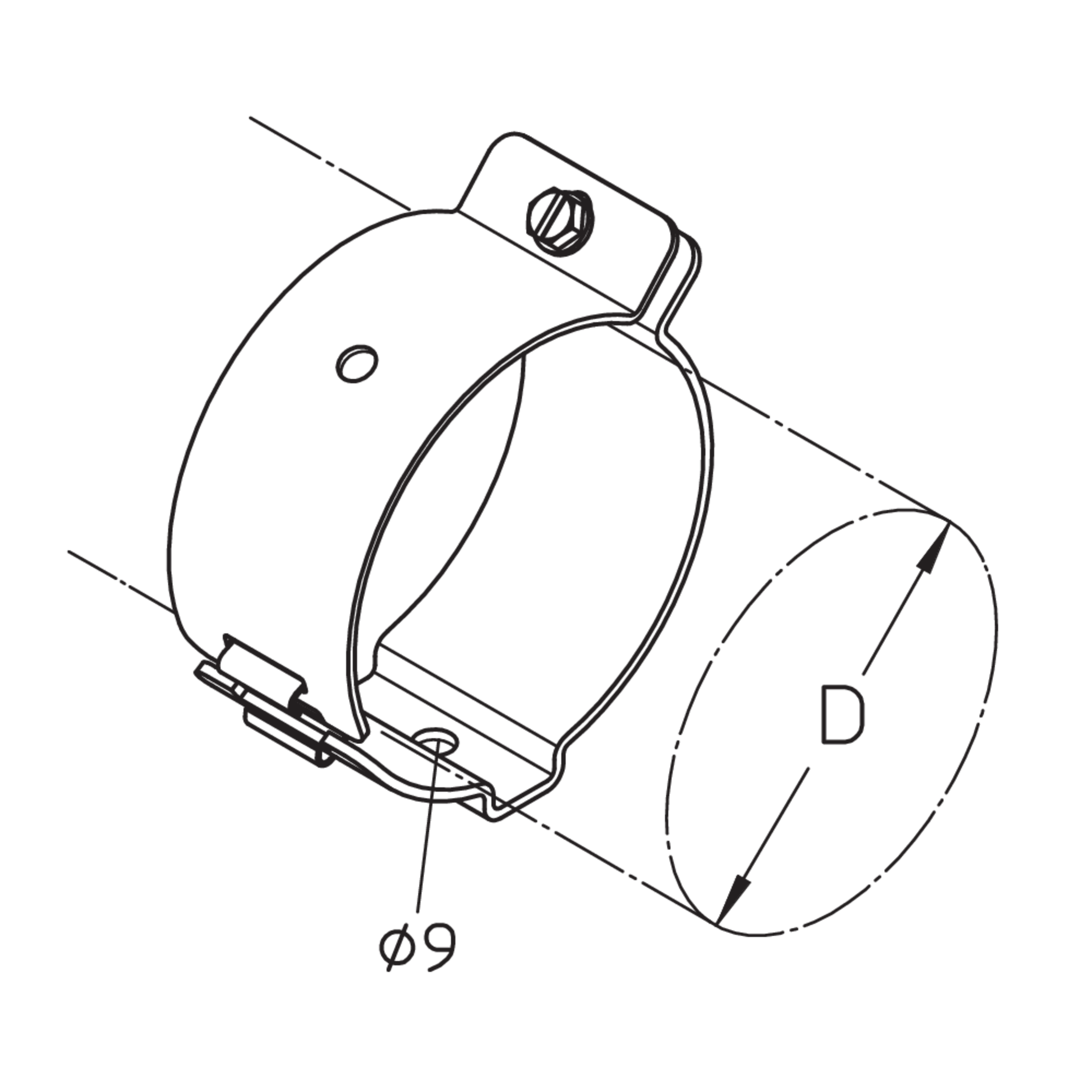

D

Diameter (mm)

cable type

Cable type

G

Weight per storage unit

  • HF-EL 1
    HF cable clamp HF-EL 1
    Diameter (mm)
    37 mm
    Cable type
    E 130-190
    Weight per storage unit
    0.128 kg
    More information
  • HF-EL 2
    HF cable clamp HF-EL 2
    Diameter (mm)
    50 mm
    Cable type
    E 78-105
    Weight per storage unit
    0.184 kg
    More information
  • HF-EL 3
    HF cable clamp HF-EL 3
    Diameter (mm)
    62 mm
    Cable type
    E 60-70
    Weight per storage unit
    0.220 kg
    More information
  • HF-EL 4
    HF cable clamp HF-EL 4
    Diameter (mm)
    100 mm
    Cable type
    E 38-46
    Weight per storage unit
    0.326 kg
    More information

Details

    Tender texts

    Ausschreiben.de

    Tender texts for this product

    Open Link
    Heinze.de

    Tender texts for this product

    Open Link

    Downloads

      • de

      • en

      EC Declaration of Conformity Cable clamps

      Installation equipment for electric cables and circuits

      PDF

      Choose languageChoose language

      EC Declaration of Conformity Cable clamps

      Choose language to download

      • de

      3335-772-11-3 - Expert statement

      DIN 4102-12
      Standardised supporting structure: Cable clamps
      Fire resistance duration: F30; F60; F90
      Functional maintenance classes: E30; E60; F90
      Fastening distance: ≤ 0.3 m; ≤ 0.4 m
      Period of validity: 06.07.2027

      PDF (834.47 KB)
