HF cable clamp for fastening to profile rails

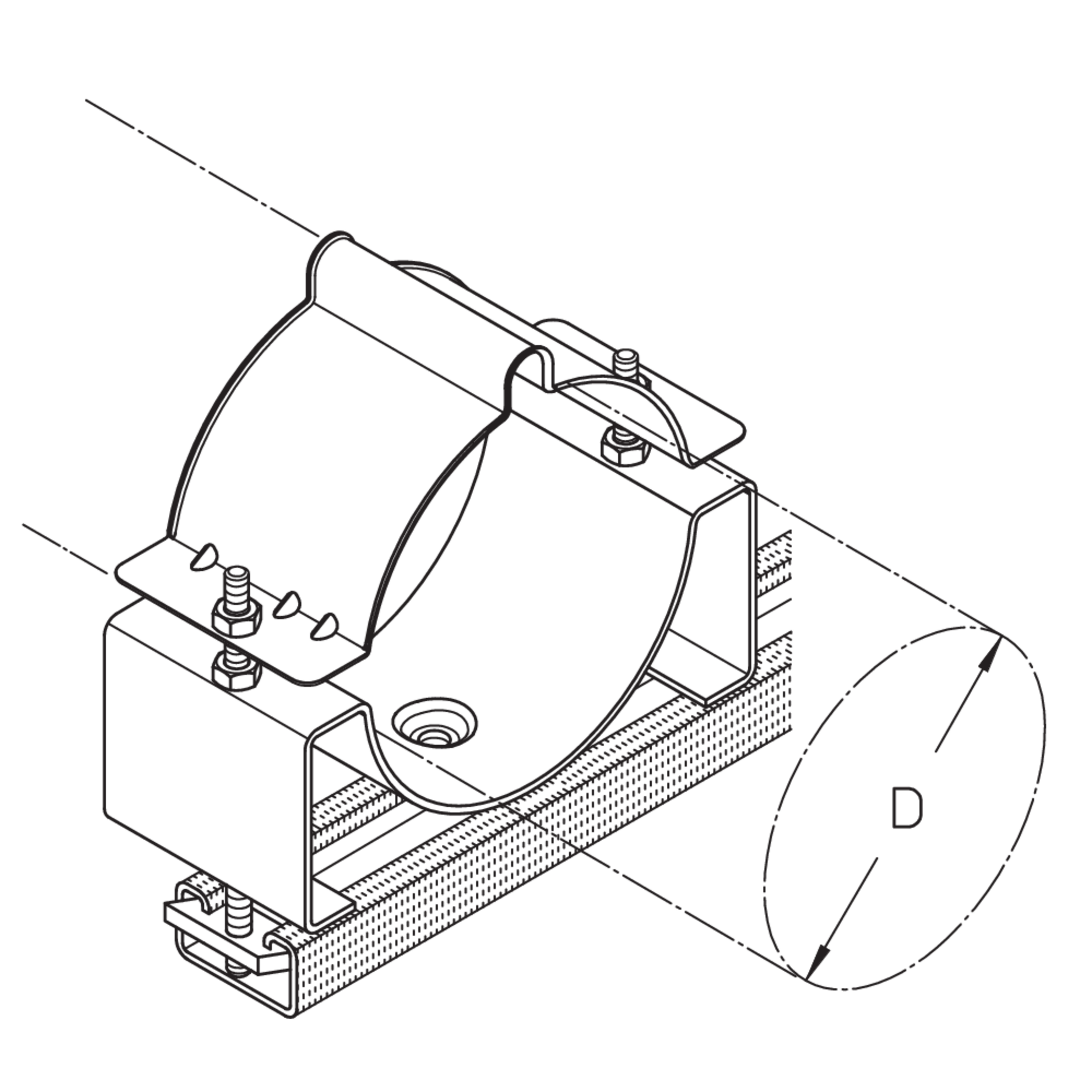

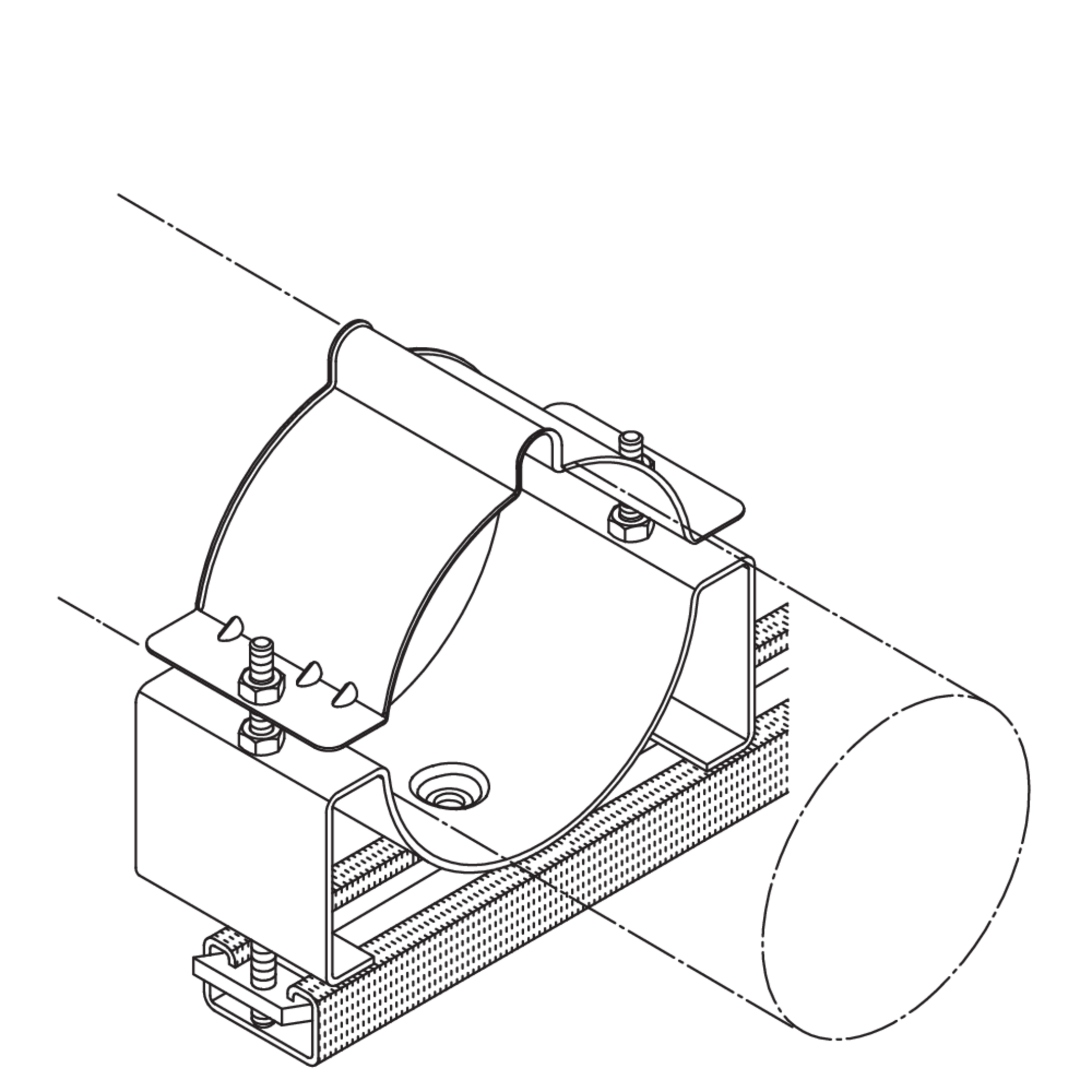

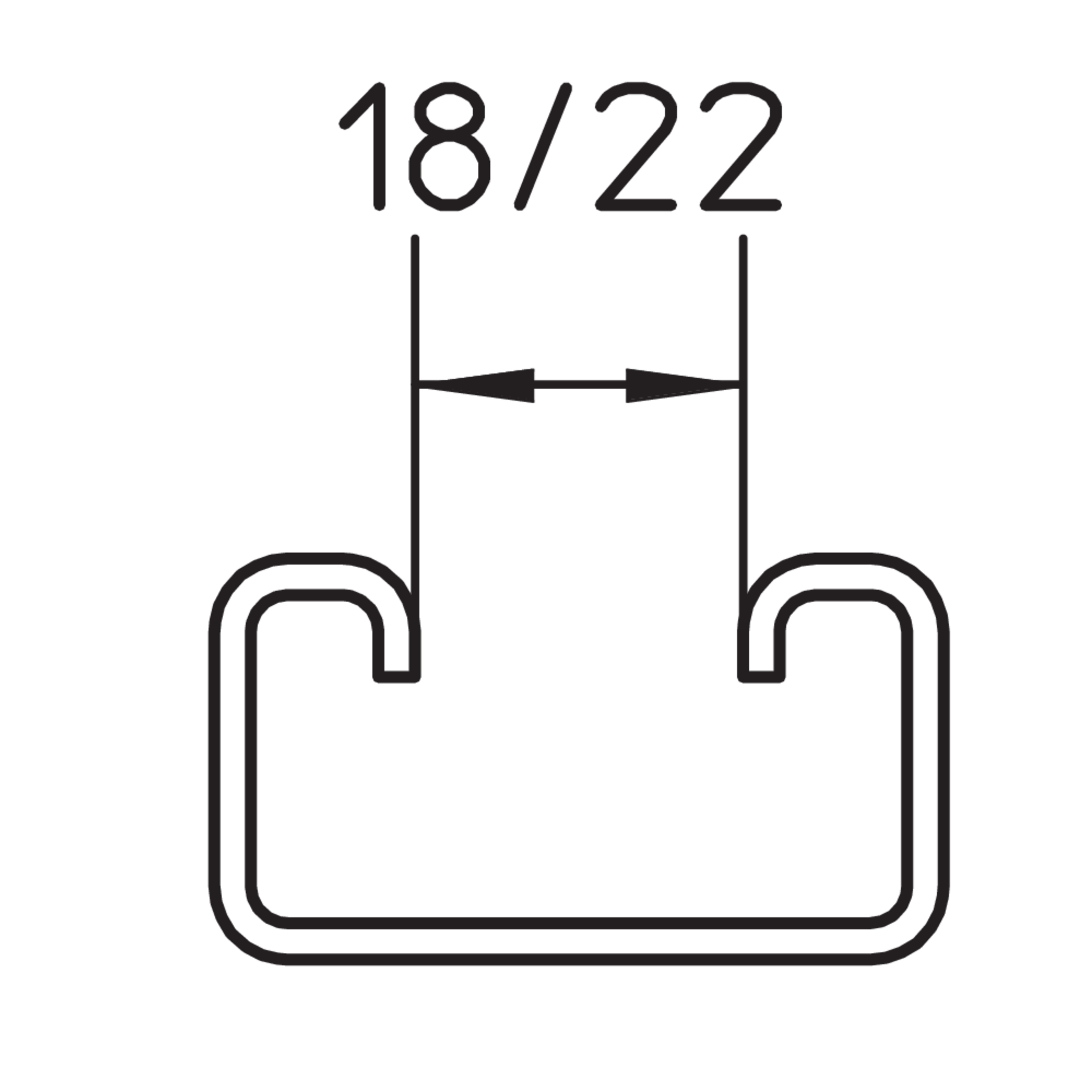

The HF cable clamps HF-EAC 5-6 can be used to route fibre-optic/high-frequency cables with a maximum diameter of 160 mm. They are suitable for attachment to profile rails C+ and C60° with slots 18/22 mm wide. They are made of galvanised steel. Use HF-EE clamp inserts to accommodate various elliptical cables.
D
Diameter (mm)
cable type
Cable type
G
Weight per storage unit
de
en
Installation equipment for electric cables and circuits
de
DIN 4102-12
Standardised supporting structure: Cable clamps
Fire resistance duration: F30; F60; F90
Functional maintenance classes: E30; E60; F90
Fastening distance: ≤ 0.3 m; ≤ 0.4 m
Period of validity: 06.07.2027
PDF (834.47 KB)
DownloadDownload
de
en
Valid from February 1st, 2026
de
en
Valid from February 1, 2026
