UEBDM2 R WD

Stainless steel tube cover unit, 2x, round

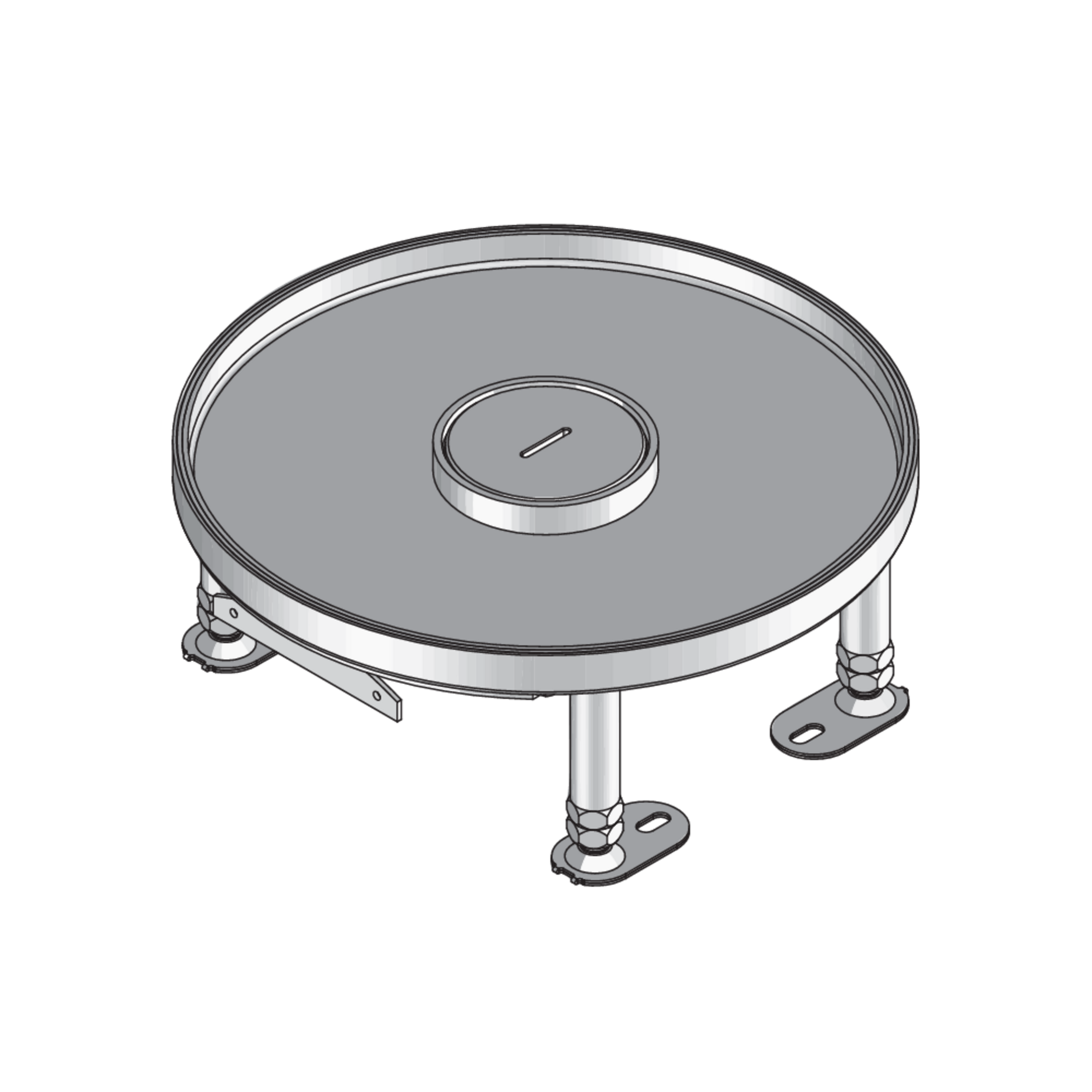

UEBDM2 R WD components are round tube cover units with abutting edges. They can accommodate a maximum of two mounting boxes. They consist of a height-adjustable cartridge mounting frame with a tube outlet cartridge, a bolted mounting kit and a rubber seal. The units are suitable for installation in UBDHB floor sockets, assembly covers and raised or false floor openings in wet-cleaned rooms with office traffic loads. Cassette and frame are made of stainless steel V2A and the mounting set is aluminium. They have an IP protection class of IP 54 in an unused condition, a maximum load capacity of 2 kN, an adjustment range of 55 mm, an installation dimension of 260 mm and a minimum installation height of 100 mm.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

Stainless steel, acc. to AISI 304 (BS 304S31)

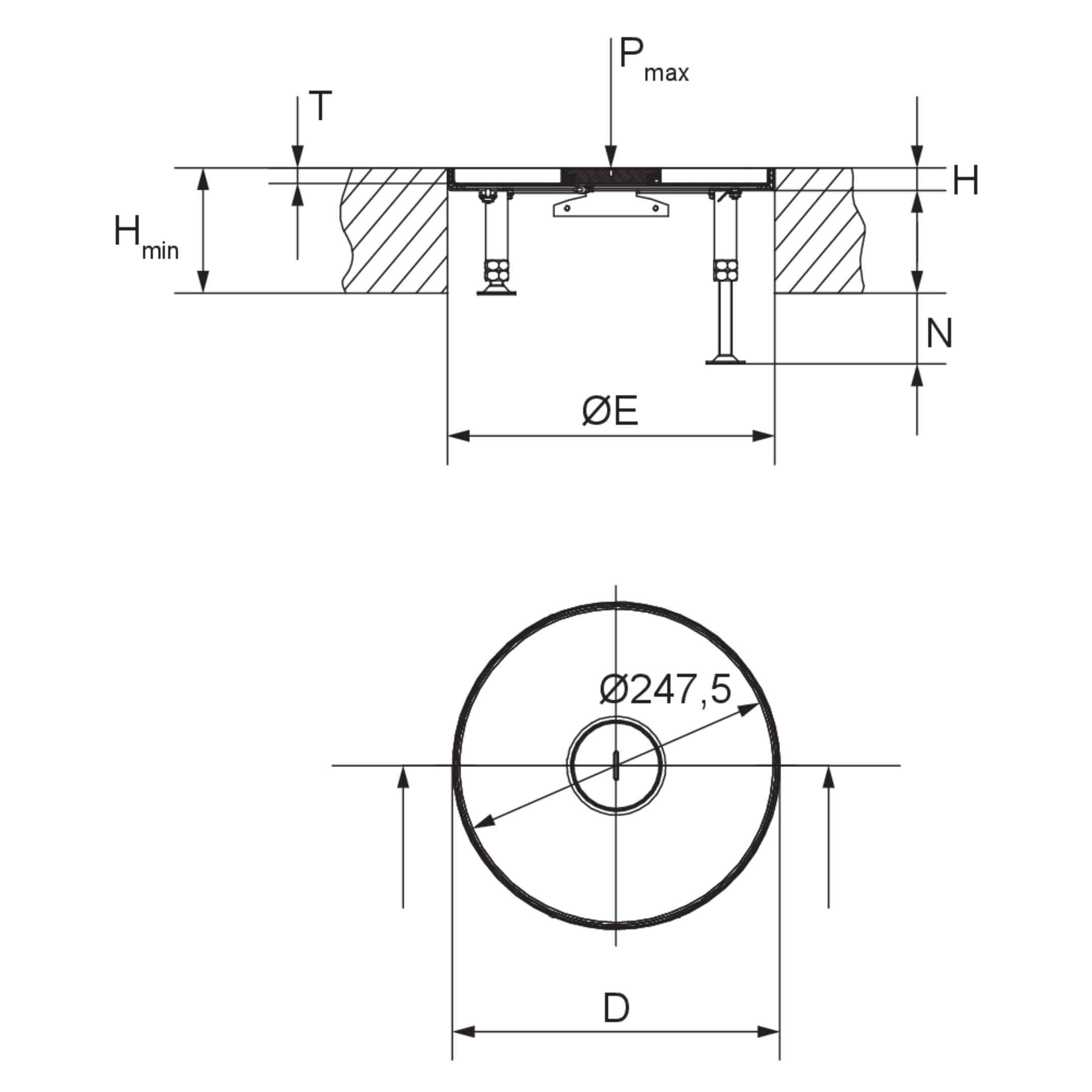

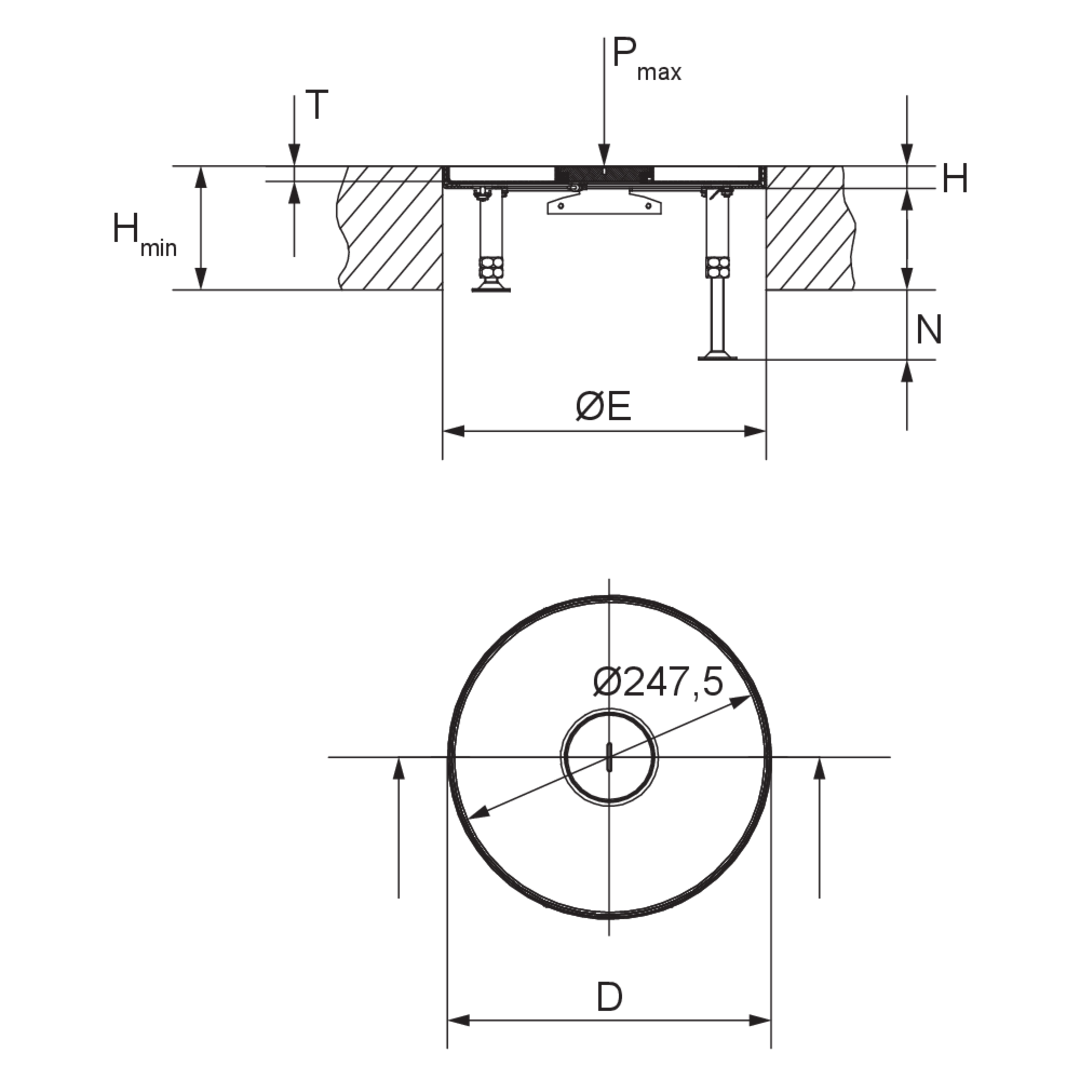

Article

H

height

Hmin

minimum installation height

N

levelling range

Pmax

maximum load

ØB

Installation diameter

mounting box

maximum number of installable device casings

ØE

fitting dimension round

IPg

IP protection level in used condition

IPn

IP protection level in unused condition

T

Depth of flooring recess

G

Weight per storage unit

Included accessories
  • UEBDM2 15-R-WD
    cartridge unit,
    height
    18 mm
    minimum installation height
    100 mm
    levelling range
    55 mm
    maximum load
    2.00 kN
    Installation diameter
    258 mm
    maximum number of installable device casings
    2
    fitting dimension round
    260 mm
    IP protection level in used condition
    IP 22
    IP protection level in unused condition
    IP 54
    Depth of flooring recess
    12 mm
    Weight per storage unit
    2.136 kg
    Included accessories
    More information
  • UEBDM2 25-R-WD
    cartridge unit,
    height
    28 mm
    minimum installation height
    110 mm
    levelling range
    55 mm
    maximum load
    2.00 kN
    Installation diameter
    258 mm
    maximum number of installable device casings
    2
    fitting dimension round
    260 mm
    IP protection level in used condition
    IP 22
    IP protection level in unused condition
    IP 54
    Depth of flooring recess
    22 mm
    Weight per storage unit
    2.574 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085
  • With inspection stamp dia. 13/130 mm: 2/3 kN

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

BIM- und CAD-Data

    BIM Data Installation Boxes

    BIM Data

    ZIP (13.12 MB)

    DownloadDownload

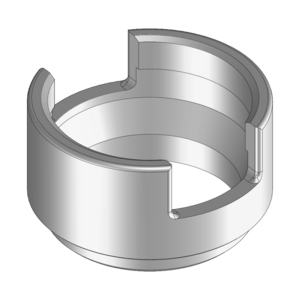

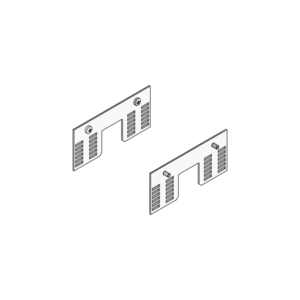

Included accessories
