UEBD R E

Stainless steel dummy cover unit, 3x, round

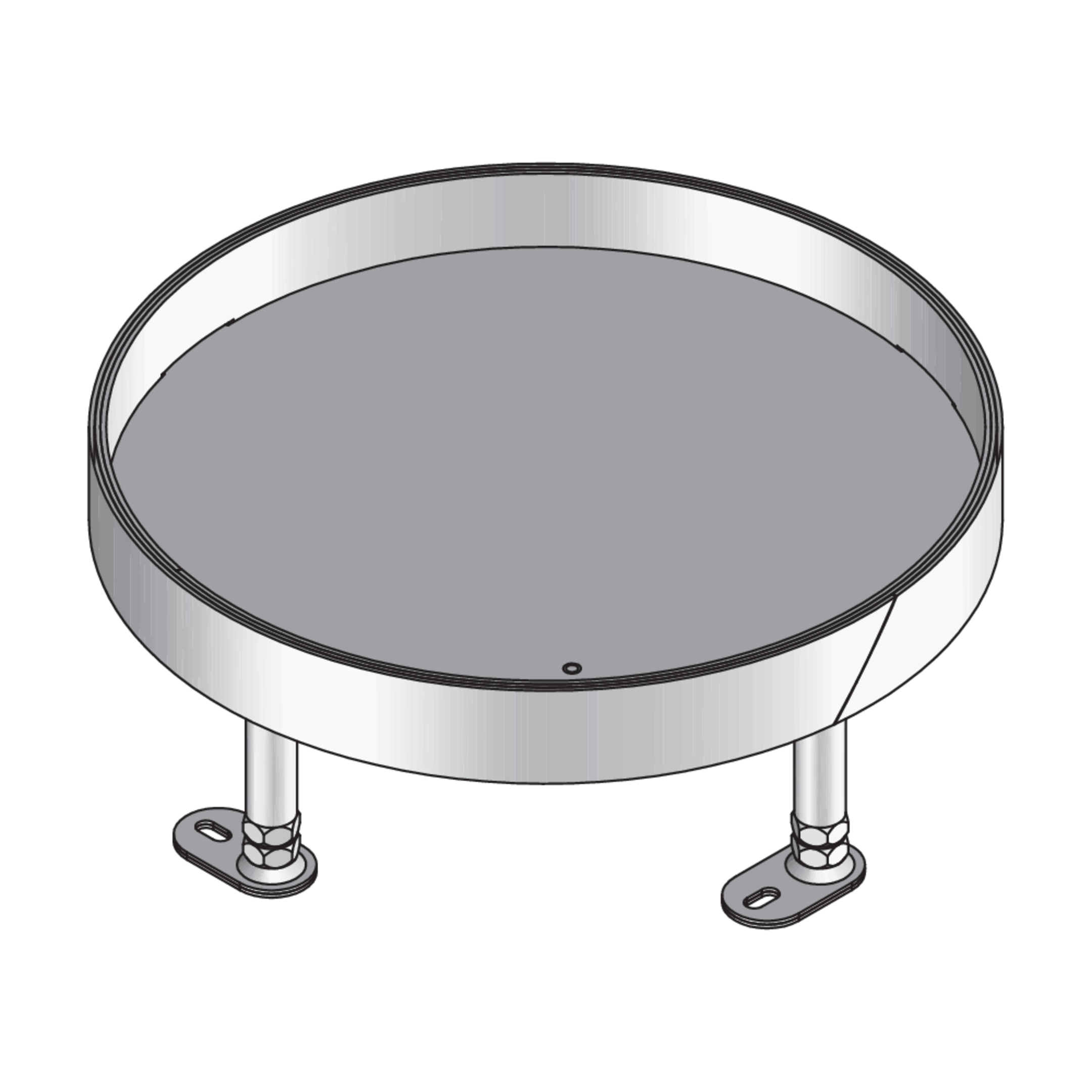

UEBD R E installation units are round dummy cover units with abutting edges. They consist of height-adjustable mounting frames with a dummy insert cartridge, a rubber seal and the UGEAR-ELS earthing bracket. The components are suitable for use in wet-cleaned rooms with office traffic loads and are installed in assembly covers, UBDHB floor sockets and raised or false floor openings.

Load requirements according to: DIN EN 50085
VDE/TÜV approval in accordance with: DIN EN 50085
Get in touchDownload datasheet

Variants

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

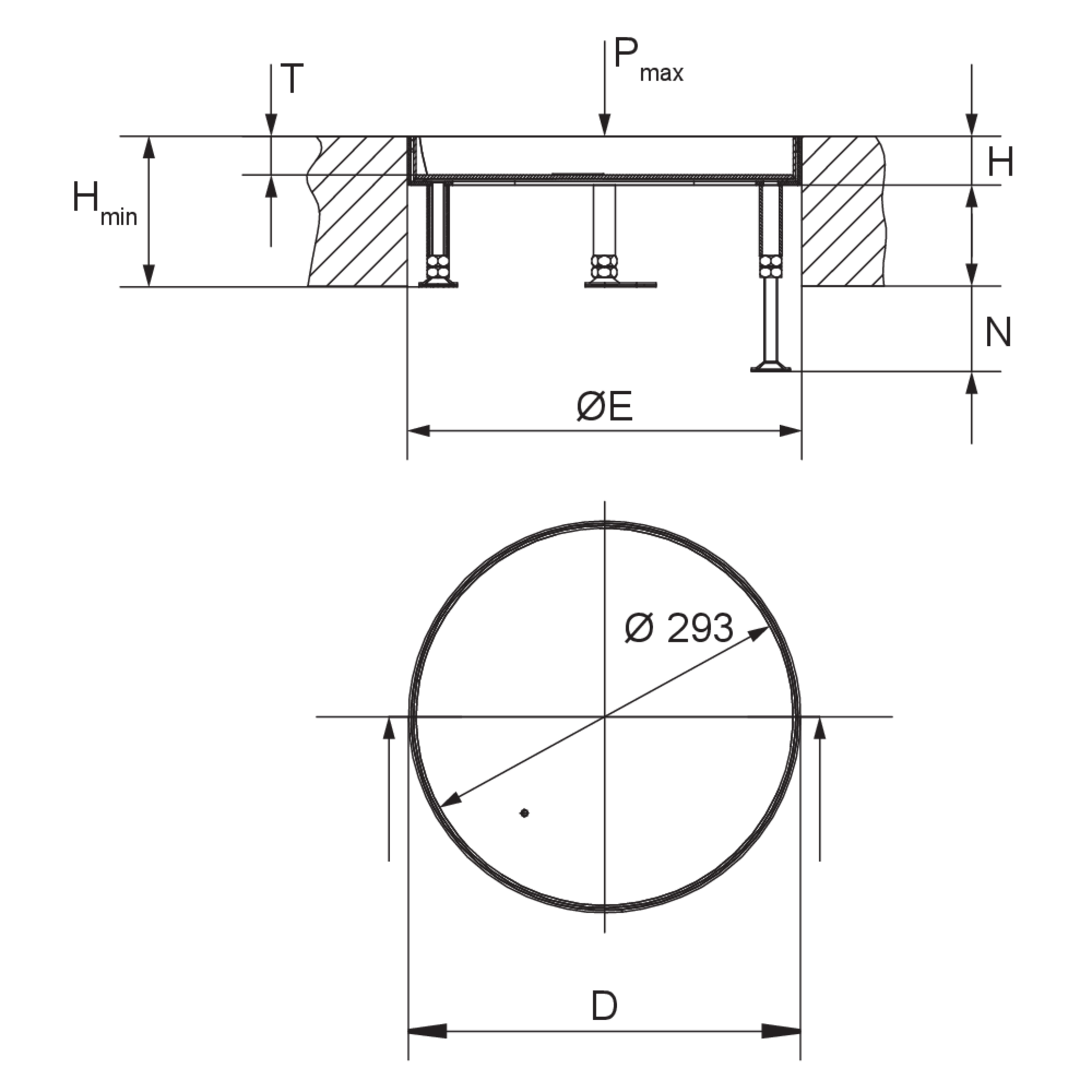

Hmin

minimum installation height

N

levelling range

D

diameter

Pmax

maximum load

ØE

fitting dimension round

IPn

IP protection level in unused condition

T

Depth of flooring recess

G

Weight per storage unit

Included accessories
  • UEBD 15-R E
    cartridge unit,
    height
    19 mm
    minimum installation height
    100 mm
    levelling range
    55 mm
    diameter
    304 mm
    maximum load
    2.00 kN
    fitting dimension round
    307 mm
    IP protection level in unused condition
    IP 54
    Depth of flooring recess
    12 mm
    Weight per storage unit
    2.417 kg
    Included accessories
    More information
  • UEBD 25-R E
    Cassette unit
    height
    29 mm
    minimum installation height
    110 mm
    levelling range
    55 mm
    diameter
    304 mm
    maximum load
    2.00 kN
    fitting dimension round
    307 mm
    IP protection level in unused condition
    IP 54
    Depth of flooring recess
    22 mm
    Weight per storage unit
    2.732 kg
    Included accessories
    More information
  • UEBD 35-R E
    cartridge unit,
    height
    39 mm
    minimum installation height
    120 mm
    levelling range
    55 mm
    diameter
    304 mm
    maximum load
    2.00 kN
    fitting dimension round
    307 mm
    IP protection level in unused condition
    IP 54
    Depth of flooring recess
    32 mm
    Weight per storage unit
    2.930 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval in accordance with: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085
  • With inspection stamp dia. 13/130 mm: 2/3 kN
