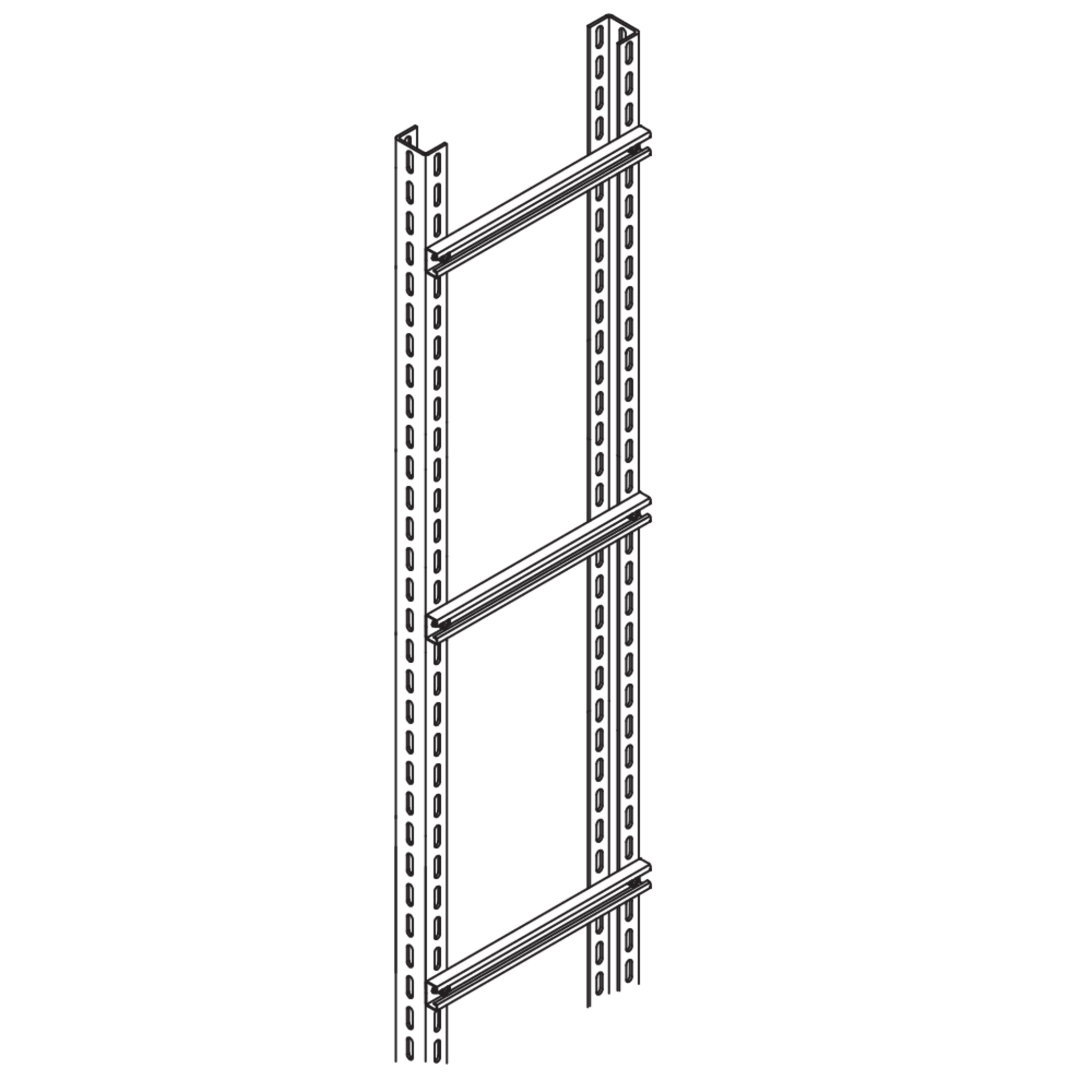

STU 60

Vertical ladder, isosceles U profile

STU 60 vertical ladders consist of perforated side rails with U profiles and rungs made of 40x22 mm profile rails. They are designed for a maximum load of up to 2.00 kN, are 200 to 1200 mm wide and are available in standard lengths of 3000 and 6000 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

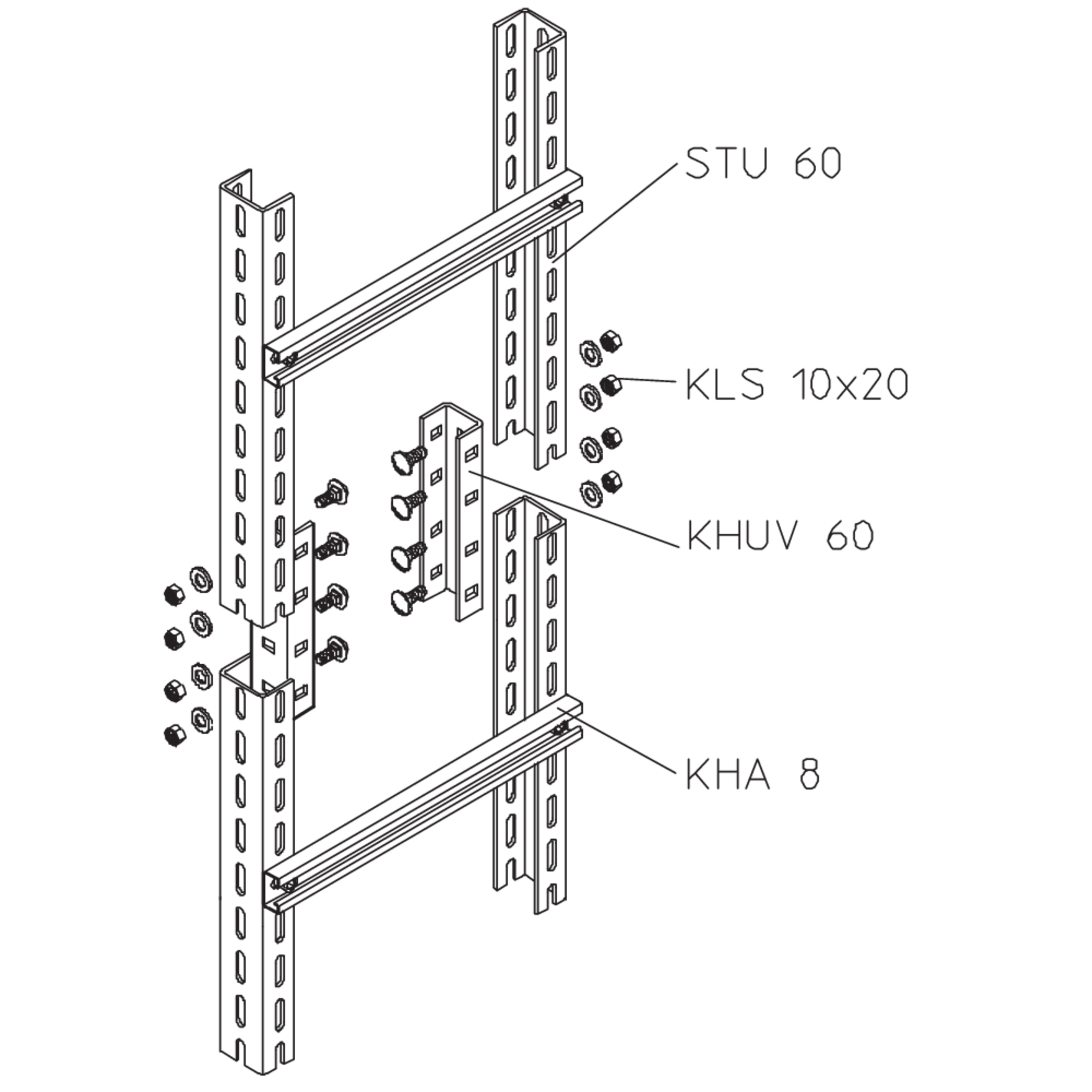

Side rails and rungs are supplied with all required bolts and nuts and assembled on site.

Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

Article

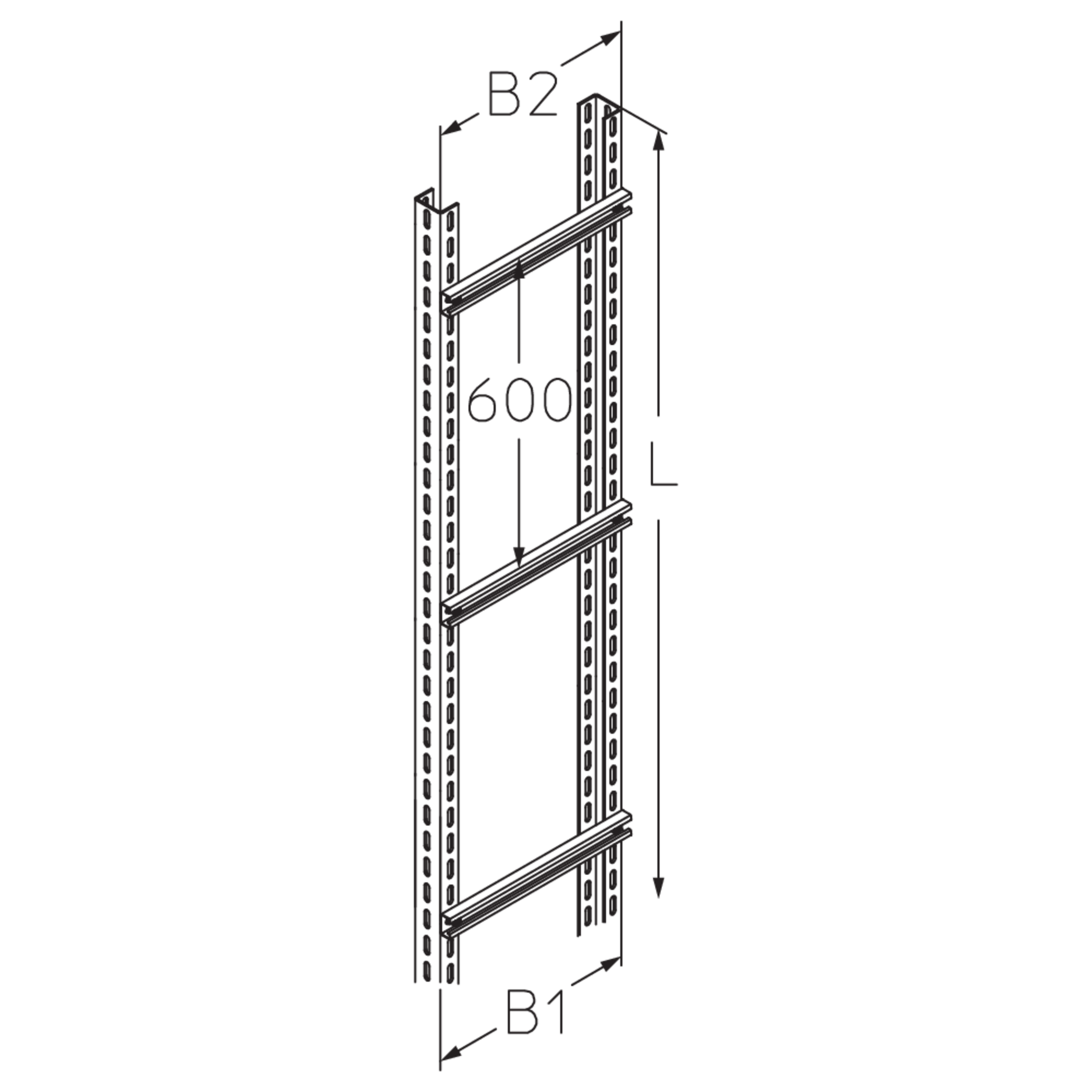

H

height

B1

width 1

B2

width 2

L

length

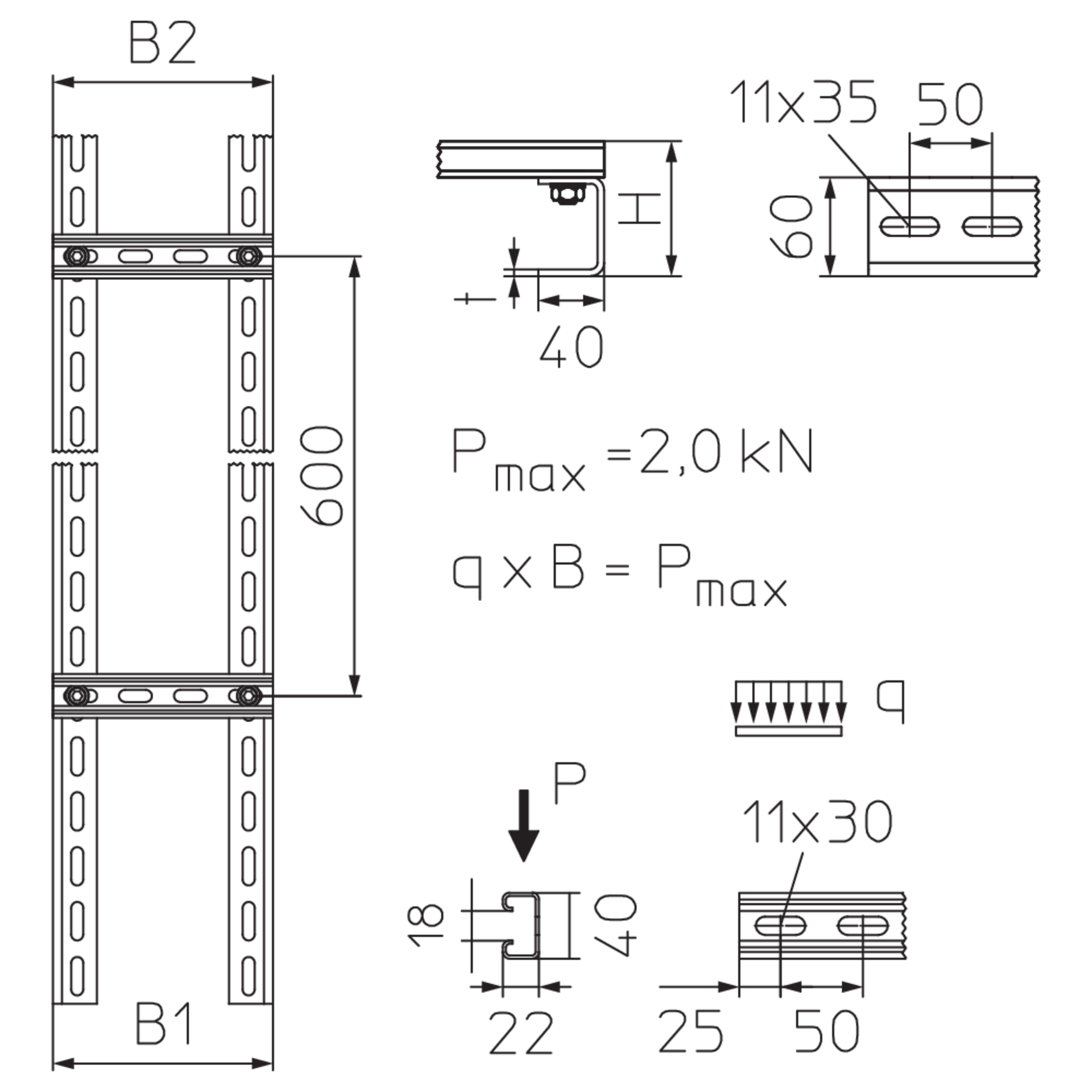

Pmax

maximum load

G

Weight per storage unit

Geeignet für Funktionserhalt

  • STU 60-02-3F
    Steigetrasse
    height
    60 mm
    width 1
    200 mm
    width 2
    200 mm
    length
    3000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    22.980 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-03-3F
    Steigetrasse
    height
    60 mm
    width 1
    300 mm
    width 2
    300 mm
    length
    3000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    23.730 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-04-3F
    Steigetrasse
    height
    60 mm
    width 1
    400 mm
    width 2
    400 mm
    length
    3000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    24.530 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-05-3F
    Steigetrasse
    height
    60 mm
    width 1
    500 mm
    width 2
    500 mm
    length
    3000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    25.280 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-06-3F
    Steigetrasse
    height
    60 mm
    width 1
    600 mm
    width 2
    600 mm
    length
    3000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    26.080 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-07-3F
    Steigetrasse
    height
    60 mm
    width 1
    700 mm
    width 2
    700 mm
    length
    3000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    26.830 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-08-3F
    Steigetrasse
    height
    60 mm
    width 1
    800 mm
    width 2
    800 mm
    length
    3000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    27.630 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-09-3F
    Steigetrasse
    height
    60 mm
    width 1
    900 mm
    width 2
    900 mm
    length
    3000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    28.380 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-10-3F
    Steigetrasse
    height
    60 mm
    width 1
    1000 mm
    width 2
    1000 mm
    length
    3000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    29.130 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-11-3F
    Steigetrasse
    height
    60 mm
    width 1
    1100 mm
    width 2
    1100 mm
    length
    3000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    29.930 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-12-3F
    Steigetrasse
    height
    60 mm
    width 1
    1200 mm
    width 2
    1200 mm
    length
    3000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    30.680 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-02F
    Vertical ladder STU 60-02F
    height
    60 mm
    width 1
    200 mm
    width 2
    200 mm
    length
    6000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    46.040 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-03F
    Vertical ladder STU 60-03F
    height
    60 mm
    width 1
    300 mm
    width 2
    300 mm
    length
    6000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    47.540 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-04F
    Vertical ladder STU 60-04F
    height
    60 mm
    width 1
    400 mm
    width 2
    400 mm
    length
    6000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    49.140 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-05F
    Vertical ladder STU 60-05F
    height
    60 mm
    width 1
    500 mm
    width 2
    500 mm
    length
    6000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    50.640 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-06F
    Vertical ladder STU 60-06F
    height
    60 mm
    width 1
    600 mm
    width 2
    600 mm
    length
    6000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    52.240 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-07F
    Vertical ladder STU 60-07F
    height
    60 mm
    width 1
    700 mm
    width 2
    700 mm
    length
    6000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    53.740 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-08F
    Vertical ladder STU 60-08F
    height
    60 mm
    width 1
    800 mm
    width 2
    800 mm
    length
    6000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    55.340 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-09F
    Vertical ladder STU 60-09F
    height
    60 mm
    width 1
    900 mm
    width 2
    900 mm
    length
    6000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    56.840 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-10F
    Vertical ladder STU 60-10F
    height
    60 mm
    width 1
    1000 mm
    width 2
    1000 mm
    length
    6000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    58.340 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-11F
    Vertical ladder STU 60-11F
    height
    60 mm
    width 1
    1100 mm
    width 2
    1100 mm
    length
    6000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    59.940 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-12F
    Vertical ladder STU 60-12F
    height
    60 mm
    width 1
    1200 mm
    width 2
    1200 mm
    length
    6000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    61.440 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

B1

width 1

B2

width 2

L

length

Pmax

maximum load

G

Weight per storage unit

Geeignet für Funktionserhalt

  • STU 60-02-3E
    Steigetrasse
    height
    60 mm
    width 1
    200 mm
    width 2
    200 mm
    length
    3000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    21.620 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-03-3E
    Steigetrasse
    height
    60 mm
    width 1
    300 mm
    width 2
    300 mm
    length
    3000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    22.370 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-04-3E
    Steigetrasse
    height
    60 mm
    width 1
    400 mm
    width 2
    400 mm
    length
    3000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    23.120 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-05-3E
    Steigetrasse
    height
    60 mm
    width 1
    500 mm
    width 2
    500 mm
    length
    3000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    23.870 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-06-3E
    Steigetrasse
    height
    60 mm
    width 1
    600 mm
    width 2
    600 mm
    length
    3000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    24.570 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-07-3E
    Steigetrasse
    height
    60 mm
    width 1
    700 mm
    width 2
    700 mm
    length
    3000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    25.320 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-08-3E
    Steigetrasse
    height
    60 mm
    width 1
    800 mm
    width 2
    800 mm
    length
    3000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    26.070 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-09-3E
    Steigetrasse
    height
    60 mm
    width 1
    900 mm
    width 2
    900 mm
    length
    3000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    26.770 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-10-3E
    Steigetrasse
    height
    60 mm
    width 1
    1000 mm
    width 2
    1000 mm
    length
    3000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    27.520 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-11-3E
    Steigetrasse
    height
    60 mm
    width 1
    1100 mm
    width 2
    1100 mm
    length
    3000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    28.270 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-12-3E
    Steigetrasse
    height
    60 mm
    width 1
    1200 mm
    width 2
    1200 mm
    length
    3000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    28.970 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-02E
    Steigetrasse
    height
    60 mm
    width 1
    200 mm
    width 2
    200 mm
    length
    6000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    43.500 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-03E
    Steigetrasse
    height
    60 mm
    width 1
    300 mm
    width 2
    300 mm
    length
    6000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    45.000 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-04E
    Steigetrasse
    height
    60 mm
    width 1
    400 mm
    width 2
    400 mm
    length
    6000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    46.500 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-05E
    Steigetrasse
    height
    60 mm
    width 1
    500 mm
    width 2
    500 mm
    length
    6000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    48.000 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-06E
    Steigetrasse
    height
    60 mm
    width 1
    600 mm
    width 2
    600 mm
    length
    6000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    49.400 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-07E
    Steigetrasse
    height
    60 mm
    width 1
    700 mm
    width 2
    700 mm
    length
    6000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    50.900 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-08E
    Steigetrasse
    height
    60 mm
    width 1
    800 mm
    width 2
    800 mm
    length
    6000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    52.400 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-09E
    Steigetrasse
    height
    60 mm
    width 1
    900 mm
    width 2
    900 mm
    length
    6000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    53.800 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-10E
    Steigetrasse
    height
    60 mm
    width 1
    1000 mm
    width 2
    1000 mm
    length
    6000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    55.300 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-11E
    Steigetrasse
    height
    60 mm
    width 1
    1100 mm
    width 2
    1100 mm
    length
    6000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    56.800 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • STU 60-12E
    Steigetrasse
    height
    60 mm
    width 1
    1200 mm
    width 2
    1200 mm
    length
    6000 mm
    maximum load
    2.00 kN
    Weight per storage unit
    58.200 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    • de

    • en

    • es

    Cable support systems - Complete catalogue

    Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.

    PDF

    Choose languageChoose language

    Cable support systems - Complete catalogue

    Choose language to download

    • de

    • en

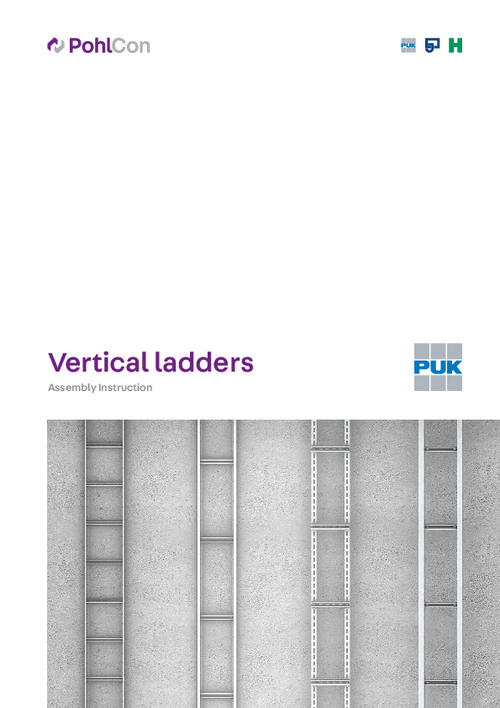

    Installation Instruction Vertical Ladders

    Assembly instruction for vertical ladders LGG 60, STU 50, STU 60, STU 62, ST 81, ST 82

    PDF

    Choose languageChoose language

    Installation Instruction Vertical Ladders

    Choose language to download

    • de

    • en

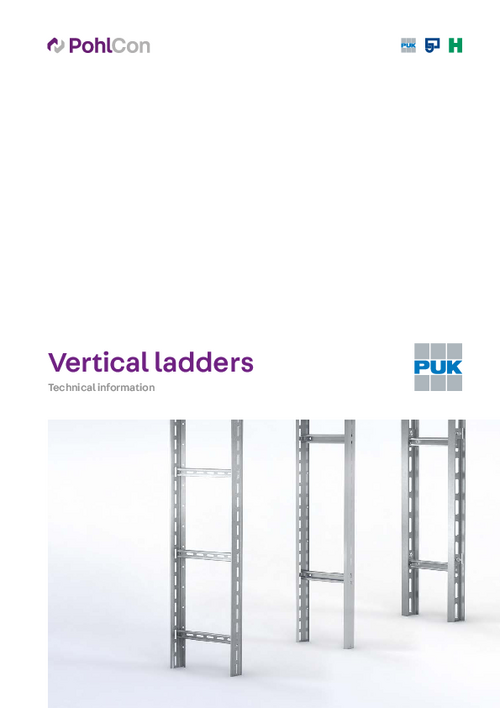

    Cable Route Technical Information

    Technical Information for vertical ladders LGG, STU, ST and accessories.

    PDF

    Choose languageChoose language

    Cable Route Technical Information

    Choose language to download

    • de

    Vertical ladder LGG, STU, ST - Compact overview

    Compact overview for LGG 60, STU 50, STU 50-3E, STU 60, STU 62, ST 81, ST 82, LGV, LGTR, STD-A, RD, STLS, STUS

    PDF, 1.87 MB

    DownloadDownload

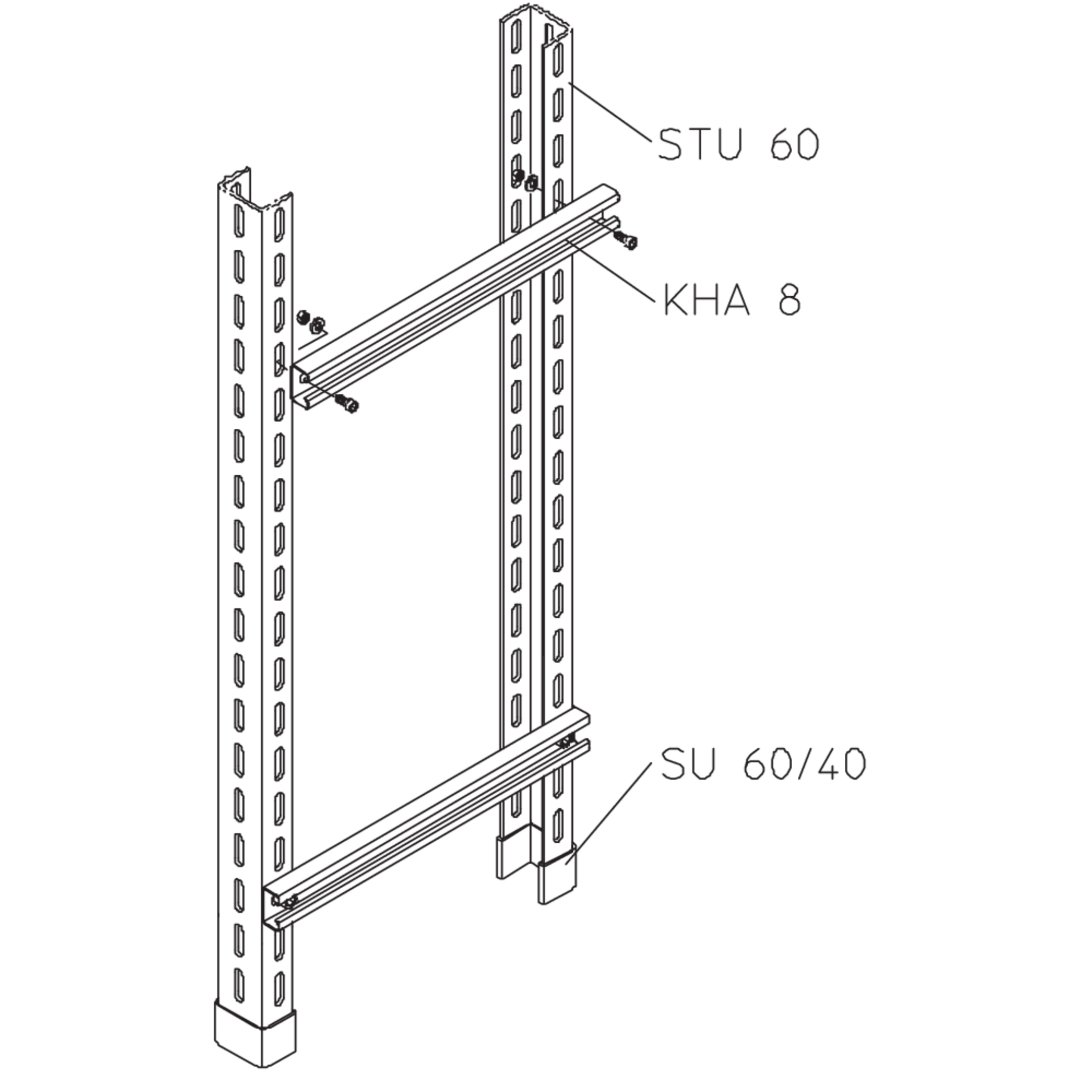

Included accessories

    Our finishing services

    Whether apartment blocks, office complexes or industrial plants: as your reliable partner for numerous applications and construction phases, we support you in every project with expert advice and support services. This allows you to concentrate fully on your core business.

    Consulting, planning, design

    Installation services

    Individualised solutions
