BL 4

Mounting bracket

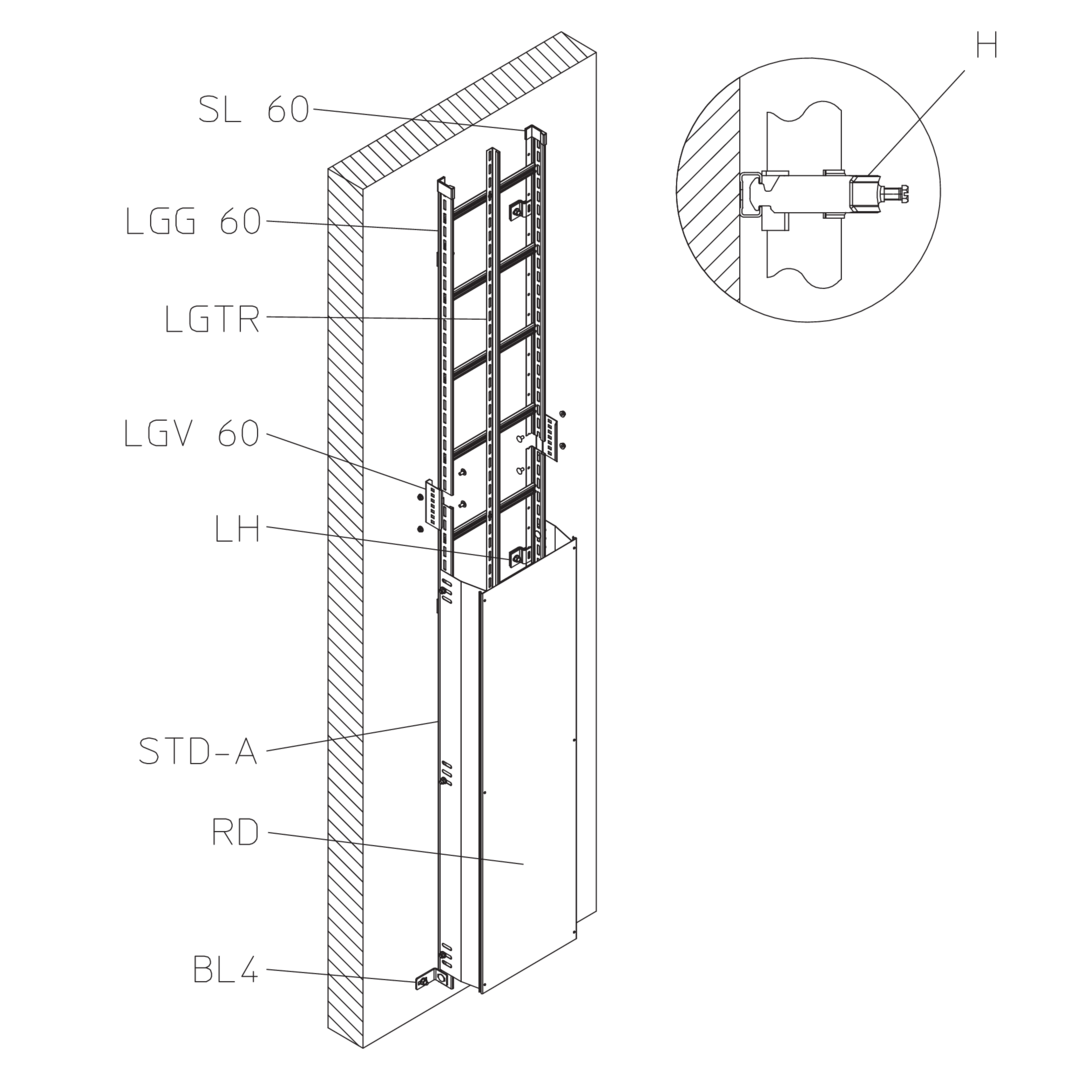

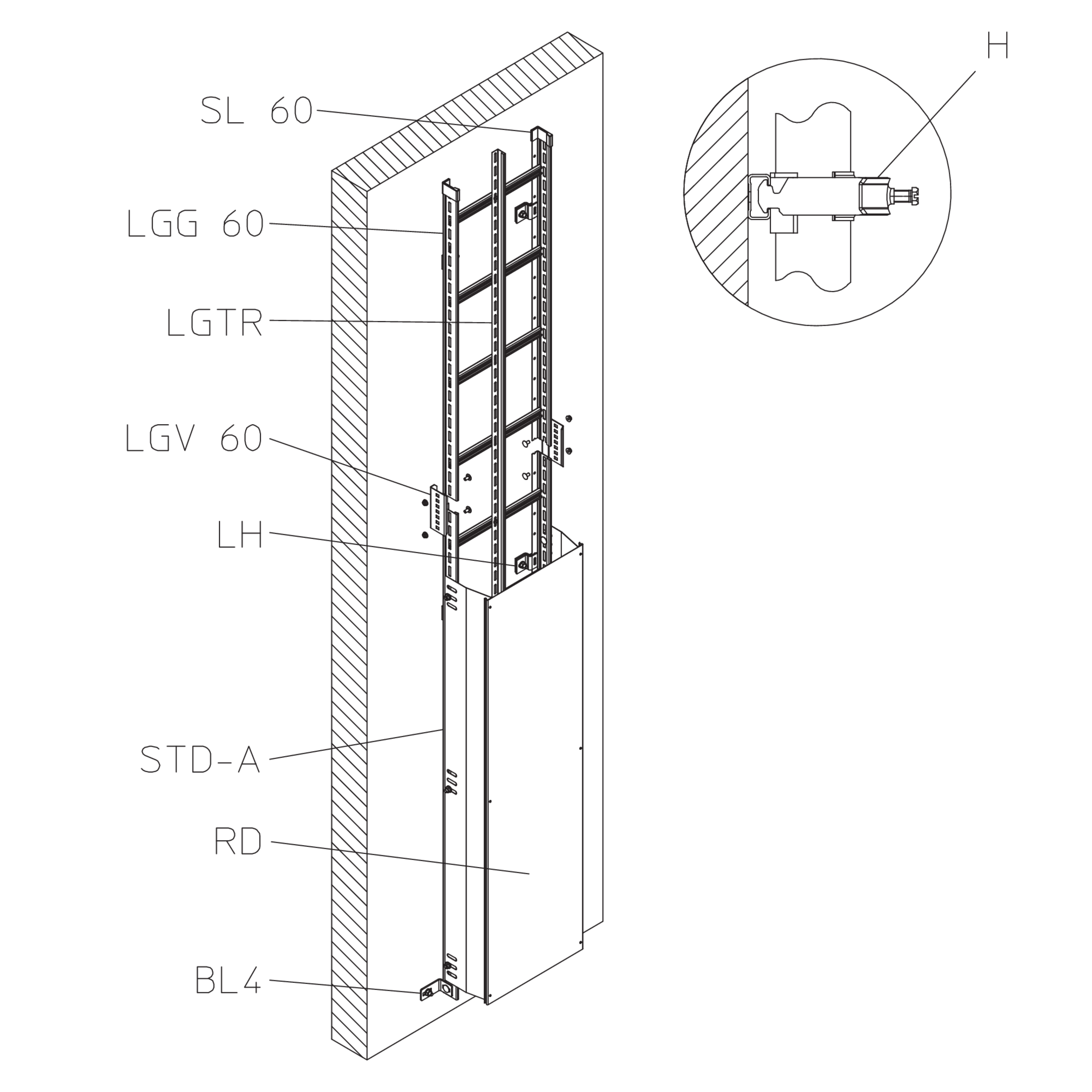

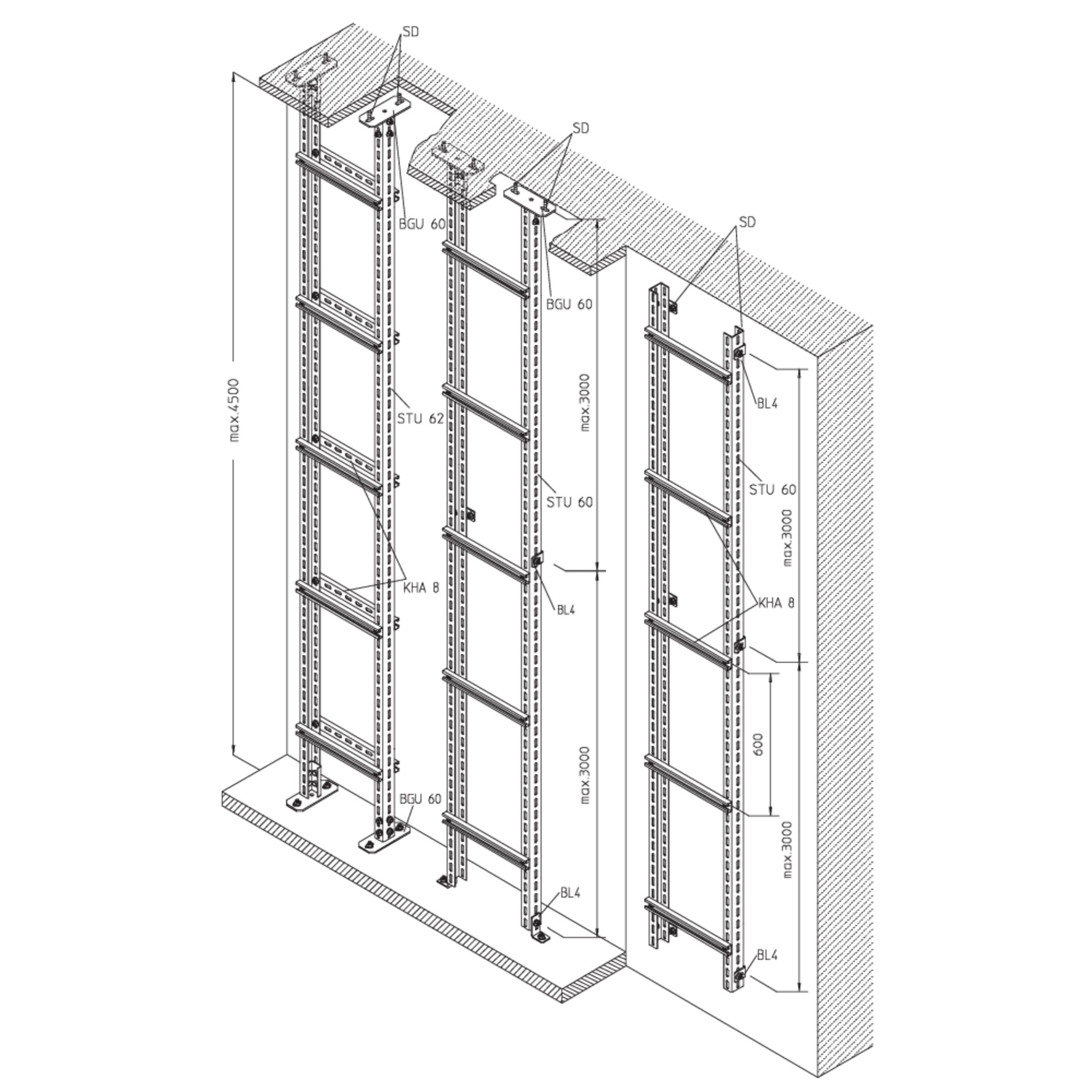

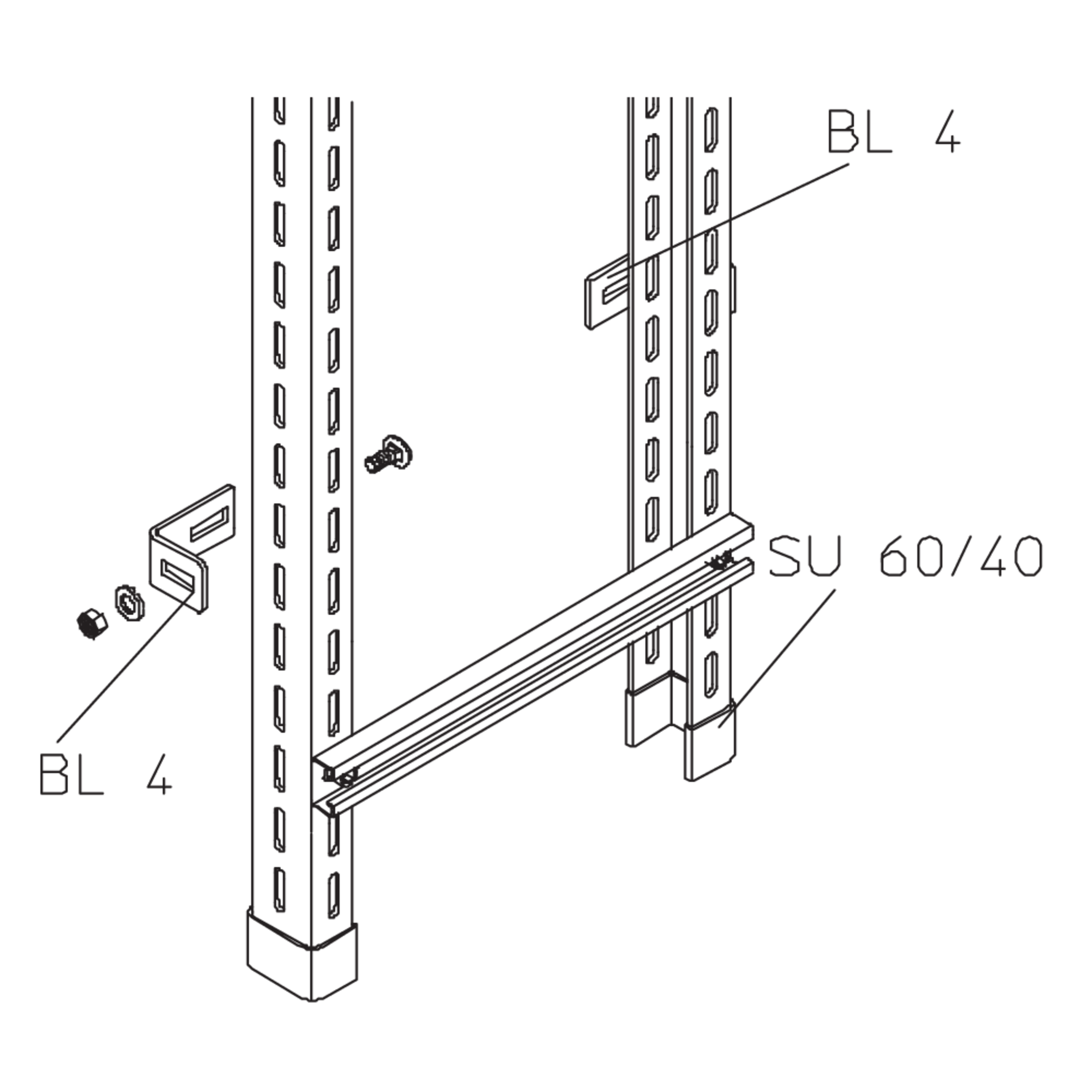

The corner angle BL 4 is used to fasten KHU 40/57/60 bracket holders to the wall. The BL 4 angle can also be used to attach LGG 60, STU 50, 60 and 62 vertical ladders to the floor, ceiling or wall. The angle is bolted to the bracket holder or vertical ladder beam and dowelled to the wall. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

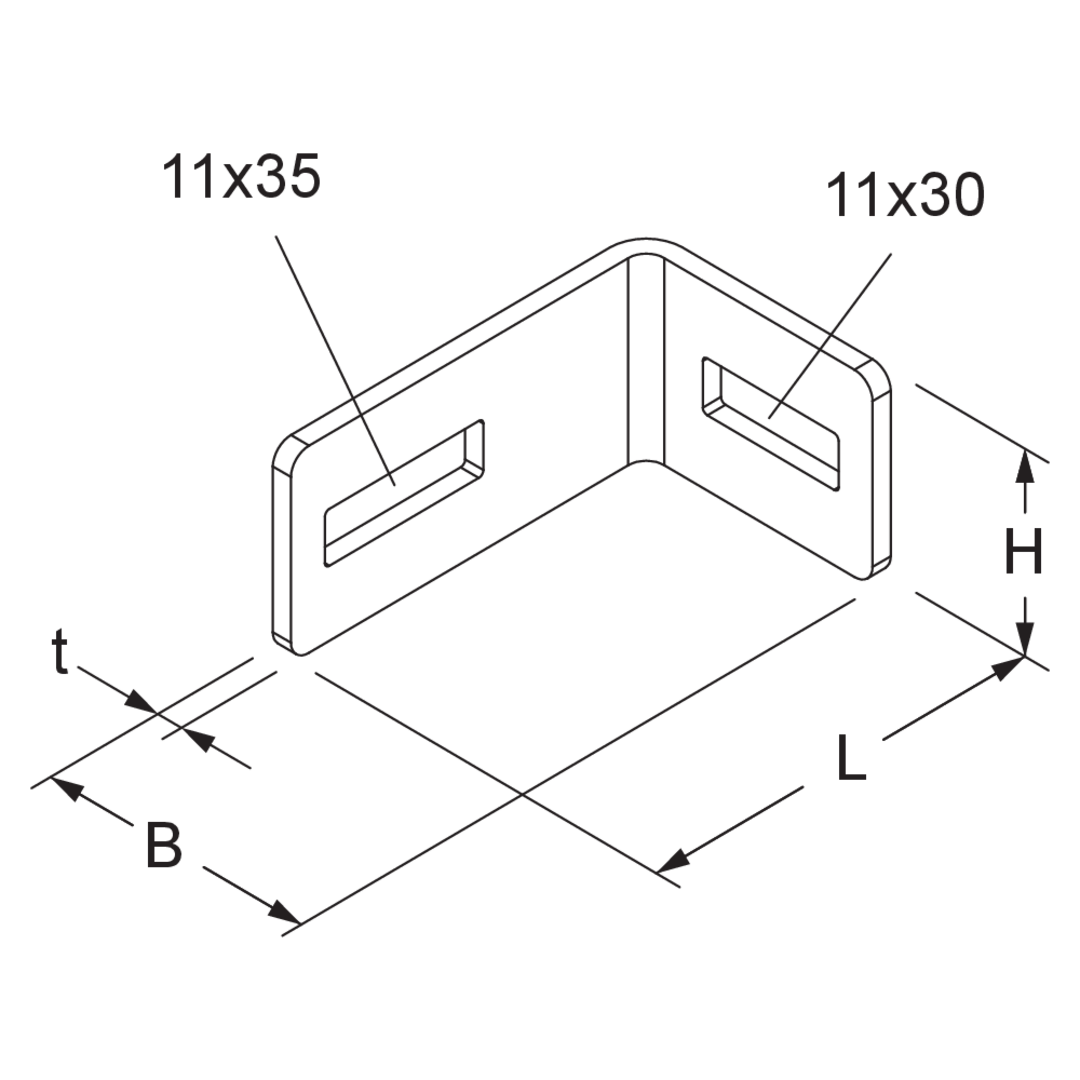

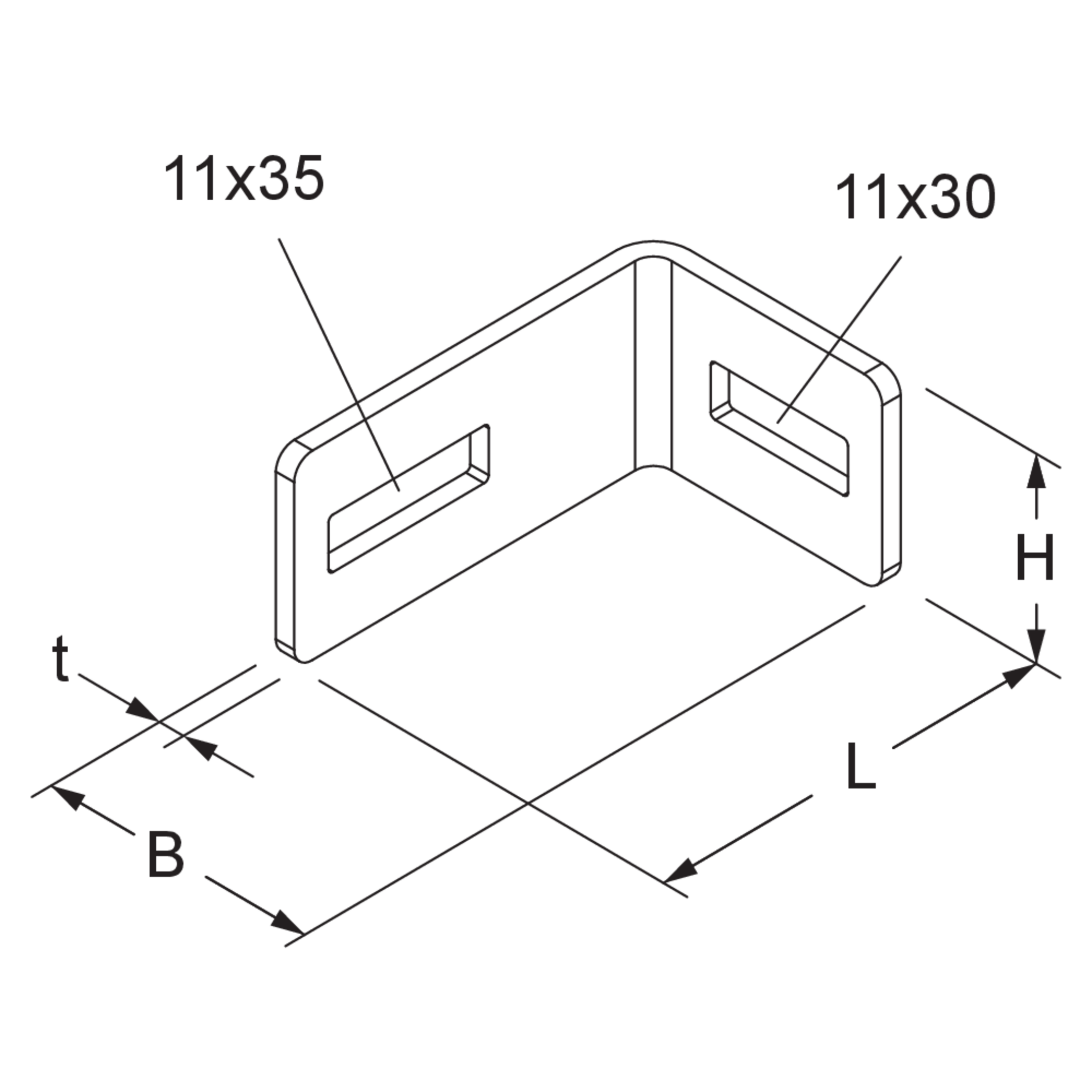

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

  • BL 4F
    Corner angle BL 4F
    height
    40 mm
    width
    54 mm
    length
    83 mm
    material thickness
    4.00 mm
    Weight per storage unit
    0.149 kg
    More information

steel, galvanic zinc plated

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

  • BL 4GV
    Corner angle BL 4F
    height
    40 mm
    width
    54 mm
    length
    83 mm
    material thickness
    4.00 mm
    Weight per storage unit
    0.139 kg
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

  • BL 4E
    Corner angle BL 4E
    height
    40 mm
    width
    54 mm
    length
    83 mm
    material thickness
    4.00 mm
    Weight per storage unit
    0.140 kg
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

  • BL 4E4
    height
    40 mm
    width
    54 mm
    length
    83 mm
    material thickness
    4 mm
    Weight per storage unit
    0.142 kg
    More information

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

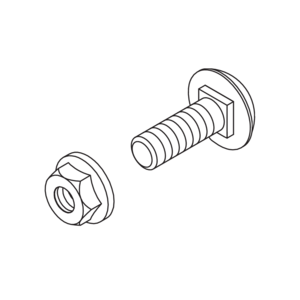

Included accessories
