Art.-Nr. MP-G90 50F

Assembly plate MP-G 50F

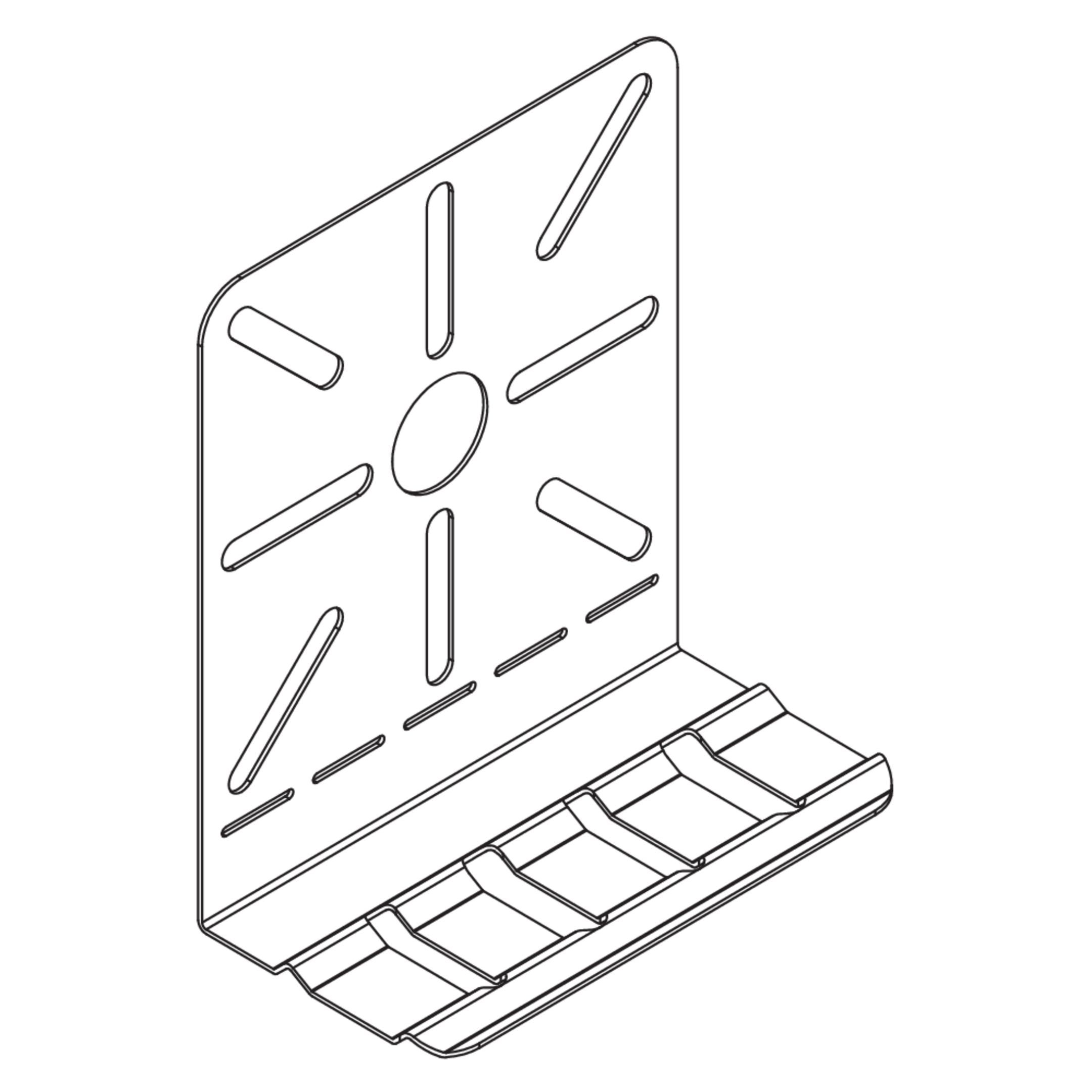

Mounting plate 90°

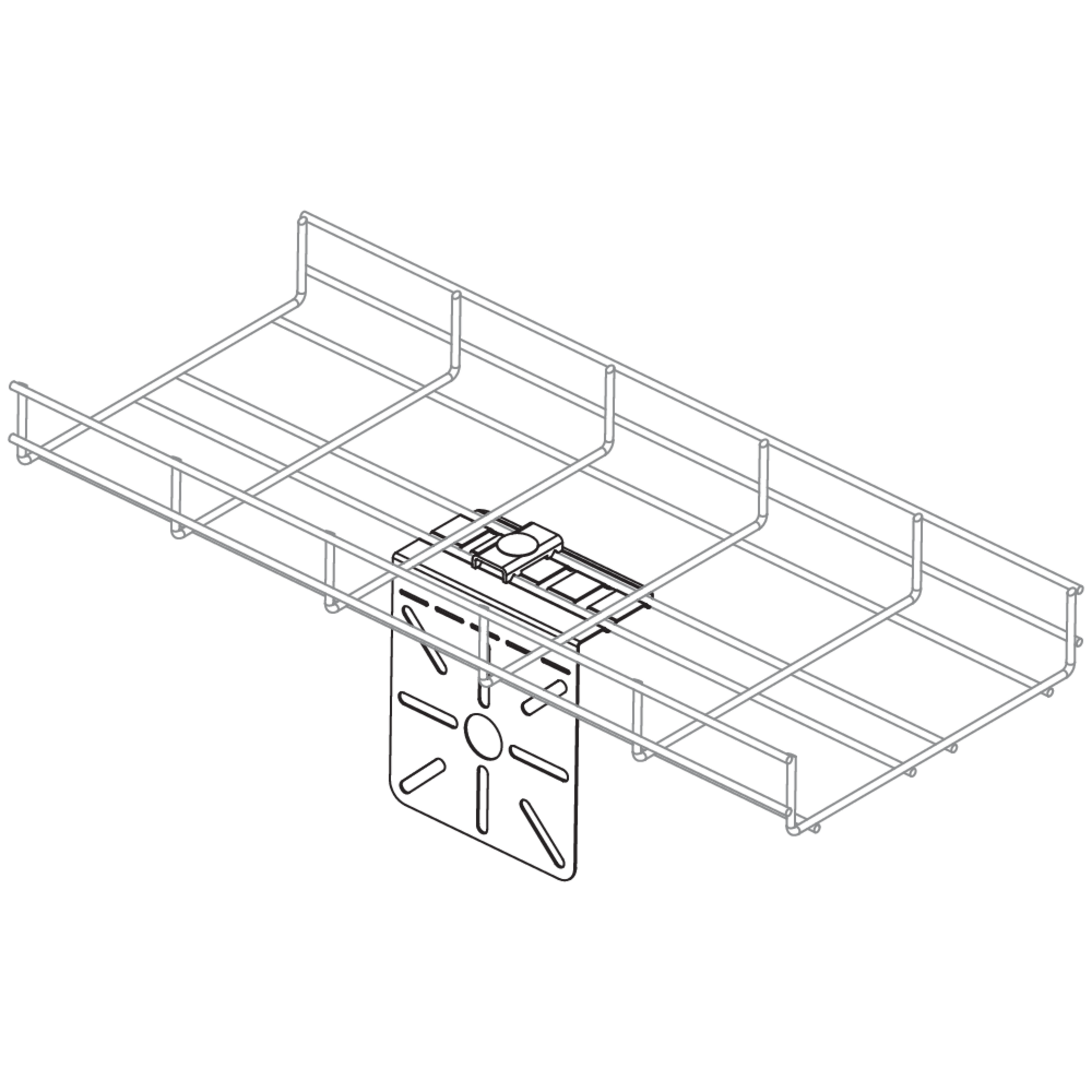

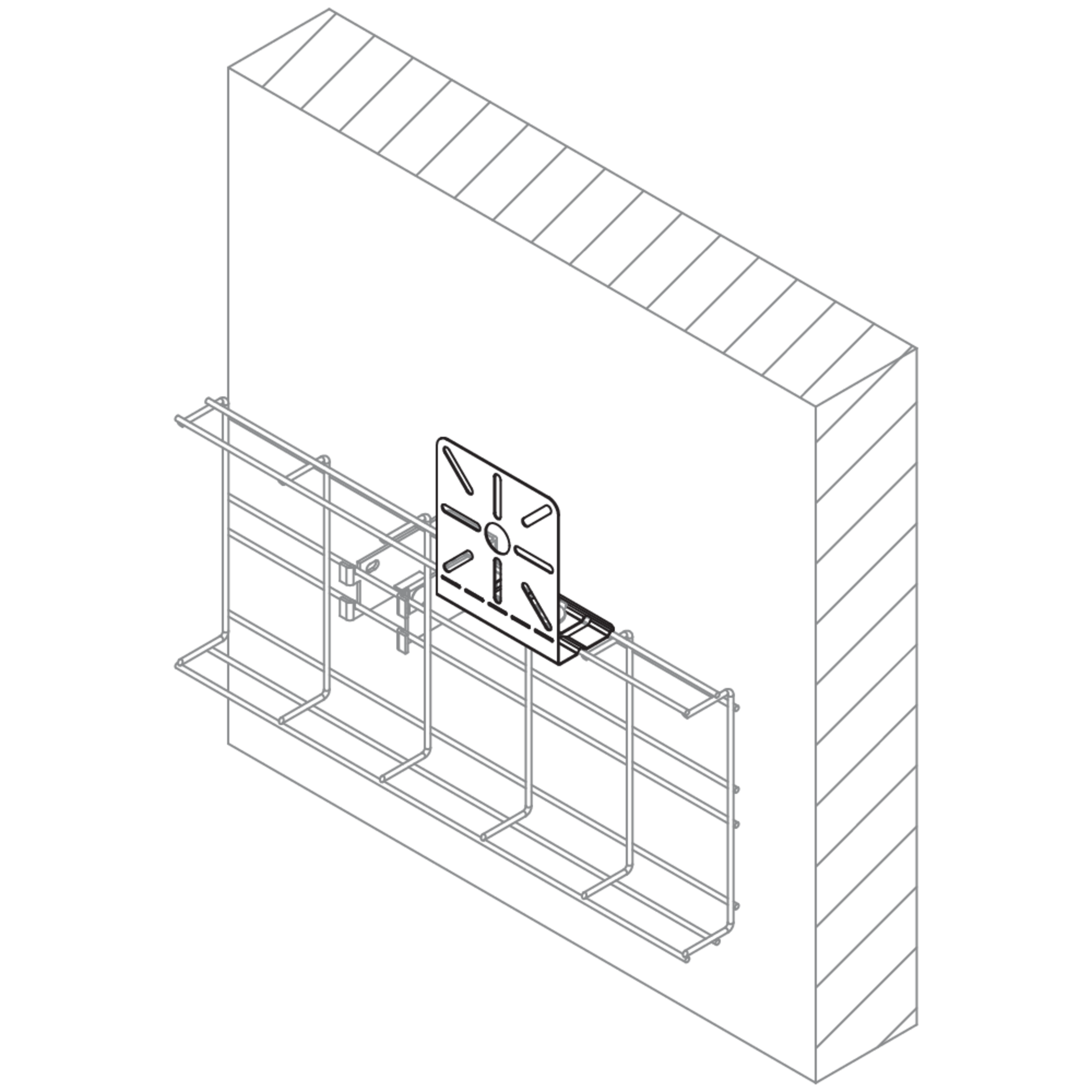

The mounting plate MP-G90 can be used e.g. to attach junction boxes to mesh cable trays. The panel itself is mounted on the mesh cable tray with the mesh cable tray connector GV 30. Additional mounting solutions are possible thank to the 90° angled fastener. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Art.-Nr.
MP-G90 50F
height
139 mm
width
120 mm
length
61 mm
material thickness
1.00 mm
Weight per storage unit
0.206 kg
Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

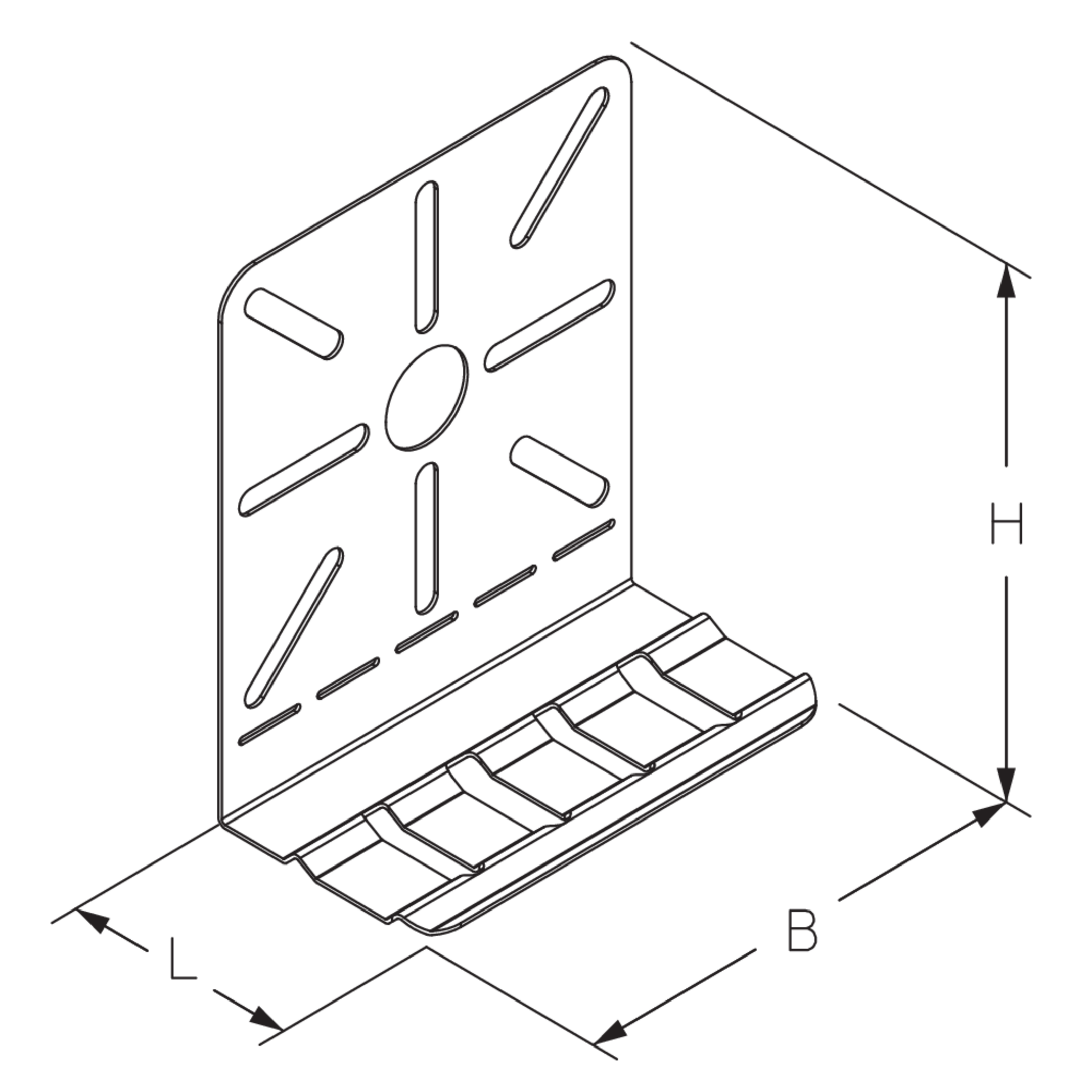

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

  • MP-G90 50S
    Assembly plate MP-G 50S
    height
    139 mm
    width
    120 mm
    length
    61 mm
    material thickness
    1.00 mm
    Weight per storage unit
    0.195 kg
    Included accessories
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

  • MP-G90 50F
    Assembly plate MP-G 50F
    height
    139 mm
    width
    120 mm
    length
    61 mm
    material thickness
    1.00 mm
    Weight per storage unit
    0.206 kg
    Included accessories
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

  • MP-G90 50E4
    Assembly plate MP-G 50E4
    height
    139 mm
    width
    120 mm
    length
    61 mm
    material thickness
    1.00 mm
    Weight per storage unit
    0.195 kg
    Included accessories
    More information
