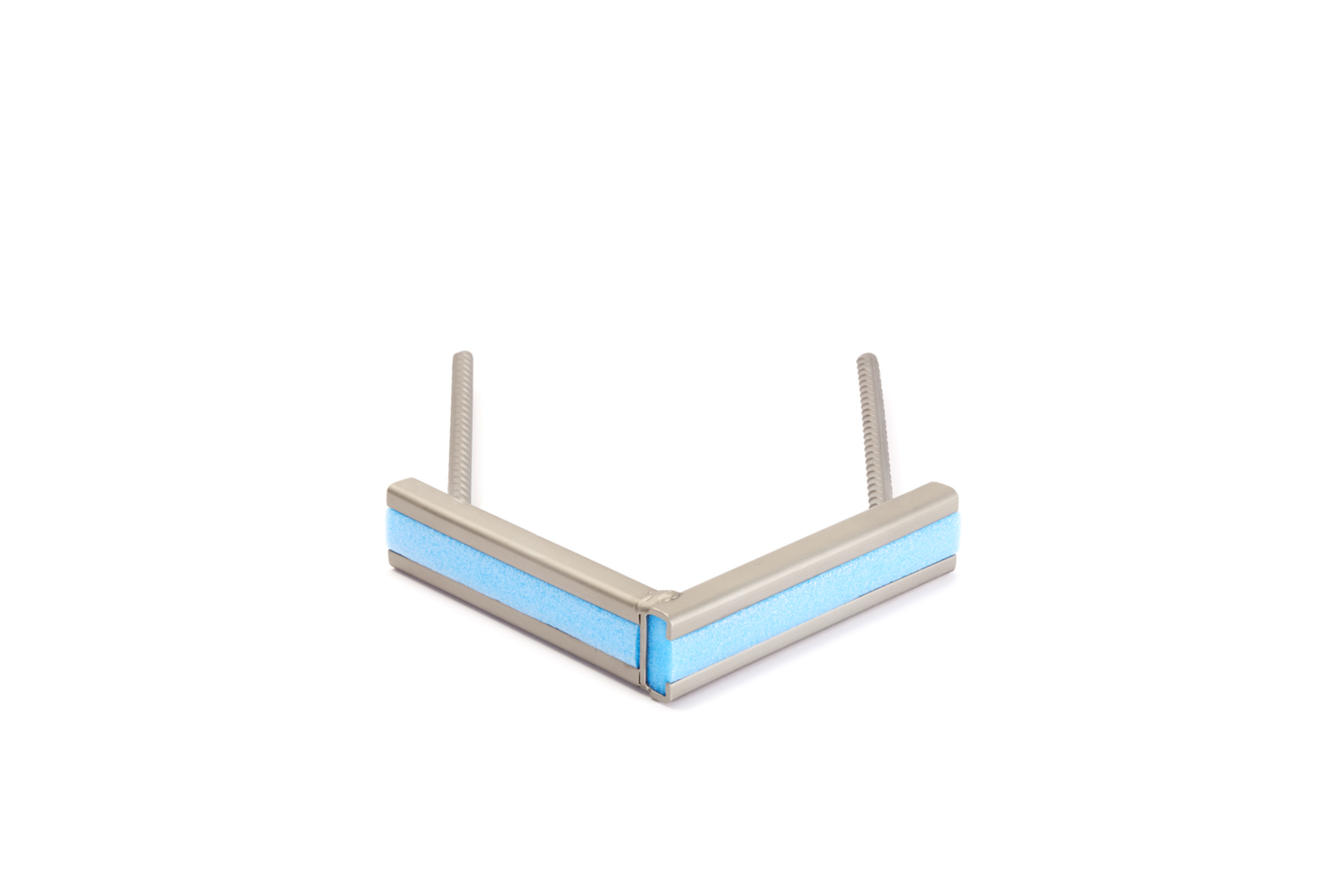

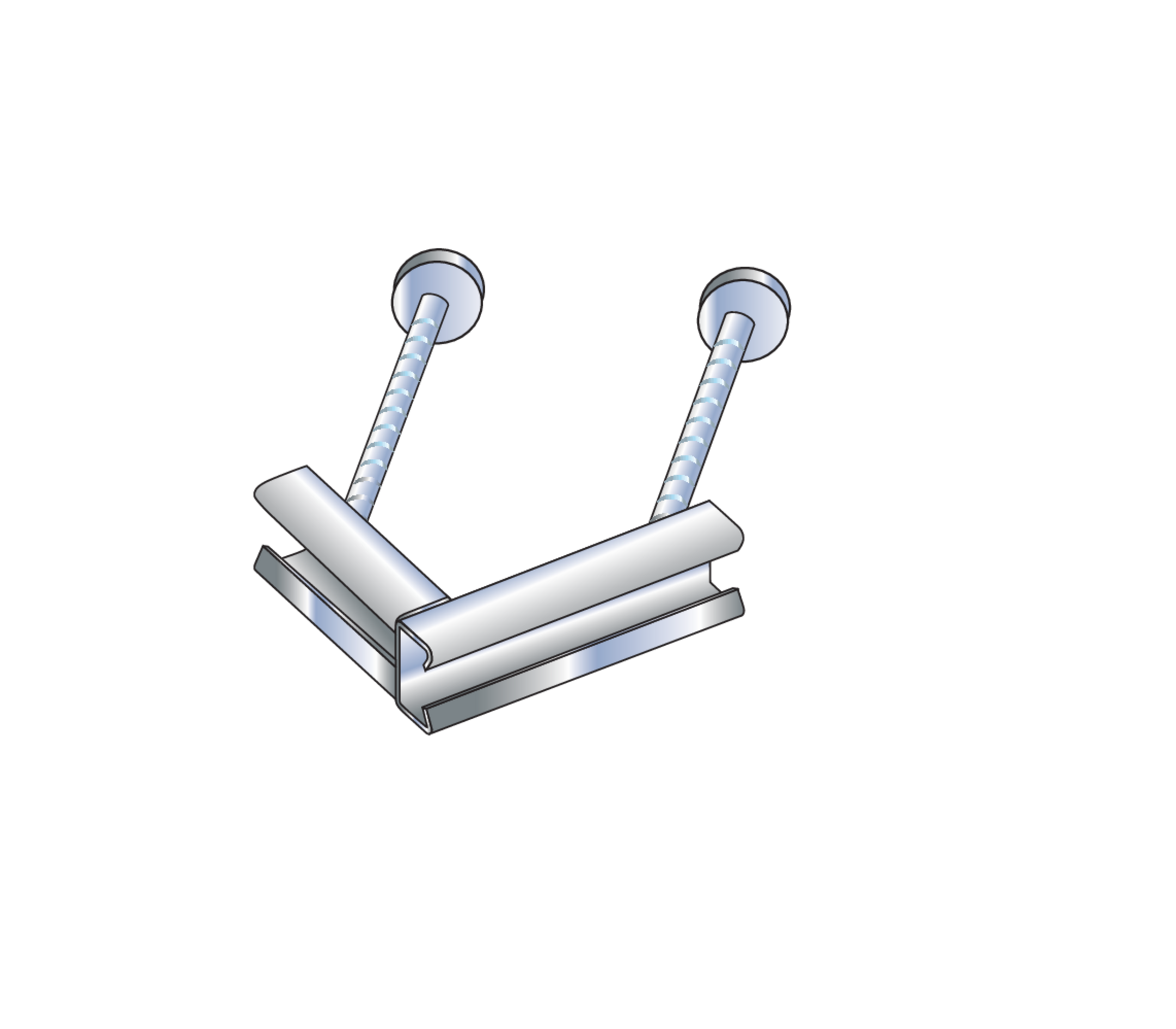

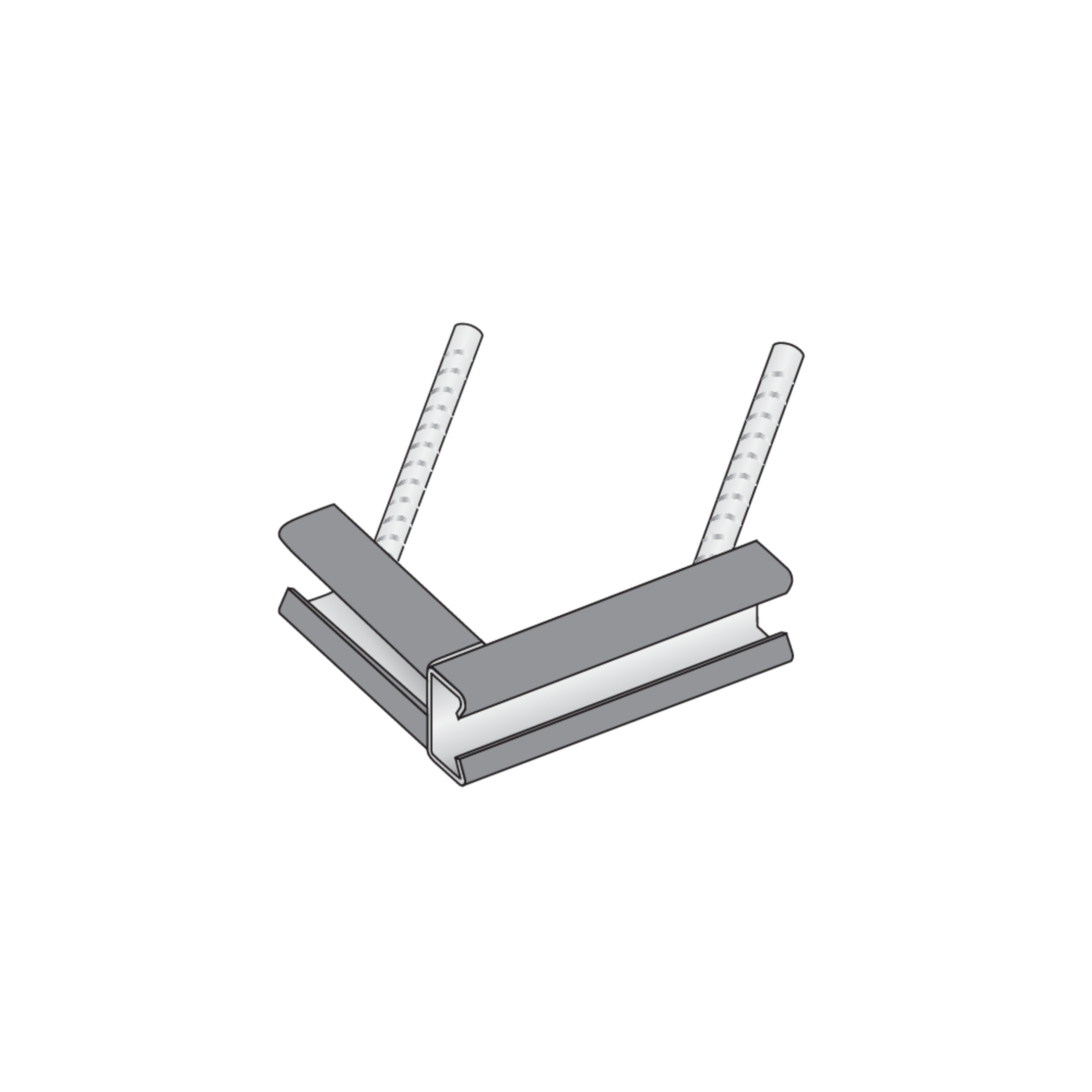

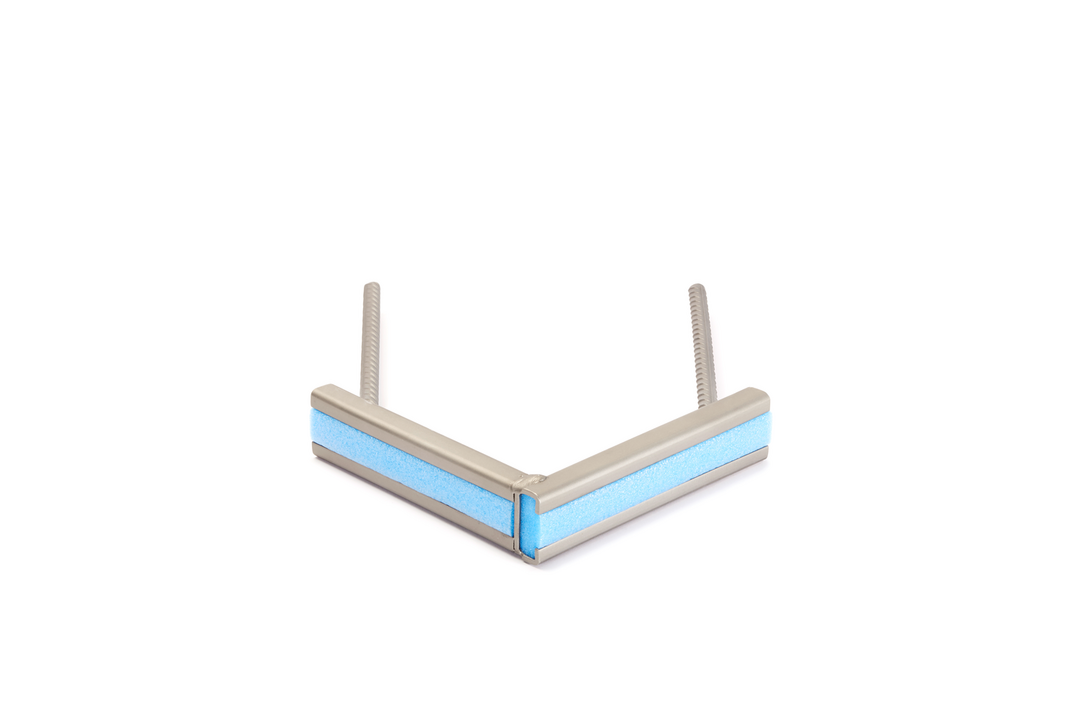

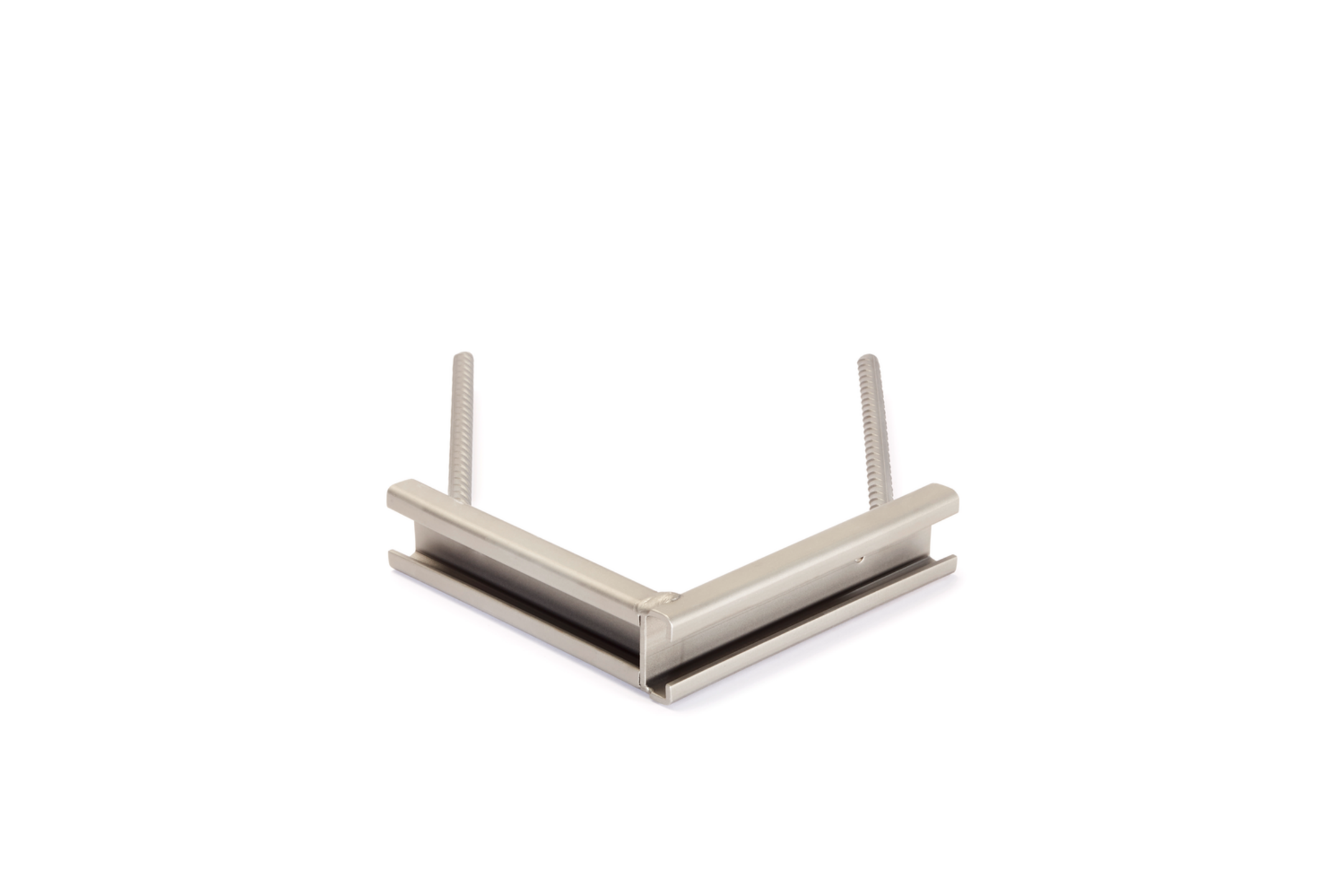

JGB K 38/17 Corners

The railing fastening channel JGB K 38/17 Corners is made of hot-dip galvanised steel (fv) for indoor use or stainless steel (A4) for outdoor use. The railing fastening channel has a static load-bearing capacity of the normal force (NRd) of kN and transverse force (VRd) of kN. It is available in lengths of 100 to 250 mm and is paired with the bolts JH M12 - JH M16. The profile is 38 mm wide and 17 mm high. The filling is made of polyethylene (PE).

Get in touch Download datasheet

Variants

steel, batch/hot-dip galvanized

GBK3817-EG170 FVK
JORDAHL railing fastening corners K38/17

17 mm

38 mm

170 mm

3 mm

2 pcs

0.900 kg

More information

Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11

GBK3817-EG170 A4K
JORDAHL railing fastening corners K38/17

17 mm

38 mm

170 mm

3 mm

2 pcs

0.829 kg

More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link

Heinze.de

Tender text for this product

Open Link

Matching Screws

Downloads

Price list 2025 Shell construction / facade

Valid from February 1, 2025

PDF, 18 MB

de en
Technical information Channels and Accessories

Technical information

PDF, 14 MB

de en
Installation Instruction Railing Attachment JGB

Montageanleitung

PDF, 2 MB

de
Download
General building approval Z-21.4-1913 Railing Attachment JGB

Zulassung

PDF, 2 MB

de
Download

BIM- and CAD-Data

CAD Details Railing Fastening JGB

ZIP, 3 MB

de en

Included accessories
